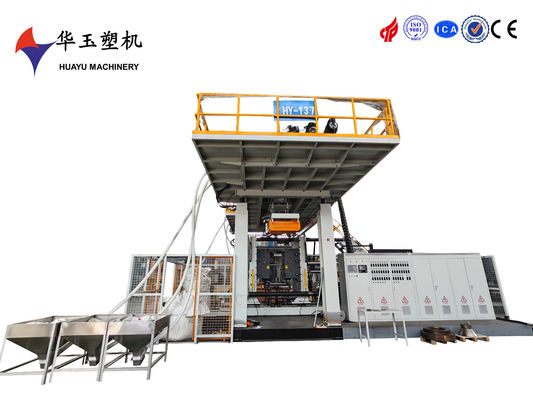

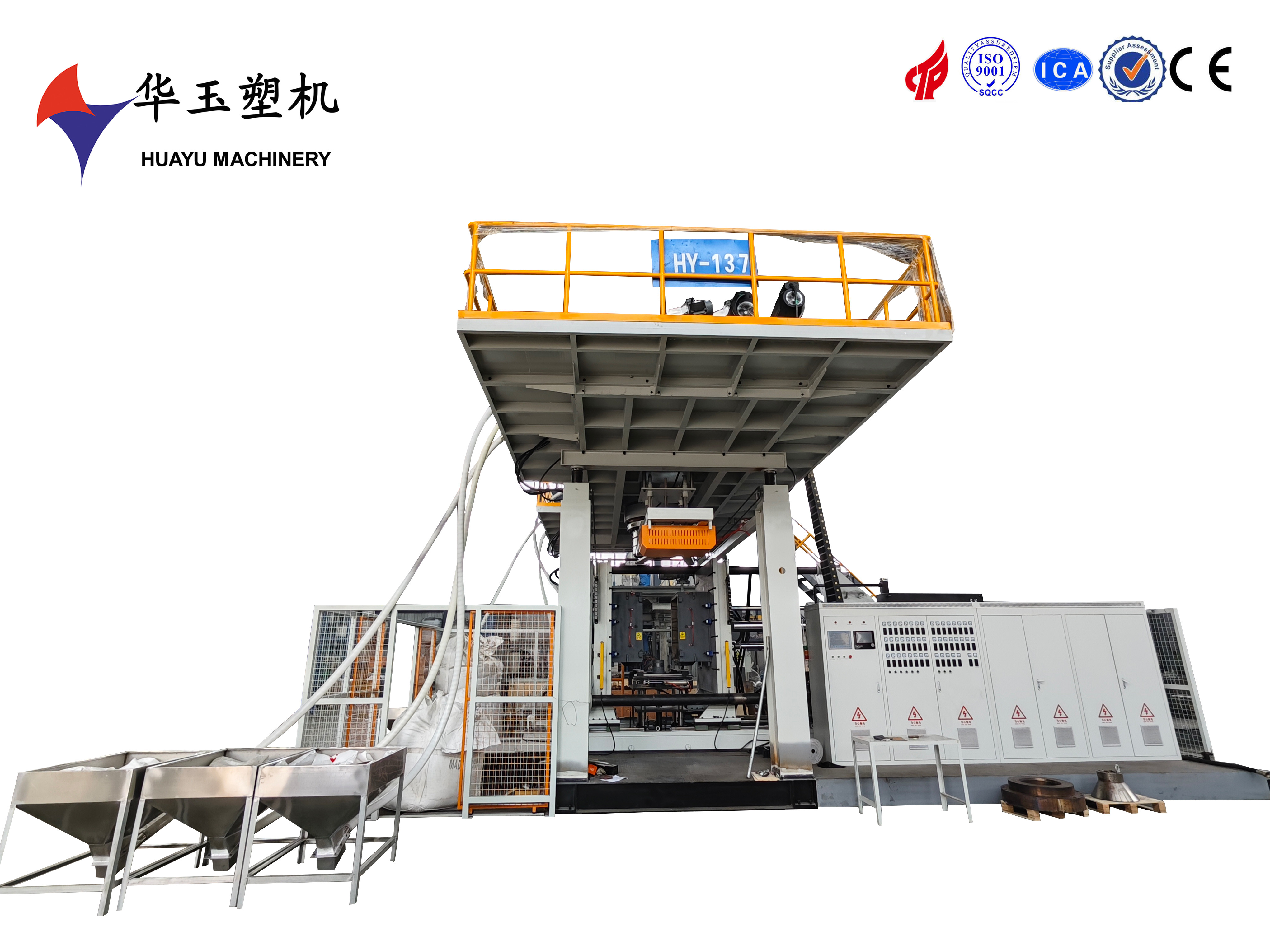

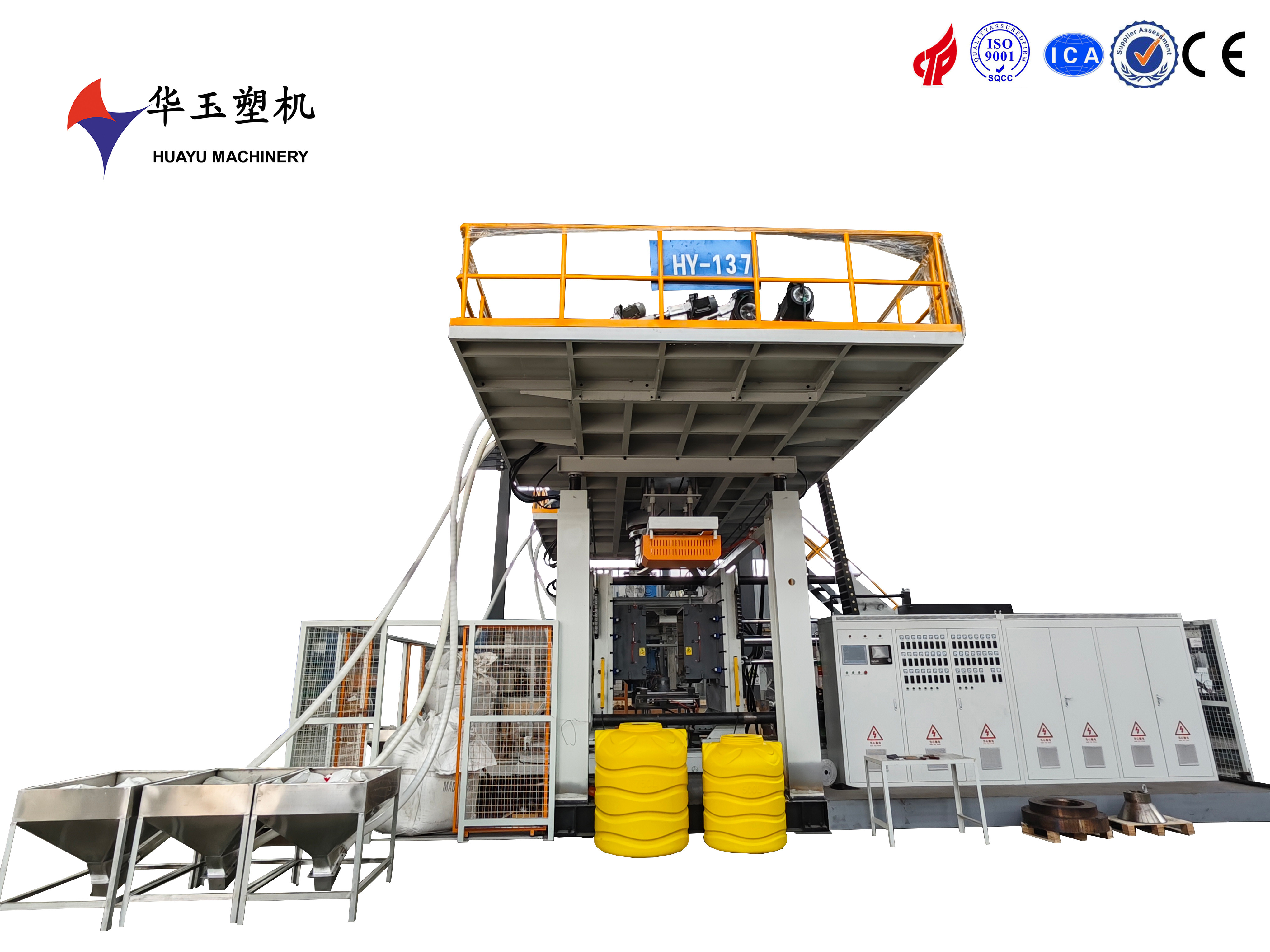

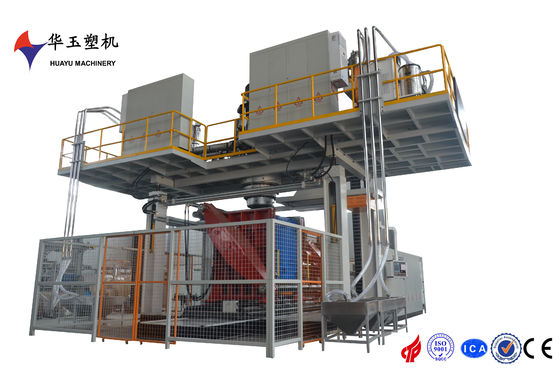

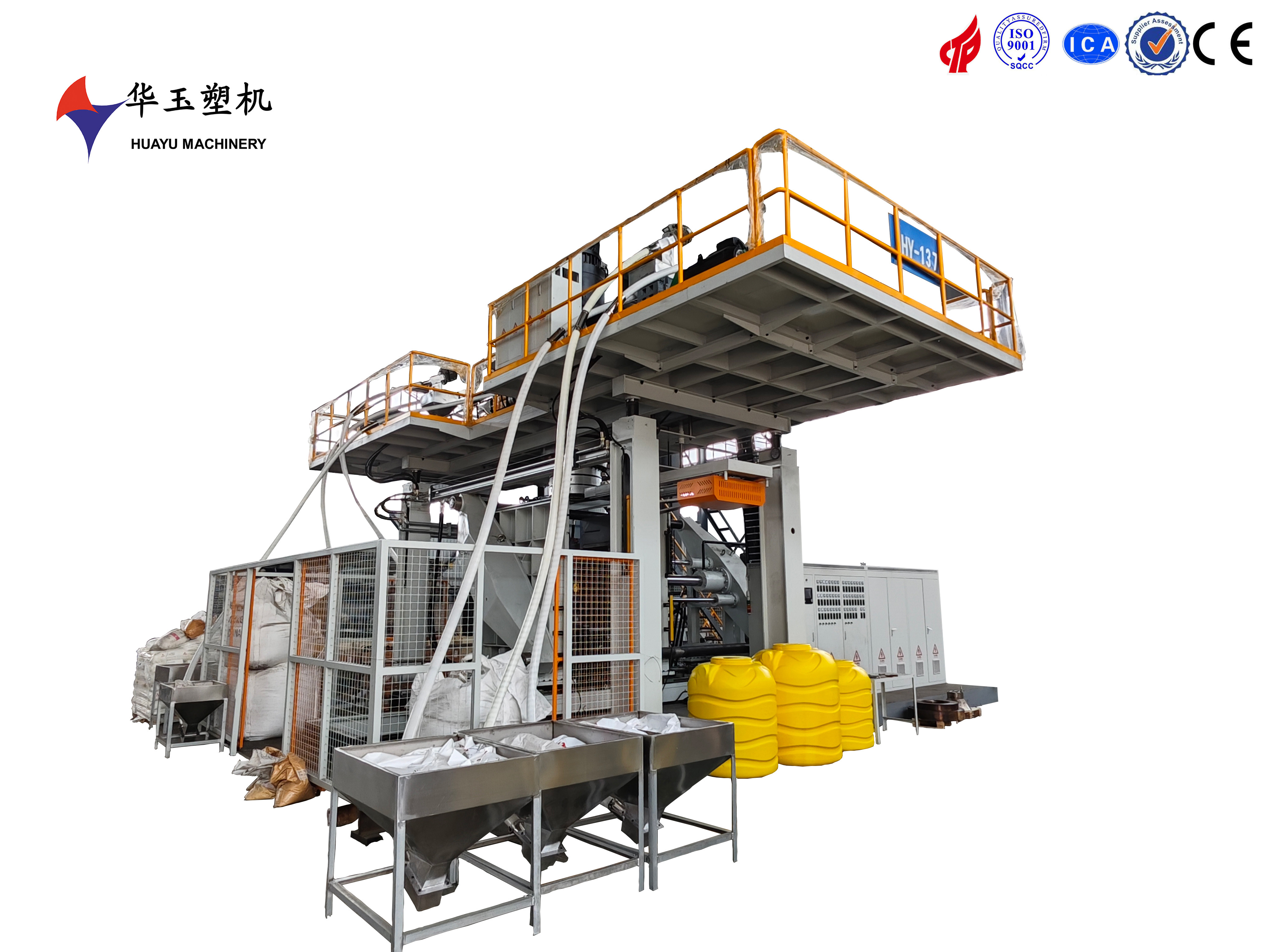

HUAYU2000L-5 Blow Moulding Machine for Large Plastic Containers
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HY2000-5 |
| Minimum Order Quantity | 1 SET |
| Price | 280000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Dimension | 9.5*5.4*5.6m | Clamping Force | 2200KN |
|---|---|---|---|
| Condition | New | Feeding Type | Vacuum Loaded |
| Automatic | Yes | Voltage Range | 220V/380V/415V/440V |
| Plasticizing Capacity | 900kg/h | Screw Material | 38CrMoAlA，Nitriding |
| Accumulator Capacity | 35kg | Showroom Location | None |
| Power Source | Electric | Application Field | Liquid Packaging |
| Hydraulic Valve | Yuken | Plc | SIMENS(Germany) |
| Max Volume | 10-25L | ||
| Highlight | large plastic container blow moulding machine,water tank blow moulding equipment,HUAYU2000L-5 blow moulding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
The HUAYU2000L-5 Blow Moulding Machine is built for high-speed production of large plastic containers. With advanced automation and precision engineering, it delivers exceptional output volumes with minimal cycle times, ensuring consistent product quality and uniform wall thickness.
|
Hydraulic system |
||
|
main oil tank capacity |
1200L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump160CC |
|
|
main oil pump motor |
45kw |
|
|
Servo oil tank capacity |
200L |
|
|
Servo oil pump model |
Plunger pump22 |
|
|
Servo oil pump motor |
7.5kw |
|
|
Electronic system |
||
|
Main operation panel |
Touch screen 9" |
|
|
Control system |
PLC |
|
|
Thickness control points |
100 points |
|
|
Temperature control |
PLC module |
|
|
main frame |
||
|
Up/down stroke |
500mm |
|
|
Up/down motor |
2.2kw |
|
