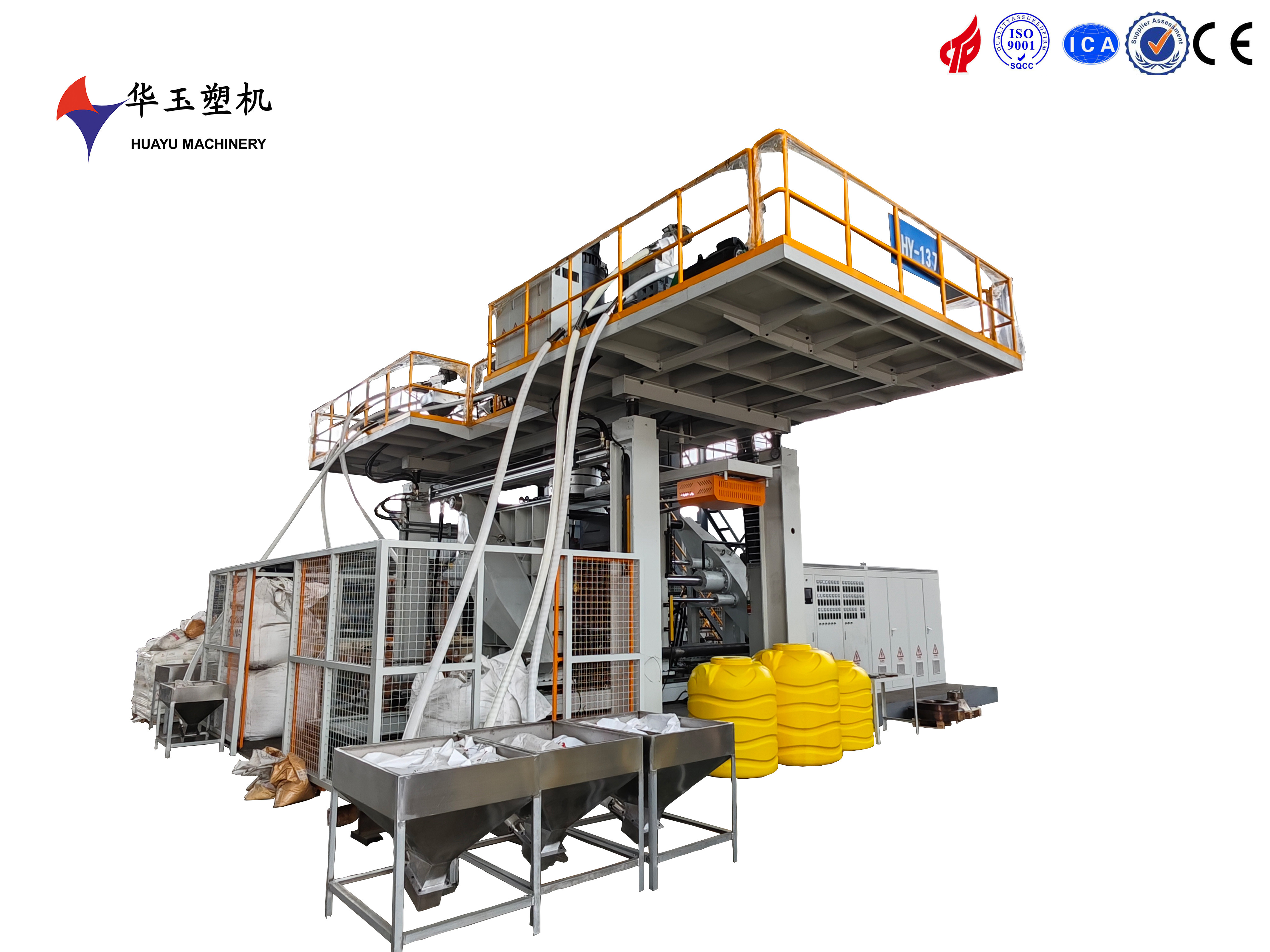

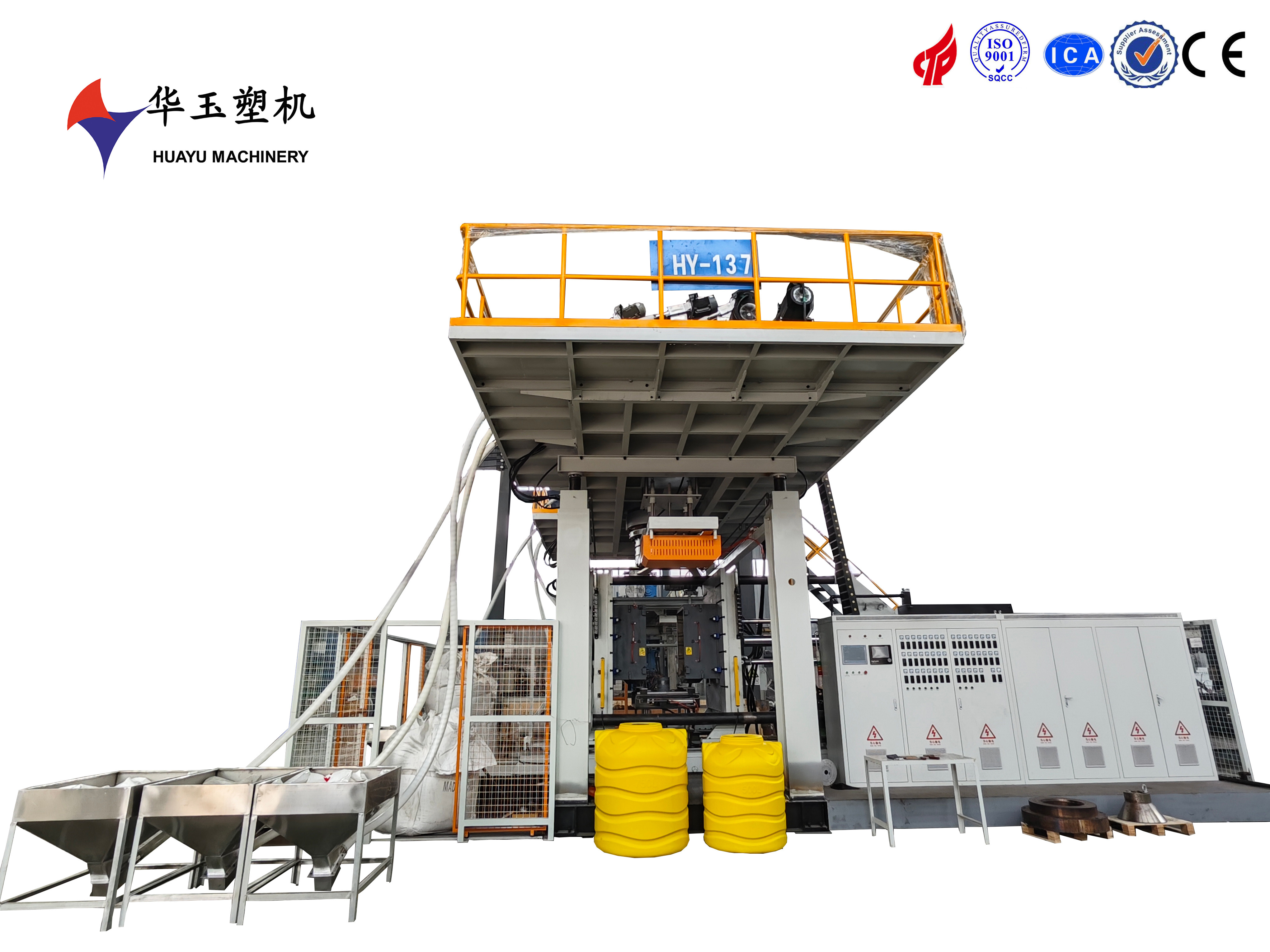

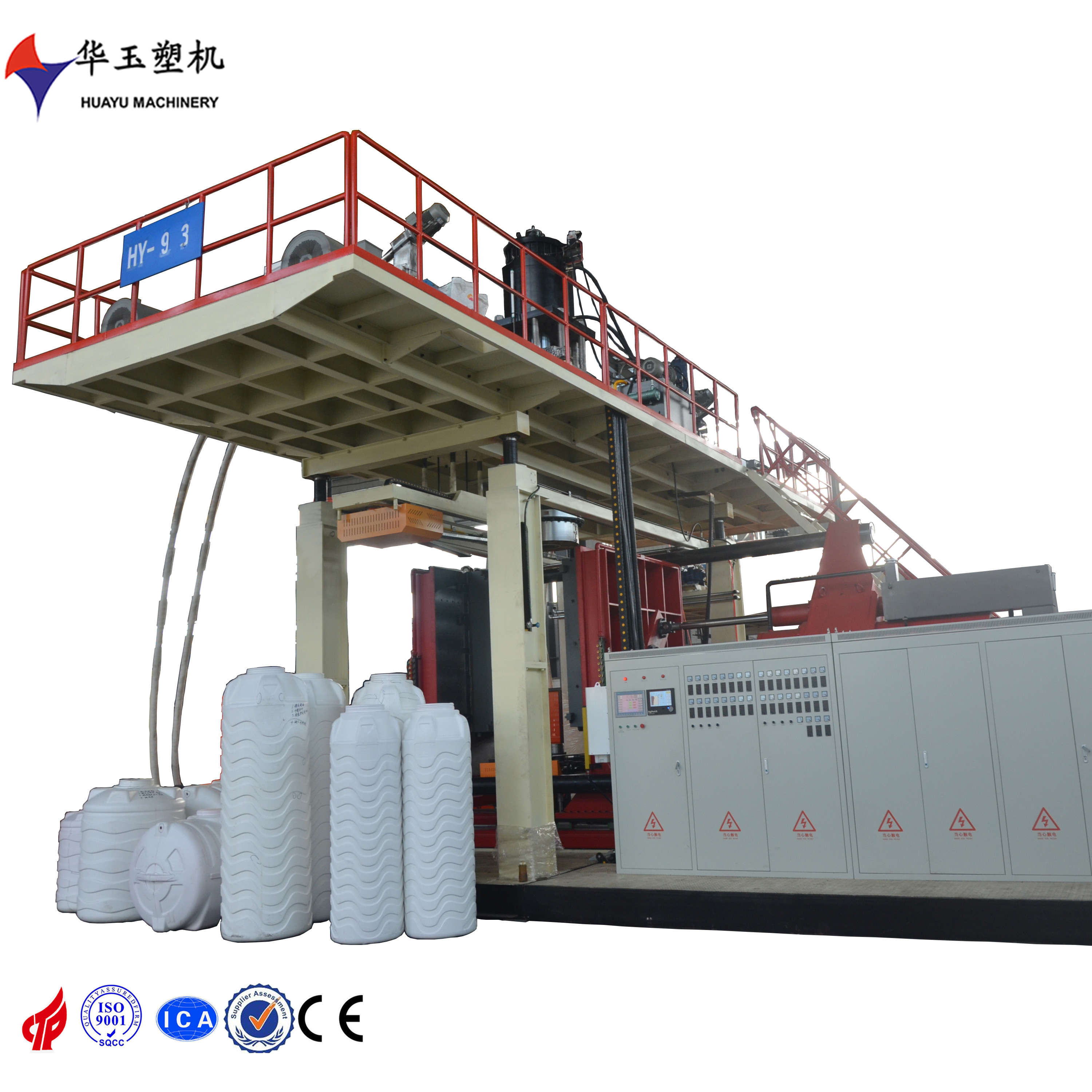

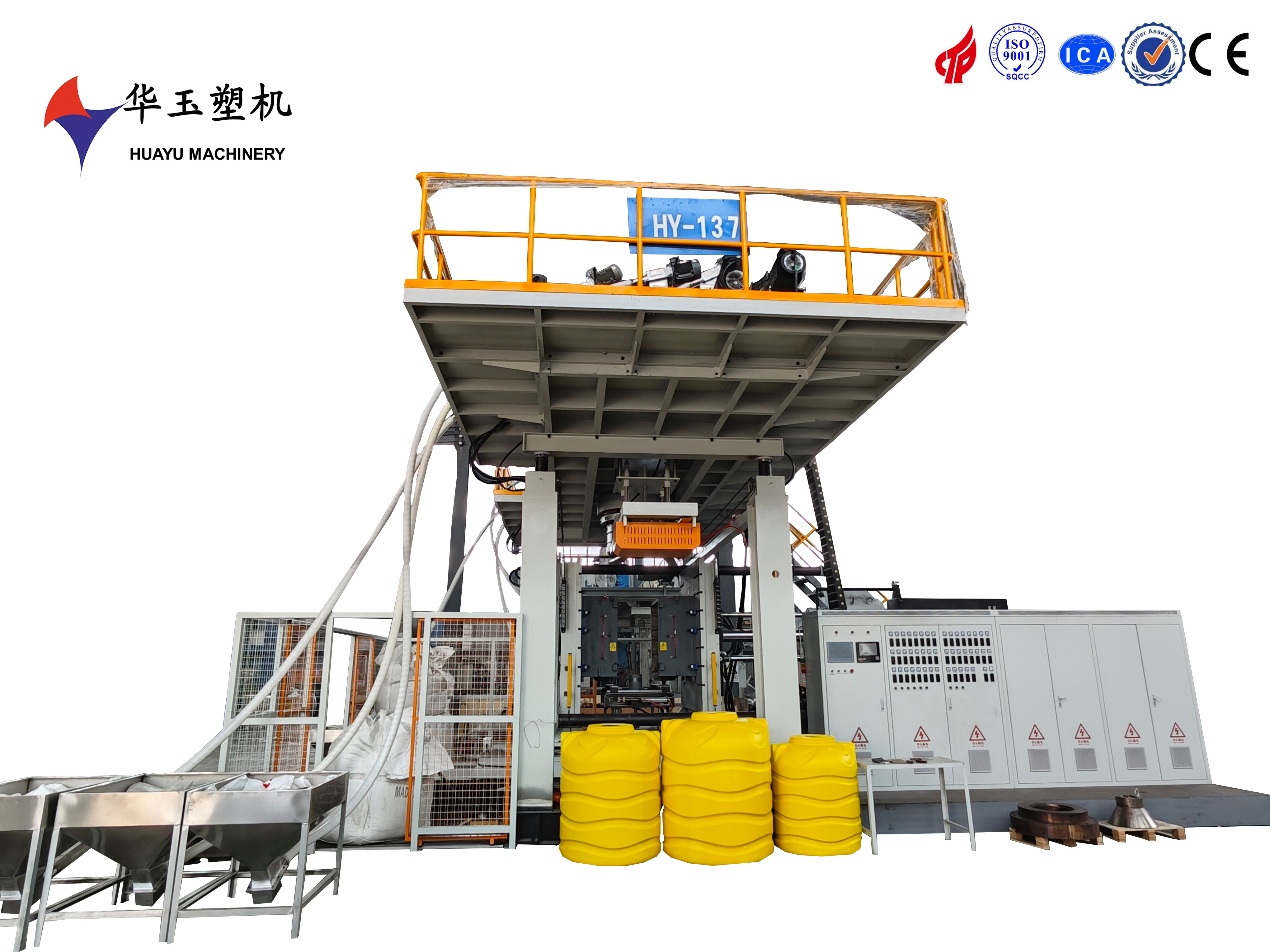

HUAYU3000L-6 Blow Moulding Machine for Plastic Drum Manufacturing
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HY3000-6 |
| Minimum Order Quantity | 1 SET |
| Price | 430000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Platen Distance | 2300-5500MM | Servo Valve | MOOG |
|---|---|---|---|
| Blowing Type | Extrusion Blow Moulding | Touch Screen | Siemens |
| Automation Grade | Automatic | Plastic Processed | PE,HDPE |
| Year | 2024 | Hopper Material | Stainless Steel |
| Voltage | 220-240V | Distance Between Platens | 1400-3800mm |
| Plasticizing Capacity | 1600kg/h | Accumulator Capacity | 60kg |
| Mold Material | Aluminum | Use | Water Tank |
| Intermediate Relay | Schneider | ||
| Highlight | plastic drum blow moulding machine,water tank blow moulding equipment,HUAYU3000L-6 plastic manufacturing machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
The HUAYU3000L-6 Blow Moulding Machine is designed with precision engineering, making it ideal for large-scale plastic drum manufacturing. It features high-speed production and energy-efficient technology, ensuring consistent product quality and dimensional stability.
|
extruders |
Processing material |
HDPE |
|
|
Screw diameter(internal) |
100mm |
|
|
Screw diameter(middle layer) |
100mm |
|
|
Screw diameter(middle layer) |
100mm |
|
|
Screw diameter(middle layer) |
100mm |
|
|
Screw diameter(outer layer) |
100mm |
|
|
plasticizing capacity |
800kg/ h |
|
|
L/ D |
28:1 |
|
|
Gear box type |
280 |
|
|
Extruder drive motor (inner) |
55kw |
|
|
Extruder drive motor (middle) |
55kw |
|
|
Extruder drive motor (middle) |
55kw |
|
|
Extruder drive motor (middle) |
55kw |
|
|
Extruder drive motor (outer) |
55kw |
|
|
Heating load |
4.4KW*20 |
|
|
Max screw speed |
50r/min |
|
Die head |
accumulator capacity |
120KG |
|
|
Pusher cylinder |
|
|
|
Heating load |
110kw |
|
|
Parison control cylinder |
|
|
|
Die-core size |
According to products |
|
|
Inverter |
55kw |
|
|
Max parison weight |
90KG |
|
Moulding clamping unit |
Clamping platen size |
2200*2400*70mm |
|
|
Max mold size |
1700*2200mm |
|
|
Mould clamping force |
2200KN |
|
|
Mould thickness |
1100~3500mm |
|
Stretching and blowing unit |
Stretching stroke |
According to products |
|
|
Vertical stroke max |
600mm |
|
Electrical control pannel |
Thickness controller |
MOOG 200 Points |
|
|
Main operation panel |
12" Siemens |
|
|
Die head control temperature control |
Siemens module |
