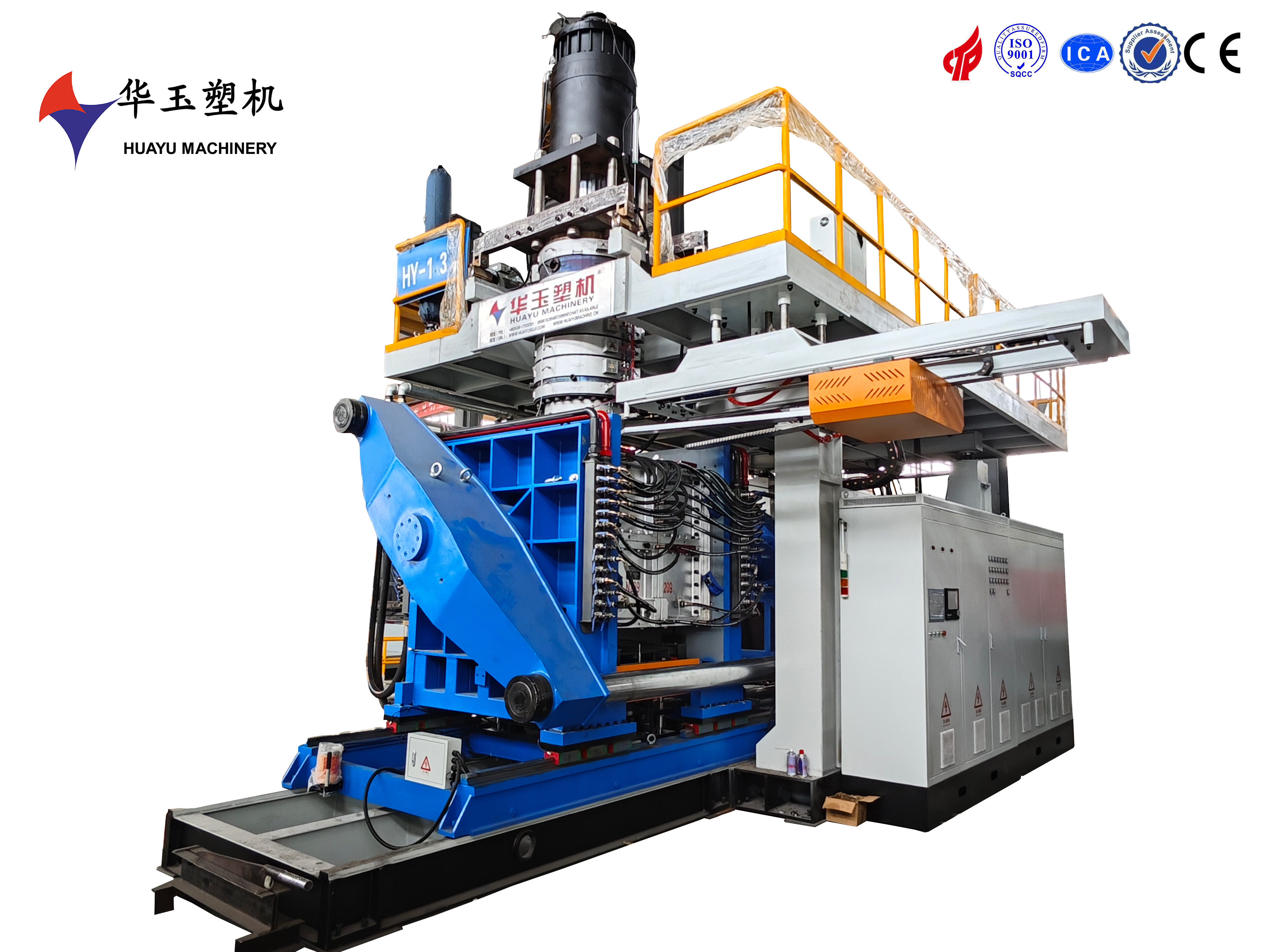

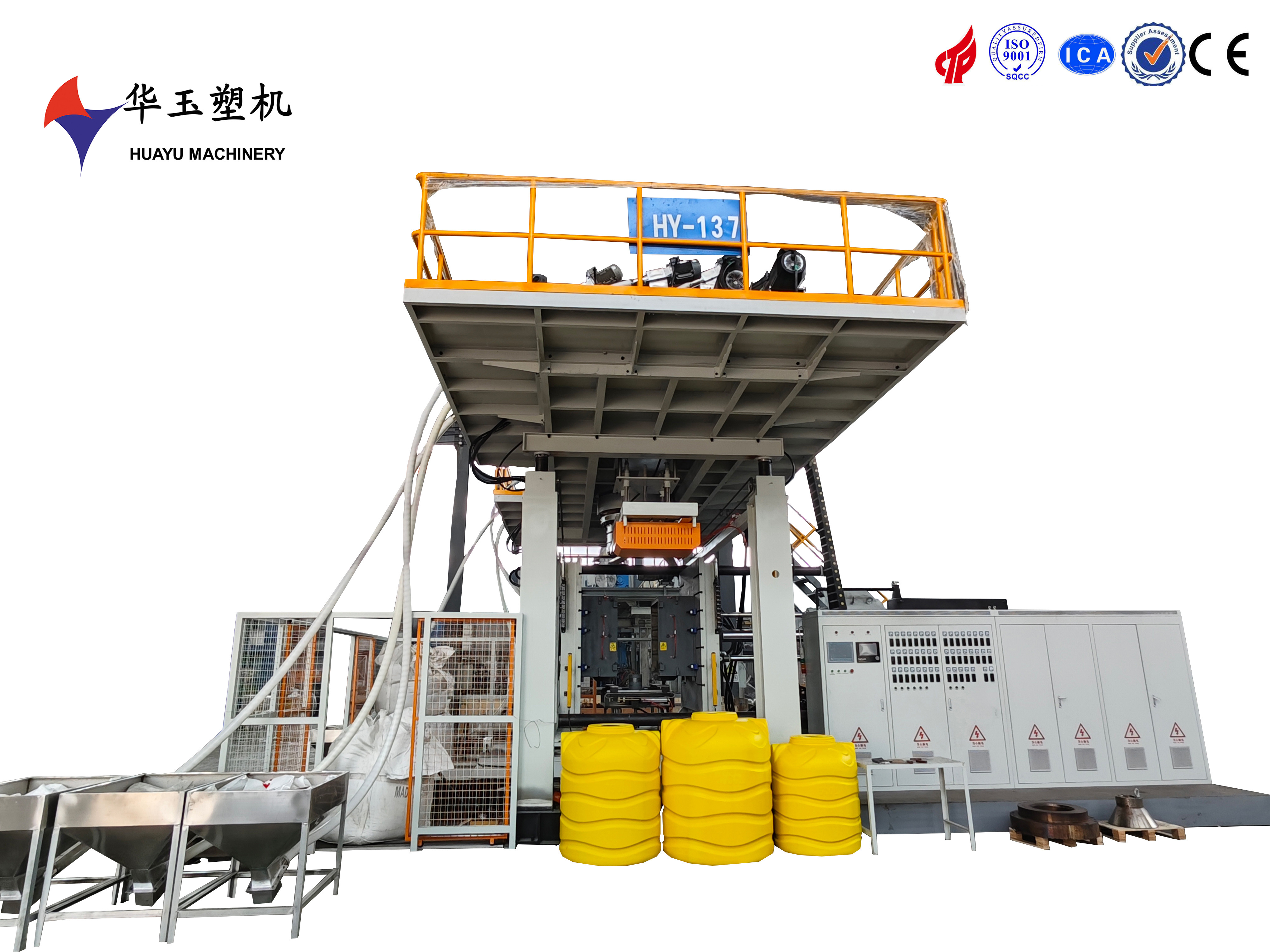

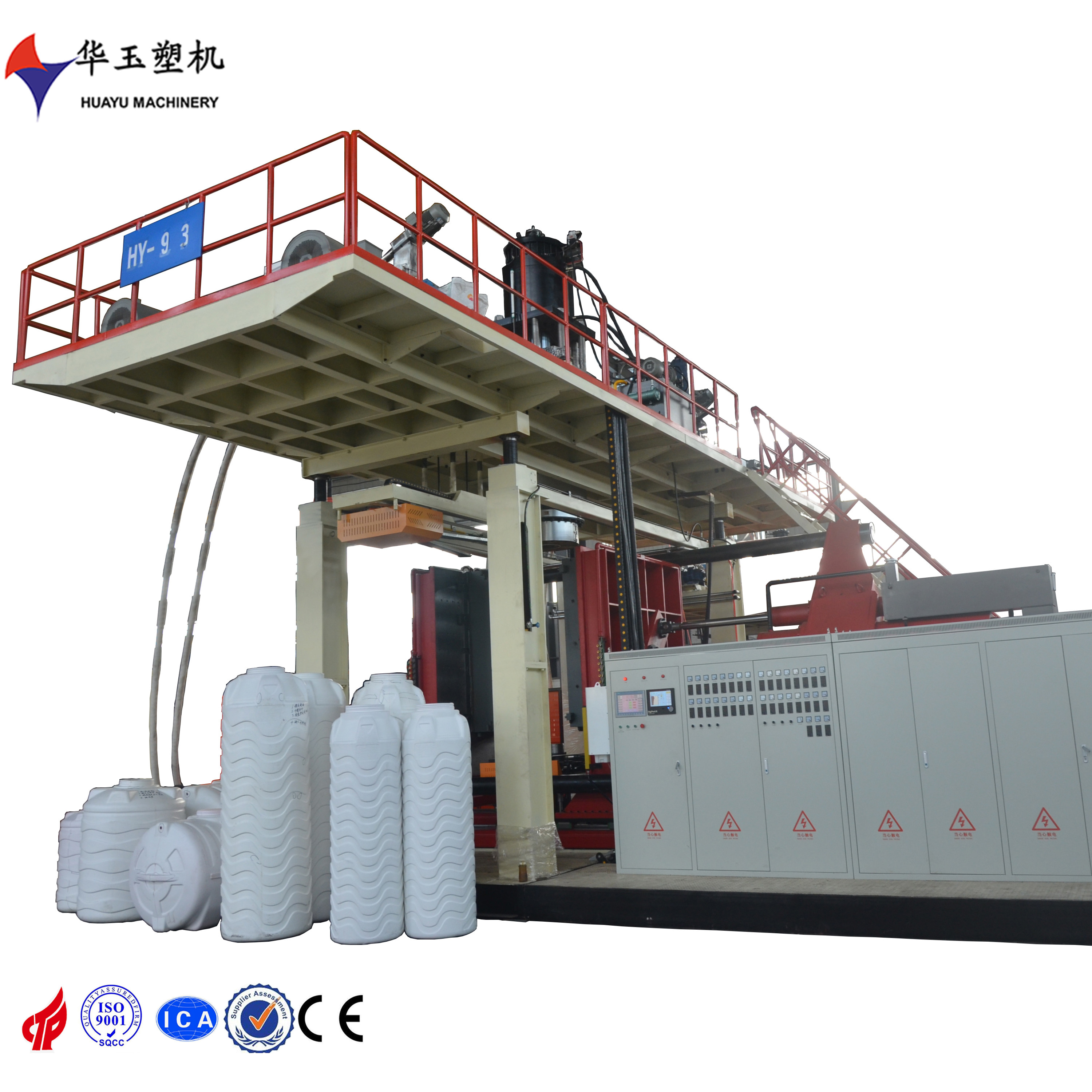

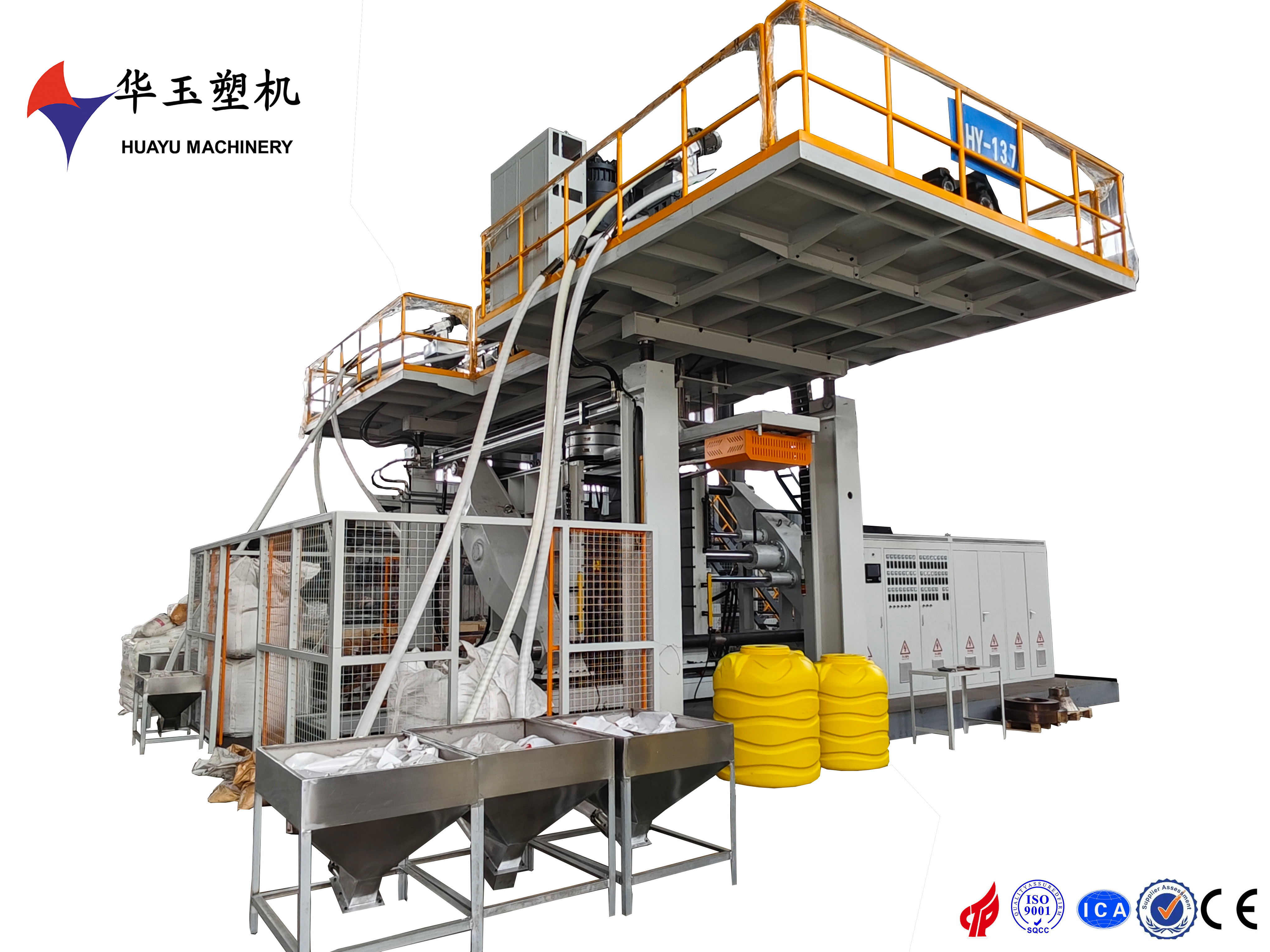

HUAYU 2200L-8 Blow Moulding Machine for Heavy-Duty Plastic Manufacturing
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HY2200-8 |
| Minimum Order Quantity | 1 SET |
| Price | 320000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120 DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature Control | PLC Module | Control System | PLC |
|---|---|---|---|
| Air Supply | 0.8*6(Mpa*Cubic Meter Per Minute) | Product Type | Blow Moulding Machine |
| Hollow Part Volume | 500-2000L | Max. Output | 100-150kg/h |
| Application | Water Tank Production | Motor | Siemens |
| Extrudor Motor | 110/90*2/15*3 | Accumulator Capacity | 35kg |
| Weight | 5000-8000kg | Air Consumption | 1.5m3/min |
| Clamping Cylinder | 320+160*2 | Power Avg | 26.5 KW |
| Product | Water Tank,other Plastic Product | ||
| Highlight | HUAYU 2200L-8 blow moulding machine,heavy-duty plastic manufacturing machine,water tank blow moulding equipment |
||
You can tick the products you need and communicate with us in the message board.
Product Description
The HUAYU2200L-8 Blow Moulding Machine is designed with durable construction, making it suitable for heavy-duty plastic manufacturing. It features advanced automation and energy-efficient technology, ensuring high precision and low operational costs.
|
Auto Feeder |
||
|
hopper material |
不锈钢stainless steel |
Stable performance, easy maintenance |
|
feeding type |
真空上料vacuum loader |
|
|
feeding motor |
11kw |
|
|
Extrusion System |
||
|
Screw diameter |
90mm*2 ,100mm*4 |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
28:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
45kw*2,55kw*4 |
|
|
Reducer |
ZLYJ-250*2, 280*4 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
4kw*24 |
|
|
Plasticizing capacity |
700kg/h |
|
