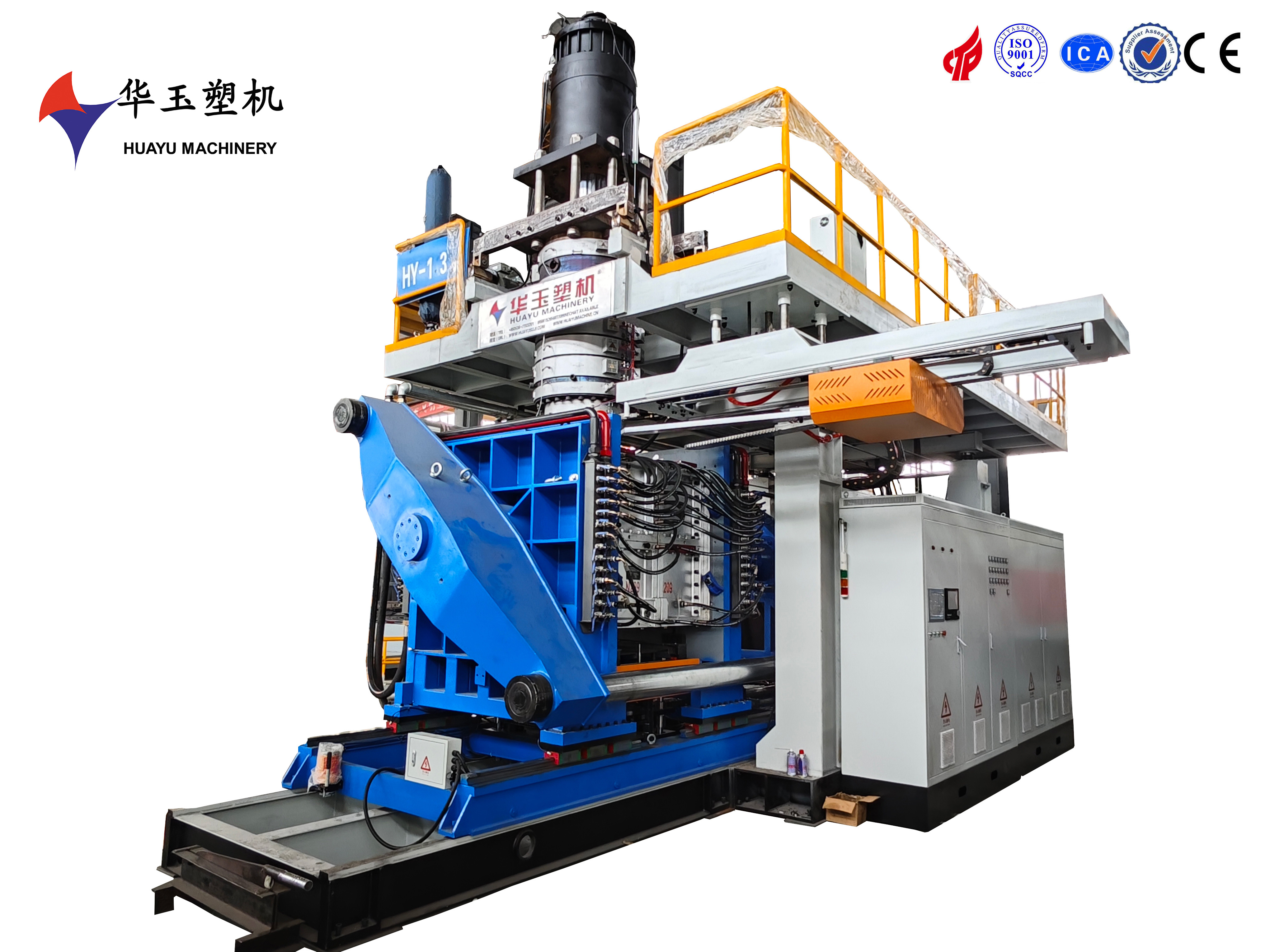

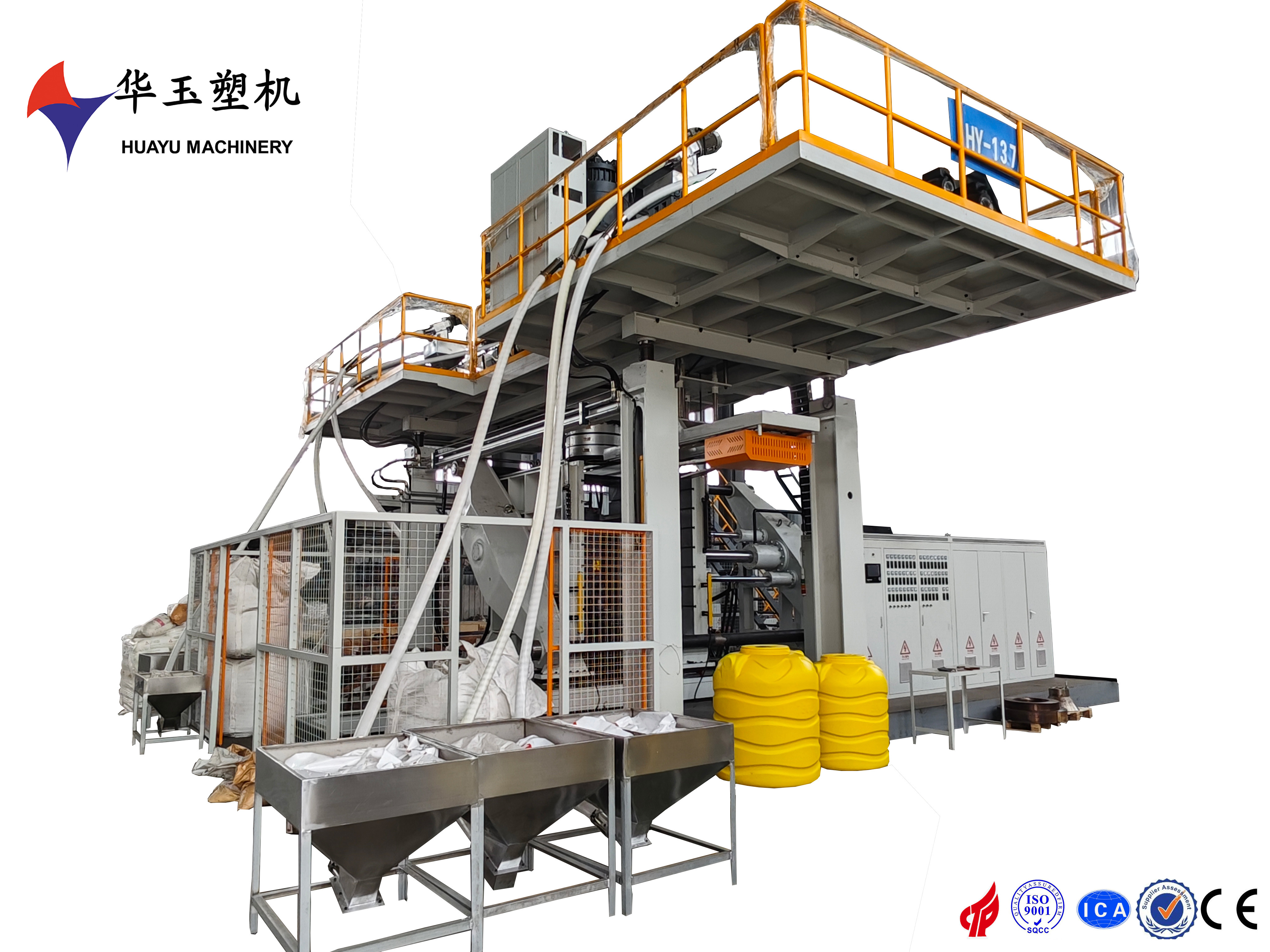

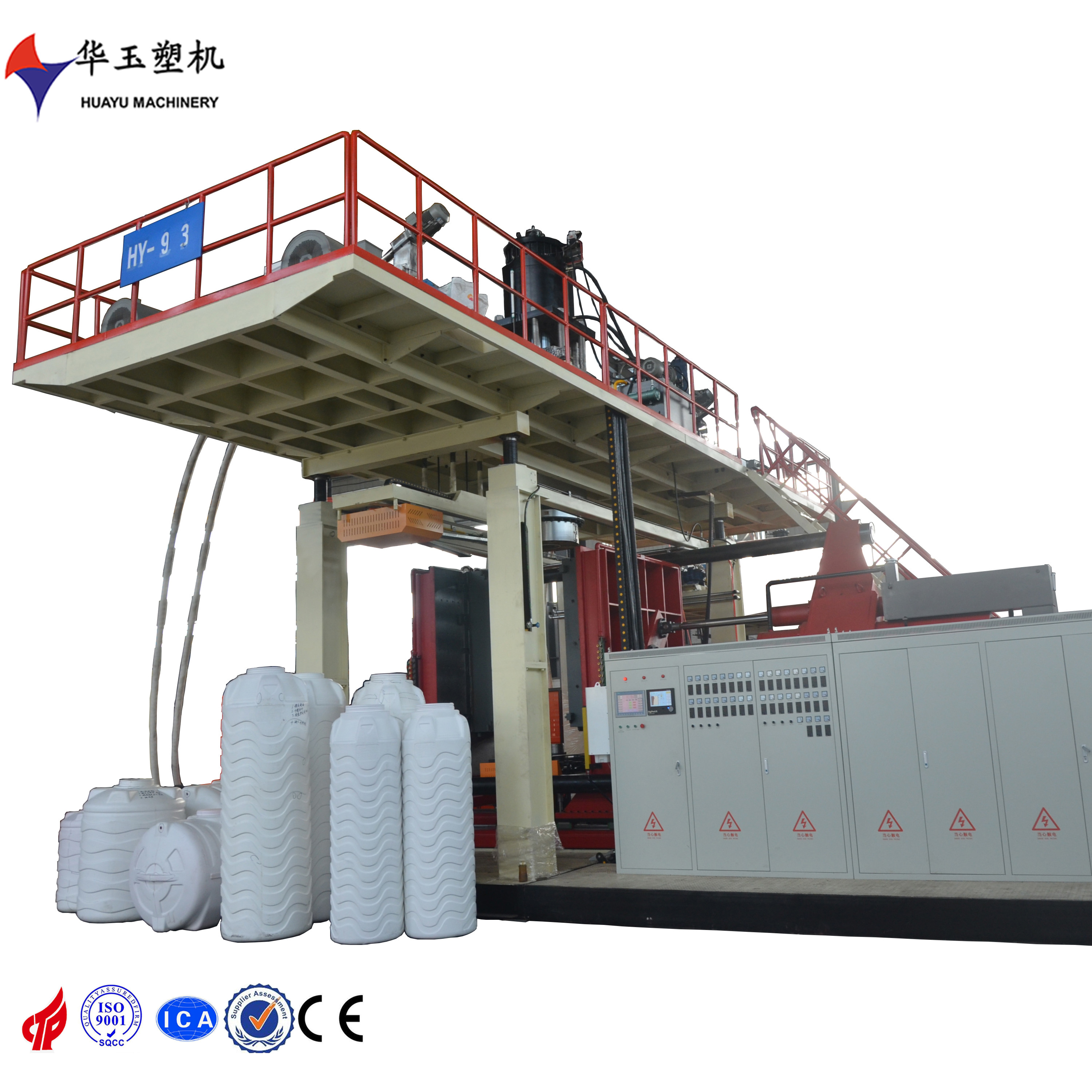

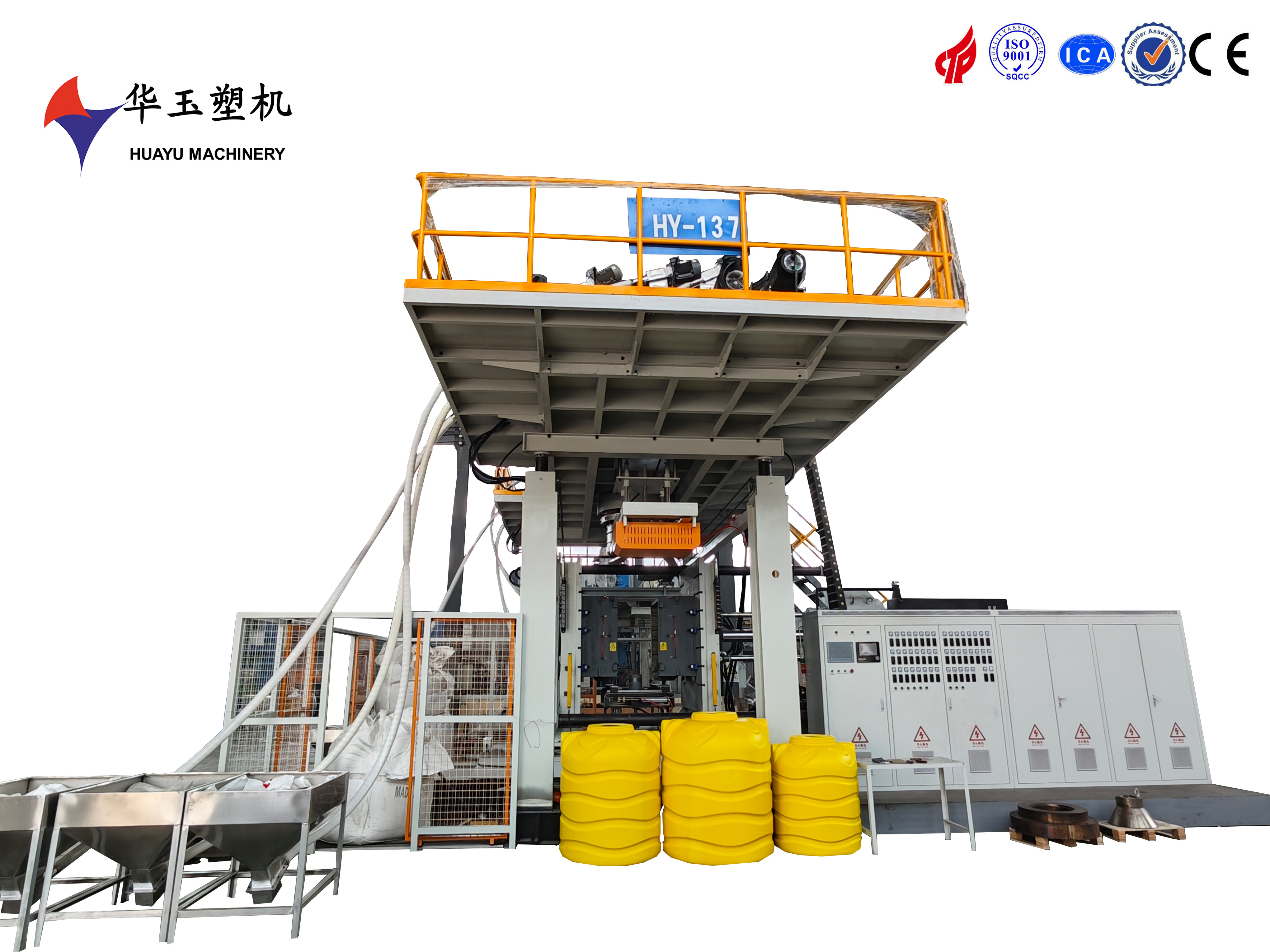

HUAYU1600L-9 Blow Moulding Machine for HDPE 500-2000L

Place of Origin CHINA
Brand Name HUAYU
Certification ISO9001, CE
Model Number HY1600-9
Minimum Order Quantity 1 SET
Price 320000 USD
Packaging Details be disassembled into many parts for container transportation
Delivery Time 4 MONTH
Payment Terms T/T,L/C
Supply Ability 1SET 120DAYS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accumulator Capacity 30KG Blow Moulding Type Extrusion Blow Moulding
Platen Size 1800*2000*70mm(W*H*T) Cleaning Method Easy Cleaning
Applicable Material HMWHDPE Color Customied
Extruder Motor 55/75/55kw Parison MOOG 200point
Feeder Type Vacuum Feeder Machine Dimension 12*7*7m
After Sales OVERSEAS SERVICE Mould Material Aluminum
Screw Dia 120MM Plastic Processed HDPE、PE
Recyclability Recyclable
Highlight

HDPE blow moulding machine

,

large water tank moulding machine

,

2000L blow moulding equipment

You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description

The HUAYU1600L-9 Blow Moulding Machine offers a low-maintenance design, making it ideal for continuous large-scale plastic production. It features advanced automation and energy-efficient technology, ensuring high precision and consistent product quality.

 Basic Specification

applicable material

HDPE


China·HUAYU

capacity range

500-2000L,10layers

total weight

68T

Voltage

Pending

total power

675kw

average power

370kw

Machine dimension (L*W*H)

12.6*10*7.5

productivity

10-24pcs/h

Auto Feeder

hopper material

stainless steel

Stable performance, easy maintenance

feeding type

vacuum loader

feeding motor

11kw

 Extrusion System

Screw diameter

90mm*2 ,100mm*4

Nitrided 38CrMoAIA

Screw L/D ratio

28:1

special designed screw  can ensure the material plasticizing uniform and efficient

Extruder motor

45kw*2,55kw*4



Reducer

ZLYJ-250*2, 280*4

Best quality brand in china ,long life and low noise

Screw heating power

4kw*24



Plasticizing capacity

700kg/h
