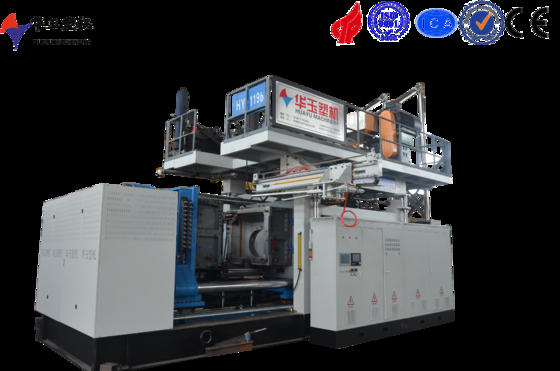

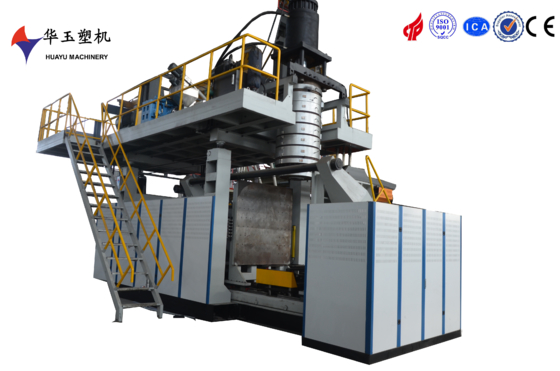

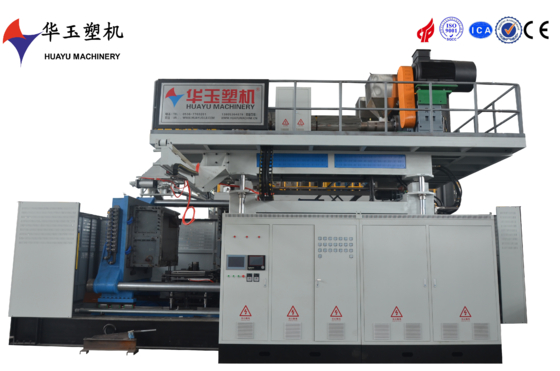

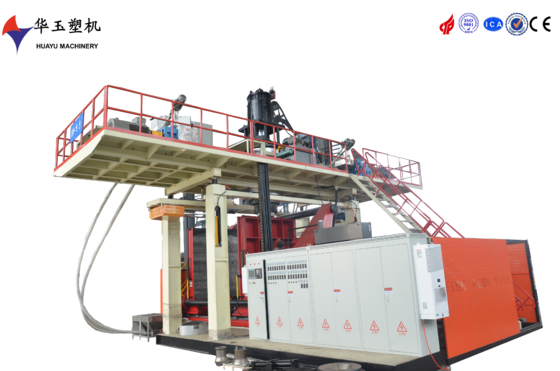

HUAYU3000L-1 Blow Moulding Machine for Large Plastic Products
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HYBM3001 |
| Minimum Order Quantity | 1 SET |
| Price | 260000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Maximum Air Pressure | 0.8Mpa | Accumulator Capacity | 30KG |
|---|---|---|---|
| Layer | 3 Layers | After Sales | OVERSEAS SERVICE |
| Max. Output | 10-15 Pcs/hour | Machine Dimensions | 10*5.5*7m |
| Durability | Excellent | Power Supply | 380V/50Hz |
| Controller | PLC+Touch Screen | Productivity | 10-24pcs/h |
| Platen | 1700*1800MM | Output | 20PCS/h |
| Plastic Processed | HDPE、PE | Air Consumption | 1.5m3/min |
| Control System | PLC | ||
| Highlight | large plastic blow moulding machine,water tank blow moulding equipment,HUAYU3000L-1 blow moulding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
The HUAYU3000L-1 Blow Moulding Machine features advanced automation, making it ideal for manufacturing large plastic products. It ensures high precision and consistent product quality, with energy-efficient technology reducing operational costs significantly.
|
Extrusion System |
||
|
Screw diameter |
150mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
28:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
132kw |
|
|
Reducer |
420 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
5.5kw*12 |
|
|
Plasticizing capacity |
500kg/h |
|
|
die head |
||
|
Accumulator capacity |
90kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
80kw |
|
