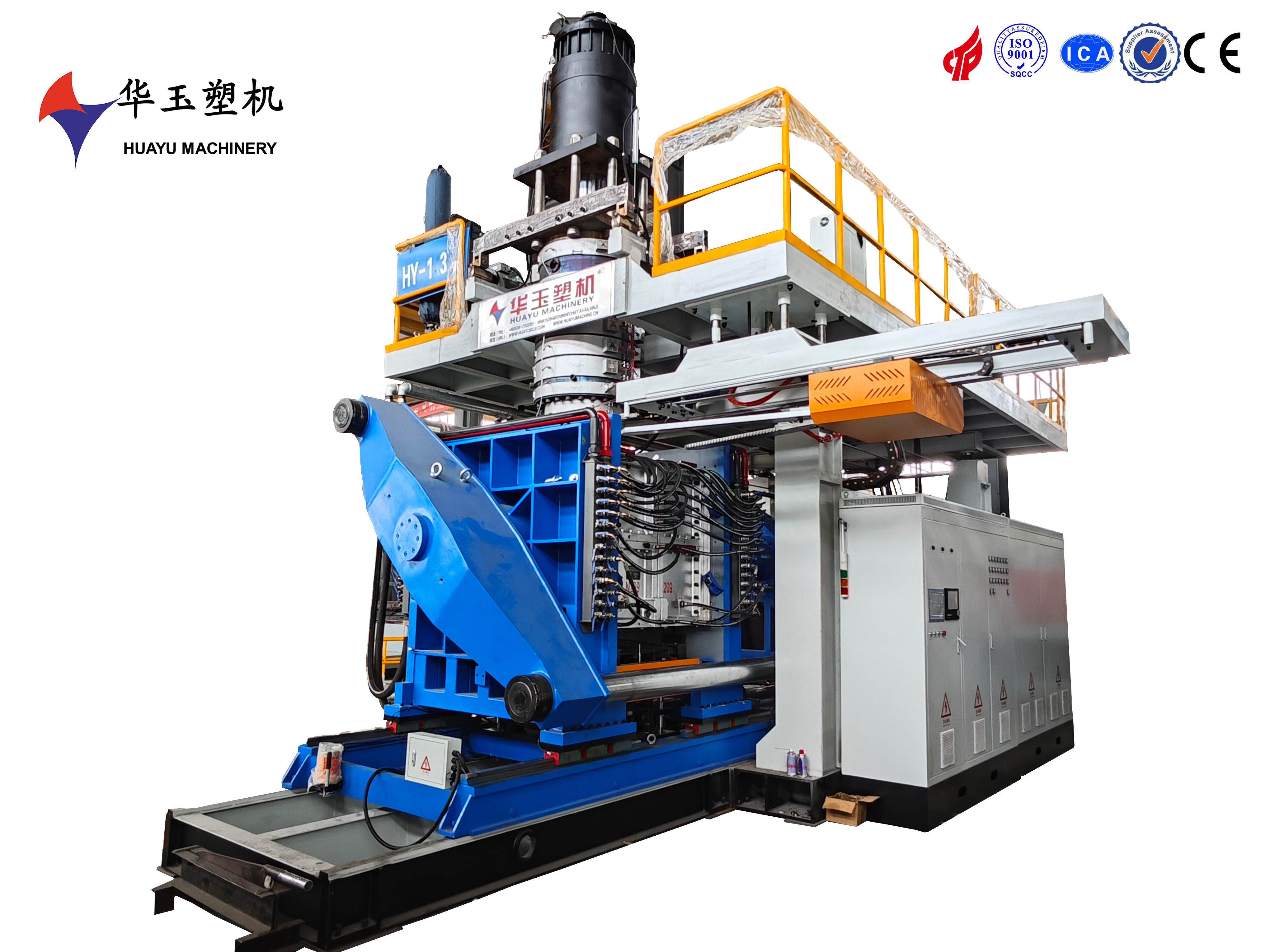

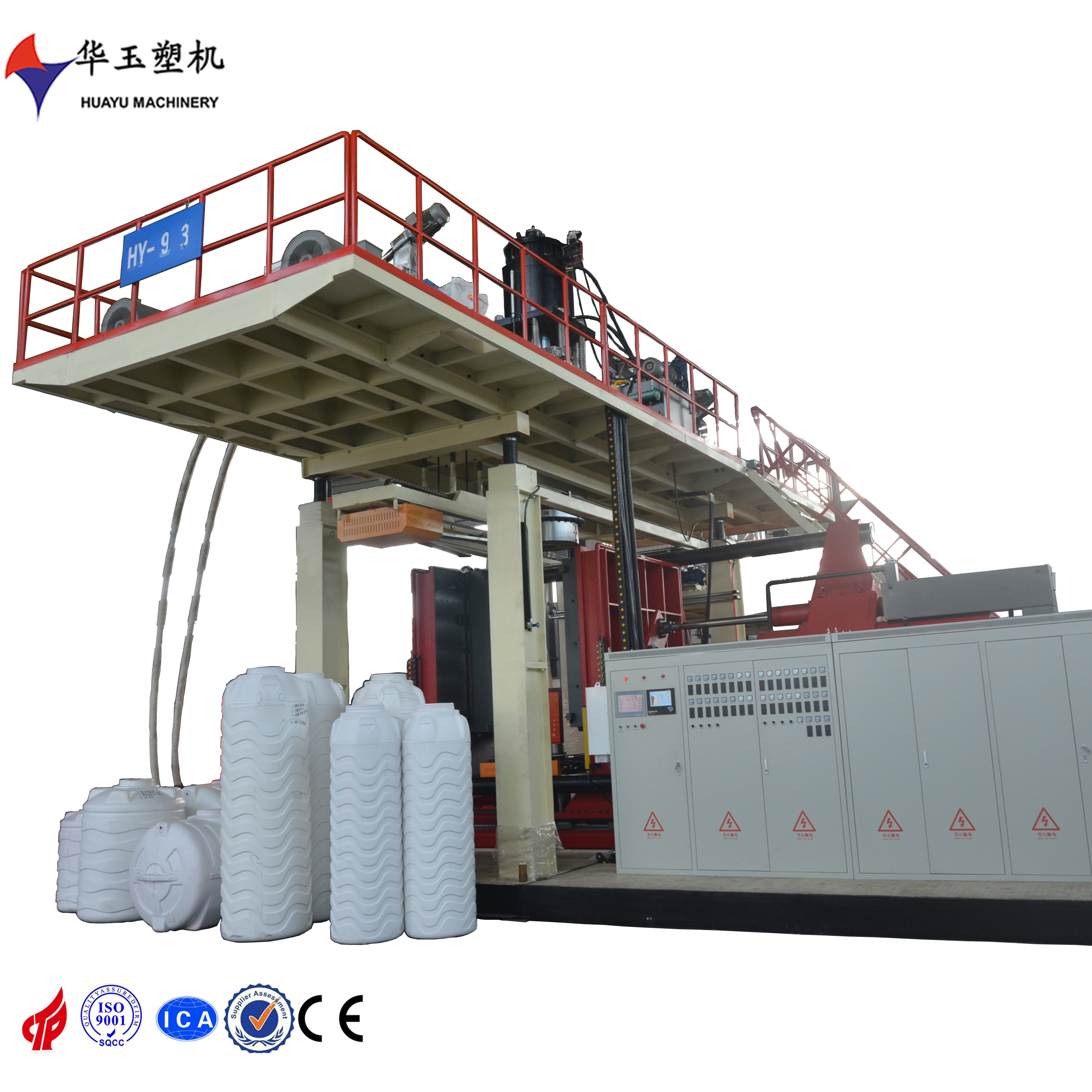

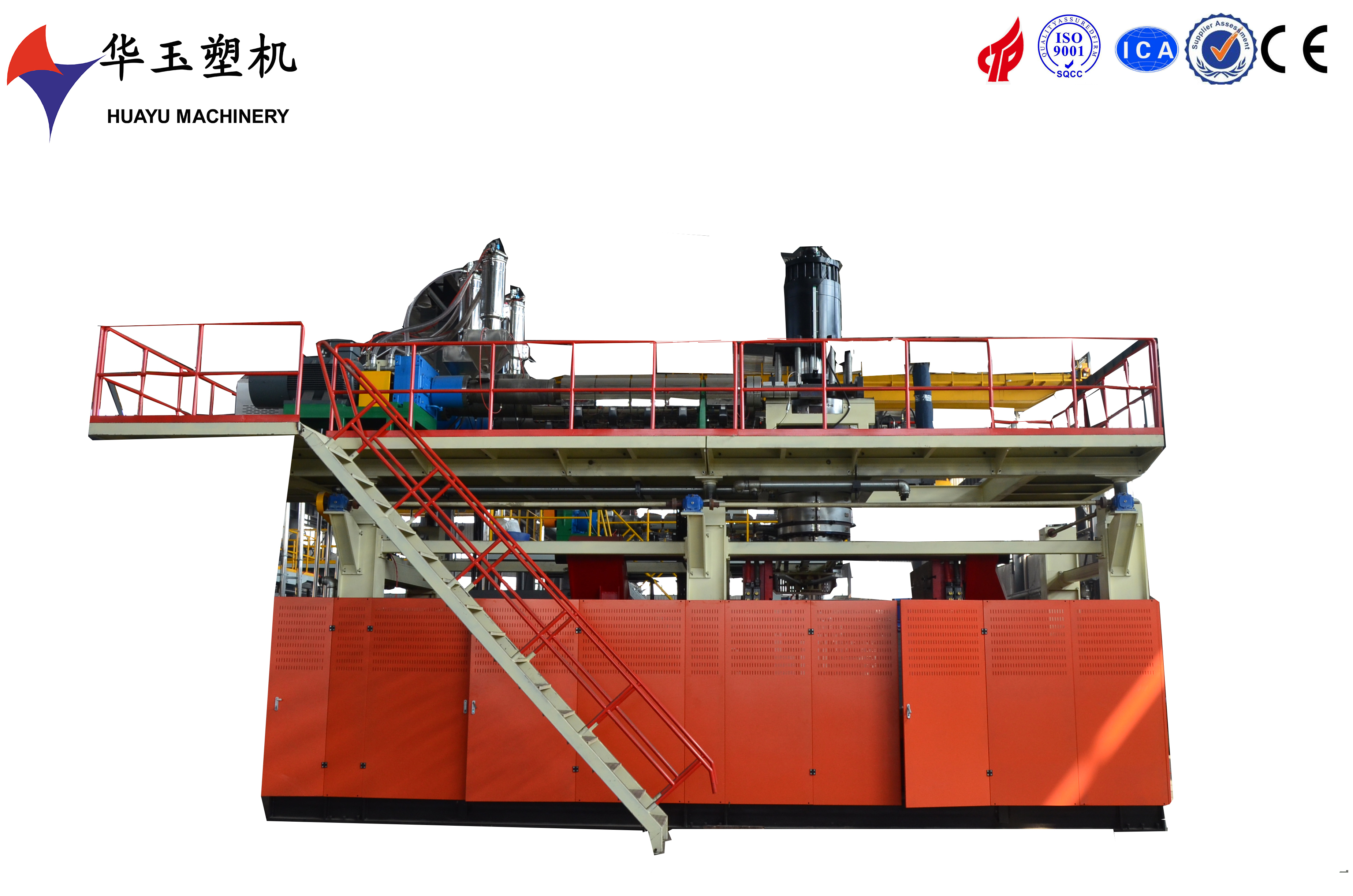

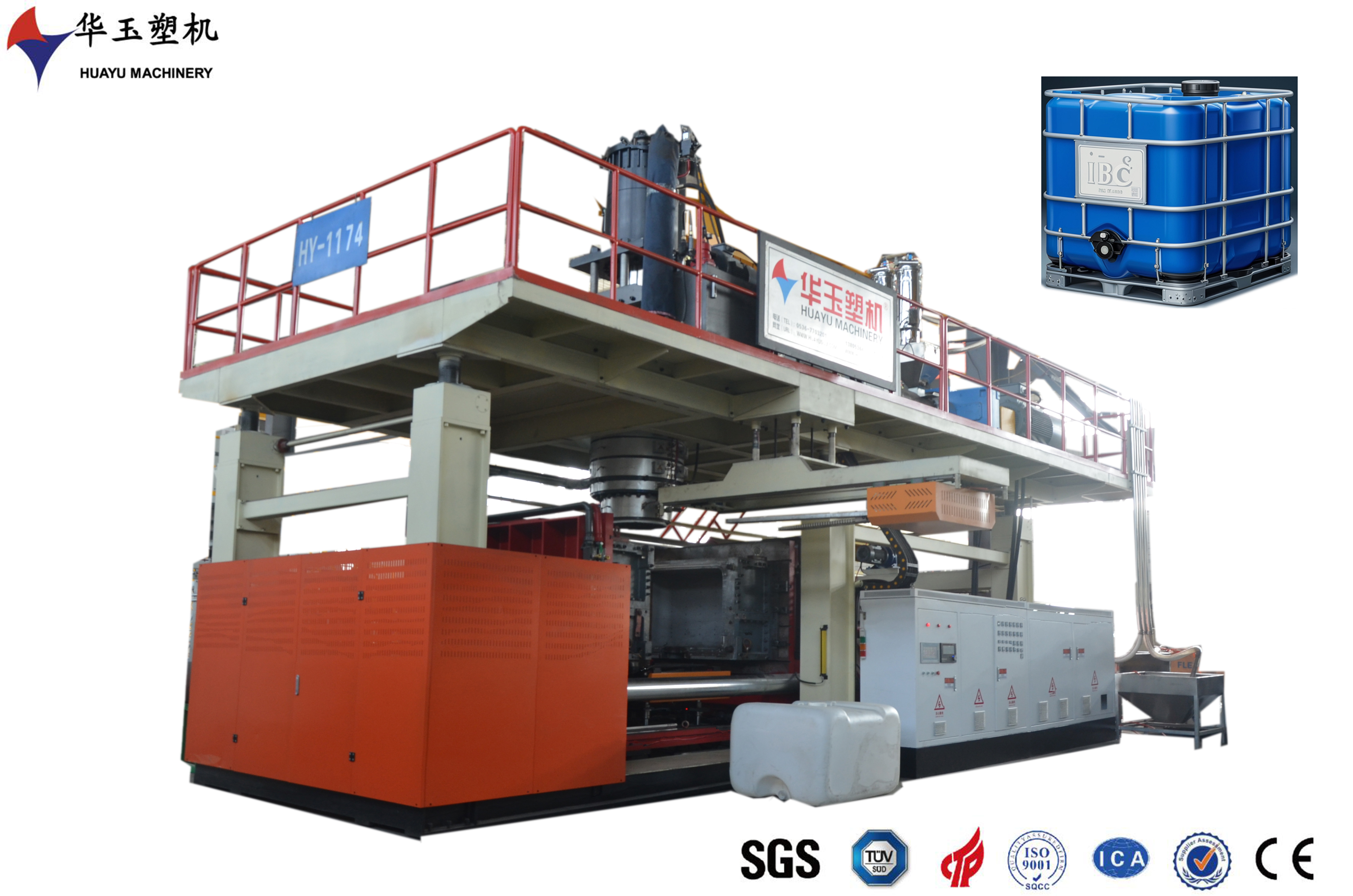

3000L 5 Layer Blow Moulding Machine for Large Plastic Tanks
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HYBM3005 |
| Minimum Order Quantity | 1 SET |
| Price | 380000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Range | 500-2000L | Average Power | 440kw |
|---|---|---|---|
| Power Avg | 26.5 KW | Air Switch | Schneider |
| Voltage | 220V/380V | Clamping Cylinder Stroke | 2000mm |
| Cooling Water Consumption | 60m3/h | Automation Grade | Automatic |
| Production Speed | 100-200 Pcs/h | Mold Stroke | 1000mm |
| Machine Weight | 8T | Power Supply | 380V/3P/50Hz |
| Advantages | 20 Years Experiences | Total Power | 360kw |
| Guarantee | 1 Year | ||
| Highlight | 3000L plastic tank blow moulding machine,5 layer blow moulding machine for tanks,large water tank blow moulding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
The HUAYU3000L-5 Blow Moulding Machine is designed for high-quality production of large plastic tanks. It features advanced automation and precision engineering, ensuring consistent product quality and uniform wall thickness, with energy-efficient technology reducing operational costs.
|
2 |
Die head |
accumulator capacity |
120KG |
|
Pusher cylinder |
|
||
|
Heating load |
110kw |
||
|
Parison control cylinder |
|
||
|
Die-core size |
According to products |
||
|
Inverter |
55kw |
||
|
Max parison weight |
90KG |
||
|
3 |
Moulding clamping unit |
Clamping platen size |
2200*2400*70mm |
|
Max mold size |
1700*2200mm |
||
|
Mould clamping force |
2200KN |
||
|
Mould thickness |
1100~3500mm |
||
|
4 |
Stretching and blowing unit |
Stretching stroke |
According to products |
|
Vertical stroke max |
600mm |
||
|
5 |
Electrical control pannel |
Thickness controller |
MOOG 200 Points |
|
Main operation panel |
12" Siemens |
||
|
Die head control temperature control |
Siemens module |
||
|
6 |
Hydraulic system |
Hydraulic drive motor(main) |
60kw |
|
Hydraulic drive motor (parison control) |
11kw |
||
|
Oil tank capacity |
1500L |
||
|
7 |
gripper |
Gripped stroke |
2300MM |
|
Discharge stroke |
|
||
|
8 |
Hopper loader |
Loader |
Vacuum loader |
|
hopper |
Stainless steel |
||
|
9 |
Production rate |
Productivity |
|
|
|
|
Product weight |
|
|
10 |
Delivery period |
|
4months |
|
11 |
Weight of machine |
|
86T |
|
Size of machine |
|
12500*11500*9700mm(length add 2meters for loading mould) |
|
|
12 |
Total power |
|
559kw |
|
13 |
Average power consumption |
|
350kw |
