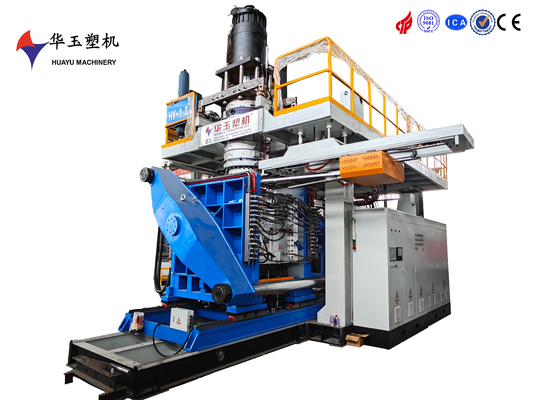

220L 2 Layer Blow Moulding Machine For Large Plastic Containers
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HYBM220-2 |
| Minimum Order Quantity | 1 SET |
| Price | 260000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mould Material | Aluminum | Product Range | 220L |
|---|---|---|---|
| Material | HDPE | Servo Motor | 48KW |
| After Sales | OVERSEAS SERVICE | Air Seat Stroke | 400mm |
| Recyclability | Recyclable | Extrudor Motor | 110/90*2/15*3 |
| Controller | PLC+Touch Screen | Average Aonsumption | 280KW |
| Durability | Excellent | Capacity Range | 200L |
| Max. Product Diameter | 1200 Mm | Screw Dia | 120MM |
| Product Type | Blow Molding Machine | ||
| Highlight | 220L blow moulding machine,2-layer Blow Moulding Machine,large drum blow moulder |
||
Product Description
The HUAYU220L-2 Blow Moulding Machine integrates smart technology, making it ideal for large plastic container production. It ensures high precision and consistent product quality, with features like automated calibration and real-time monitoring enhancing productivity.
|
Clamping System |
||
|
platen size |
1400*1500(W*H) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
230 120*2 |
|
|
clamping cylinder stroke |
1000mm |
|
|
clamping force |
1200KN |
|
|
distance between platens |
900-2300mm |
|
|
max. mould size |
1200*1500mm(W*H) |
|
|
Blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
500mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
0.8×3(MPa × Cubic meter per minute) |
|
|
Cooling method |
Circulating water |
|
|
ater pressure |
30MPa |
|
|
Cooling water consumption |
0.3×20°×30(MPa × degree × Cubic meter per hour) |
|
