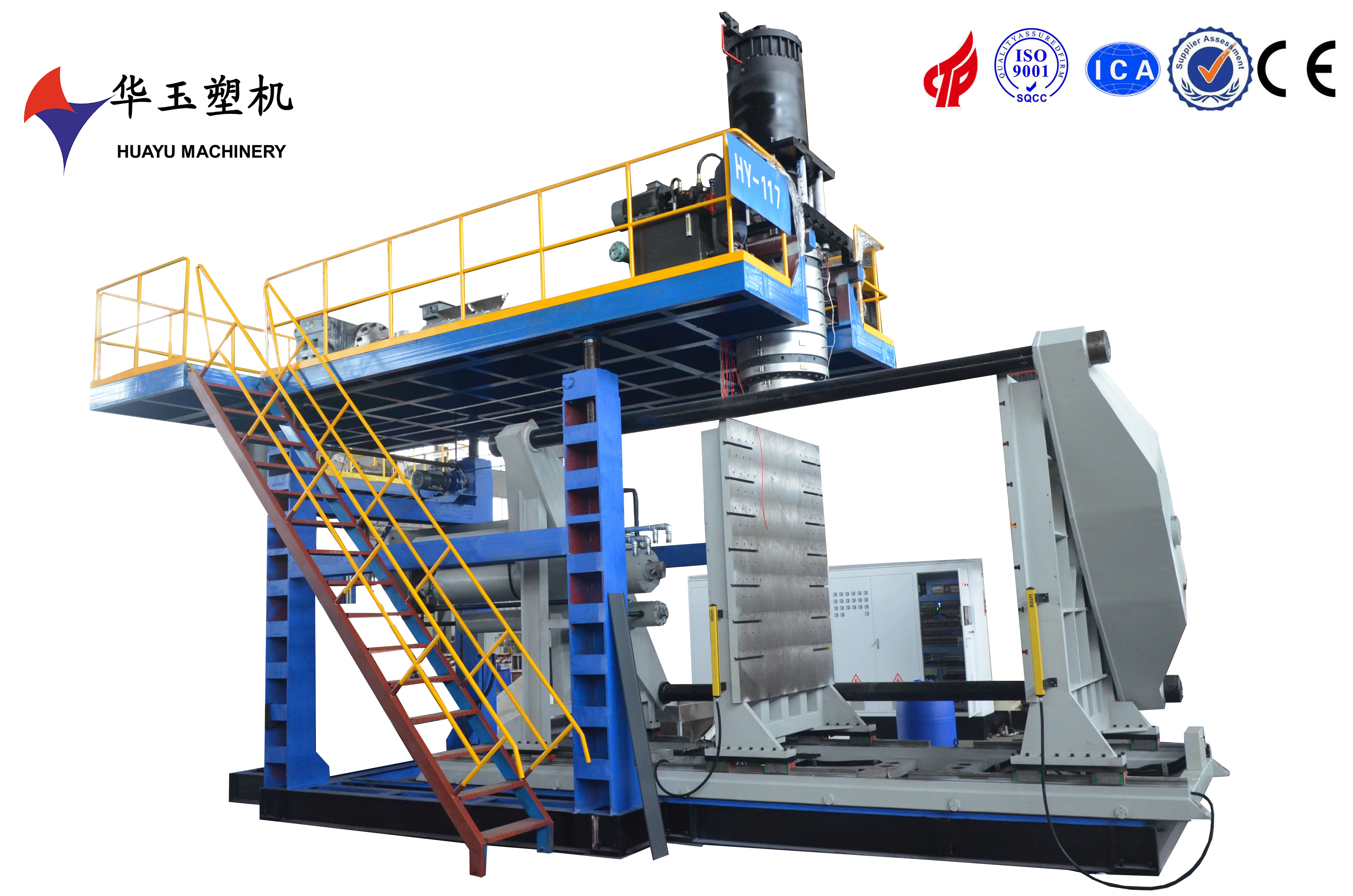

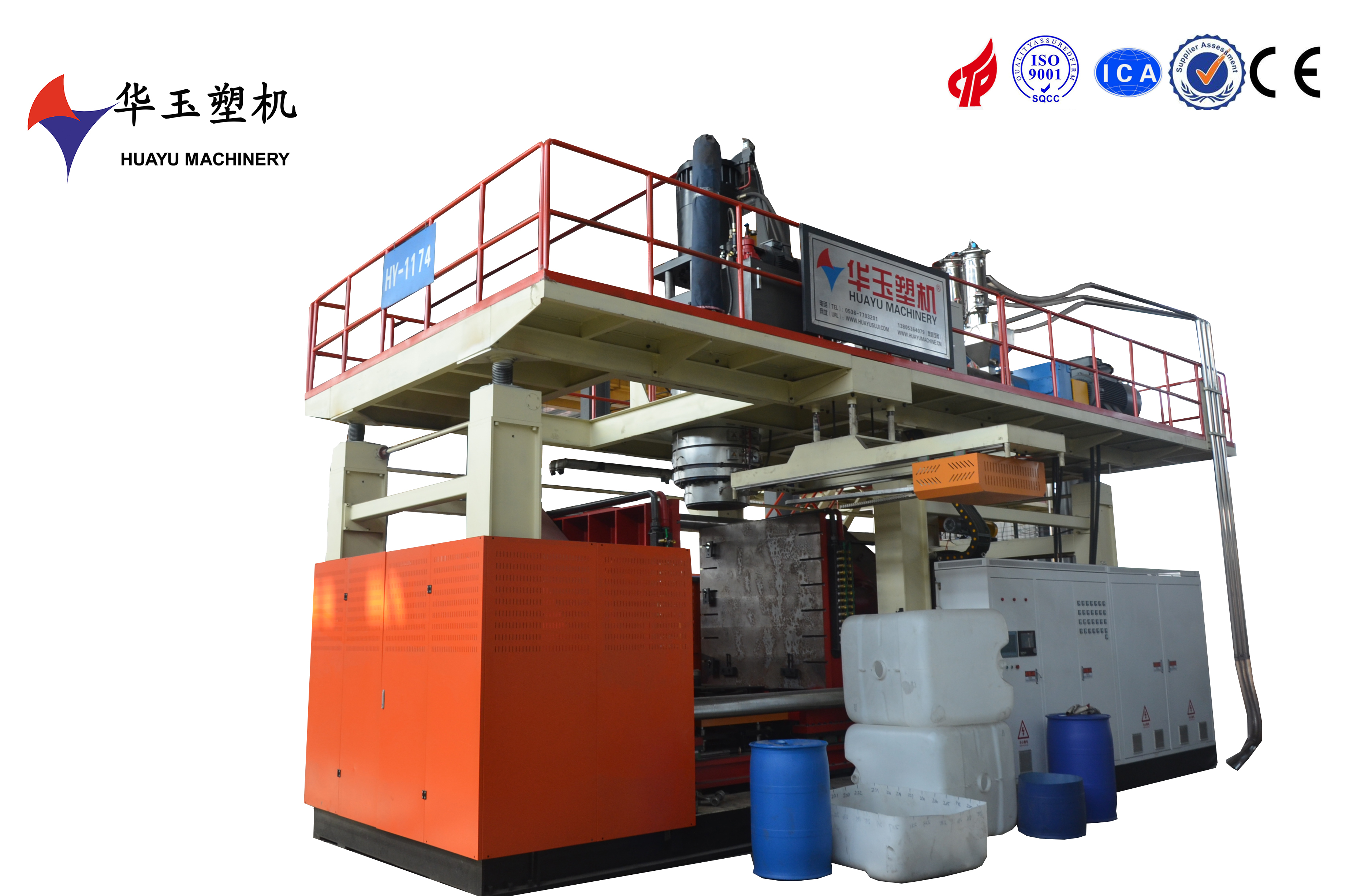

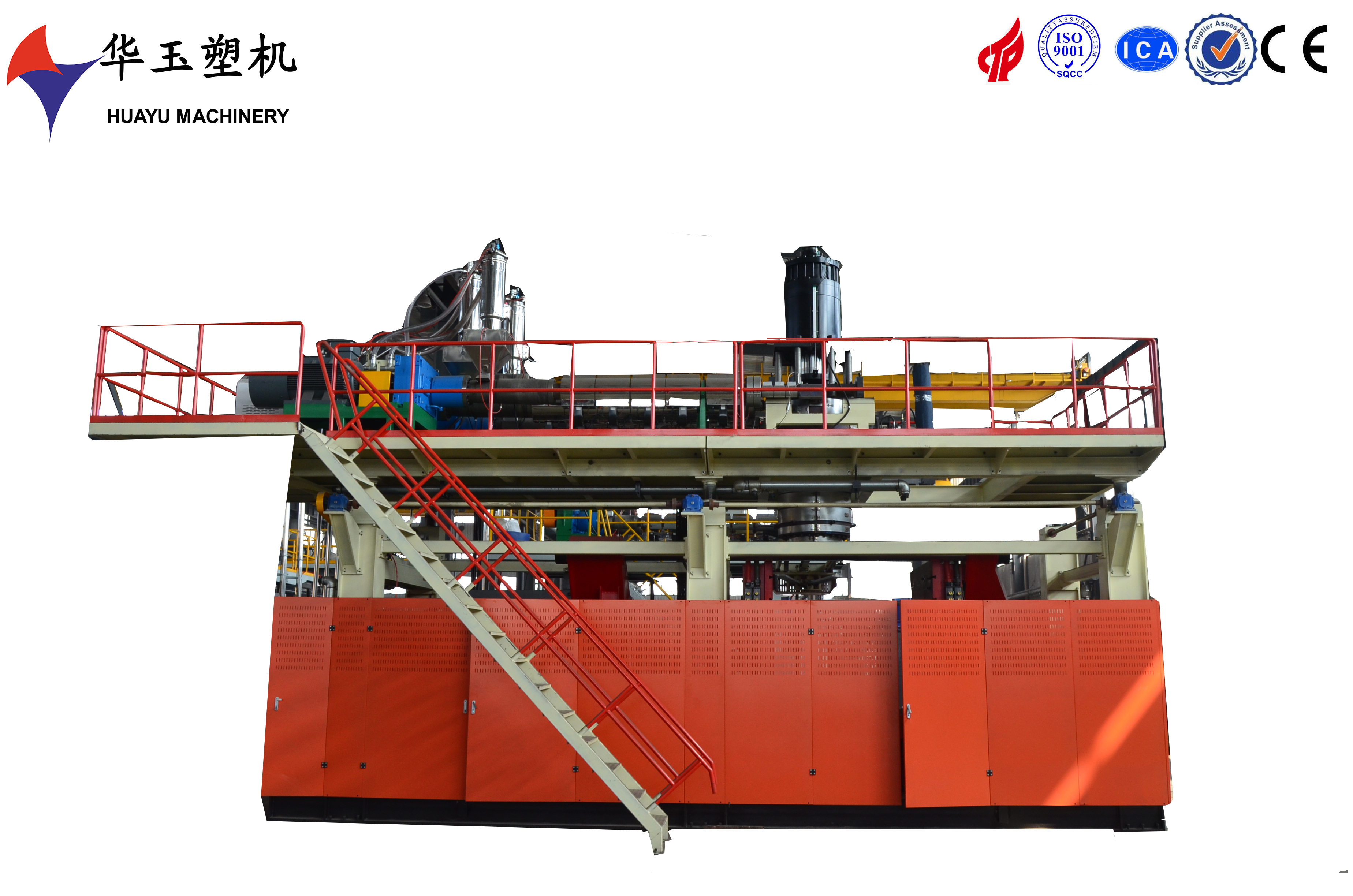

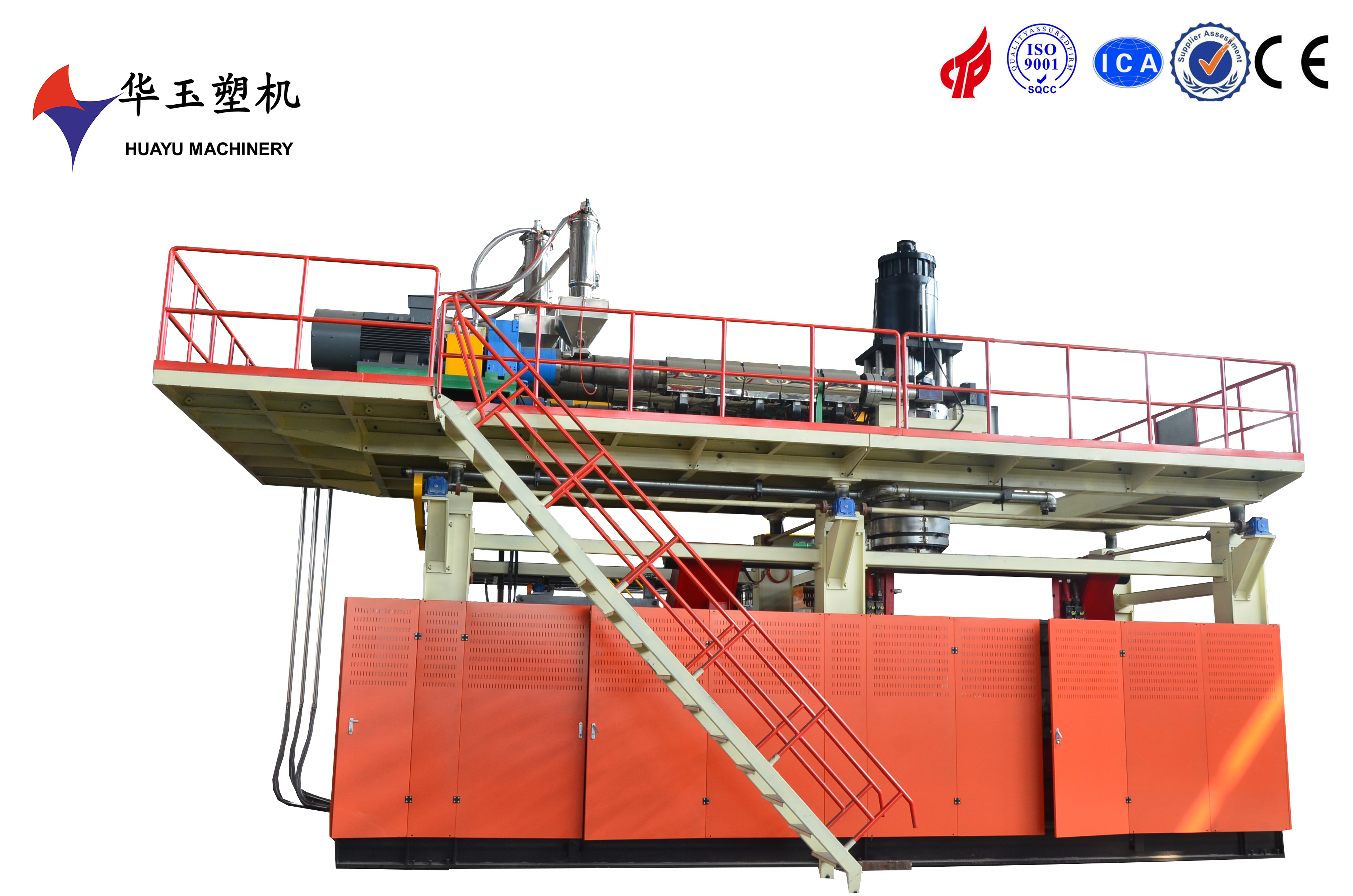

220L 3Layer Blow Moulding Machine for Large Plastic Drums
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HYBM220-3 |
| Minimum Order Quantity | 1 SET |
| Price | 280000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Clamping Force | 100 KN | Layer | 1-10layers |
|---|---|---|---|
| Average Consumption | 130kw | Corrosion | Excellent |
| Hollow Part Volume | 220L | Cooling Zones | 1 |
| Warranty | 1 Year | Application | Jerry Can, Drum, Tank |
| Condition | New | Material | HDPE/PP |
| Production Speed | 10-15 Pcs/hour | Automation | Automatic |
| Extruder Motor | 132kw | Hopper Material | Stainless Steel |
| Feeding Motor | 5.5kw | ||
| Highlight | 220L drum blow moulding machine,3-layer plastic drum machine,large plastic drum moulding equipment |
||
Product Description
The HUAYU220L-3 Blow Moulding Machine is designed for precision manufacturing of large plastic drums. It features advanced automation and energy-efficient technology, ensuring consistent product quality and uniform wall thickness, with a durable construction guaranteeing long-term reliability.
|
Extrusion System |
||
|
Screw diameter |
90/100/90mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
30:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
55/75/55kw |
|
|
Reducer |
Guomao 250*2/280*1 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
4kw*12 |
|
|
Plasticizing capacity |
350kg/h |
|
|
Die head |
||
|
Accumulator capacity |
20kg |
designed by ourselves and get the patent |
|
Die diameter |
Max 300mm |
|
|
Die head heating power |
50kw |
|
|
Clamping System |
||
|
platen size |
1400*1500(W*H) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
230 120*2 |
|
|
clamping cylinder stroke |
1000mm |
|
|
clamping force |
1200KN |
|
|
distance between platens |
900-2300mm |
|
|
寸max. mould size |
1200*1500mm(W*H) |
|
