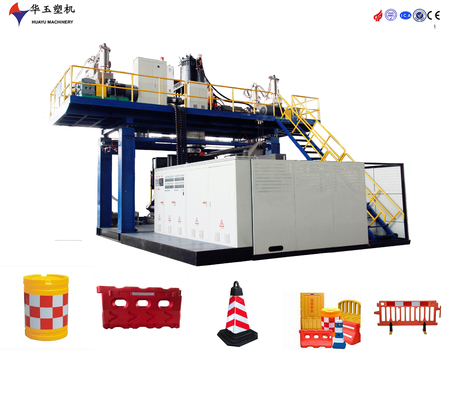

2 Layer Road Barrier Blow Molding Machine 180kw High Speed
| Place of Origin | CHINA |
|---|---|
| Brand Name | huayu |
| Certification | ISO9001 ce |
| Model Number | HYBM-road barrier |
| Minimum Order Quantity | 1 SET |
| Price | negotiation |
| Packaging Details | The machine will be disassembled into many parts for container transportation. |
| Delivery Time | 4months |
| Payment Terms | L/C, T/T |
| Supply Ability | 40sets/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | Road Barrier | Layers | 2 Layers |
|---|---|---|---|
| Voltage | As Requirement | Color | As Requirement |
| Size | 7*5.4*5.2 | Total Power | 180kw |
| Highlight | 2 layer road barrier machine,blow molding machine 180kw,high speed road barrier machine |
||
Product Description
HYBM-Road barrier
1. machine specification
|
road barrier |
2layers |
| Capacity rang | / |
| Machine dimension | 7*5.4*5.2 |
| Average | 100KW |
| Total power | 180KW |
| Accumulator capacity | 18KG |
| E*truder motor | 37KW*2 |
| Screw diameter | 90MM*2 |
| Screw L/D ratio | 30:1 |
| Plasticizing capacity | 200KG/H |
| Platen size | 1000*1200MM |
| Platen distance | 850-2000MM |
| Clamping force | 800KN |
| Servo motor | 28KW |
2.machine details
Huayu patented three-cylinder rapid opening and closing mold locking system
Huayu patented integrated hydraulic station
The world-famous Taiwan Shangyin guide rail has more sliders, more reasonable load bearing and more stable operation
High speed screw
3. company advantage
Experienced Engineer Team, Top Brand Accessories, Strict Quality Control and Certification System, Powerful Machining and Processing Ability, Create the High Quality Huayu Machinery!
In the design and production process of Huayu Hollow Blow Molding Machine, the latest technology and supporting facilities are adopted, such as German SEW reducer, Siemens PLC controller, American Muger wall thickness controller, etc., to further optimize the overall performance of the equipment and expand its application fields.
Provide customers with technical guidance and continuous optimization of products for life.
