10-Layer 2000L Blow Moulding Machine for Plastic Containers
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HYBM2000-10 |
| Minimum Order Quantity | 1 |
| Price | 320000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1 SET |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application Field | Liquid Packaging | Cleaning Method | Easy Cleaning |
|---|---|---|---|
| Applicable Industries | Other | Touch Screen | Siemens |
| Platen Distance | 1100-3000mm | Frequency | 50Hz |
| Blow Molding Type | Continuous Extrusion | Cooling Water Consumption | 60m3/h |
| Temperature Control | PLC Module | Heating Power | 60kW |
| Die Head Heating | 60KW | Station | 2 |
| Total Weight | 32T | Machine Type | Extrusion Blow Molding |
| Product Range | Plastic Drum, Barrel, Container | ||
| Highlight | 10-layer blow moulding machine for plastic containers,2000L water tank blow moulding machine,plastic container blow moulding machine with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Blow Moulding Machine - High-Efficiency 10-Layer 2000L Plastic Container Production
Product Specifications
| Attribute | Value |
|---|---|
| Application Field | Liquid Packaging |
| Cleaning Method | Easy cleaning |
| Applicable Industries | Other |
| Touch Screen | Siemens |
| Platen Distance | 1100-3000mm |
| Frequency | 50Hz |
| Blow Molding Type | Continuous extrusion |
| Cooling Water Consumption | 60m³/h |
| Temperature Control | PLC module |
| Heating Power | 60kW |
| Die Head Heating | 60KW |
| Station | 2 |
| Total Weight | 32T |
| Machine Type | Extrusion Blow Molding |
| Product Range | Plastic Drum, Barrel, Container |
Product Description

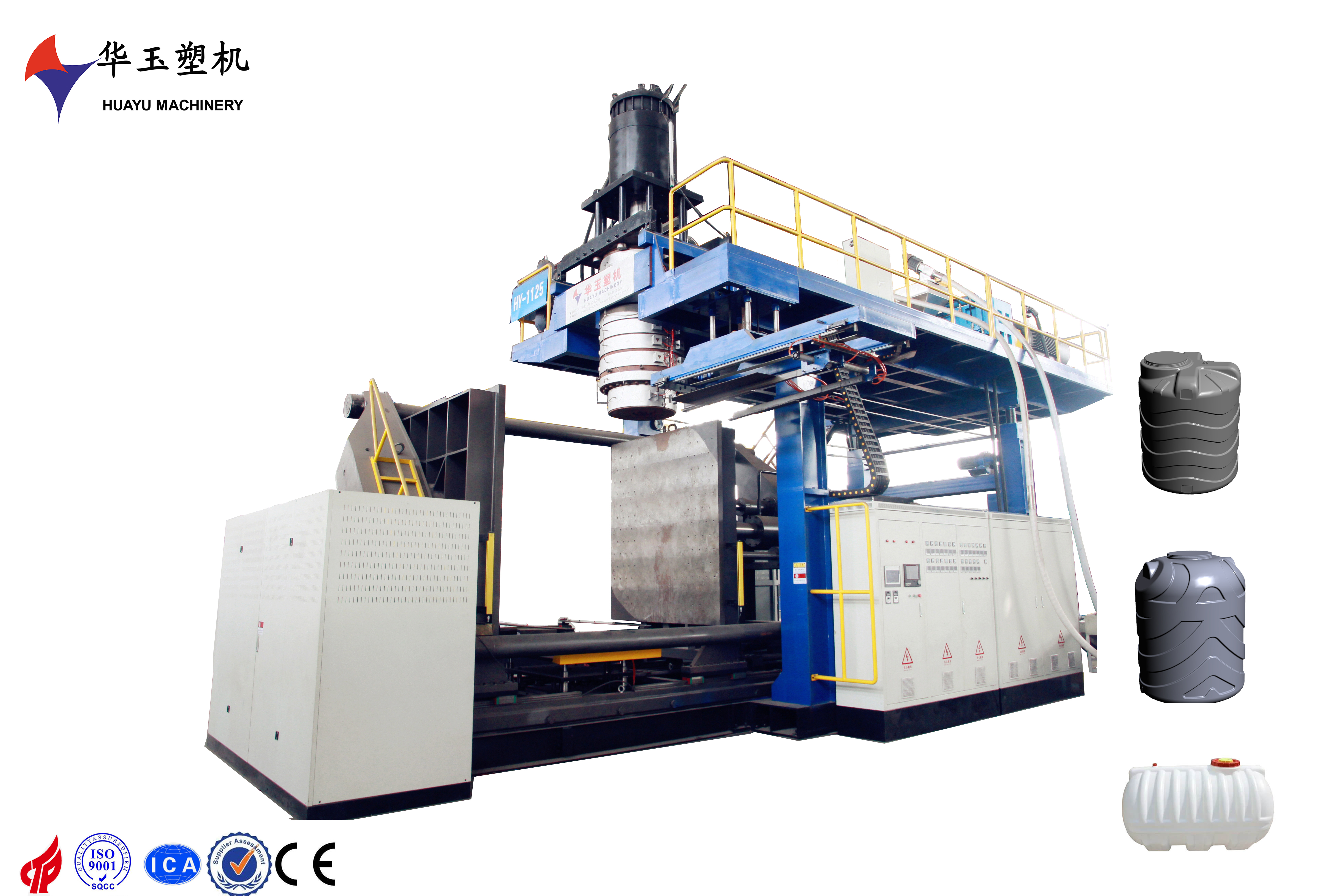

The HUAYU2000L-10L Blow Moulding Machine is designed for high-efficiency production of 10-layer 2000L plastic containers. It features advanced automation and energy-efficient technology, ensuring precision in every manufacturing cycle. The robust construction guarantees durability and reliability in continuous operation, making it ideal for manufacturing large plastic containers, drums, and tanks.
Basic Specifications
Applicable material: HDPE
Manufacturer: China*HUAYU
Capacity range: 500-2000L, 10 layers
Total weight: 68T
Voltage: Pending
Total power: 675kw
Average power: 370kw
Machine dimension (L*W*H): 12.6*10*7.5
Productivity: 10-24pcs/h
Auto Feeder Specifications
Hopper material: Stainless steel (Stable performance, easy maintenance)
Feeding type: Vacuum loader
Feeding motor: 11kw
