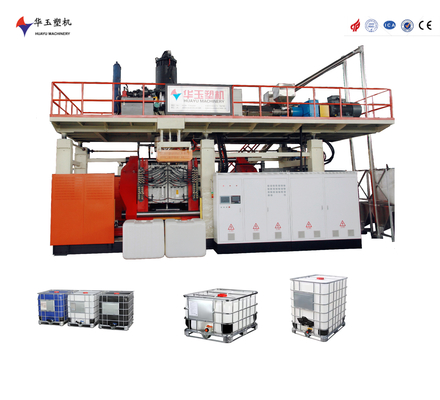

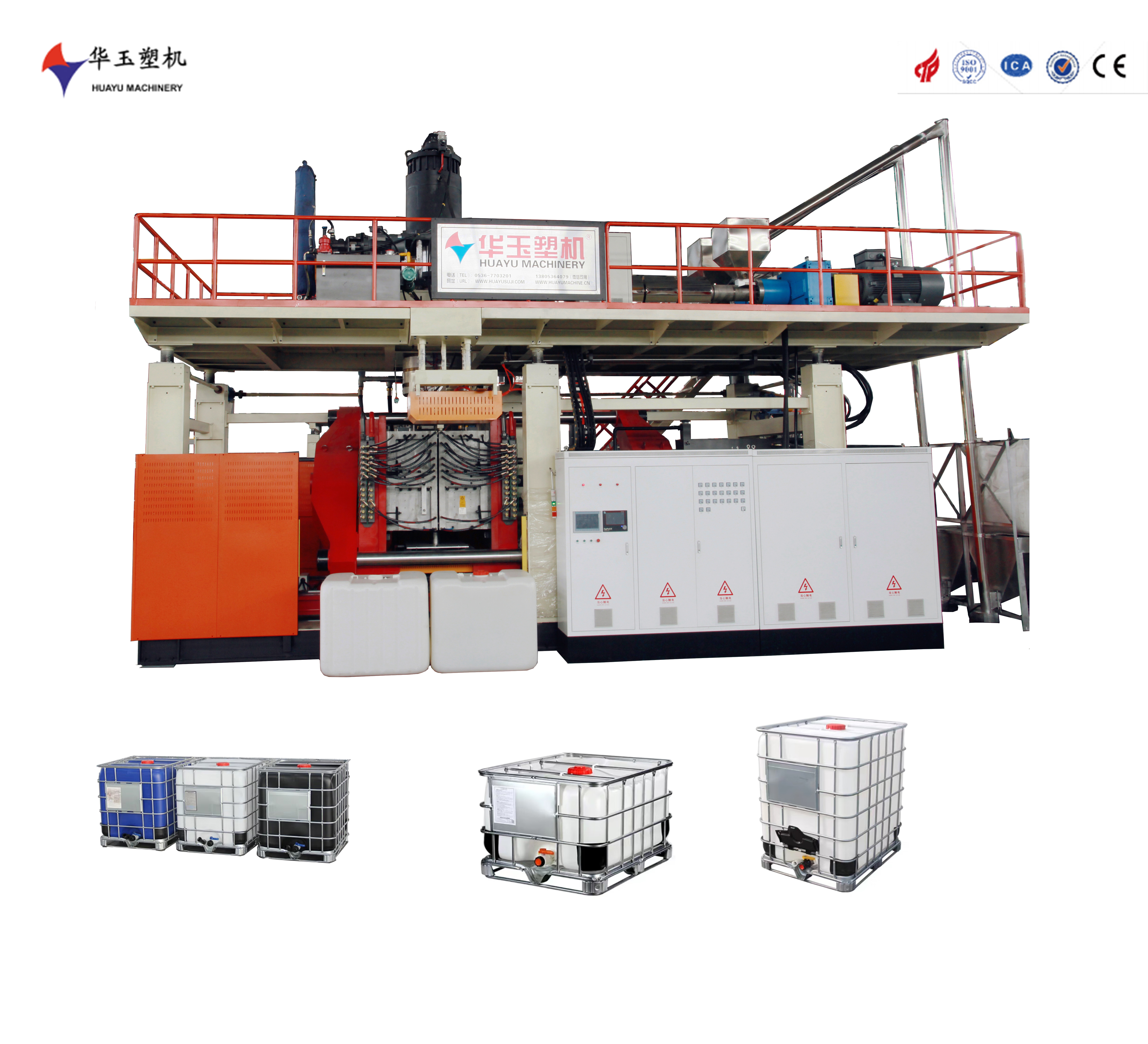

Automatic 8-Layer 3000L Water Tank Blow Moulding Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HYBM3000-8 |
| Minimum Order Quantity | 1SET |
| Price | 440000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1 SET 120DAYS |
Product Details
| Cooling System | Water Cooling | Automation Grade | Automatic |
|---|---|---|---|
| System | Touch Screen | Mould Cavity | Single/Double |
| Clamping Force | 200T | Advantages | 20 Years Experiences |
| Machine Size | 5.0x2.5x2.95M | Air Seat Stroke | 400mm |
| Color | Customied | Showroom Location | None |
| Mould Material | Aluminum | Applicable Material | HMWHDPE |
| Power Source | Electric | Product Range | Plastic Jerrycan, Drum |
| Machine Dimension | 8.5*6*7.2 | ||
| Highlight | automatic 8-layer water tank machine,3000L blow moulding machine,water tank blow moulding machine with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Blow Moulding Machine: Advanced 8-Layer 3000L Plastic Manufacturing
Key Specifications
| Attribute | Value |
|---|---|
| Cooling System | Water Cooling |
| Automation Grade | Automatic |
| System | Touch screen |
| Mould Cavity | Single/Double |
| Clamping Force | 200T |
| Machine Size | 5.0x2.5x2.95M |
| Air Seat Stroke | 400mm |
| Mould Material | Aluminum |
| Applicable Material | HMWHDPE |
| Power Source | Electric |
| Product Range | Plastic Jerrycan, Drum |
Product Description
The HUAYU3000L-8L Blow Moulding Machine combines cutting-edge technology with a user-friendly interface. Its high-speed production and energy-saving features make it perfect for industrial applications, delivering high output with consistent product quality and uniform wall thickness.
Extrusion System Specifications
| Component | Specification | Features |
|---|---|---|
| Screw diameter | 90mm*2, 100mm*4 | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | Special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 45kw*2, 55kw*4 | |
| Reducer | ZLYJ-250*2, 280*4 | Best quality brand in China, long life and low noise |
| Crew heating power | 4kw*24 | |
| Plasticizing capacity | 700kg/h |
Die Head Specifications
| Component | Specification | Features |
|---|---|---|
| Accumulator capacity | 60kg | Designed by ourselves and get the patent |
| Die diameter | According to products | |
| Die head heating power | 140kw |
