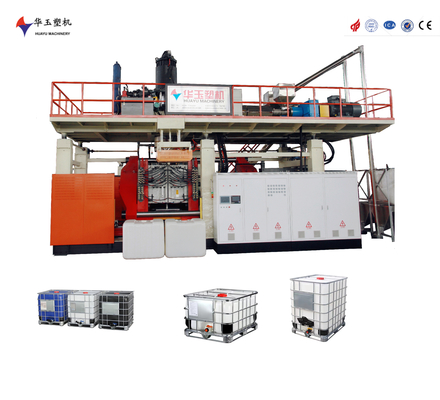

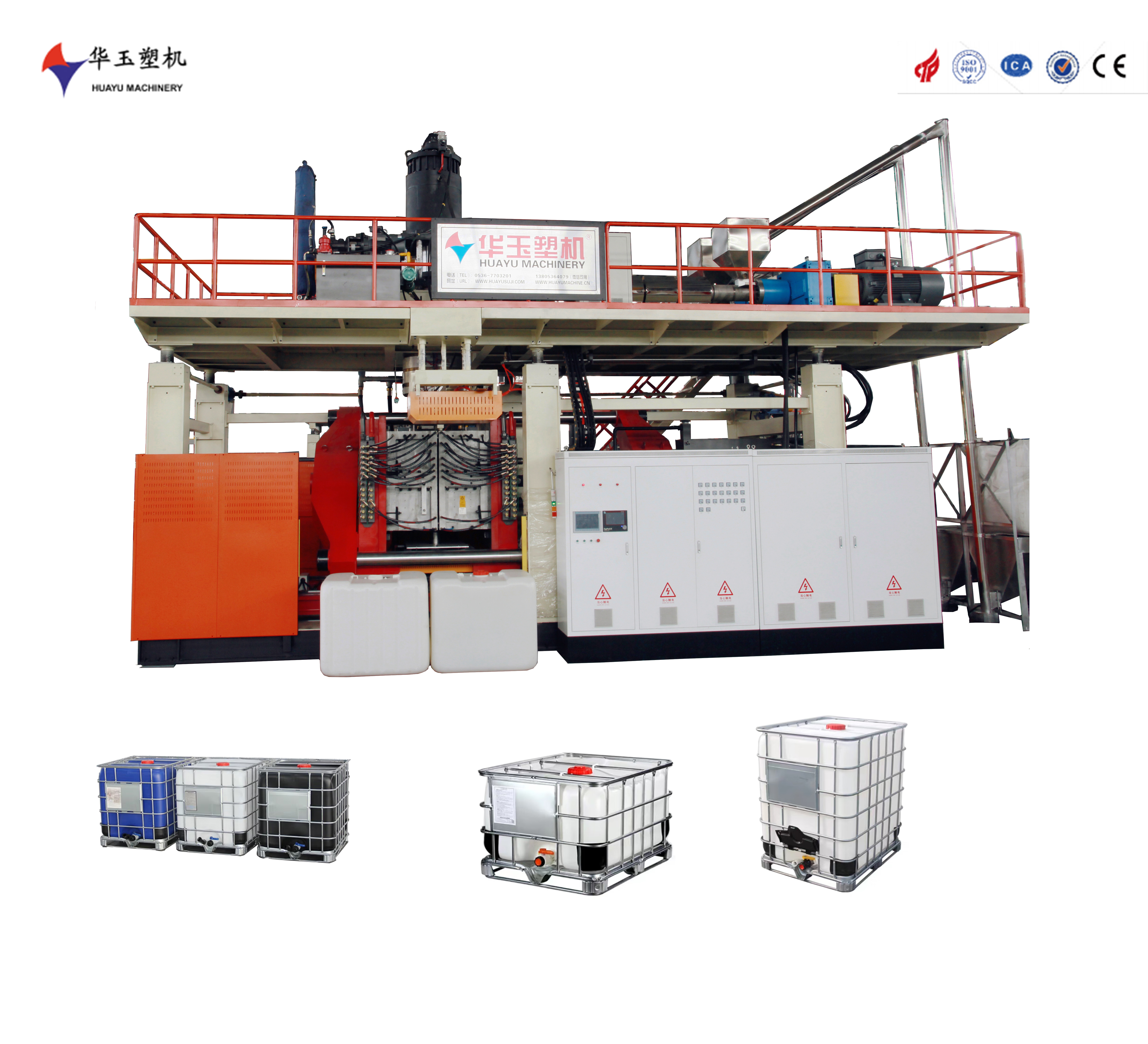

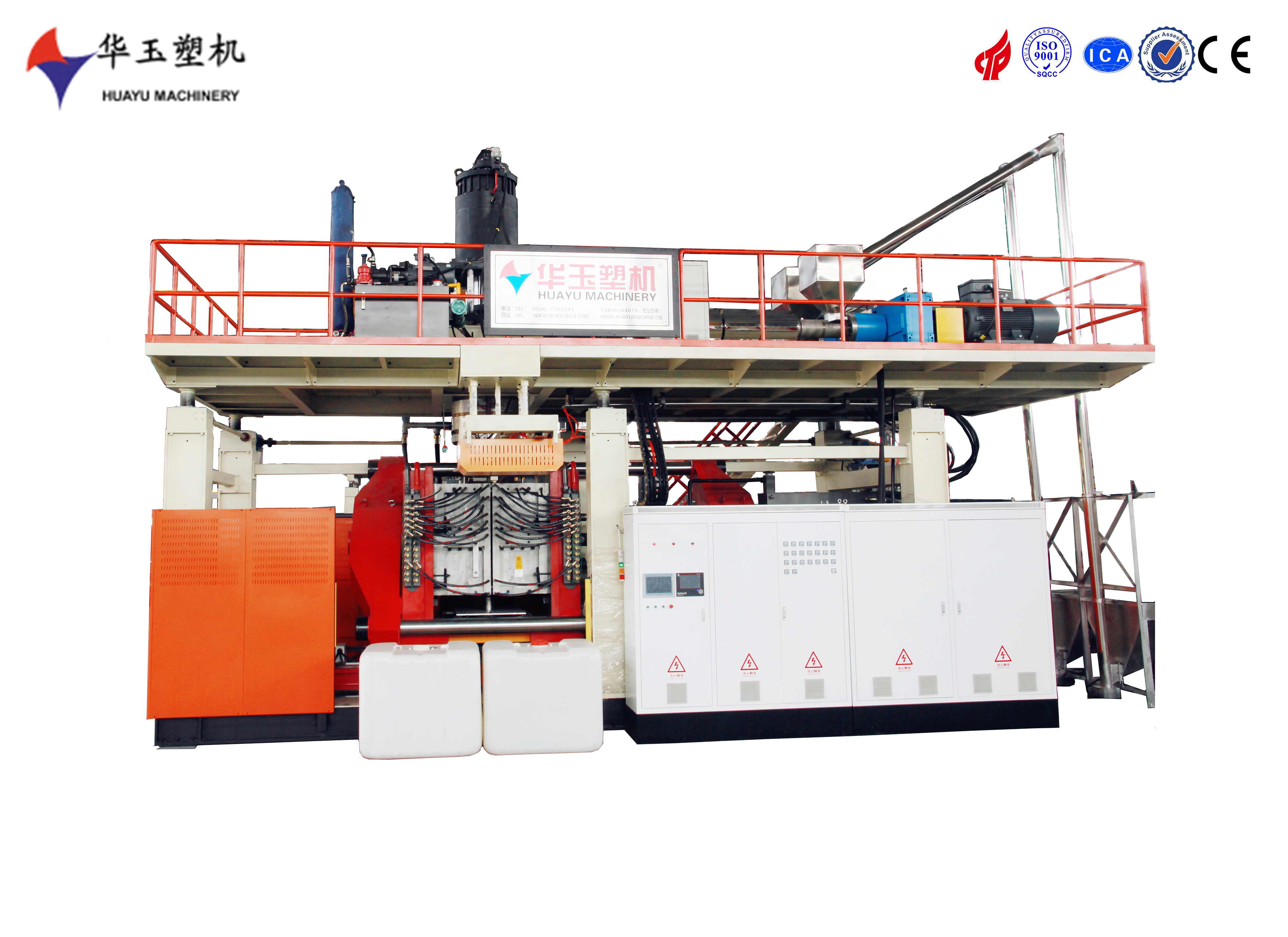

Fully Automatic 1500L 6-Layer Plastic Drum Blow Moulding Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HYBM1500-6 |
| Minimum Order Quantity | 1 SET |
| Price | 280000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Platen Size | 1800*2000*70mm(W*H*T) | Screw Material | 38CrMoAlA，Nitriding |
|---|---|---|---|
| Servo Motor | 57kw | Cooling System | Automatic Air Cooling |
| Max. Die Height | 1000mm | Goods Capacity | 500---2000L , 10 Layers |
| Extruder Motor | 132kw | Total Power | 514kw |
| Capacity | 1000 Liters | Application | 1000L IBC Tank And 220L Chemical Drum |
| Cleaning Method | Easy Cleaning | Automation Level | Fully Automatic |
| Condition | New | Plasticizing Capacity | 600kg/h |
| Air Consumption | 1.5m3/min | ||
| Highlight | fully automatic plastic drum blow moulding machine,1500L 6-layer blow moulding machine,water tank blow moulding machine with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Blow Moulding Machine - Compact Design for 6-Layer 1500L Plastic Drum Production
Key Specifications
| Attribute | Value |
|---|---|
| Platen Size | 1800*2000*70mm(W*H*T) |
| Screw Material | 38CrMoAlA, Nitriding |
| Servo Motor | 57kw |
| Cooling System | Automatic air cooling |
| Max. Die Height | 1000mm |
| Goods Capacity | 500-2000L, 10 layers |
| Extruder Motor | 132kw |
| Total Power | 514kw |
| Capacity | 1000 liters |
| Application | 1000L IBC tank and 220L chemical drum |
| Cleaning Method | Easy cleaning |
| Automation Level | Fully Automatic |
| Condition | New |
| Plasticizing Capacity | 600kg/h |
| Air Consumption | 1.5m3/min |
Product Description
The HUAYU1500L-6L Blow Moulding Machine offers a compact yet robust design for 6-layer 1500L plastic drum production. It features high-speed operation and energy-efficient technology, ensuring high precision and low operational costs, while its durable construction guarantees long-term reliability.
Clamping System
| Platen size | 1800*2200*70mm(W*H*T) | Smooth running, no noise; the clamping force is big |
| Clamping cylinder | 300+140*2 | |
| Clamping cylinder stroke | 2000mm | |
| Clamping force | 1800KN | |
| Distance between platens | 1000-3000mm | |
| Max. mould size | 1600*2000mm(W*H) |
Blowing and Cooling System
| Stretching stroke | According to products | |
| Blow pin up/down stroke | 600mm | |
| Air seat stroke | 400mm | |
| Maximum air pressure | 0.8Mpa | |
| Air consumption | 2.3m3/min | |
| Cooling method | Circulating water | |
| Water pressure | 0.3MPa | |
| Cooling water consumption | 60m3/h |
