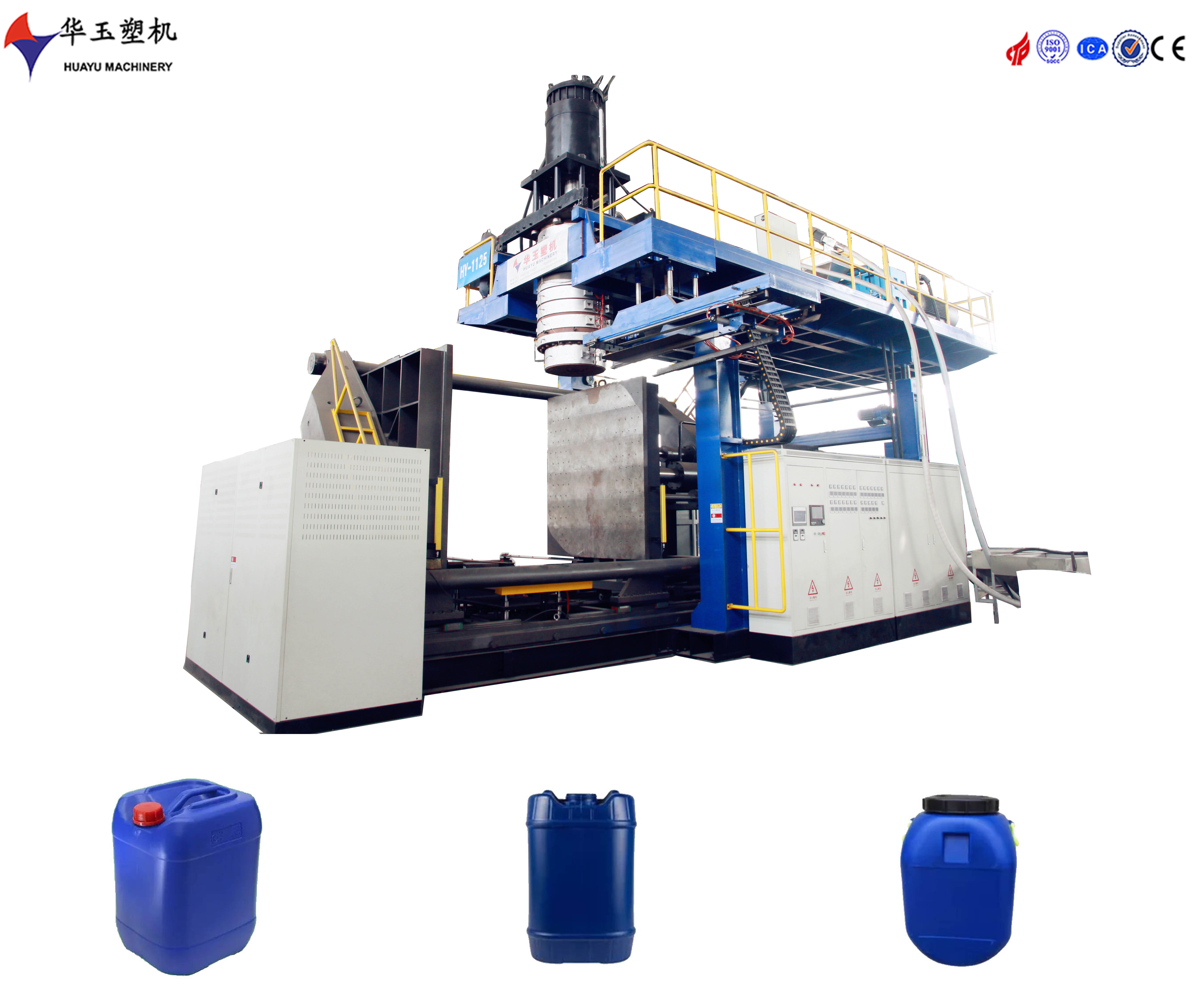

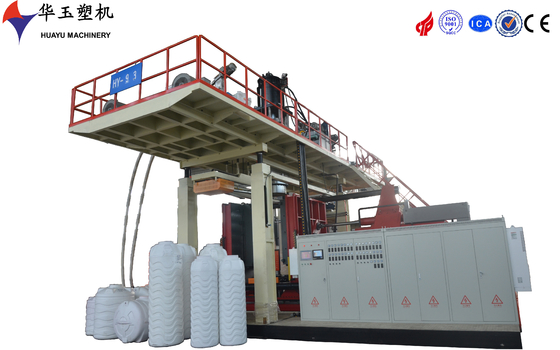

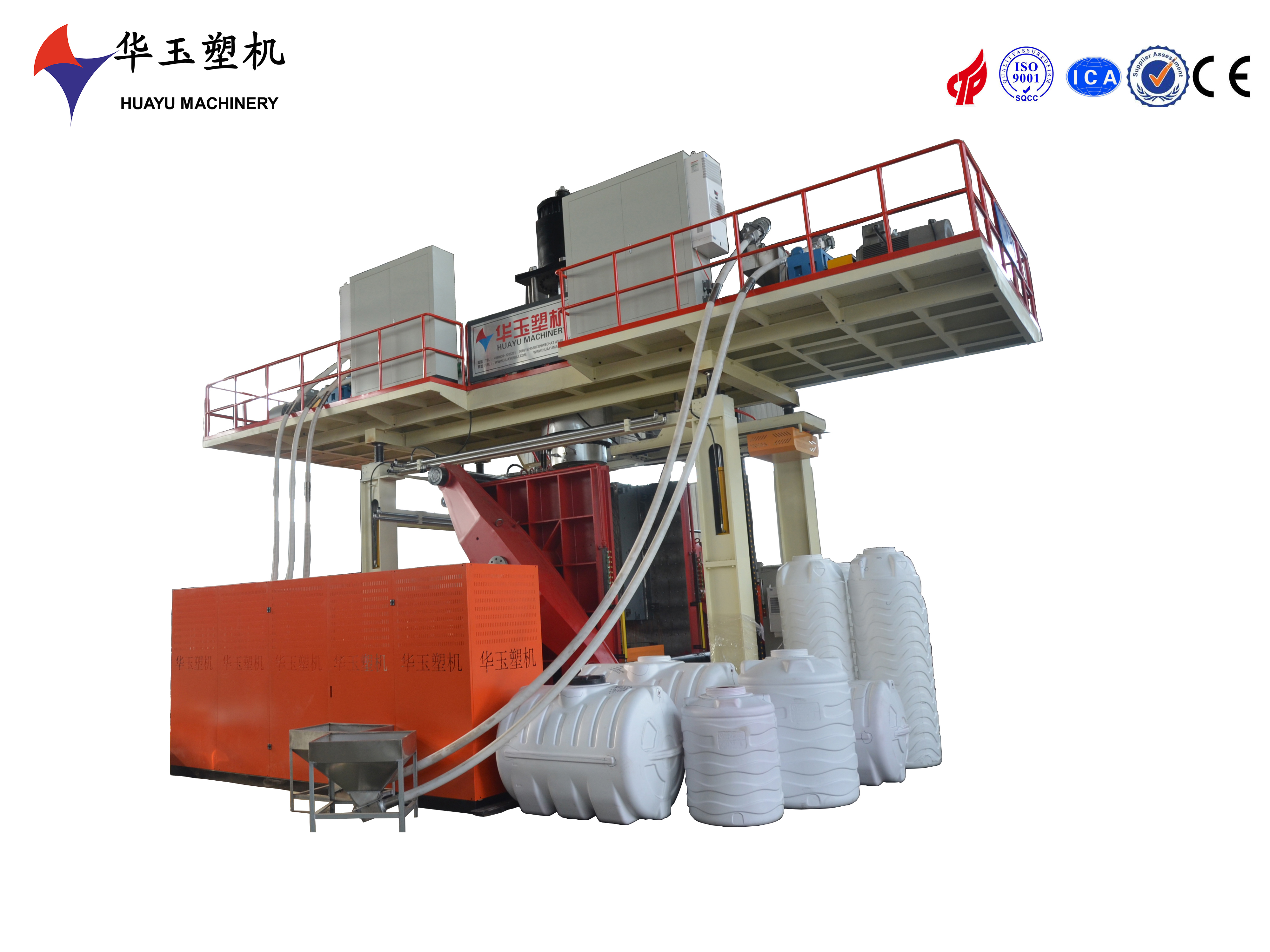

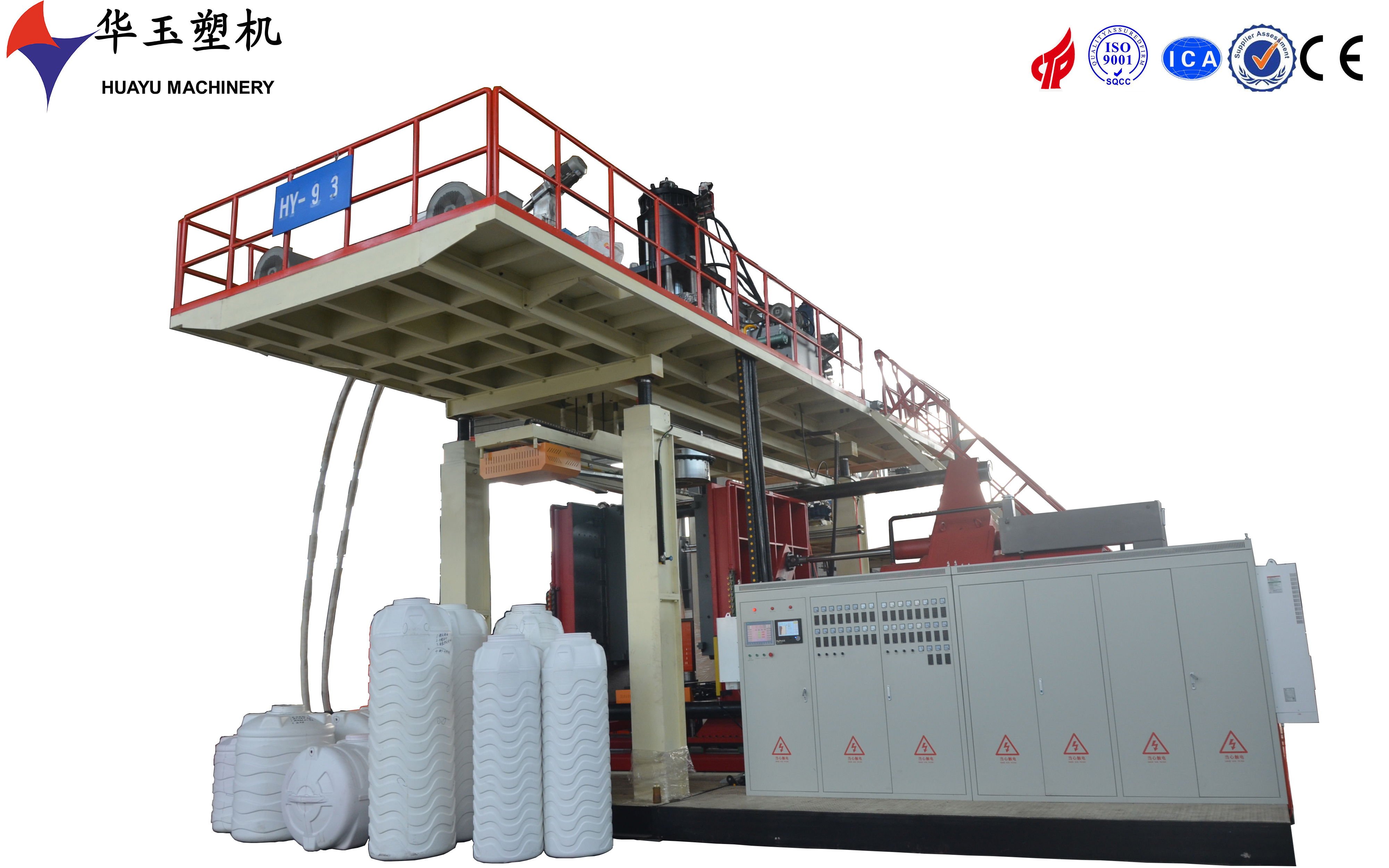

HUAYU 2200L 11-Layer Blow Moulding Machine for Water Tanks
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001, CE |
| Model Number | HYBM2200-11 |
| Minimum Order Quantity | 1 SET |
| Price | 400000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Water Tank,other Plastic Product | Key Selling Points | Long Service Life |
|---|---|---|---|
| Capacity | 500-1000 Liters | Showroom Location | Nigeria, Uganda |
| Total Weight | 300T | Distance Between Platens | 1400-3800mm |
| Total Power | 560kw | Average Consumption | 220kw |
| Feeding Type | Vacuum Feeding | Maximum Air Pressure | 0.8Mpa |
| Cooling System | Water Cooling | Productivity | 16-25pcs/h |
| Contactor | Schneider | Plastic Processed | HDPE |
| Air Consumption | 1.2 M3/min | ||
| Highlight | 11-layer blow moulding machine for water tanks,2200L water tank blow moulding machine,HUAYU blow moulding machine with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
HUAYUBlow Moulding Machine: Durable 11-Layer 2200L Plastic Manufacturing
Key Features
- Designed for heavy-duty 11-layer 2200L plastic manufacturing
- Advanced automation and energy-efficient technology
- High precision operation with low operational costs
- Durable construction for long service life
Technical Specifications
| Attribute | Value |
|---|---|
| Product Application | Water tank, other plastic products |
| Capacity | 500-1000 Liters |
| Total Weight | 300T |
| Distance Between Platens | 1400-3800mm |
| Total Power | 560kw |
| Average Consumption | 220kw |
| Feeding Type | Vacuum feeding |
| Maximum Air Pressure | 0.8Mpa |
| Cooling System | Water Cooling |
| Productivity | 16-25pcs/h |
| Contactor | Schneider |
| Plastic Processed | HDPE |
| Air Consumption | 1.2 m3/min |
Auto Feeder System
Hopper Material
Stainless steel - Stable performance, easy maintenance
Feeding Type
Spring loaded
Feeding Motor
1.5/1.5/1.5/1.5/1.5kw
Extrusion System
Screw Diameter
90/90/90/90/90mm (Nitrided 38CrMoAIA)
Screw L/D Ratio
28:1 - Special designed screw ensures material plasticizing uniform and efficient
Extruder Motor
45/45/45/45/45kw
Reducer
250/250/250/250/250 - Best quality brand in China, long life and low noise
Screw Heating Power
5kw*25
Plasticizing Capacity
500kg/h
