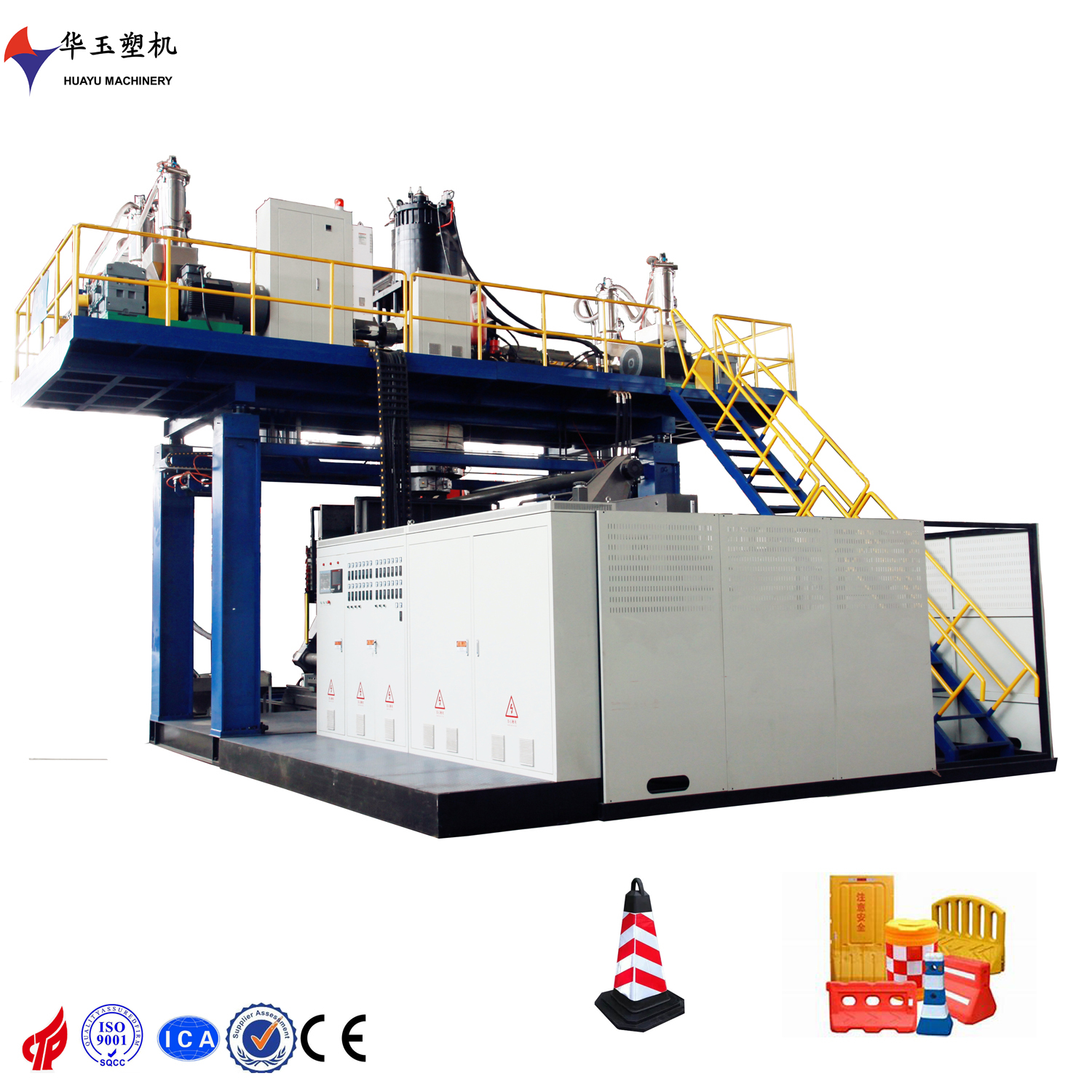

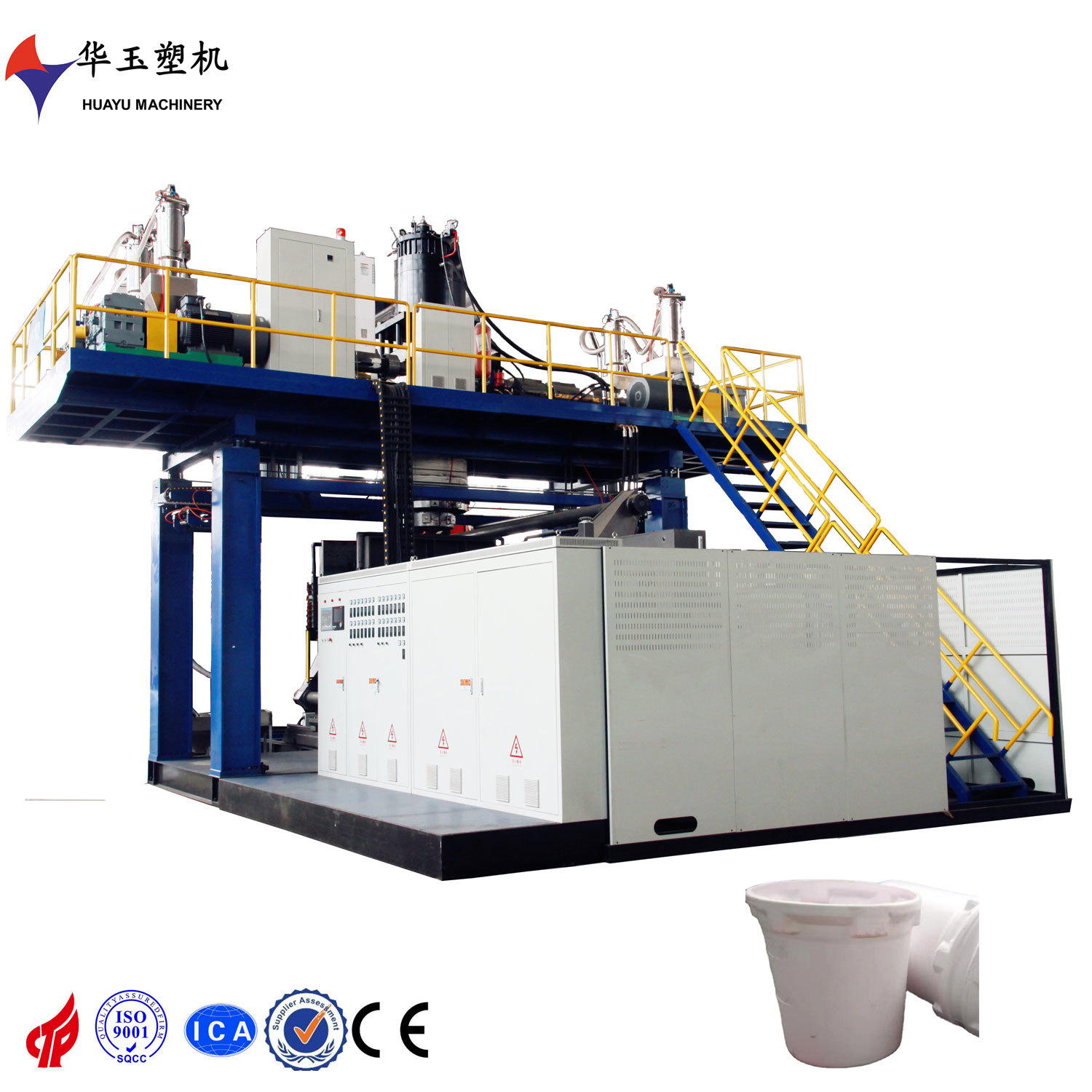

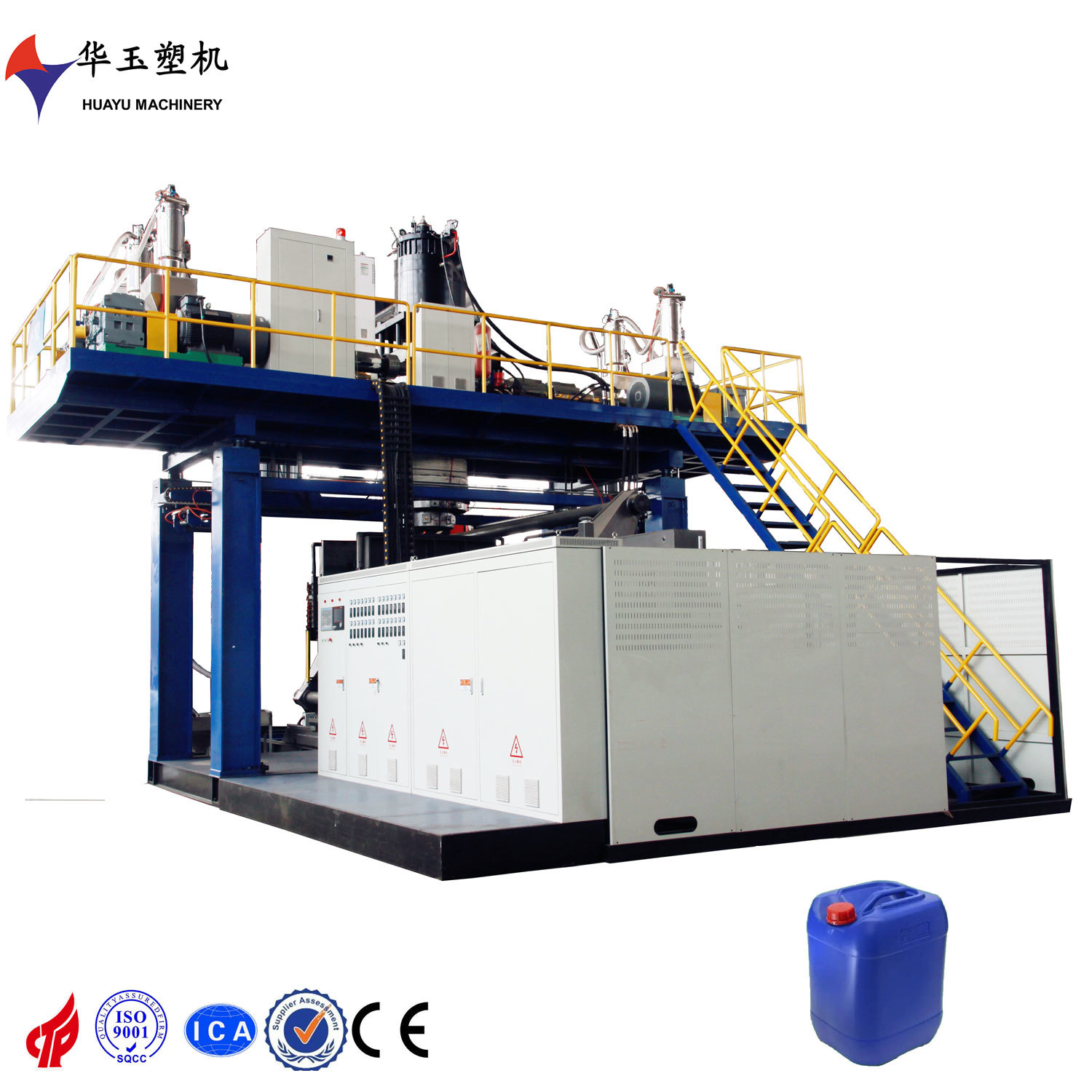

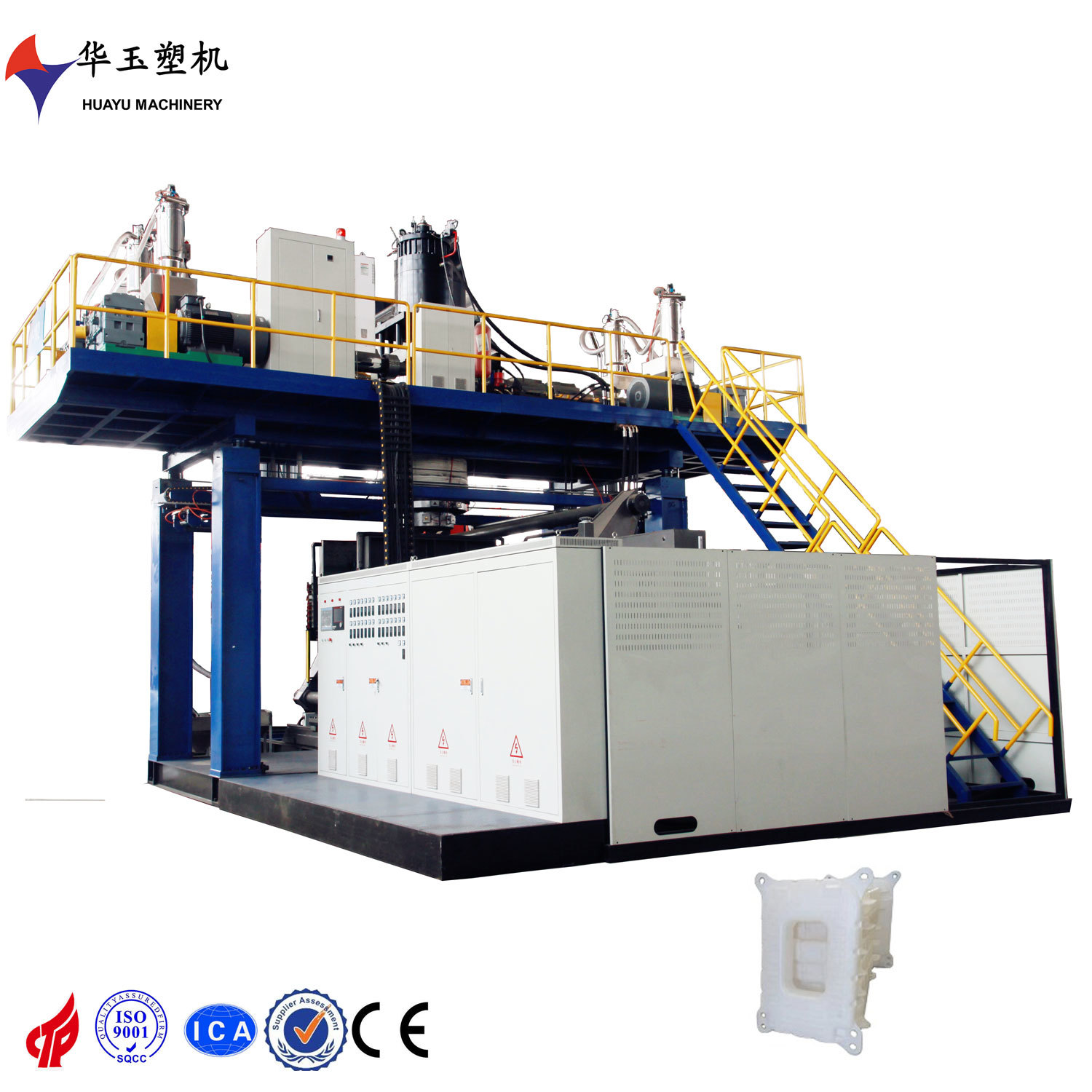

HUAYU 2800L Blow Moulding Machine for Plastic Tanks 10-Layer
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM2800-10 |
| Minimum Order Quantity | 1 SET |
| Price | 440000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAY |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total Power | 560kw | Machine Size | 3.0x2.1x2.35M |
|---|---|---|---|
| Max. Product Diameter | 800mm | Plc Brand | Siemens |
| Power Supply | 380V/3P/50Hz | Advantages | 20 Years Experiences |
| Accumulator | 180kg | Max Volume | 10-25L |
| Available Production | 750-3000L Plastic Product | Intermediate Relay | Schneider |
| Dimension | 6.5*2.5*3.5m | Screw Dia | 120MM |
| Heating Zones | 6 | Product Range | Plastic Bottle, Jerrycan |
| Machine Dimensions | 10*5.5*7m | ||
| Highlight | HUAYU 2800L plastic tank blow moulding machine,10-layer blow moulding machine for water tanks,industrial plastic tank manufacturing machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
HUAYU Blow Moulding Machine - Advanced 10-Layer 2800L Plastic Tank Production
Key Specifications
| Attribute | Value |
|---|---|
| Total Power | 560kw |
| Machine Size | 3.0x2.1x2.35M |
| Max. Product Diameter | 800mm |
| PLC Brand | Siemens |
| Power Supply | 380V/3P/50Hz |
| Accumulator | 180kg |
| Max Volume | 10-25L |
| Available Production | 750-3000L plastic product |
| Intermediate Relay | Schneider |
| Screw Diameter | 120MM |
| Heating Zones | 6 |
| Product Range | Plastic Bottle, Jerrycan |
Product Description
The HUAYU2800L-10L Blow Moulding Machine features advanced automation, making it ideal for manufacturing 10-layer 2800L plastic tanks. It ensures high precision and consistent product quality, with energy-efficient technology reducing operational costs significantly.
Clamping System Specifications
| Specification | Value | Features |
|---|---|---|
| Platen Size | 1900*2000*60mm (W*H*T) | Smooth running, no noise; the clamping force is big |
| Clamping Cylinder | 200+280*2 | |
| Clamping Cylinder Stroke | 2000mm | |
| Clamping Force | 1800KN | |
| Distance Between Platens | 1000-3000mm | |
| Max. Mould Size | 1600*2000mm (W*H) |
Blowing and Cooling System
| Specification | Value |
|---|---|
| Stretching Stroke | According to products |
| Blow Pin Up/Down Stroke | 600mm |
| Air Seat Stroke | 400mm |
| Maximum Air Pressure | 0.8Mpa |
| Air Consumption | 2.3m3/min |
| Cooling Method | Circulating water |
| Water Pressure | 0.3MPa |
| Cooling Water Consumption | 60m3/h |
