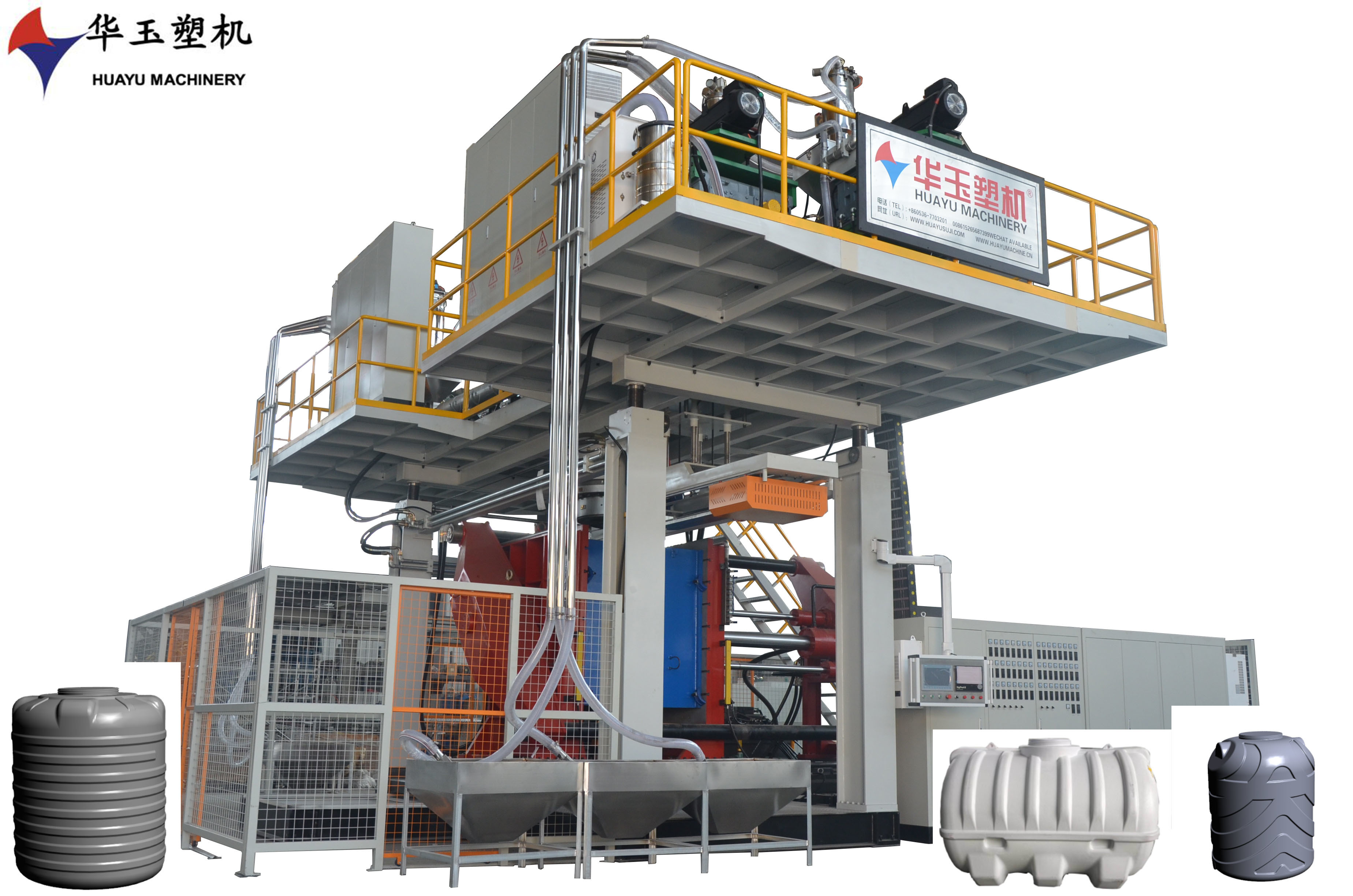

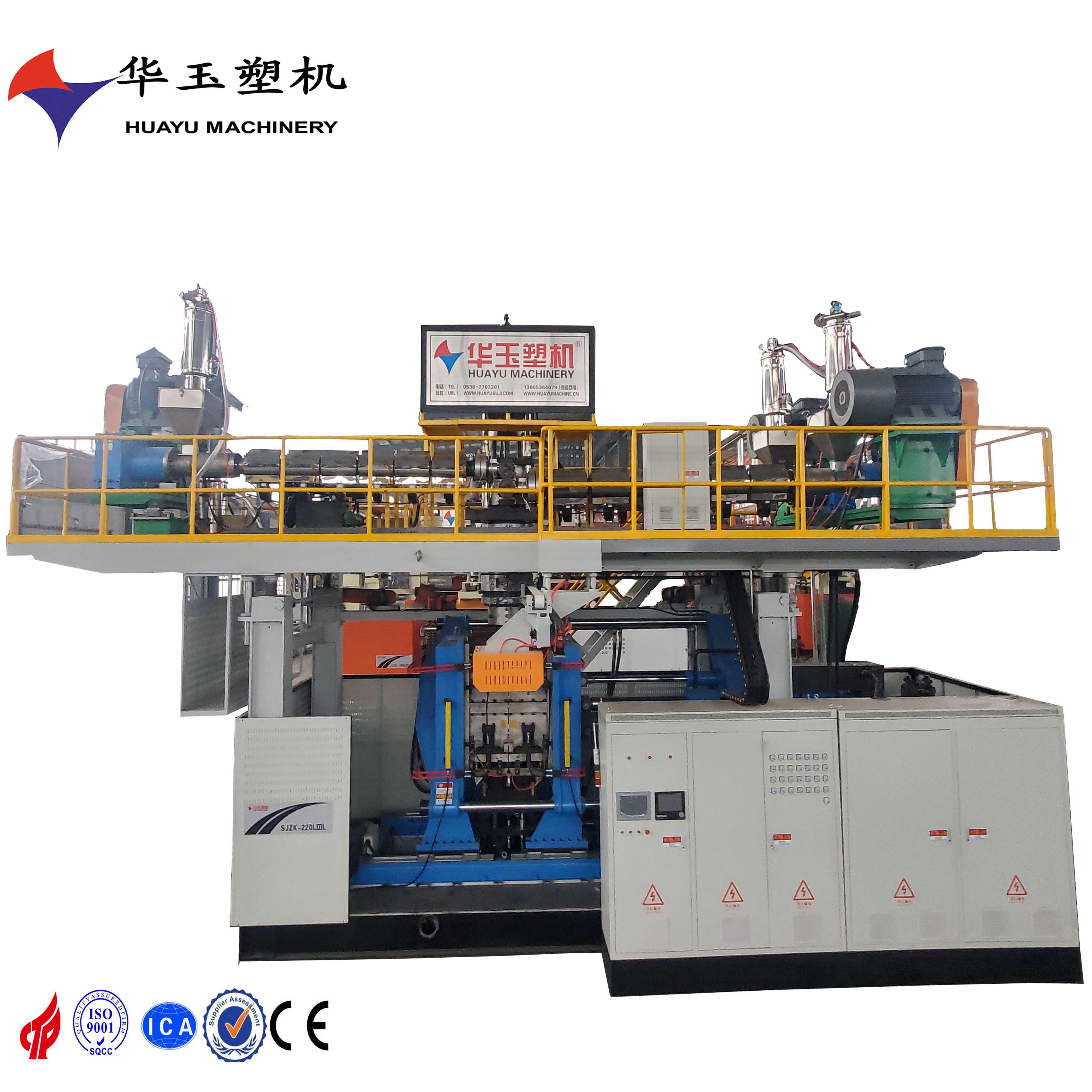

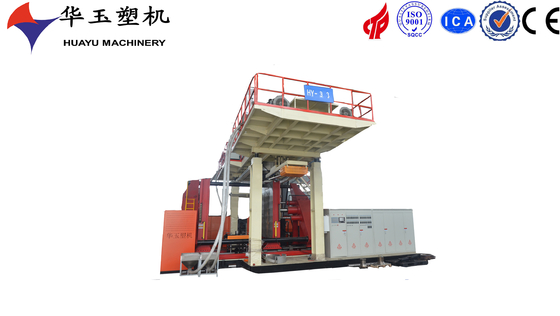

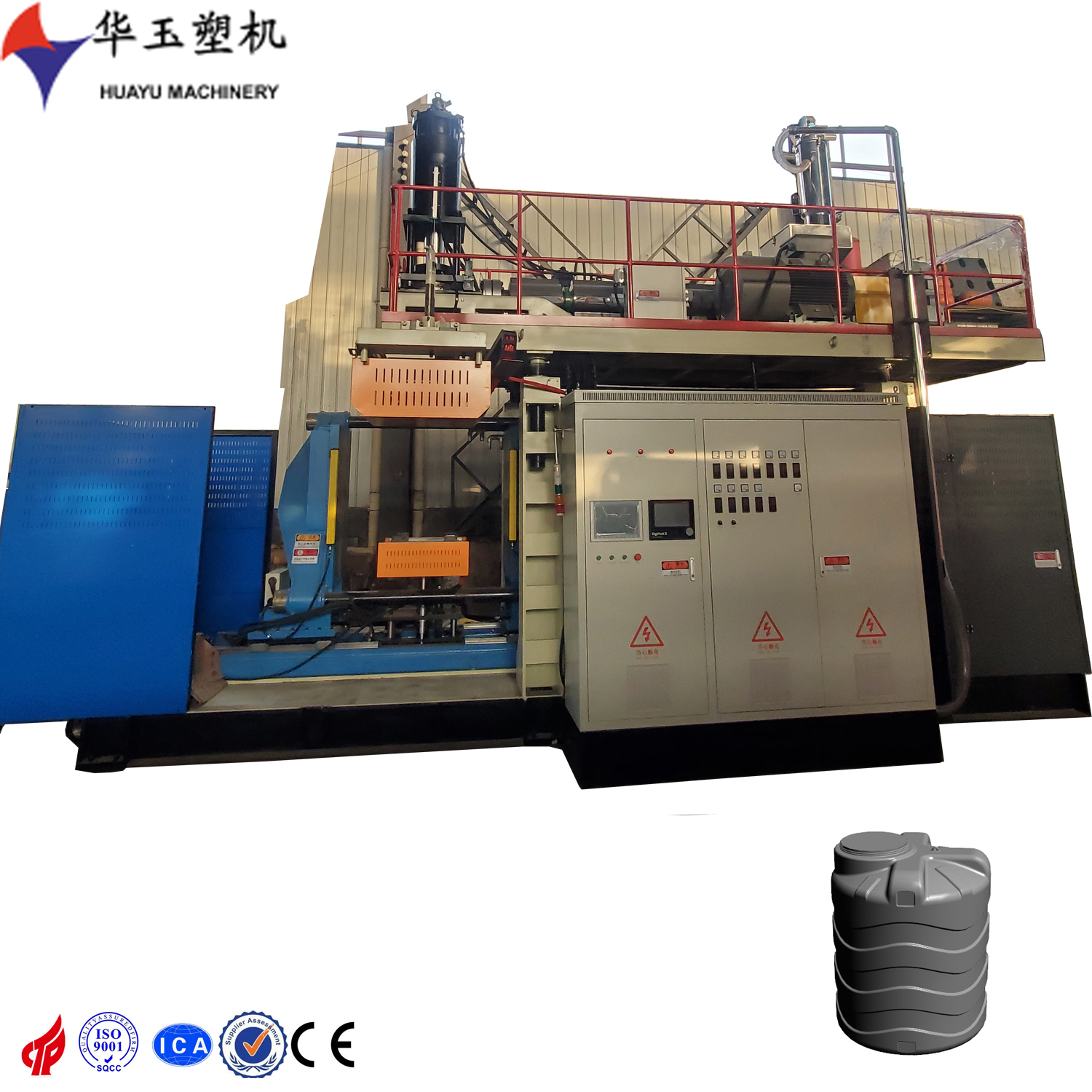

2300L 7-Layer Plastic Drum Blow Moulding Machine for Water Tanks
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM2300-7 |
| Minimum Order Quantity | 1 SET |
| Price | 420000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Water Tank Production | Extruder Diameter | 90mm |
|---|---|---|---|
| Die Head Weight | 16T | Accumulator Capacity | 80kg |
| Voltage Range | 220V/380V/415V/440V | Cleaning Method | Easy Cleaning |
| Reducer | 420*2+375*2 | Size | Customized |
| Air Supply | 0.8*6(Mpa*Cubic Meter Per Minute) | Advantage | More Efficient And Stable |
| Accumulator Capacity | 30KG | Air Consumption | 1.2 M3/min |
| Cooling Water Consumption | 60m3/h | Automation | Automation |
| Heating Power | 60kW | ||
| Highlight | 2300L plastic drum blow moulding machine,7-layer water tank blow moulding machine,plastic drum moulding machine for water tanks |
||
You can tick the products you need and communicate with us in the message board.
Product Description
High-Capacity 7-Layer 2300L Plastic Drum Production Blow Moulding Machine
Product Specifications
| Application | Water Tank Production |
| Extruder Diameter | 90mm |
| Die Head Weight | 16T |
| Accumulator Capacity | 80kg |
| Voltage Range | 220V/380V/415V/440V |
| Cleaning Method | Easy cleaning |
| Reducer | 420*2+375*2 |
| Size | Customized |
| Air Supply | 0.8*6(Mpa*Cubic meter per minute) |
| Advantage | More efficient and stable |
| Air Consumption | 1.2 m3/min |
| Cooling Water Consumption | 60m3/h |
| Automation | Automation |
| Heating Power | 60kW |
Product Description
The HUAYU2300L-7L Blow Moulding Machine is designed for high-capacity production of 7-layer 2300L plastic drums. It features high-speed operation and energy-efficient technology, ensuring exceptional output volumes with consistent product quality and uniform wall thickness.
Blowing and Cooling System
- Stretching stroke: According to products
- Blow pin up/down stroke: 600mm
- Air seat stroke: 400mm
- Maximum air pressure: 0.8Mpa
- Air consumption: 2.3m3/min
- Cooling method: Circulating water
- Water pressure: 0.3MPa
- Cooling water consumption: 60m3/h
Hydraulic System
- Main oil tank capacity: 1200L
- Pump: Gear pump 160CC
- Main oil pump motor: 45kw
- Servo oil tank capacity: 200L
- Servo oil pump model: Plunger pump 22
- Servo oil pump motor: 7.5kw
Servo motor system provides less energy consumption, high efficiency, and low noise operation.
