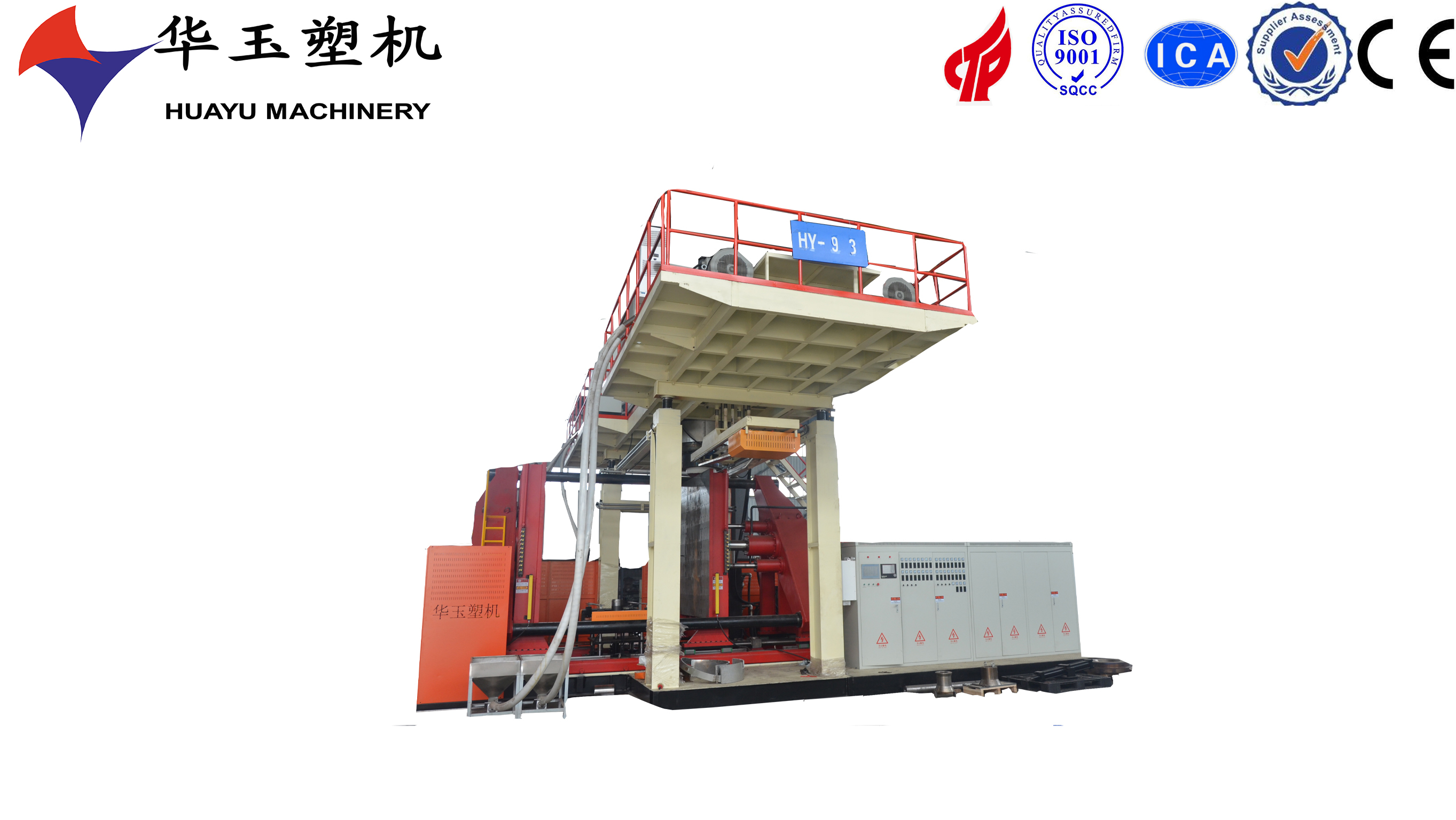

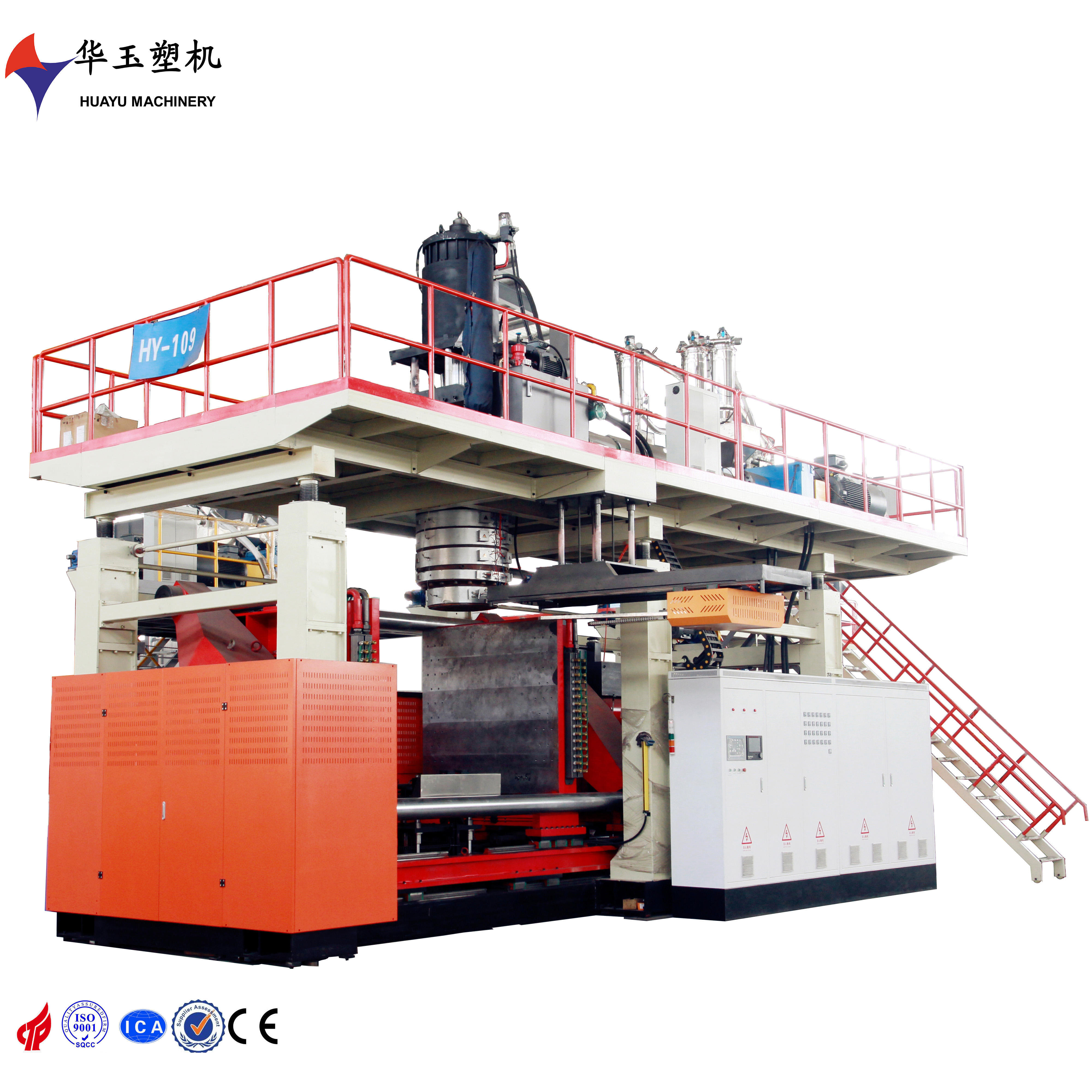

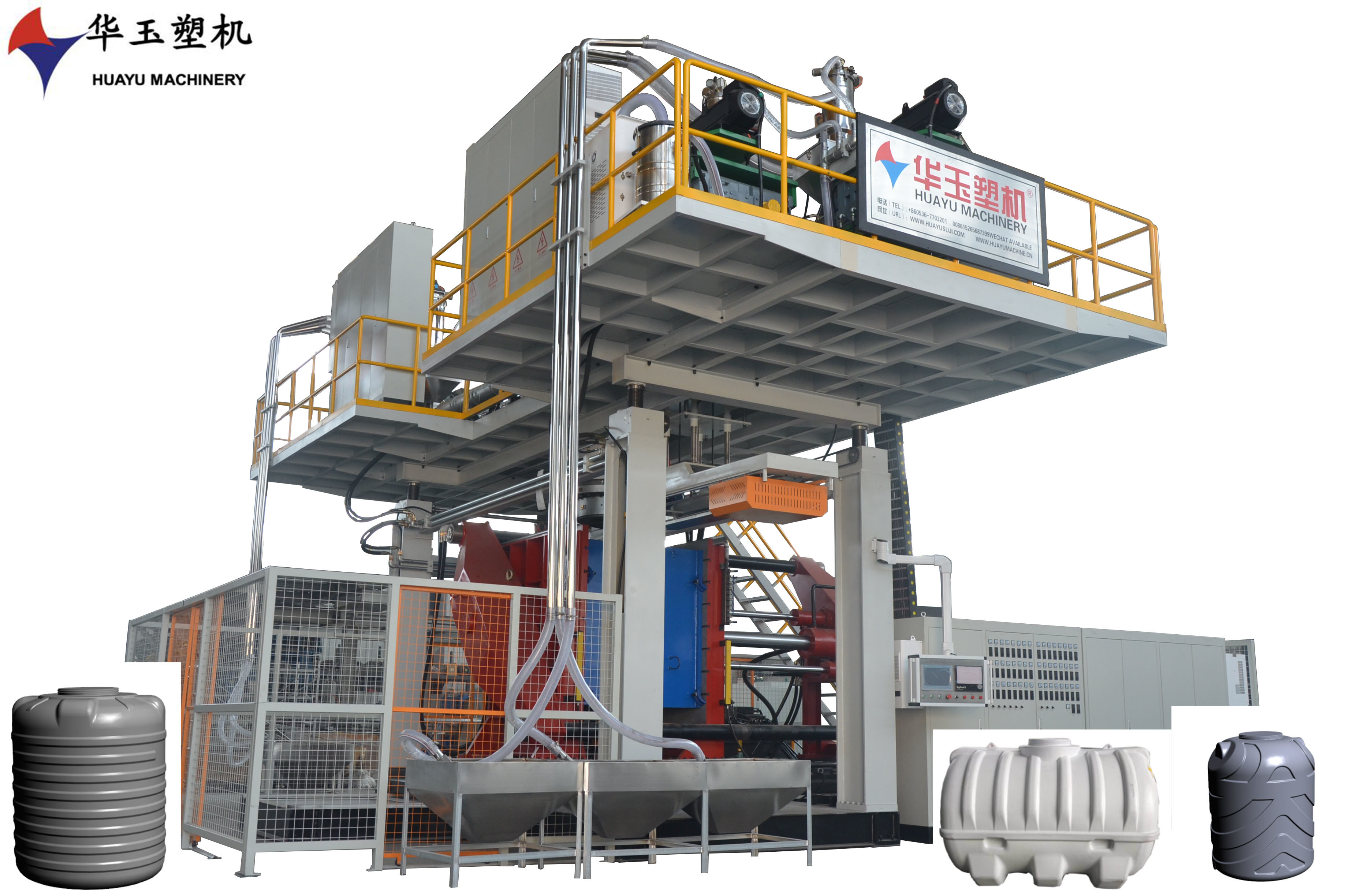

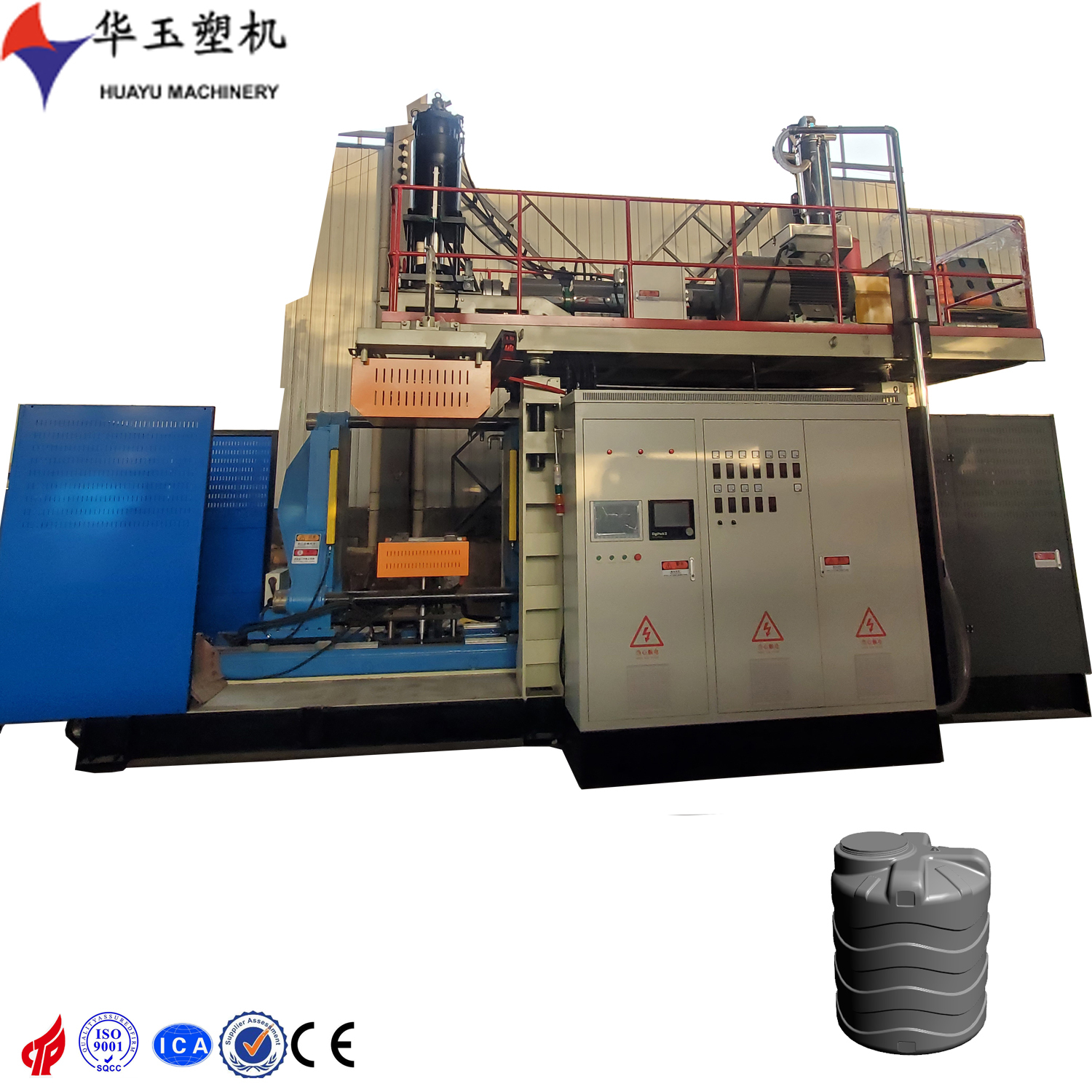

Fully Automatic 2600L HDPE Water Tank Blow Moulding Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM2600-9 |
| Minimum Order Quantity | 1 SET |
| Price | 410000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Production Capacity | 10-15 Pieces Per Hour | Blow Molding Type | Extrusion Blow Molding |
|---|---|---|---|
| Automation Level | Fully Automatic | Extruder Motor | 110/110kw |
| Applicable Material | HDPE | Total Power | 520kw |
| Weight | 5000kg | Air Switch | Schneider |
| Frequency | 50Hz | Machine Size | XXXX |
| Power | 380V/50HZ | Servo Motor | 30kw |
| Power Supply | 380V/50Hz | Water Pressure | 0.3MPa |
| Application | Water Tank Production | ||
| Highlight | fully automatic HDPE water tank machine,2600L water tank blow moulding machine,HDPE blow moulding machine with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Blow Moulding Machine - Robust 9-Layer 2600L Plastic Manufacturing
Key Specifications
| Attribute | Value |
|---|---|
| Production Capacity | 10-15 pieces per hour |
| Blow Molding Type | Extrusion Blow Molding |
| Automation Level | Fully Automatic |
| Extruder Motor | 110/110kw |
| Applicable Material | HDPE |
| Total Power | 520kw |
| Weight | 5000kg |
| Air Switch | Schneider |
| Frequency | 50Hz |
| Power Supply | 380V/50Hz |
| Water Pressure | 0.3MPa |
| Application | Water Tank Production |
Product Description
The HUAYU2600L-9L Blow Moulding Machine features a robust design, making it suitable for industrial 9-layer 2600L plastic manufacturing. It ensures high precision and consistent product quality, with advanced automation and energy-efficient technology reducing operational costs.
Hydraulic System Specifications
| Component | Specification |
|---|---|
| Main oil tank capacity | 1200L |
| Main oil pump | Gear pump 160CC |
| Main oil pump motor | 45kw |
| Servo oil tank capacity | 200L |
| Servo oil pump model | Plunger pump 22 |
| Servo oil pump motor | 7.5kw |
- Servo motor for less energy consumption
- High efficiency operation
- Low noise performance
Electronic System Features
| Component | Specification |
|---|---|
| Main operation panel | Touch screen 9" |
| Control system | PLC |
| Thickness control points | 100 points |
| Temperature control | PLC module |
