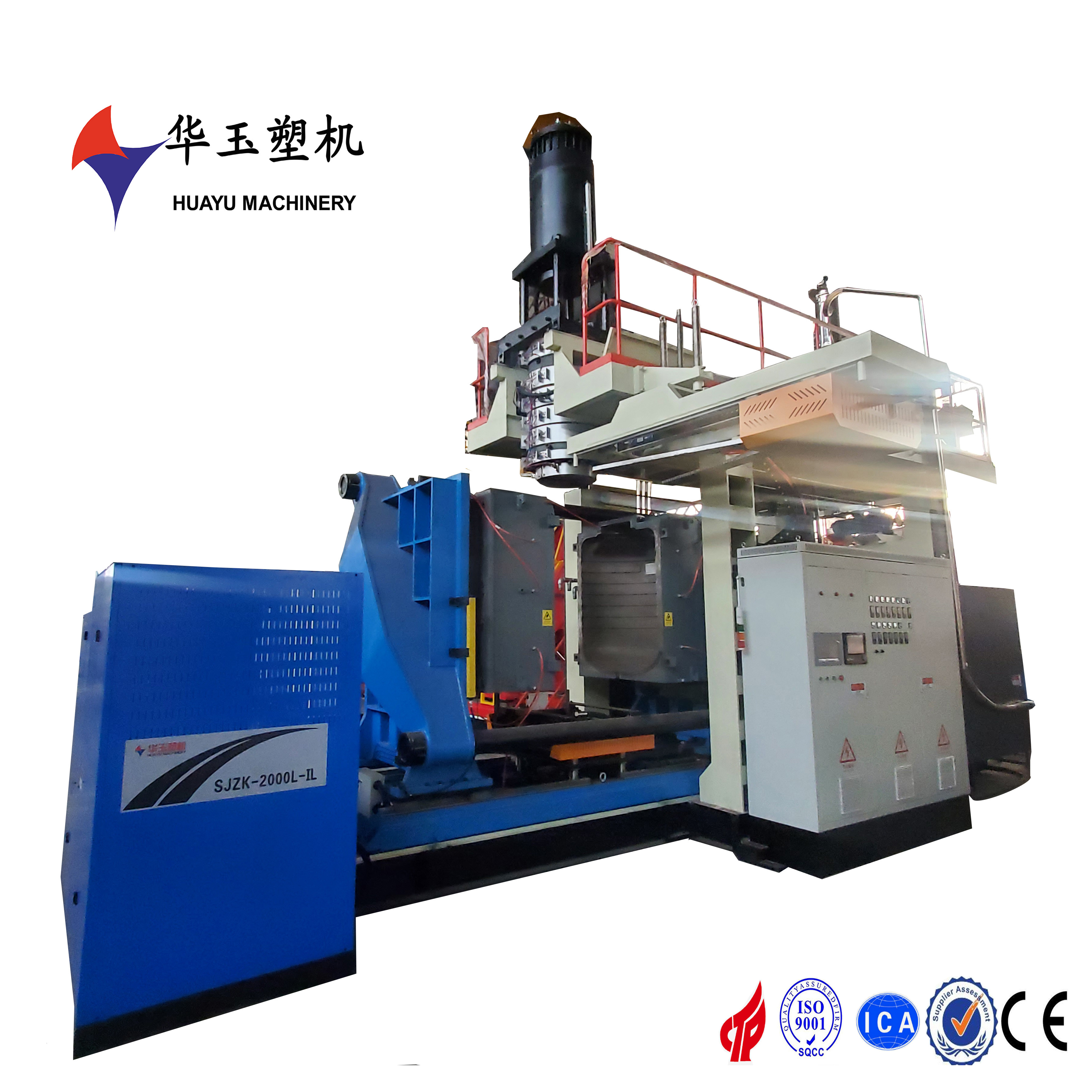

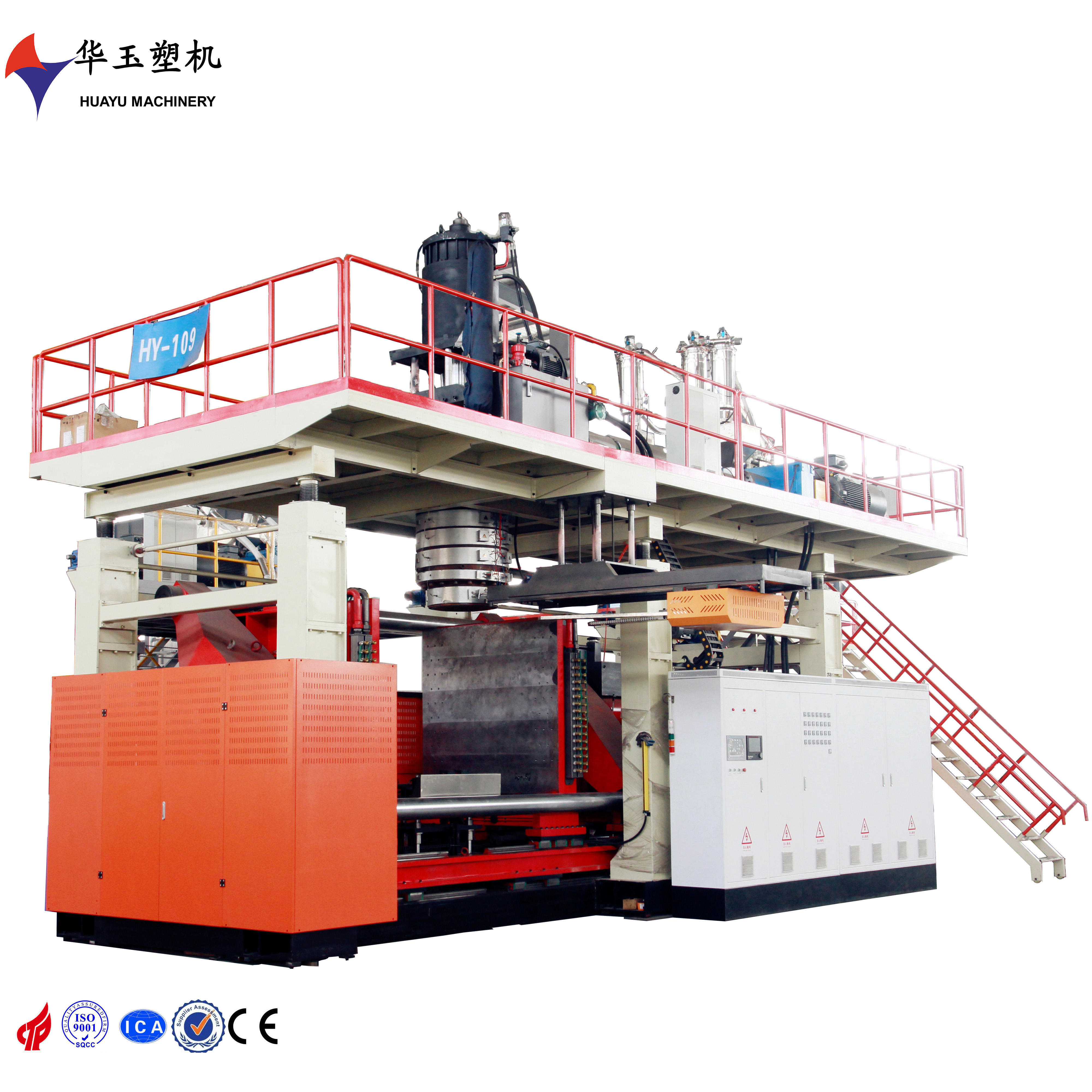

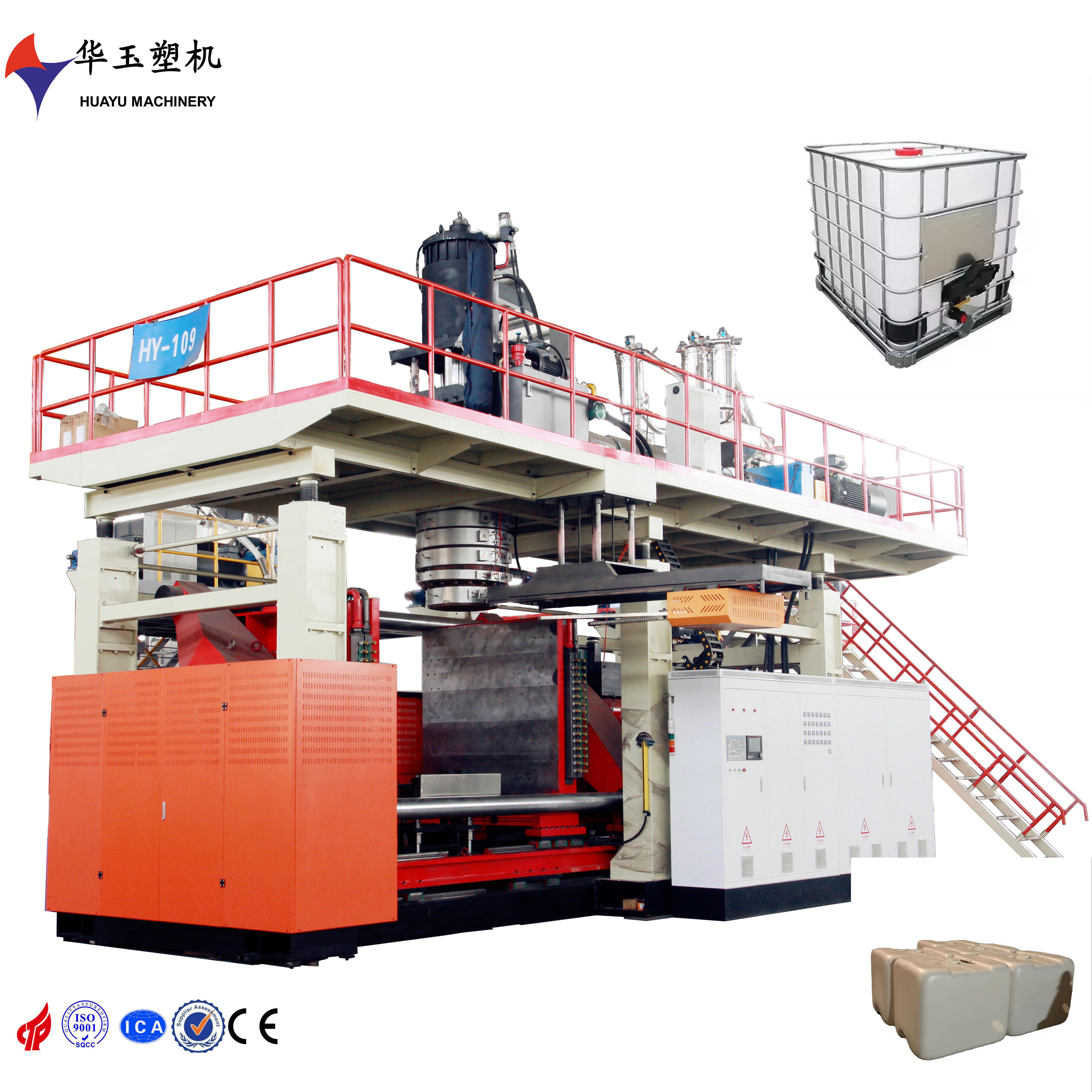

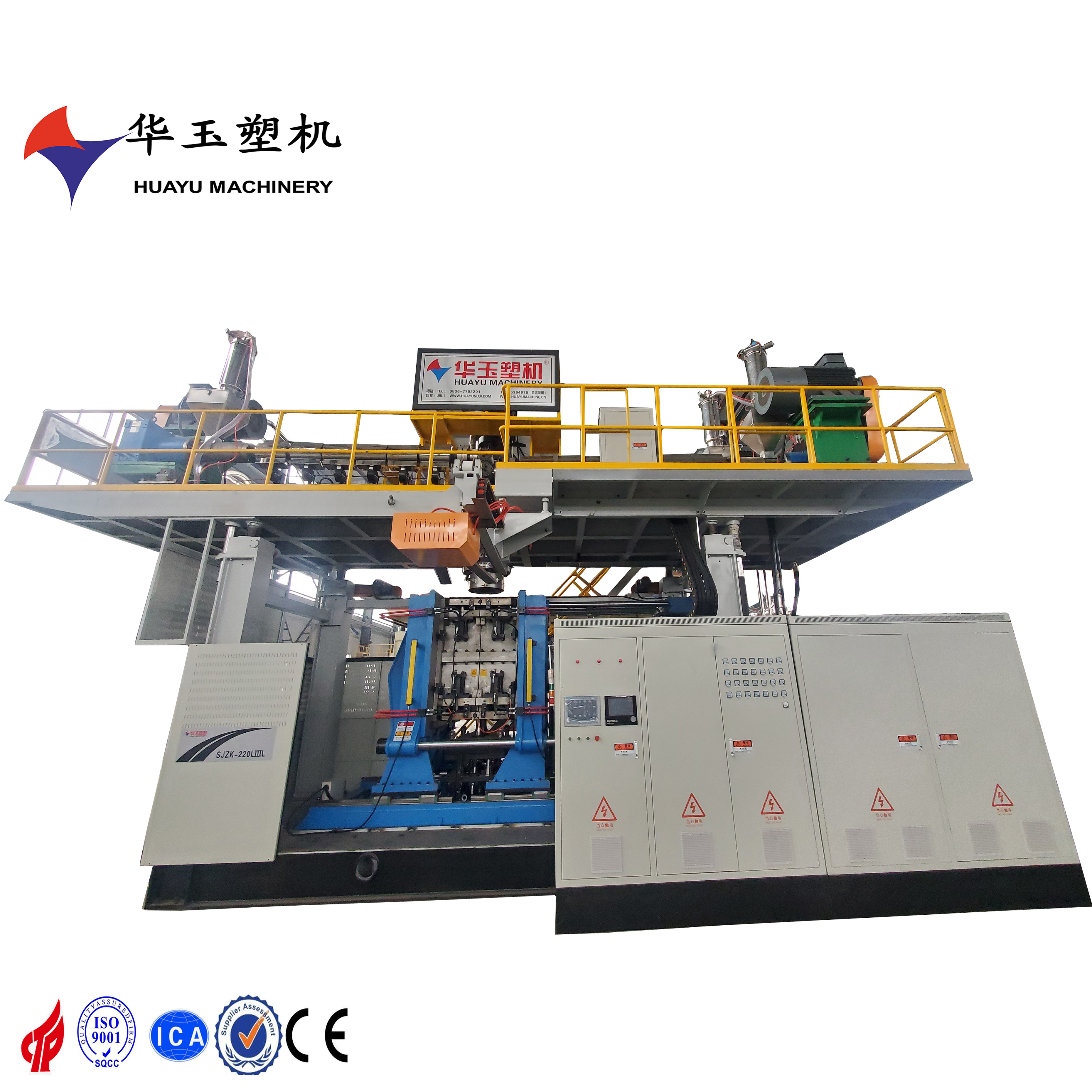

5-Layer 2400L HDPE Blow Moulding Machine with Servo Motor
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM2400-5 |
| Minimum Order Quantity | 1 SET |
| Price | 280000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machinery Test Report | Provided | Key Words | Servo Motor, Remote Control |
|---|---|---|---|
| Control System | PLC | Extruder Motor | 37kw*7 |
| Total Power | 560kw | Parison Control | MOOG 200point |
| Heating Power | 60kW | Frequency | 50Hz/60Hz |
| Plastic Processed | HDPE、PE | Blowing Type | Extrusion Blow Moulding |
| Extrusion Motor Power | 7.5-15 KW | Voltage | Pending |
| Maximum Air Pressure | 0.8Mpa | Extrudor Motor | 45*6kw |
| Weight | 40Ton | ||
| Highlight | 5-layer HDPE blow moulding machine,2400L water tank blow moulding machine,servo motor blow moulding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Blow Moulding Machine: Versatile 5-Layer 2400L Plastic Product Manufacturing
Key Features
- High-speed production with energy-efficient technology
- Precision manufacturing for consistent product quality
- Versatile solution for 5-layer 2400L plastic products
- Advanced PLC control system with servo motors
- MOOG 200-point parison control for precise operation
Technical Specifications
| Attribute | Value |
|---|---|
| Control System | PLC |
| Extruder Motor | 37kw*7 |
| Total Power | 560kw |
| Parison Control | MOOG 200point |
| Heating Power | 60kW |
| Frequency | 50Hz/60Hz |
| Plastic Processed | HDPE, PE |
| Blowing Type | Extrusion Blow Moulding |
| Maximum Air Pressure | 0.8Mpa |
| Weight | 40Ton |
Additional Specifications
Applicable Material: HDPE
Capacity Range: 750-3000L, 4 layers
Total Power: 568kw
Average Power: 370kw
Machine Dimensions: 9*10*7.5 (L*W*H)
Productivity: 8-20pcs/h
Feeding System
Hopper Material: Stainless steel (Stable performance, easy maintenance)
Feeding Type: Spring loaded
Feeding Motor: 2.2/2.2/2.2/2.2kw
