Hydraulic Driven HDPE 2900L Plastic Drum Blow Moulding Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM2900-12 |
| Minimum Order Quantity | 1 SET |
| Price | 460000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total Weight | 29T | Applicable Material | HDPE |
|---|---|---|---|
| Machine Type | Hydraulic Driven | Moulding Type | Blow Moulding |
| Air Supply | 0.8*6(Mpa*Cubic Meter Per Minute) | Blow Moulding Type | Extrusion Blow Moulding |
| Blow Molding Type | Extrusion Blow Molding | Maximum Air Pressure | 0.8Mpa |
| Output | 20PCS/h | Plc | SIMENS(Germany) |
| Range | 1000L IBC TANK | Control System | PLC |
| Color | Customizable | Screw Material | 38CrMoAlA，Nitriding |
| Air Switch | Schneider | ||
| Highlight | Hydraulic HDPE drum blow moulding machine,2900L plastic drum moulding machine,Water tank blow moulding machine with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Precision 12-Layer 2900L Plastic Drum Manufacturing BLOW MOULDING MACHINE
Product Specifications
| Attribute | Value |
|---|---|
| Total Weight | 29T |
| Applicable Material | HDPE |
| Machine Type | Hydraulic Driven |
| Moulding Type | Blow Moulding |
| Air Supply | 0.8*6(Mpa*Cubic meter per minute) |
| Blow Moulding Type | Extrusion Blow Moulding |
| Maximum Air Pressure | 0.8Mpa |
| Output | 20PCS/h |
| Plc | SIMENS(Germany) |
| Range | 1000L IBC TANK |
| Control System | PLC |
| Color | Customizable |
| Screw Material | 38CrMoAlA，Nitriding |
| Air Switch | Schneider |
Product Description

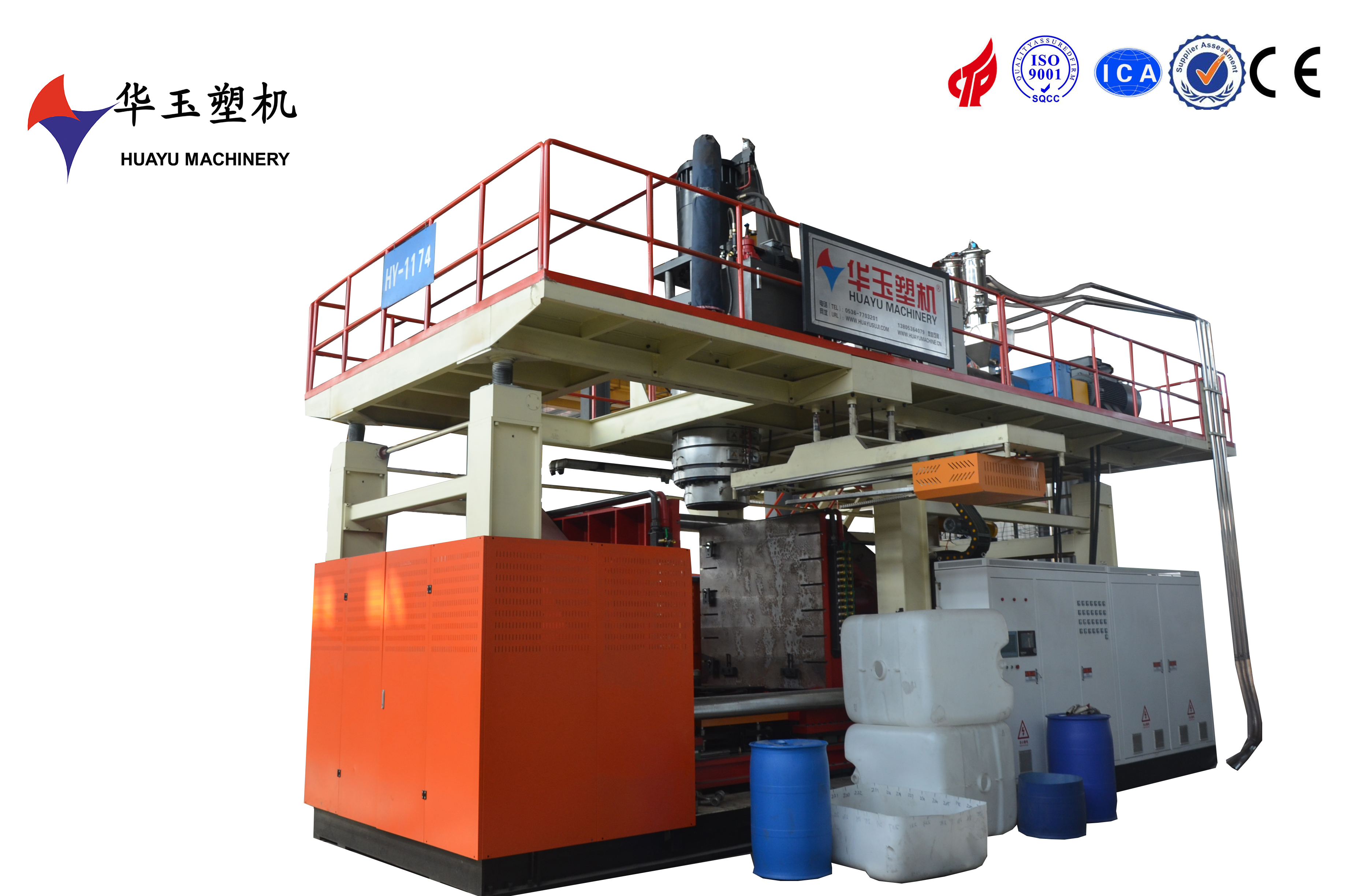

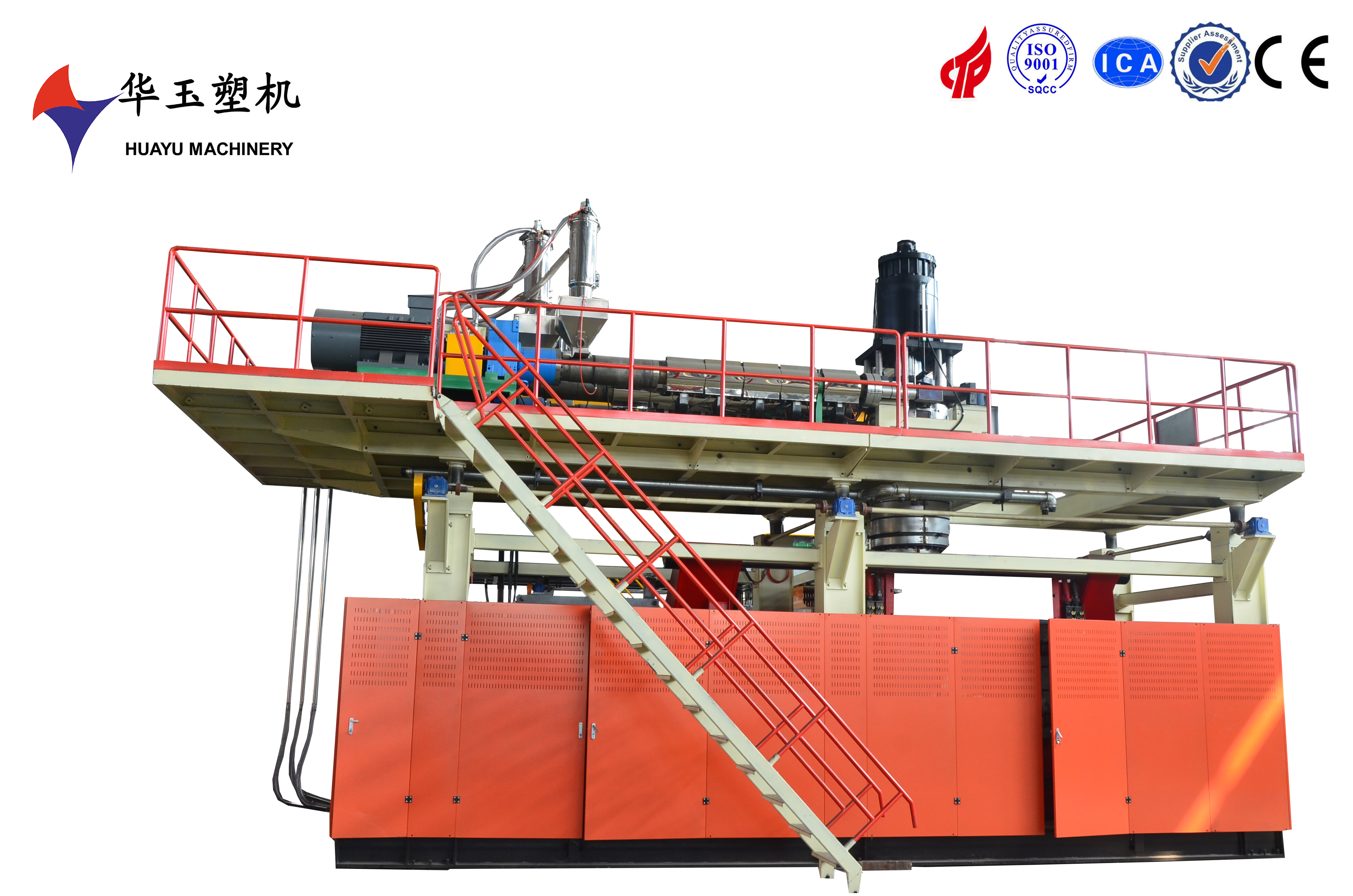

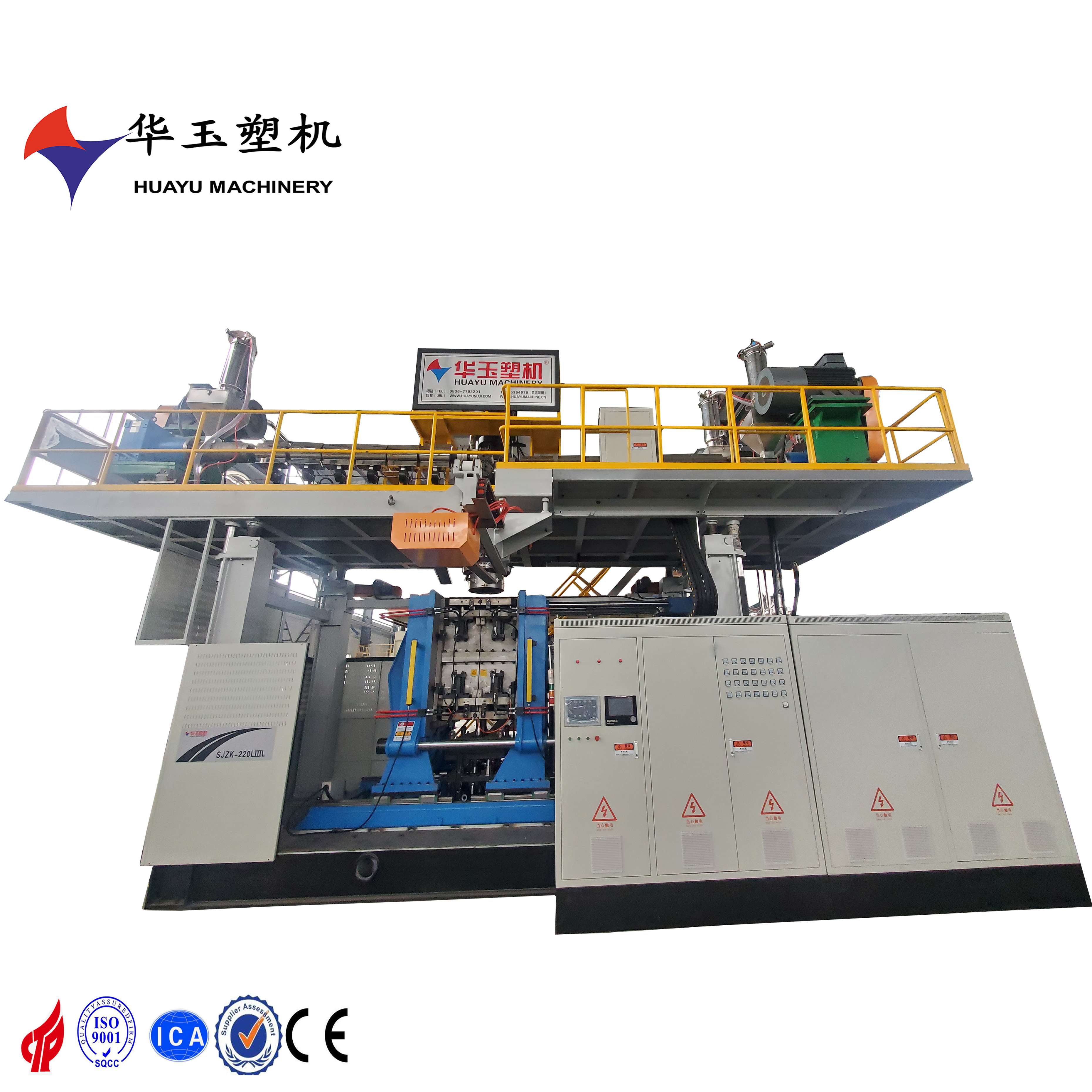

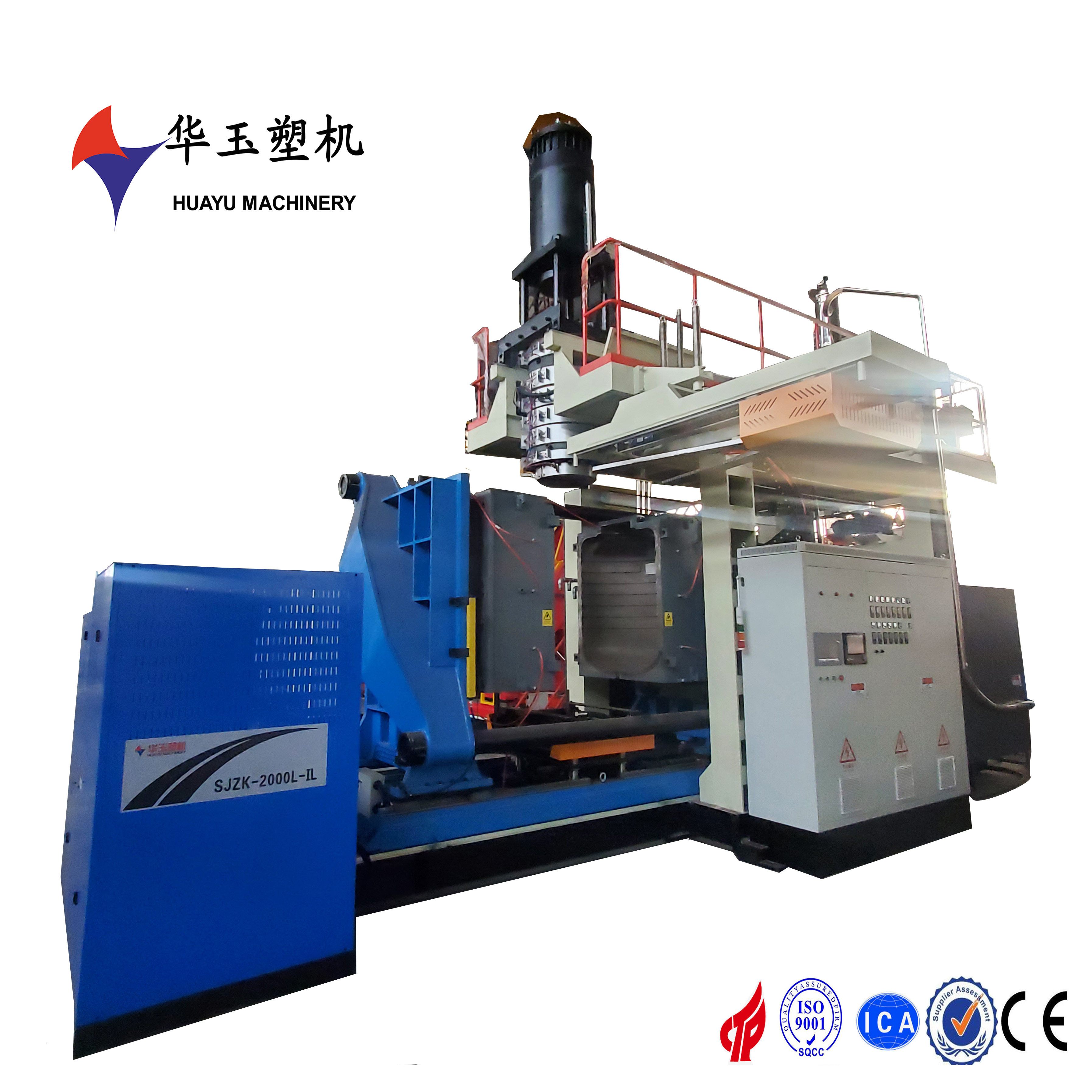

The HUAYU2900L-12L Blow Moulding Machine is designed for precision manufacturing of 12-layer 2900L plastic drums. It features advanced automation and energy-efficient technology, ensuring consistent product quality and uniform wall thickness, with a durable construction guaranteeing long-term reliability.
Extrusion System Specifications
| Component | Specification | Features |
|---|---|---|
| Screw diameter | 110/110/110/110mm | Nitrided 38CrMoAIA |
| Screw L/D ratio | 28:1 | Special designed screw can ensure the material plasticizing uniform and efficient |
| Extruder motor | 75/75/75/75kw | |
| Reducer | 315/315/315/315 | Best quality brand in china, long life and low noise |
| Screw heating power | 4.4kw*16 | |
| Plasticizing capacity | 800kg/h | |
| Accumulator capacity | 90kg | Designed by ourselves and get the patent |
| Die diameter | According to products | |
| Die head heating power | 110kw |
