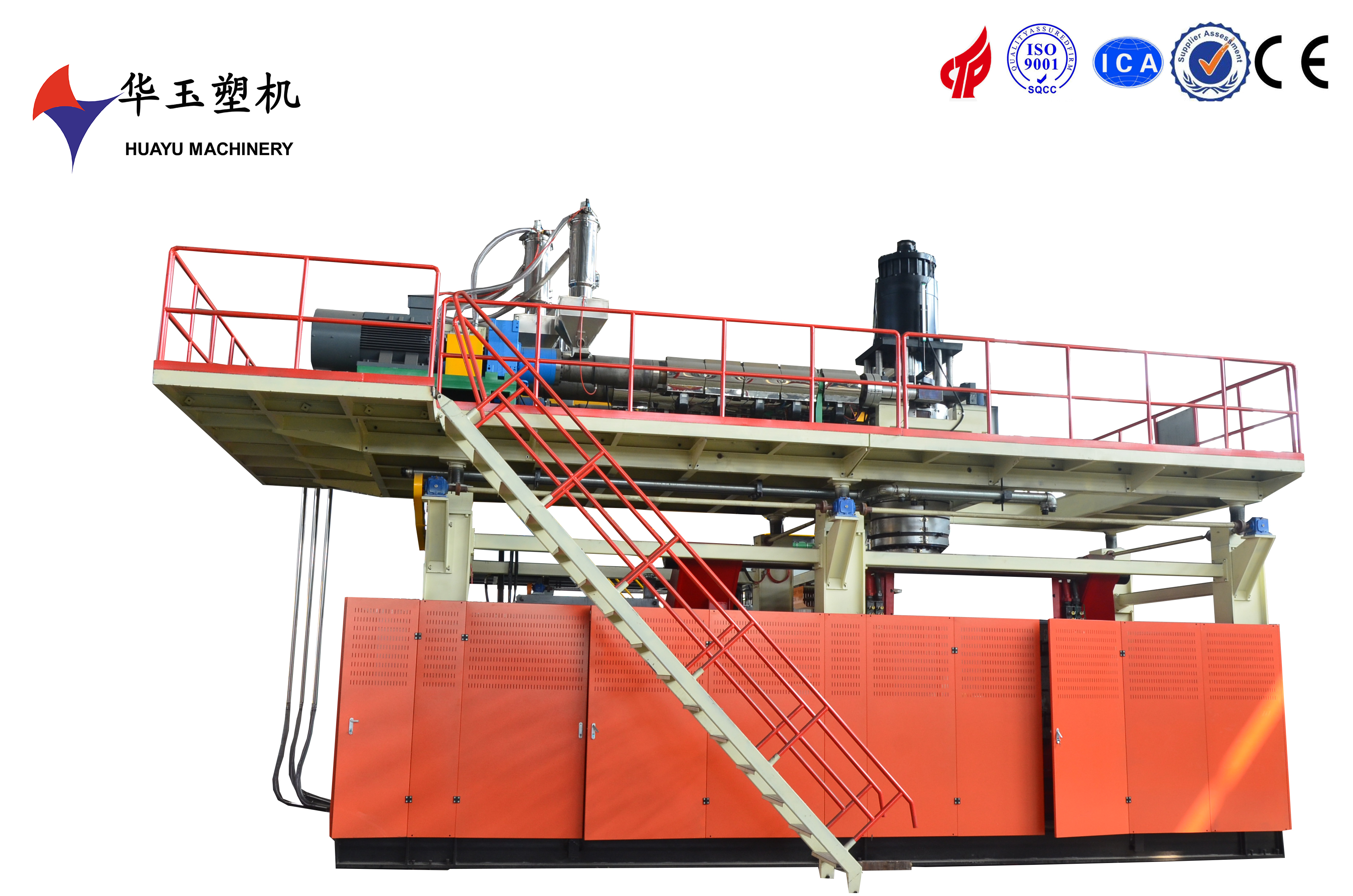

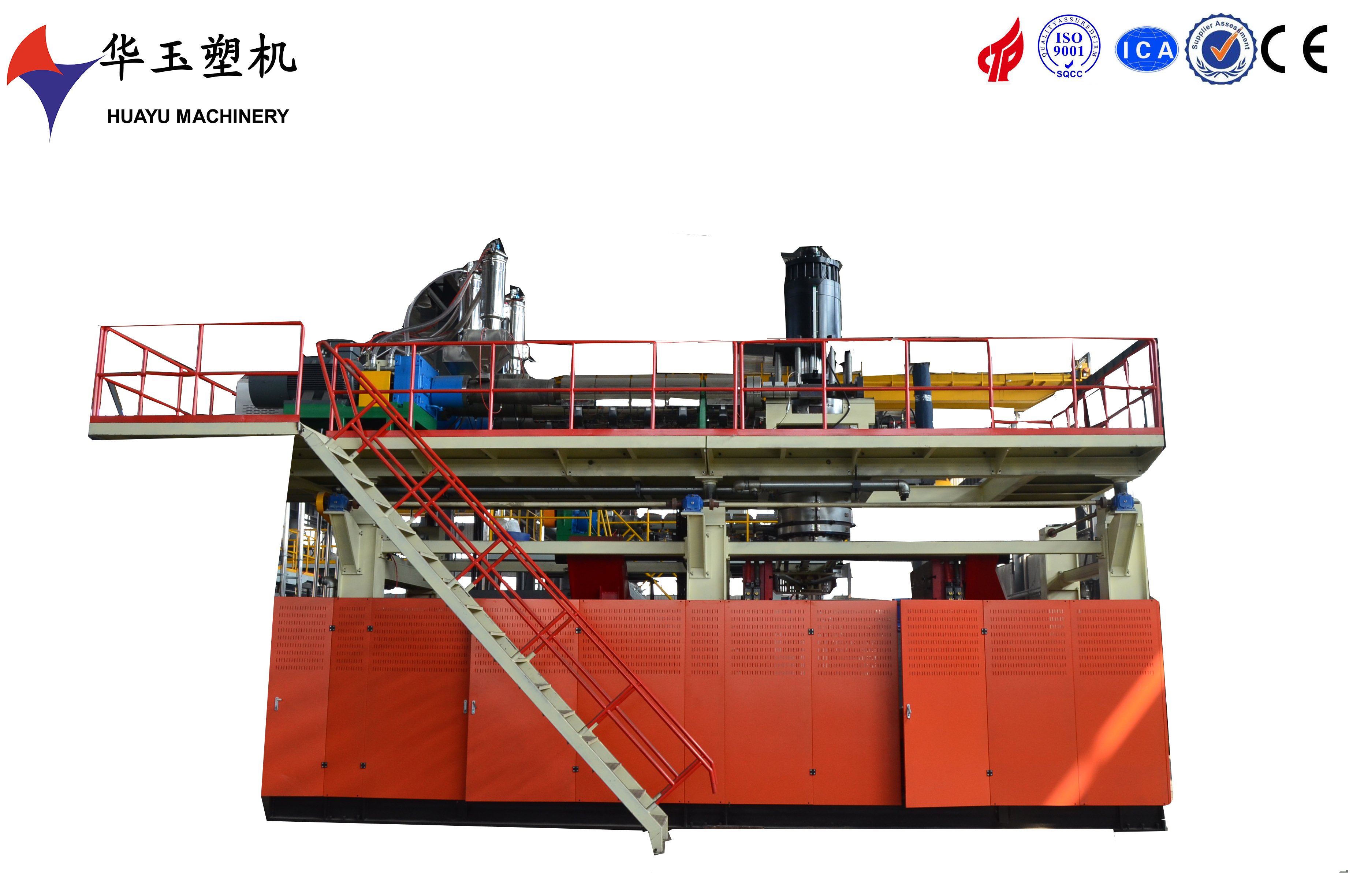

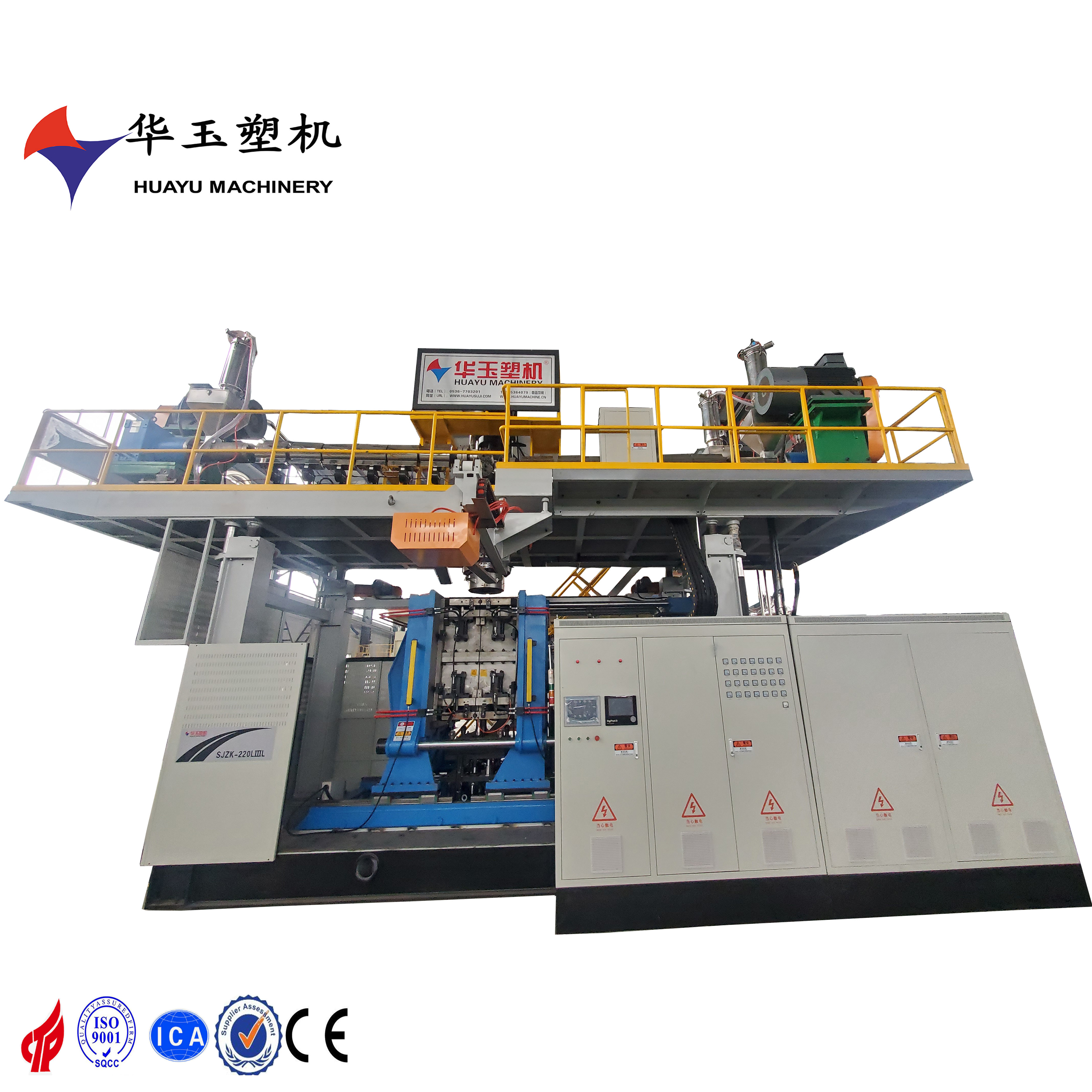

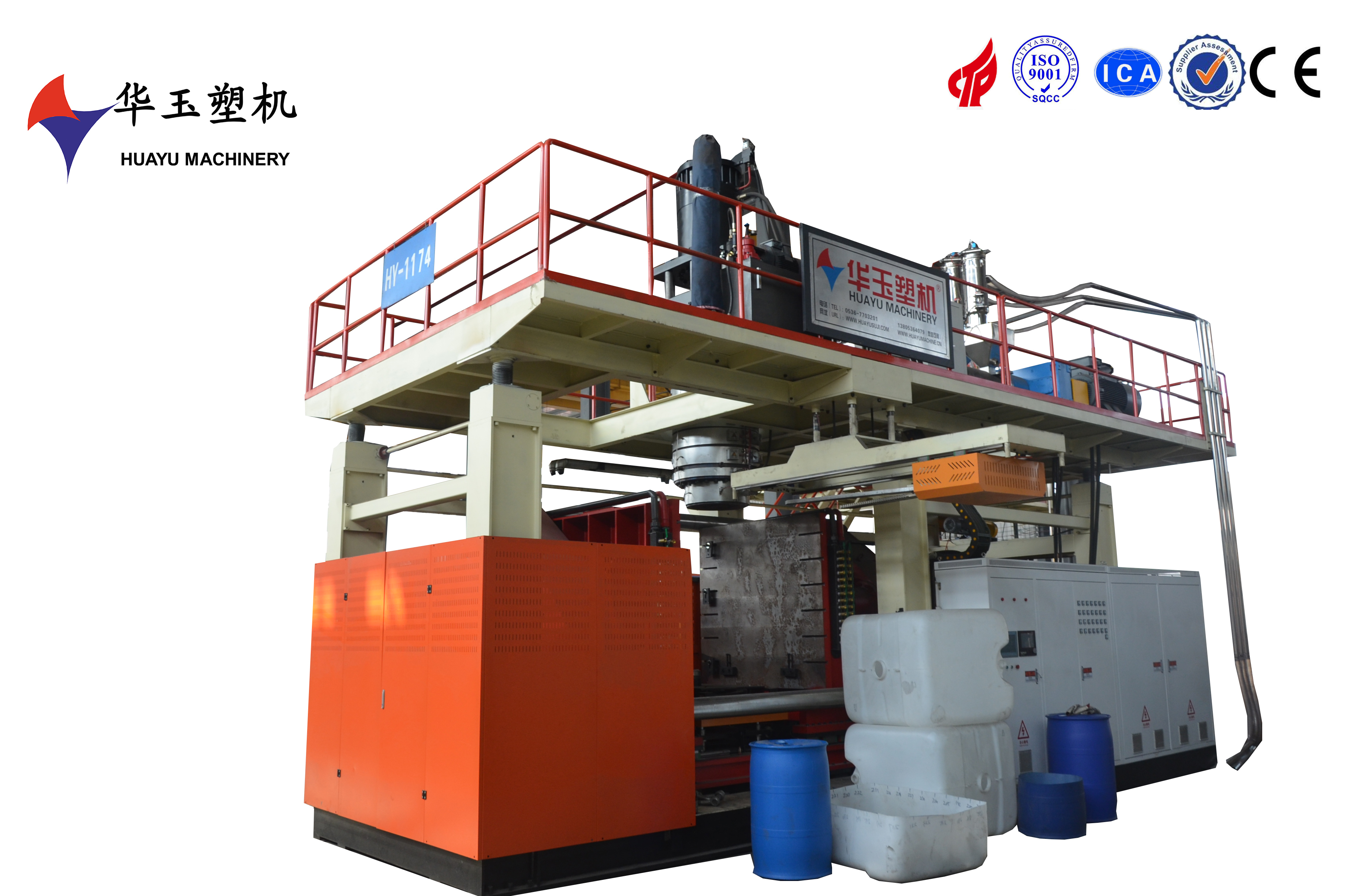

Fully Automatic 3100L Water Tank Blow Moulding Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM3100-10 |
| Minimum Order Quantity | 1 SET |
| Price | 450000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mian Oil Pump | Gear Pump160cc | Plc Brand | Siemens |
|---|---|---|---|
| Blow Moulding Type | Extrusion Blow Moulding | Capacity Range | 200-1000L |
| Contactor | Schneider | Cooling Method | Circulating Water |
| Product | Water Tank,other Plastic Product | Automation Level | Fully Automatic |
| Screw Barrel Material | 38CrMoAlA，Nitriding | Screw Dia | 150mmx1 |
| Capacity | 1000-5000 Liters | Stretching Stroke | According To Products |
| Die Head Heating | 60KW | Power Supply | 380V/50Hz |
| Machine Type | Extrusion Blow Molding | ||
| Highlight | fully automatic water tank blow moulding machine,3100L water tank moulding machine,industrial water tank blow moulding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Blow Moulding Machine - Innovative 10-Layer 3100L Plastic Container Production
Key Specifications
| Attribute | Value |
|---|---|
| Main Oil Pump | Gear pump 160cc |
| PLC Brand | Siemens |
| Blow Moulding Type | Extrusion Blow Moulding |
| Capacity Range | 200-1000L |
| Contactor | Schneider |
| Cooling Method | Circulating water |
| Product Applications | Water tank, other plastic products |
| Automation Level | Fully Automatic |
| Screw Barrel Material | 38CrMoAlA, Nitriding |
| Screw Diameter | 150mmx1 |
| Capacity | 1000-5000 Liters |
| Stretching Stroke | According to products |
| Die Head Heating | 60KW |
| Power Supply | 380V/50Hz |
| Machine Type | Extrusion Blow Molding |
Product Description
The HUAYU3100L-10L Blow Moulding Machine features an innovative design, making it perfect for 10-layer 3100L plastic container production. It ensures high precision and consistent product quality, with high-speed operation and energy-efficient technology reducing operational costs.
Die Head Specifications
- Accumulator capacity: 90kg (patented design)
- Die diameter: Customized according to products
- Die head heating power: 110KW
Clamping System
- Dimensions: 2100*2200*60mm (W*H*T)
- Features: Smooth running, no noise; high clamping force
- Clamping cylinder: 160*2 + 320*1
- Clamping cylinder stroke: 2100mm
- Clamping force: 2200KN
- Distance between platens: 1100-3200mm
- Maximum mould size: 1800*2200mm (W*H)
Blowing and Cooling System
- Stretching stroke: Customized according to products
- Blow pin up/down stroke: 600mm
- Air seat stroke: 400mm
- Maximum air pressure: 0.8Mpa
- Air consumption: 3m³/min
- Cooling method: Circulating water
- Water pressure: 0.3MPa
- Cooling water consumption: 75m³/h
