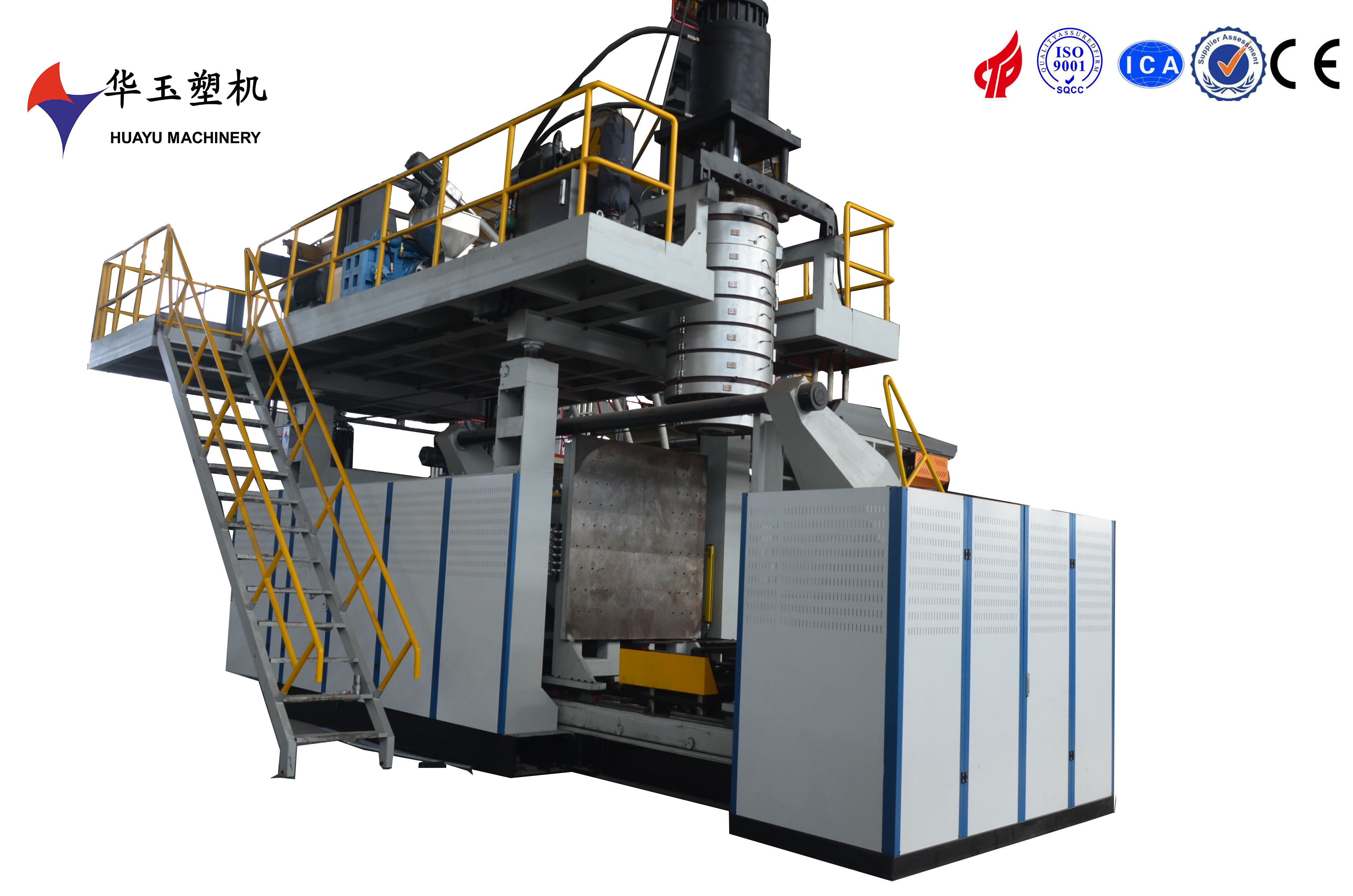

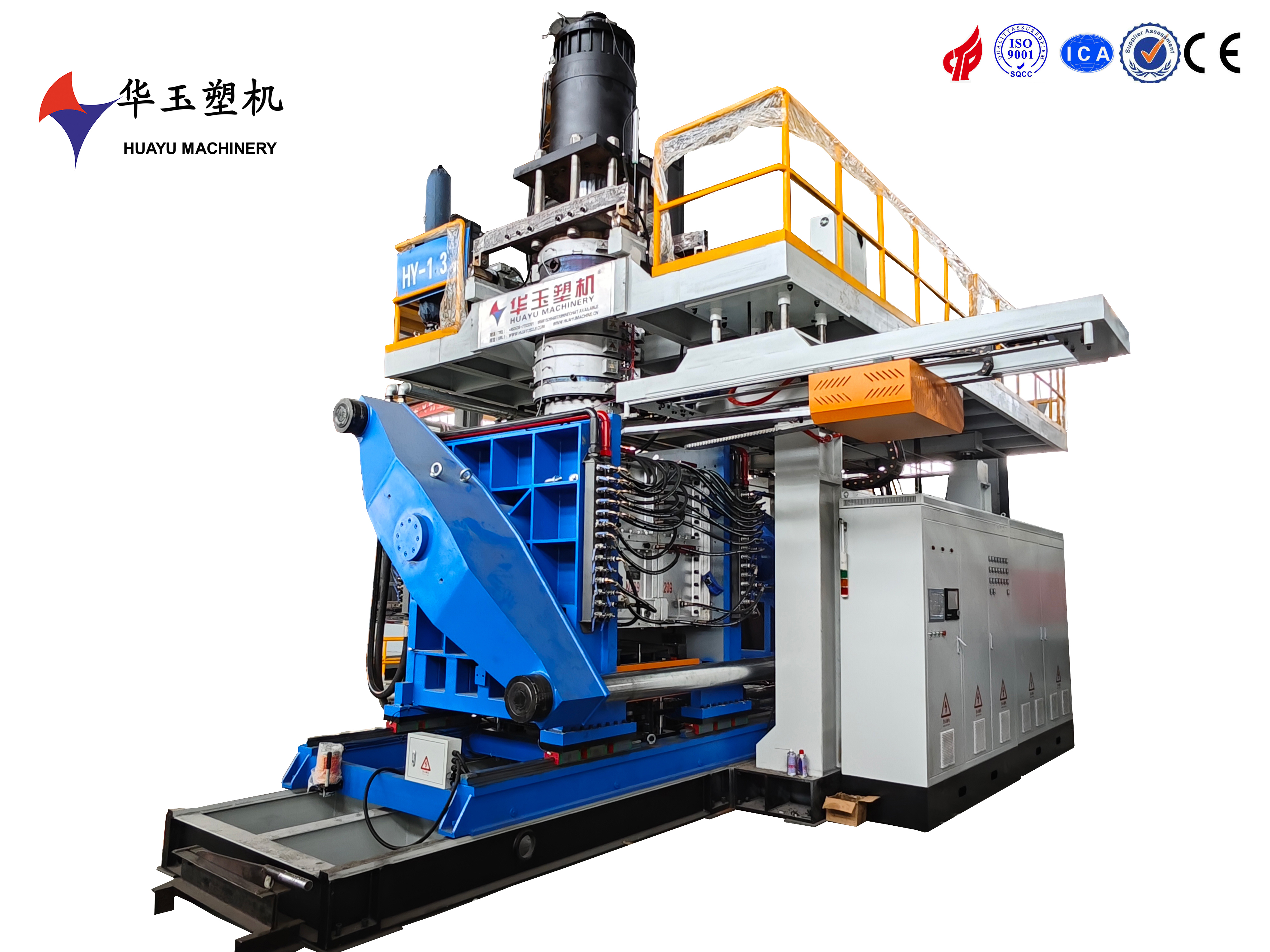

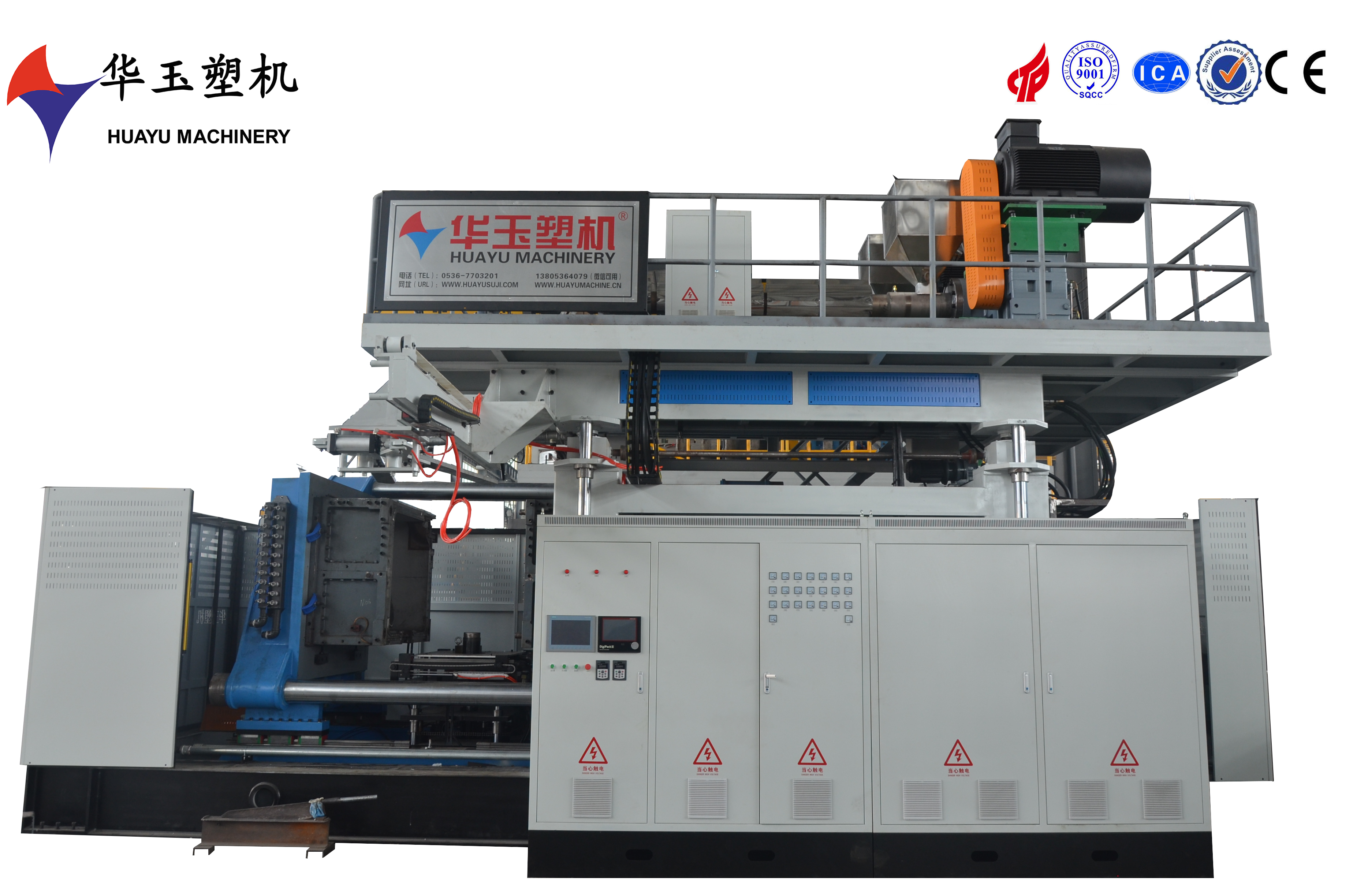

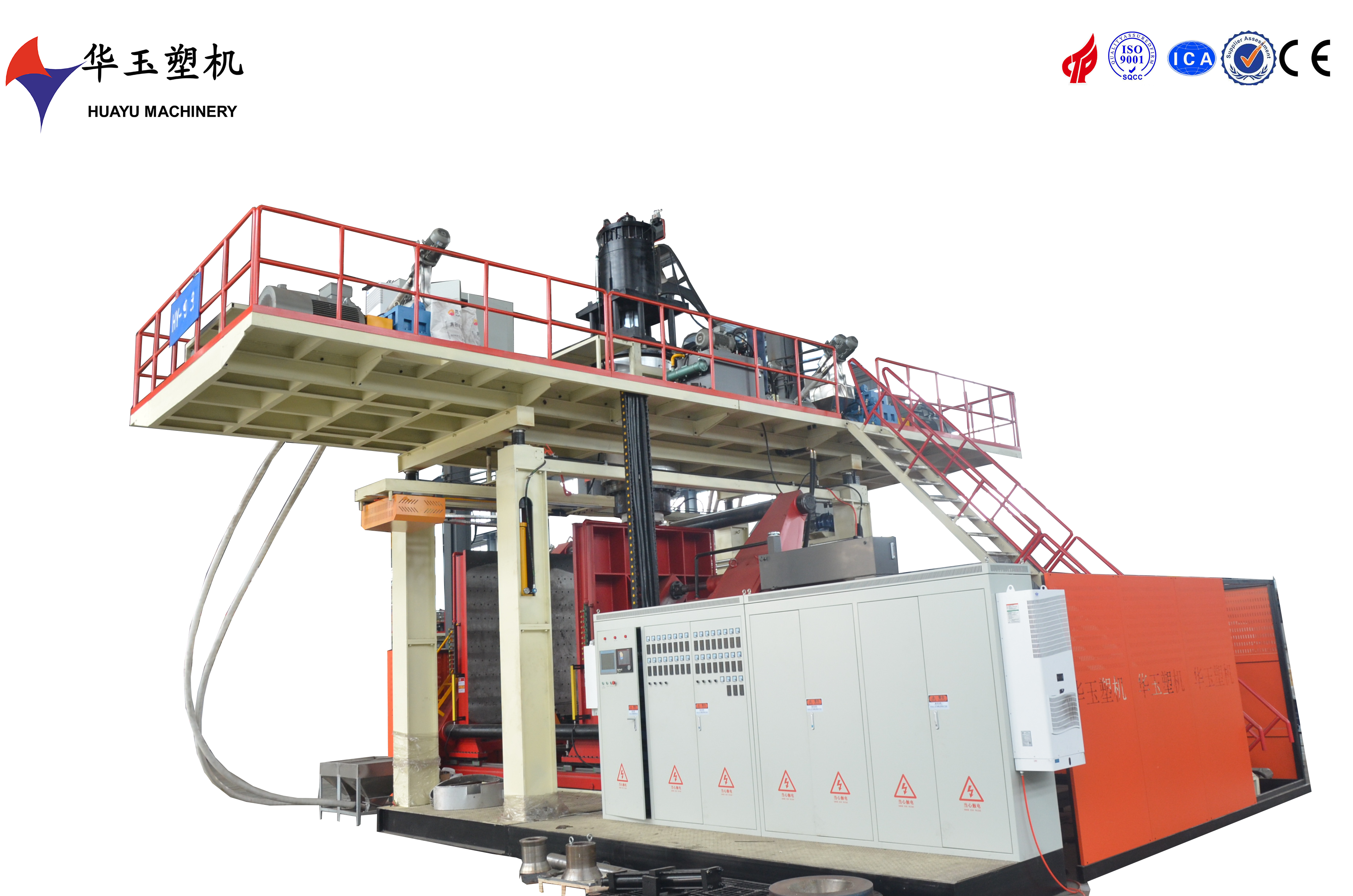

Fully Automatic HDPE 3200L 9-Layer Plastic Tank Blow Moulding Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM3200-9 |
| Minimum Order Quantity | 1 SET |
| Price | 430000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Automation Level | Fully Automatic | Applicable Material | HDPE |
|---|---|---|---|
| Total Weight | 110T | Die Diameter | According To Products |
| Total Power | 560kw | Production Capacity | 10-15 Pieces Per Hour |
| Color | Blue/yellow/white/orange,Customized | Hydraulic Oil Seal | DZ |
| Condition | New | Air Supply | 0.8*6(Mpa*Cubic Meter Per Minute) |
| Applicable Material | HDPE | Voltage Range | 220V/380V/415V/440V |
| Extrudor Motor | 110/90*2/15*3 | Feeding Type | Spring Loaded |
| Capacity Range | 500--1500L,3 Layers | ||
| Highlight | Fully automatic HDPE plastic tank machine,9-layer water tank blow moulding machine,3200L plastic tank moulding machine with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
High-Performance 9-Layer 3200L Plastic Tank Manufacturing
Product Specifications
| Attribute | Value |
|---|---|
| Automation Level | Fully Automatic |
| Applicable Material | HDPE |
| Total Weight | 110T |
| Die Diameter | According to products |
| Total Power | 560kw |
| Production Capacity | 10-15 pieces per hour |
| Color | Blue/yellow/white/orange, Customized |
| Hydraulic Oil Seal | DZ |
| Condition | New |
| Air Supply | 0.8*6(Mpa*Cubic meter per minute) |
| Voltage Range | 220V/380V/415V/440V |
| Extrudor Motor | 110/90*2/15*3 |
| Feeding Type | Spring loaded |
| Capacity Range | 500-1500L, 3 layers |
Product Description
The HUAYU3200L-9L Blow Moulding Machine delivers high-performance manufacturing of 9-layer 3200L plastic tanks. Featuring advanced automation and energy-efficient technology, this machine ensures precise operation and consistent product quality, with robust construction for long-term reliability.
Main Frame Specifications
- Up/down stroke: 500mm
- Up/down motor: 4kw
Main Components
| Component | Brand | Origin |
|---|---|---|
| Motor | Siemens | Germany |
| Inverter | Siemens | Germany |
| Touch screen | Siemens | Germany |
| PLC | Siemens | Germany |
| Thickness controller | MOOG | Japan |
| Servo valve | MOOG | Germany |
| Oil pump/valve | YUKEN | Japan |
| Gear box | Guomao | China |
| Low-voltage apparatus | Schneider/Fuji/Omron | |
| Displacement pickup | Jefran | Italy |
| Hydraulic oil seal | DZ | Taiwan |
| Intermediate relay | Schneider | France |
| Contactor | Schneider | France |
| Air switch | Schneider | France |
| Circuit breaker | Schneider | France |
| Thermal relay | Schneider | France |
| Alternating current dynamo | Siemens | Germany |
