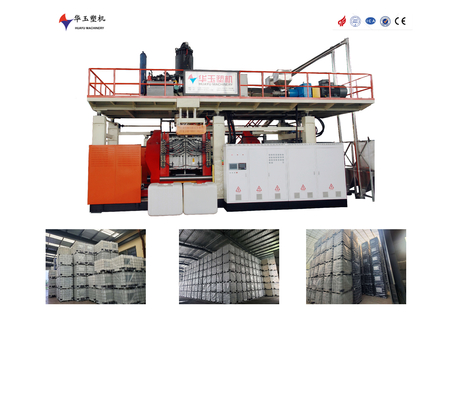

5000L 10-Layer Large-Scale Production Water Tank Blow Molding Machine with Efficient Cooling System
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM5000-10 |
| Minimum Order Quantity | 1 SET |
| Price | 620000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1 SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Switch | Schneider | Motor | 5.5 |
|---|---|---|---|
| Distance Between Platens | 1400-3800mm | Plasticizing Capacity | 600kg/h |
| Automation Grade | Automatic | Touch Screen | Siemens |
| Plc | Siemens | Contactor | Schneider |
| Screw Dia | 150mmx1 | Accumulator Capacity | 80kg |
| Cooling System | Water Cooling | Hydraulic Oil Seal | DZ |
| Voltage | 220-440V | Attribute | Drawings Customize |
| Water Pressure | 0.3MPa | ||
| Highlight | 5000L Capacity Water Tank Blow Molding Machine,10-Layer Co-Extrusion Blow Molding Machine,Large-Scale Production Plastic Water Tank Machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
5000L 10-Layer Large High-Efficiency Water Tank Blow Molding Machine with Efficient Cooling System
This advanced 5000L capacity blow molding machine with 10-layer co-extrusion is engineered for large-scale production of high-quality plastic containers. Featuring an integrated water tank system for efficient cooling and heat dissipation, it maintains optimal operating temperatures while enhancing production efficiency. The state-of-the-art control system provides precise temperature and pressure regulation for consistent product quality. With robust construction and high-speed production capabilities, this machine is ideal for industries requiring large-volume, high-quality plastic products. The water tank is designed for easy maintenance and long-term reliability, offering a cost-effective solution for your production needs.
Technical Specifications
| Specification | Details |
|---|---|
| Applicable Material | HDPE |
| Manufacturer | China*HUAYU |
| Capacity Range | 1000-5000L, 3layers |
| Voltage | Pending |
| Total Power | 690kw |
| Average Power | 420kw |
| Machine Dimensions (L*W*H) | 10*8*8.8 |
| Productivity | 4-18pcs/h |
Auto Feeder Specifications
- Hopper Material: Stainless steel - Stable performance, easy maintenance
- Feeding Type: Vacuum loaded
- Feeding Motor: 2.2/2.2/2.2kw
