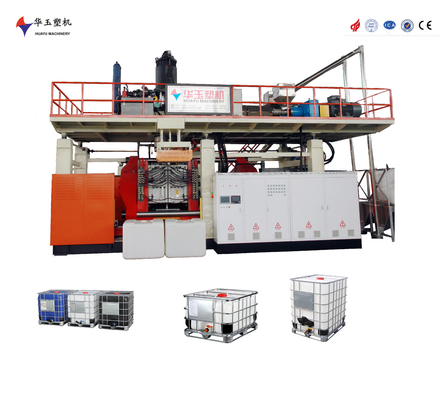

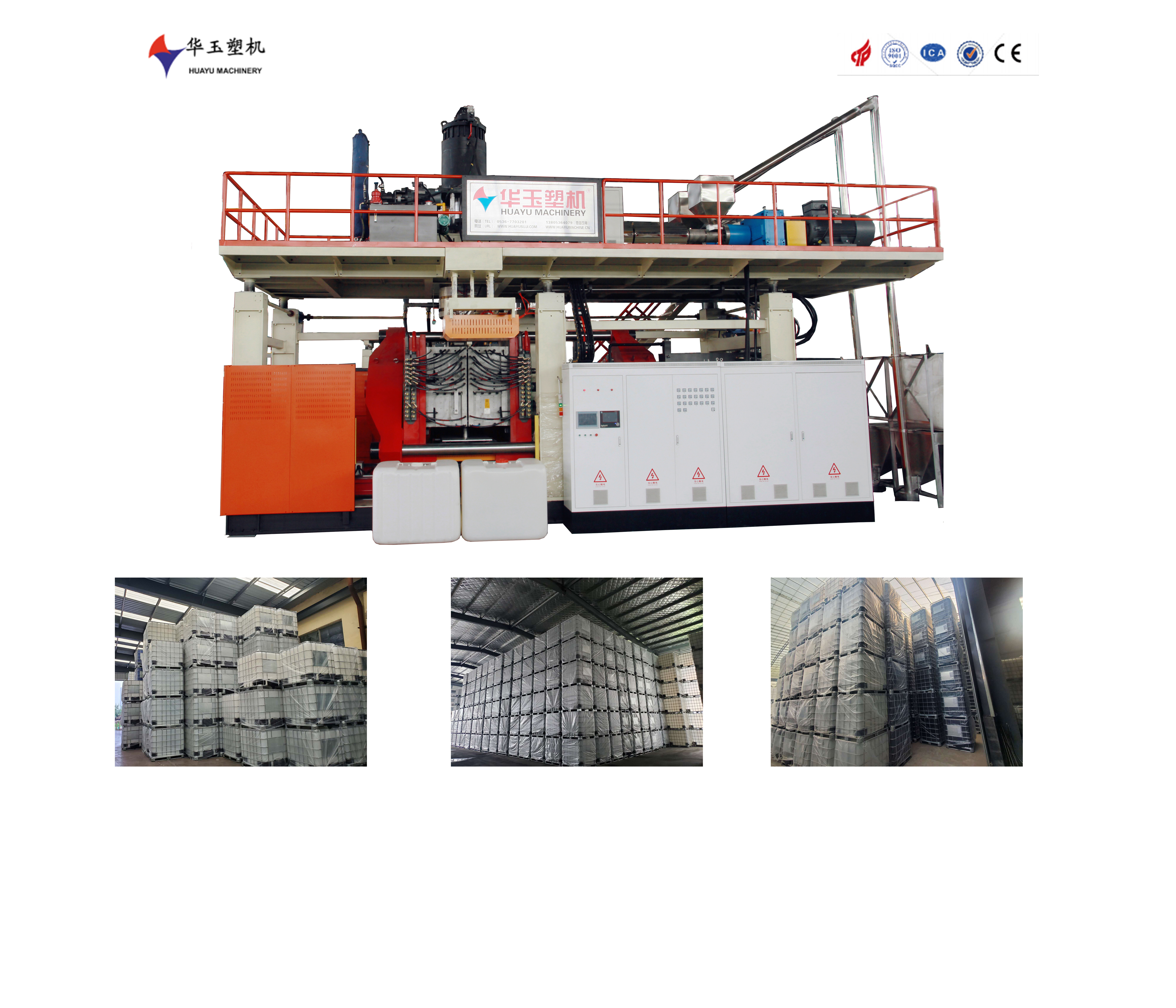

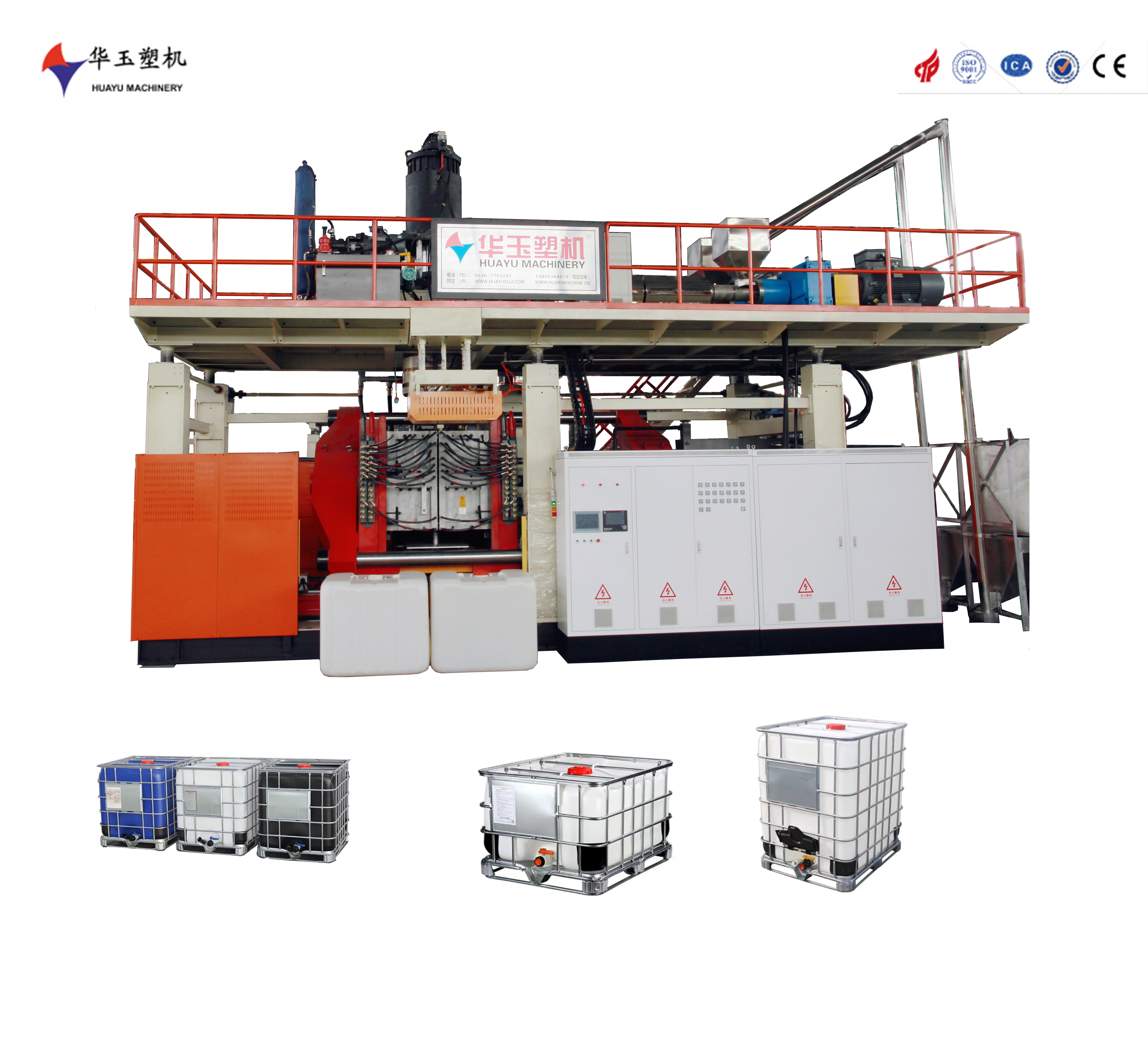

5000L 9-Layer Large Intelligent Water Tank Blow Molding Machine with Energy-Saving
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM5000-9 |
| Minimum Order Quantity | 1 SET |
| Price | 600000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 2000kg | Screw Heating Power | 6kw*16 |
|---|---|---|---|
| Platicizing Capacity | 800kg/h | Clamping Force | 1800KN |
| Stretching Stroke | According To Products | Blowing Type | Extrusion Blow Moulding |
| Showroom Location | Nigeria, Uganda | Hopper Material | Stainless Steel |
| Selling Point | High Efficiency | Extruder Motor Power | 75kw |
| Usage | Manufacturing Water Tanks | Hydraulic Valve | Yuken |
| Blow Molding Type | Extrusion Blow Molding | Power Source | Electric |
| Machine Material | Steel | ||
| Highlight | 5000L water tank blow molding machine,9-layer large water tank machine,energy-saving blow molding machine |
||
Product Description
his intelligent blow molding machine boasts a 5000L capacity and 9-layer co-extrusion, designed to maximize energy efficiency. The water tank system minimizes power consumption while maintaining effective cooling, contributing to lower operational costs. The machine's smart control system includes real-time monitoring and diagnostics, ensuring optimal performance and quick troubleshooting. Its precision engineering and high-quality components make it a reliable choice for producing large, multi-layered plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Extrusion System |
||
|
Screw diameter |
130/150/130mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
28:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
110/132/110kw |
|
|
Reducer |
375/420/375 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
5.5kw*16 |
|
|
Plasticizing capacity |
1000kg/h |
|
|
die head |
||
|
Accumulator capacity |
150kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
160kw |
|
