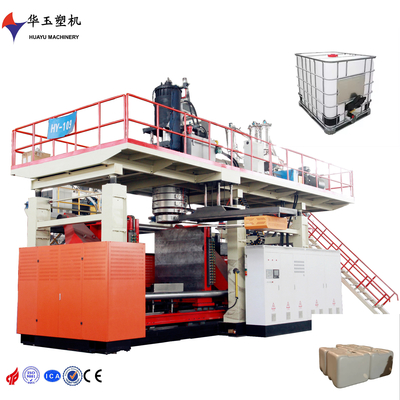

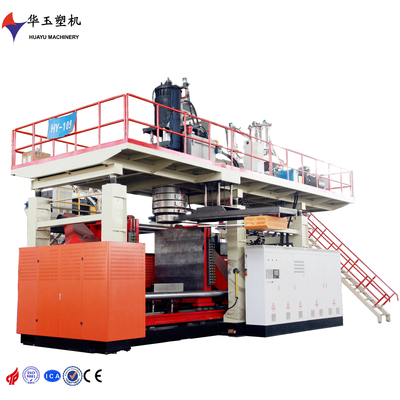

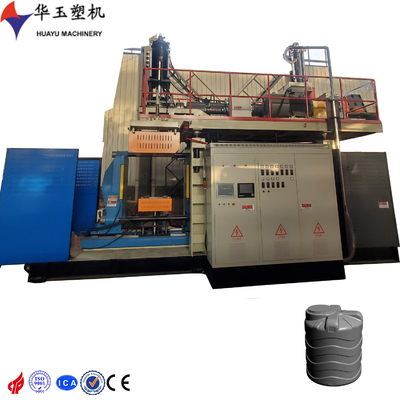

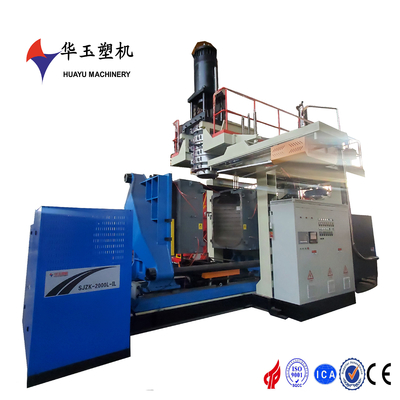

3000L 9-Layer Large Eco-Friendly Water Tank Blow Molding Machine with Purification Cooling System
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM3000-9 |
| Minimum Order Quantity | 1 SET |
| Price | 440000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Dimension | 8.5*6*7.2 | Color | Customied |
|---|---|---|---|
| Layer | 2 Layers | Product Range | 1000L |
| Total Power | 560kw | Showroom Location | None |
| Material | HDPE | Cooling Water Pressure | 0.3-0.6MPa |
| Range | 1000L IBC TANK | Automation | Automatic |
| Machinery Test Report | Provided | Touch Screen | Siemens |
| Feeding Type | Vacuum Feeding | Accumulator Capacity | 35kg |
| Mian Oil Pump | Gear Pump160cc | ||
| Highlight | 3000L eco-friendly water tank machine,9-layer blow molding water tank machine,water tank machine with cooling system |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Focused on sustainability, this 3000L capacity blow molding machine with 9-layer co-extrusion features a water tank system that ensures clean and efficient cooling water circulation. This eco-friendly design reduces environmental impact and enhances the machine's longevity. The machine is equipped with advanced technologies for precise temperature control and consistent product quality, making it an excellent choice for environmentally conscious manufacturers. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
die head |
||
|
Accumulator capacity |
150kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
ie head heating power |
160kw |
|
|
Clamping System |
||
|
platen size |
2400*2500*70mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
350+200*2 |
|
|
clamping cylinder stroke |
2200mm |
|
|
clamping force |
3000KN |
|
|
distance between platens |
1600-4000mm |
|
|
max. mould size |
1800*2500mm(W*H) |
|
