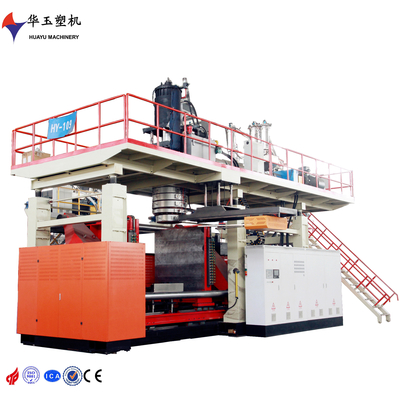

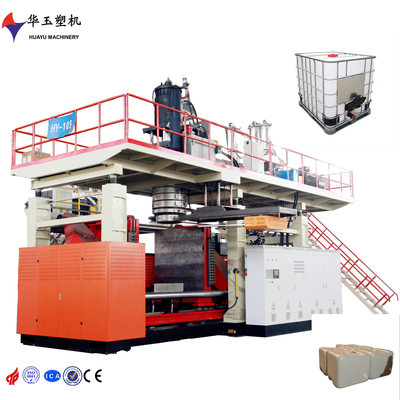

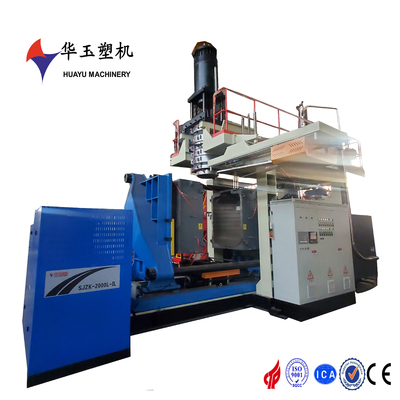

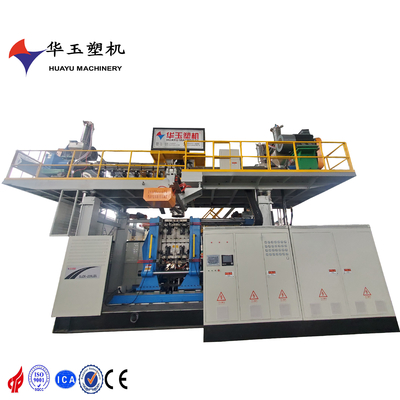

5000L 8-Layer Large Energy-Saving Water Tank Blow Molding Machine with Cooling System
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM5000-8 |
| Minimum Order Quantity | 1 SET |
| Price | 600000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customied | Stretching Stroke | According To Products |
|---|---|---|---|
| Mold Stroke | 1000mm | Application Field | Liquid Packaging |
| Condition | New | Range | WATER Tank |
| Layers | 4 Layers | Platen Size | 1800*2100mm |
| Clamping Force | 800kn | Blowing Type | Extrusion Blow Moulding |
| Clamping Cylinder | 320+160*2 | Parison Control | MOOG 200point |
| Hopper Material | Stainless Steel | Average Power Consumption | 300kw |
| Capacity Range | 500--5000L,8layers | ||
| Highlight | 5000L water tank blow molding machine,8-layer energy-saving blow molding machine,large water tank machine with cooling system |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This energy-saving blow molding machine with a 5000L capacity and 8-layer co-extrusion is designed to optimize energy usage. The water tank system ensures rapid and effective cooling, reducing energy consumption and operational costs. The machine's advanced control system provides precise control over the molding process, ensuring high-quality products. Its durable construction and reliable performance make it suitable for large-scale production environments. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Clamping System |
||
|
platen size |
2400*2500*70mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
350+200*2 |
|
|
clamping cylinder stroke |
2200mm |
|
|
clamping force |
3000KN |
|
|
distance between platens |
1600-4000mm |
|
|
寸max. mould size |
1800*2500mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
