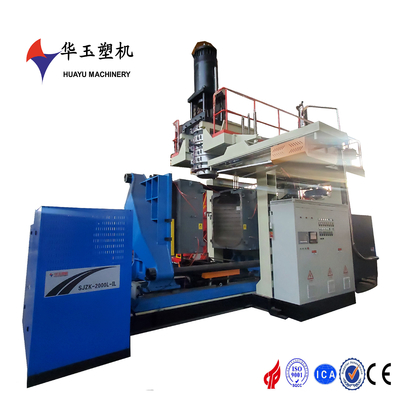

3000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | IISO9001 CE |
| Model Number | HYBM3000-8 |
| Minimum Order Quantity | 1 SET |
| Price | 440000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONRHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Water Tank Production | Material | HDPE |
|---|---|---|---|
| Platen Distance | 2300-5500MM | Clamping Cylinder Stroke | 2000mm |
| Max Volume | 10-25L | Machine Size | 2.8x1.65x2.3M |
| Screw Heating Power | 4.4kw*15 | Dimension | 5000x3000x4000mm |
| Automation Level | Fully Automatic | Guarantee | 1 Year |
| Mould Cavity | Single/Multi | Temperature Control | PLC Module |
| Hollow Part Volume | 500-2000L | Size | Customized |
| Extruder Type | Single Screw | ||
| Highlight | 3000L water tank blow molding machine,8-layer high-speed blow molding machine,large water tank machine with rapid cooling |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This high-speed blow molding machine with a 3000L capacity and 8-layer co-extrusion is designed for rapid production. The water tank system ensures quick and efficient cooling, allowing for faster cycle times and increased productivity. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its robust design and high-speed capabilities make it ideal for manufacturers looking to boost production efficiency. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
|
Hydraulic system |
||
|
main oil tank capacity |
1700L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump 200CC |
|
|
main oil pump motor |
75kw |
|
|
Servo oil tank capacity |
200L |
|
|
Servo oil pump model |
Plunger pump22 |
|
|
Servo oil pump motor |
11kw |
|
