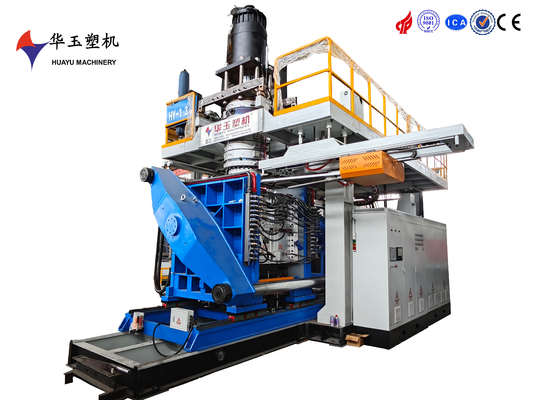

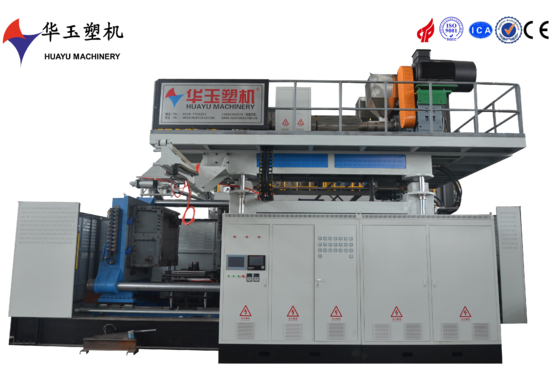

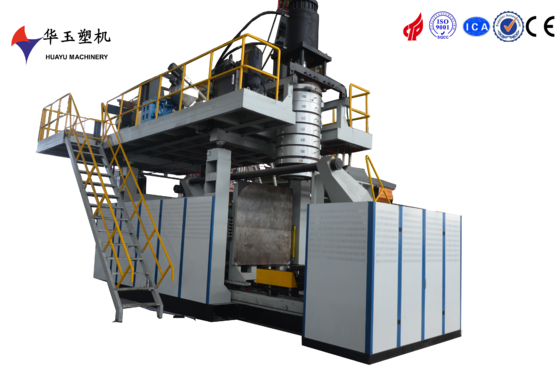

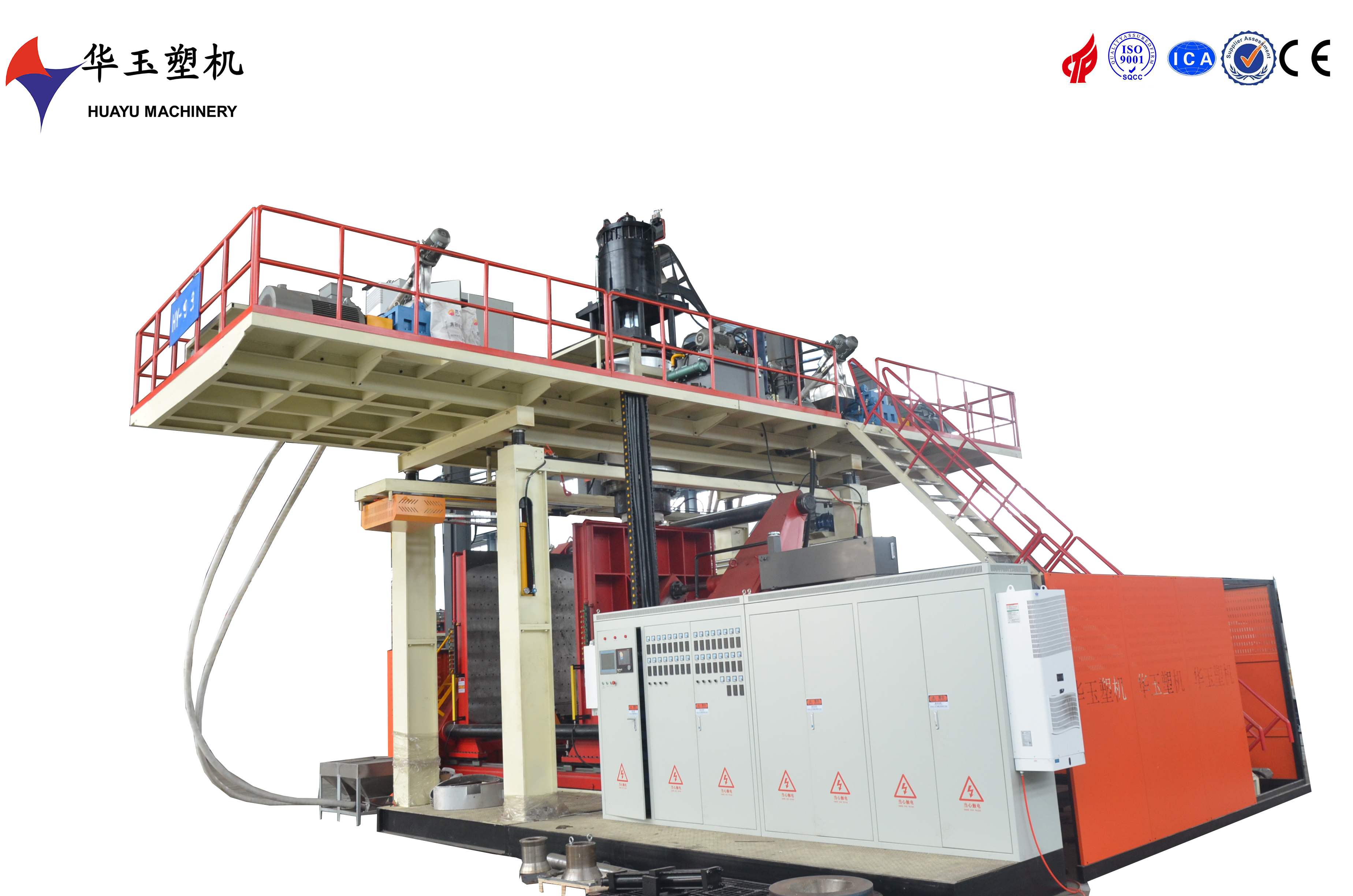

5000L 6-Layer Large Fully-Automatic Water Tank Blow Molding Machine with Intelligent
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM5000-6 |
| Minimum Order Quantity | 1 SET |
| Price | 540000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Control System | PLC | Weight | 70T |
|---|---|---|---|
| After-Sales Service | Engineers Available To Service Machinery Overseas | Extrudor Motor | 110/90*2/15*3 |
| Production Capacity | 10-15 Pieces Per Hour | Servo Valve | MOOG |
| Heating Zones | 6 | Average Aonsumption | 280KW |
| Cooling System | Water Cooling | Machine Dimension | 12*11*8.5 |
| Capacity Range | 500-2000L | Applicable Material | HDPE |
| Screw Diameter | 120mm | Power | 16.5KW |
| Platen Size | 1800*2200*70mm | ||
| Highlight | 5000L fully-automatic water tank machine,6-layer blow molding machine,intelligent water tank molding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This fully-automatic blow molding machine with a 5000L capacity and 6-layer co-extrusion is designed for large-scale production. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its fully-automatic operation minimizes labor requirements and maximizes production efficiency. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Basic Specification |
||
|
applicable material |
HDPE |
China·HUAYU |
|
capacity range |
1000-3000L,3layers |
|
|
total weight |
80T |
|
|
Voltage |
Pending |
|
|
total power |
437kw |
|
|
average power |
280kw |
|
|
Machine dimension (L*W*H) |
9*10*7.5 |
|
|
productivity |
8-20pcs/h |
|
|
Auto Feeder |
||
|
hopper material |
stainless steel |
Stable performance, easy maintenance |
|
feeding type |
spring loaded |
|
|
feeding motor |
11kw |
|
