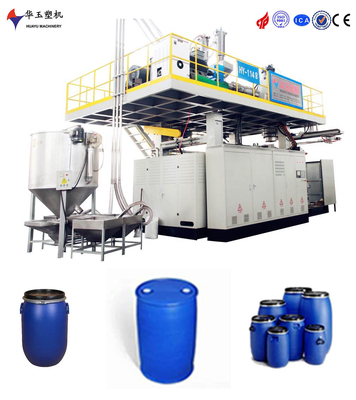

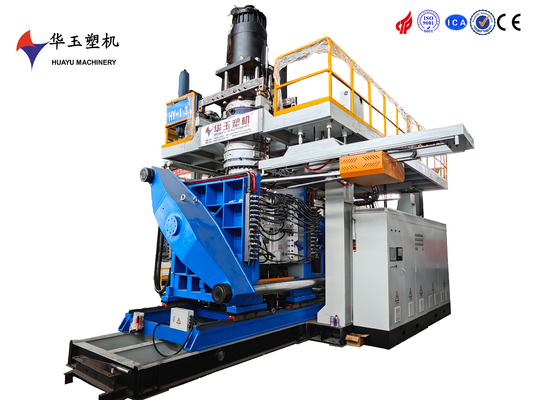

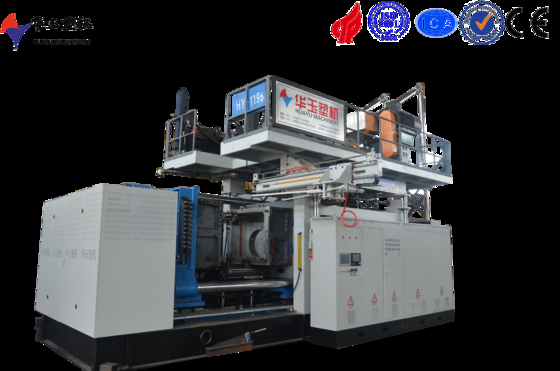

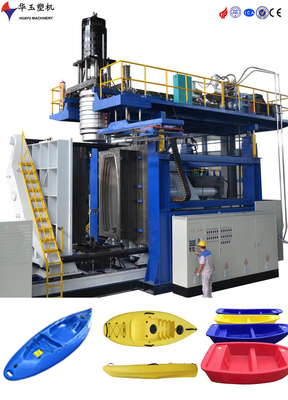

3000L 6-Layer Large Economical Water Tank Blow Molding Machine with Energy-Saving Design
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM3000-6 |
| Minimum Order Quantity | 1 SET |
| Price | 410000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor | Siemens | Capacity Range | 500--3000L,4layers |
|---|---|---|---|
| Screw Diameter | 100mm*8 | Attribute | Drawings Customize |
| Condition | New | Production Speed | 500-600 Bottles Per Hour |
| Productivity | 16-25pcs/h | Recyclability | Recyclable |
| Application | Bottle | Bucket Thickness | Not Very Thick |
| Machine Dimension | 9*10*7.5 | Control Sysytem | Moog+plc |
| Extruder Motor | 55/75/55kw | Mould Material | Steel |
| Max. Mould Size | 2000mm X 1200mm | ||
| Highlight | 3000L water tank blow molding machine,6-layer large water tank machine,energy-saving blow molding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This economical blow molding machine with a 3000L capacity and 6-layer co-extrusion is designed for cost-effective production. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable construction and reliable performance make it suitable for small to medium-scale production environments. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Extrusion System |
||
|
Screw diameter |
100/130/100mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
28:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
55/110/55kw |
|
|
Reducer |
280/375/280 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
5kw*15 |
|
|
Plasticizing capacity |
700kg/h |
|
|
die head |
||
|
Accumulator capacity |
90kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
110kw |
|
