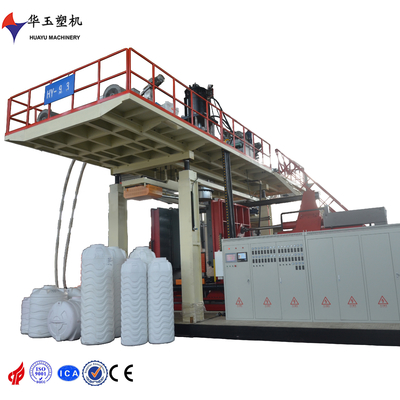

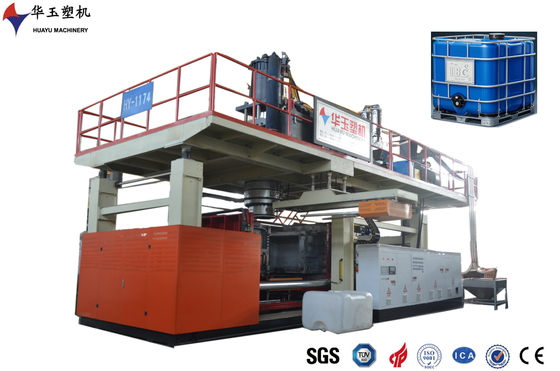

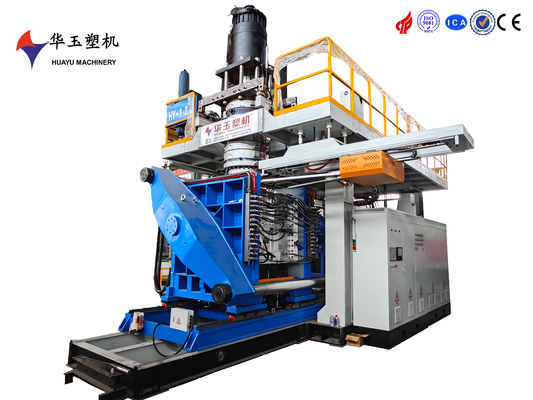

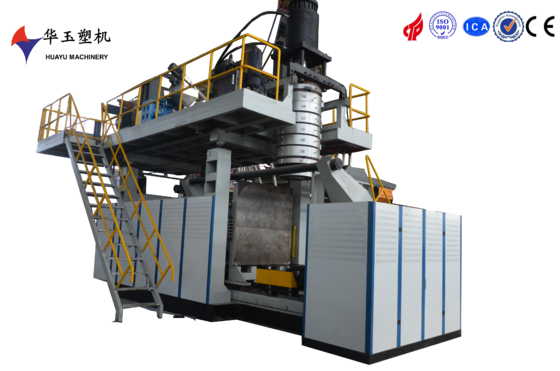

5000L 5-Layer Large Heavy-Duty Water Tank Blow Molding Machine with Heavy-Duty
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM5000-5 |
| Minimum Order Quantity | 1 SET |
| Price | 500000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Feeding Motor | 1.5kw*4 | Cooling Method | Circulating Water |
|---|---|---|---|
| Automation Level | Fully Automatic | Capacity Range | 2000L |
| After Sales | OVERSEAS SERVICE | Machine Type | Water Tank Blow Moulding Machine |
| Clamping Cylinder | 350+200*2 | Automatic | Yes |
| Max Volume | 5 L | Size | Customized |
| Die Head Heating | 60KW | Plc Brand | Siemens |
| Material Source | HDPE, PP, PVC, HIPS, ABS | Gear Box | Guomao |
| Controller | PLC+Touch Screen | ||
| Highlight | 5000L water tank blow molding machine,5-layer heavy-duty blow molding machine,large water tank molding machine with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This heavy-duty blow molding machine with a 5000L capacity and 5-layer co-extrusion is designed for large-scale production of heavy-duty plastic products. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's robust construction and advanced control system offer precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, heavy-duty plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
die head |
||
|
Accumulator capacity |
90kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
110kw |
|
|
Clamping System |
||
|
platen size |
2200*2400*70mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
200+300*2 |
|
|
clamping cylinder stroke |
2100mm |
|
|
clamping force |
2200KN |
|
|
distance between platens |
1100-3200mm |
|
|
max. mould size |
1700*2200mm(W*H) |
|
