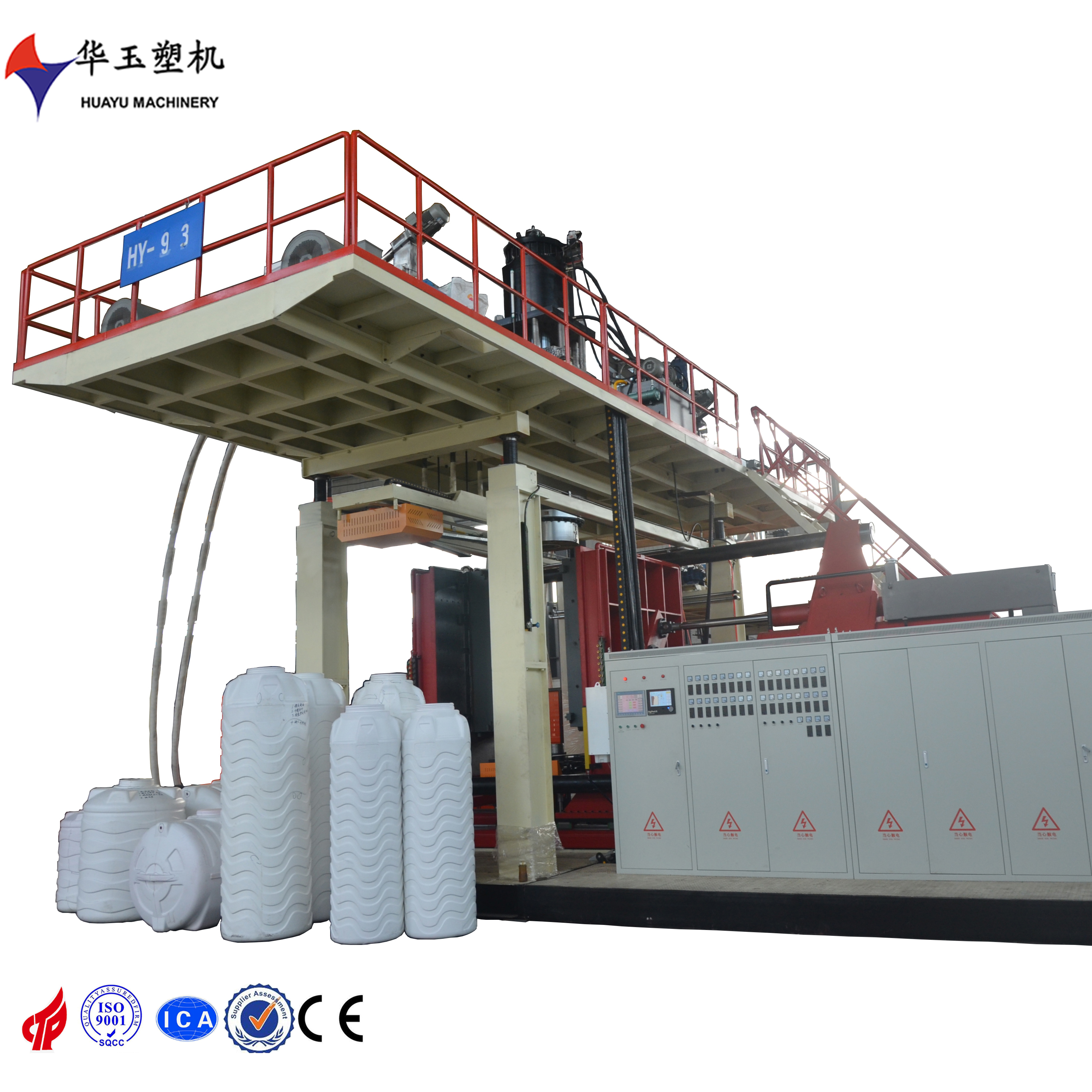

5000L 4-Layer Large High-Precision Water Tank Blow Molding Machine with Efficient
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM5000-4 |
| Minimum Order Quantity | 1 SET |
| Price | 460000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling Water Consumption | 60m3/h | Clamping Force | 2500KN |
|---|---|---|---|
| Automatic | Yes | Feeding Motor | 2.2kw*8 |
| Cooling System | Water Cooling | Voltage | Customerized |
| Product Material | HDPE | Power Supply | 380V/50Hz |
| Year | 2024 | Layers | 4 Layers |
| Parison | MOOG 200point | After Sales | OVERSEAS SERVICE |
| Total Weight | 50T | Available Production | Water Tank, Other Plastic Product |
| Air Supply | 0.8*6(Mpa*Cubic Meter Per Minute) | ||
| Highlight | 5000L water tank blow molding machine,4-layer high-precision blow molding machine,large water tank molding machine with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This high-precision blow molding machine with a 5000L capacity and 4-layer co-extrusion is designed for producing high-quality, multi-layered plastic products. The integrated water tank system ensures accurate temperature control and consistent cooling, resulting in superior product quality. The machine's advanced control system offers precise control over the molding process, ensuring consistent product dimensions and quality. Its durable construction and reliable performance make it suitable for industries requiring high-precision plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
ling water consumption |
75m3/h |
|
|
Hydraulic system |
||
|
main oil tank capacity |
1500L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump185CC |
|
|
main oil pump motor |
60kw |
|
|
Servo oil tank capacity |
200L |
|
|
Servo oil pump model |
Plunger pump35 |
|
|
Servo oil pump motor |
11kw |
|
