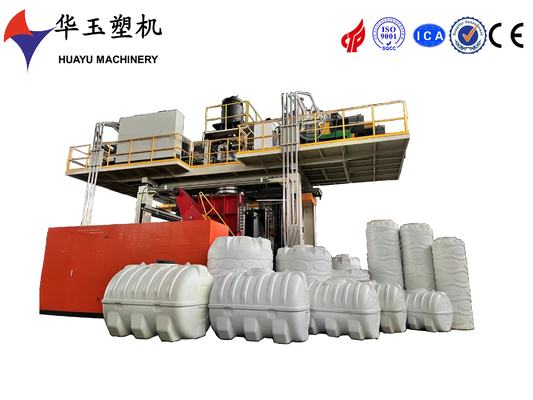

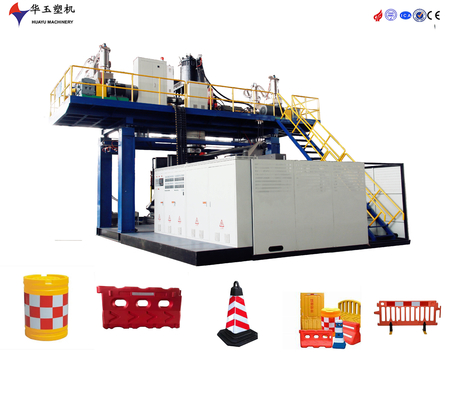

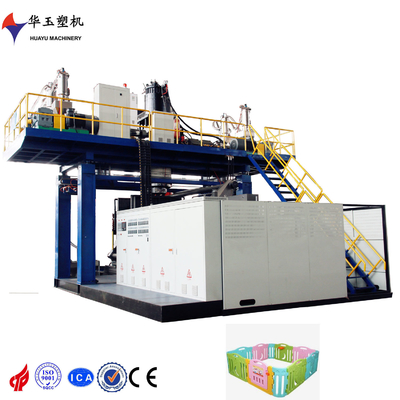

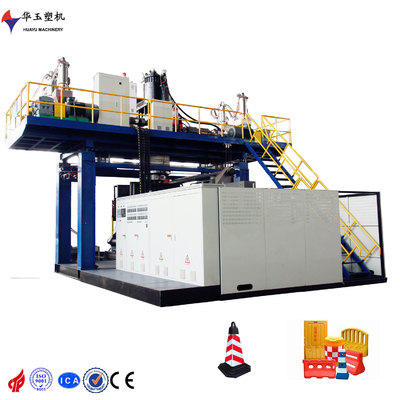

5000L 3-Layer Large Multi-Functional Water Tank Blow Molding Machine with Multi-Purpose
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | IAO9001 CE |
| Model Number | HYBM5000-3 |
| Minimum Order Quantity | 1 SET |
| Price | 420000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Stretching Stroke | According To Products | Displacement Pickup | Jefran |
|---|---|---|---|
| Machine Weight | XXXX | Clamping Cylinder Stroke | 2100mm |
| Power Consumption | 30-50 KW | Accumulator Capacity | 35kg |
| Parison | MOOG 200point | Year | 2024 |
| Output | 700KG/H | Distance Between Platens | 1400-3800mm |
| Extruder Motor | 160kw*2+110kw*2 | Hydraulic Oil Seal | DZ |
| Average Aonsumption | 280KW | Platicizing Capacity | 800kg/h |
| Applicable Material | HDPE | ||
| Highlight | 5000L water tank blow molding machine,3-layer multi-functional water tank machine,large multi-purpose blow molding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This multi-functional blow molding machine with a 5000L capacity and 3-layer co-extrusion is designed for producing a wide range of plastic products. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's multi-functional design allows for various product shapes and sizes, making it suitable for multiple industries. Its advanced control system offers precise control over the molding process, ensuring consistent product quality. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
main frame |
||
|
Up/down stroke |
500mm |
|
|
Up/down motor |
4kw |
|
|
Main parts brand |
||
|
motor |
Siemens |
Germany |
|
Inverter |
Siemens |
Germany |
|
Touch screen |
Siemens |
Germany |
|
PLC |
Siemens |
Germany |
|
Thickness controller |
MOOG |
Japan |
|
oil pump/valve |
YUKEN |
Japan |
|
gear box |
Guomao |
China |
|
Low-voltage apparatus |
Schneider/Fuji/Omron |
|
|
Displacement pickup |
Jefran |
Italy |
|
Hydraulic oil seal |
DZ |
Taiwan |
