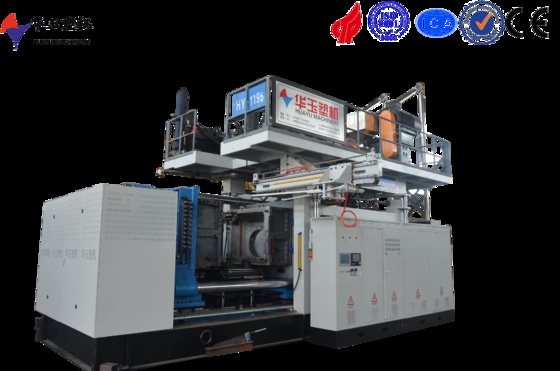

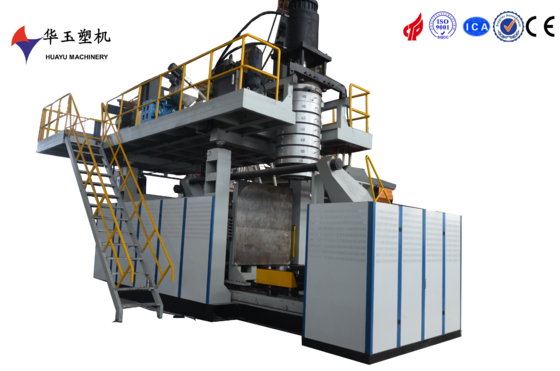

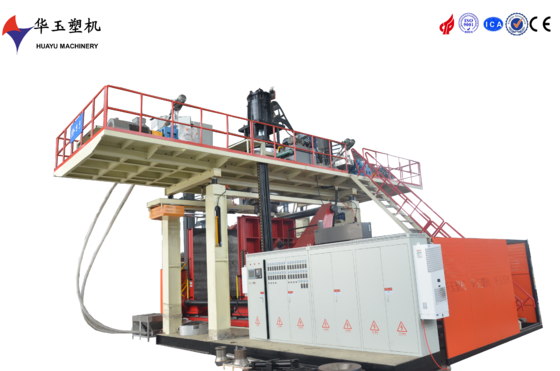

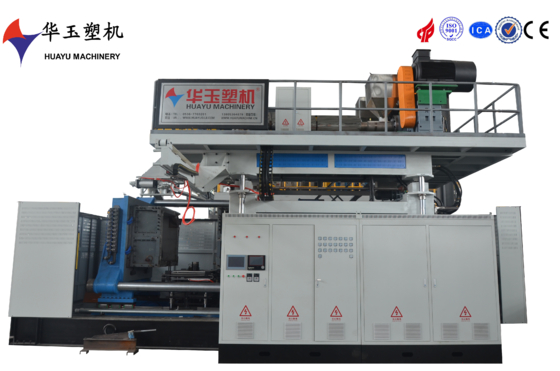

5000L 2-Layer Large Intelligent Water Tank Blow Molding Machine with Intelligent Control System
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM5000-2 |
| Minimum Order Quantity | 1SET |
| Price | 380000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Blow Moulding Type | Injection Blow Moulding | Screw Heating Power | 4.4kw*24 |
|---|---|---|---|
| Parison | MOOG 200point | Cleaning Method | Easy Cleaning |
| Total Weight | 58T | Application | Water Tank Production |
| Clamping Cylinder | 350+200*2 | Tataol Power | 290 |
| Automation Grade | Automatic | Product | 500-2000L Plastic Product |
| Hydraulic Oil Seal | DZ | Extruder Motor | 75kw*4 |
| Production Speed | 100-200 Pcs/h | Clamping Force | 200T |
| Machine Dimension | 15*9*11 | ||
| Highlight | 5000L water tank blow molding machine,intelligent control water tank machine,2-layer large water tank machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This intelligent blow molding machine with a 5000L capacity and 2-layer co-extrusion is designed for smart production processes. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's smart control system includes real-time monitoring and diagnostics, ensuring optimal performance and quick troubleshooting. Its precision engineering and high-quality components make it a reliable choice for producing large, multi-layered plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Auto Feeder |
||
|
hopper material |
stainless steel |
Stable performance, easy maintenance |
|
feeding type |
spring loaded |
|
|
feeding motor |
2.2/2.2/2.2/2.2kw |
|
|
Extrusion System |
||
|
Screw diameter |
110/110/110/110mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
28:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
75/75/75/75kw |
|
|
Reducer |
315/315/315/315 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
4.4kw*16 |
|
|
Plasticizing capacity |
800kg/h |
|
