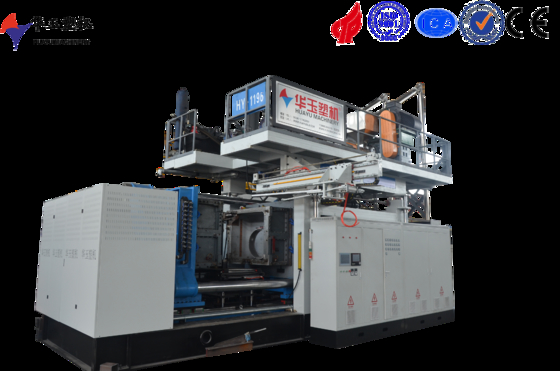

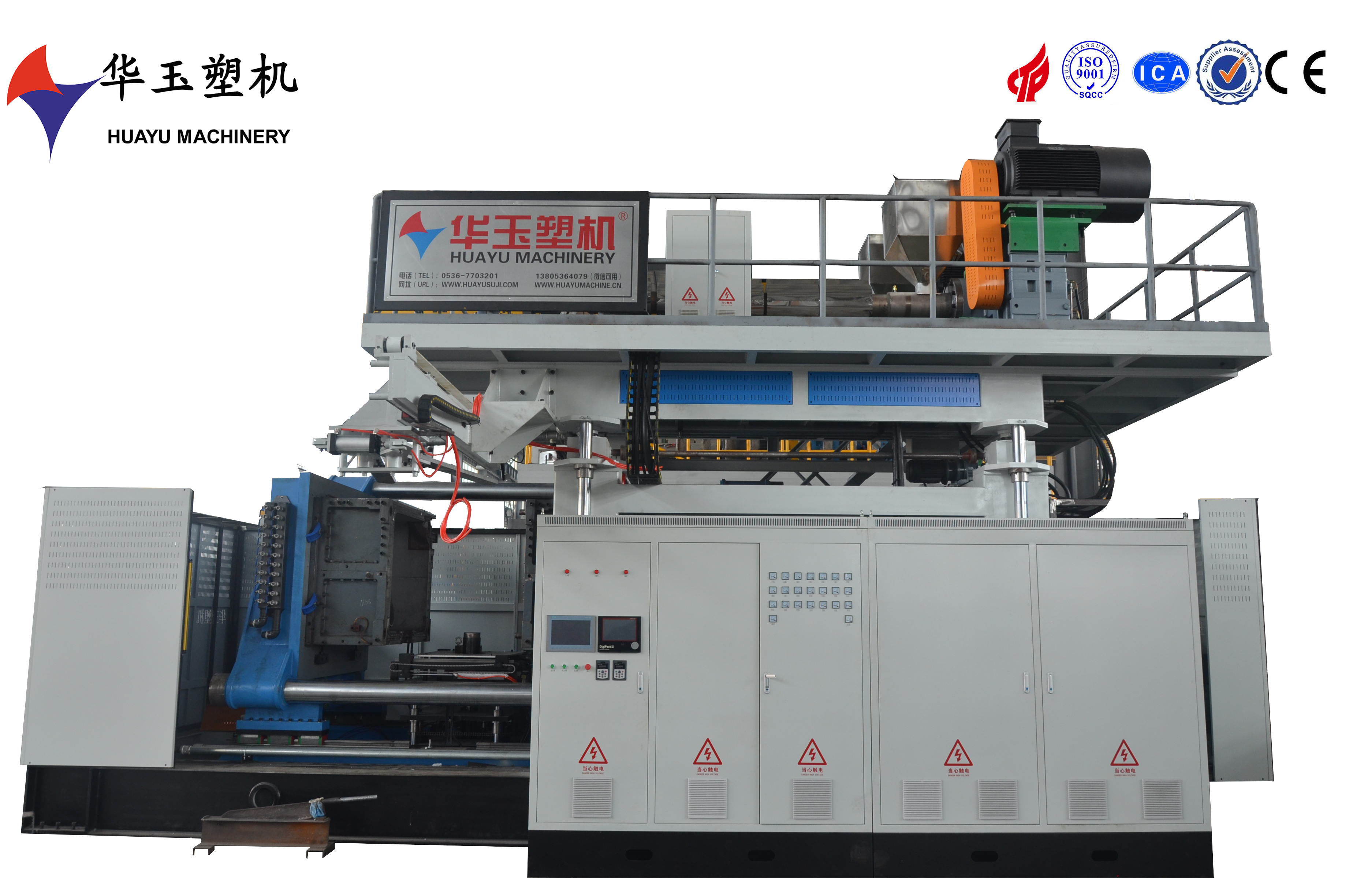

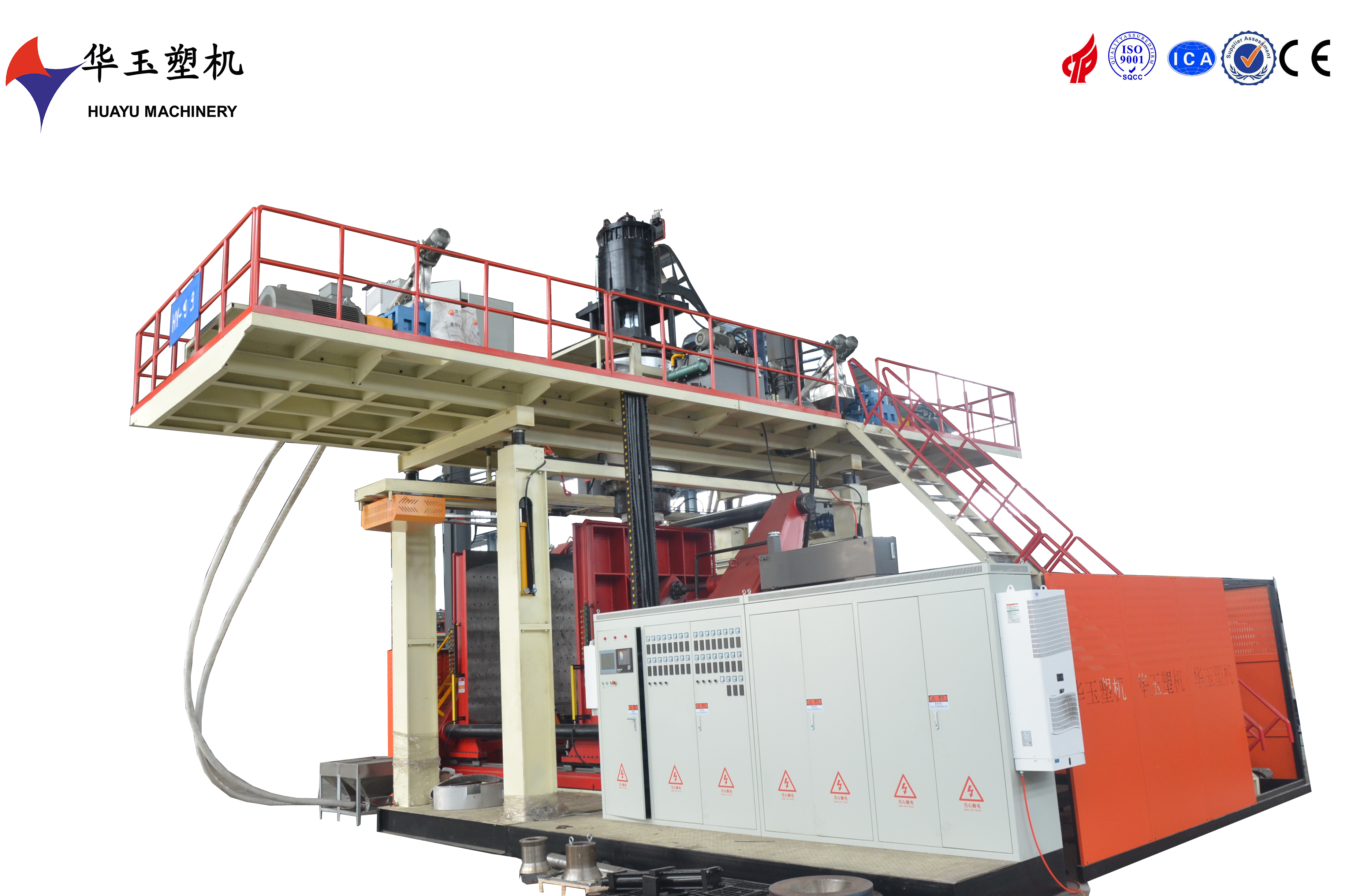

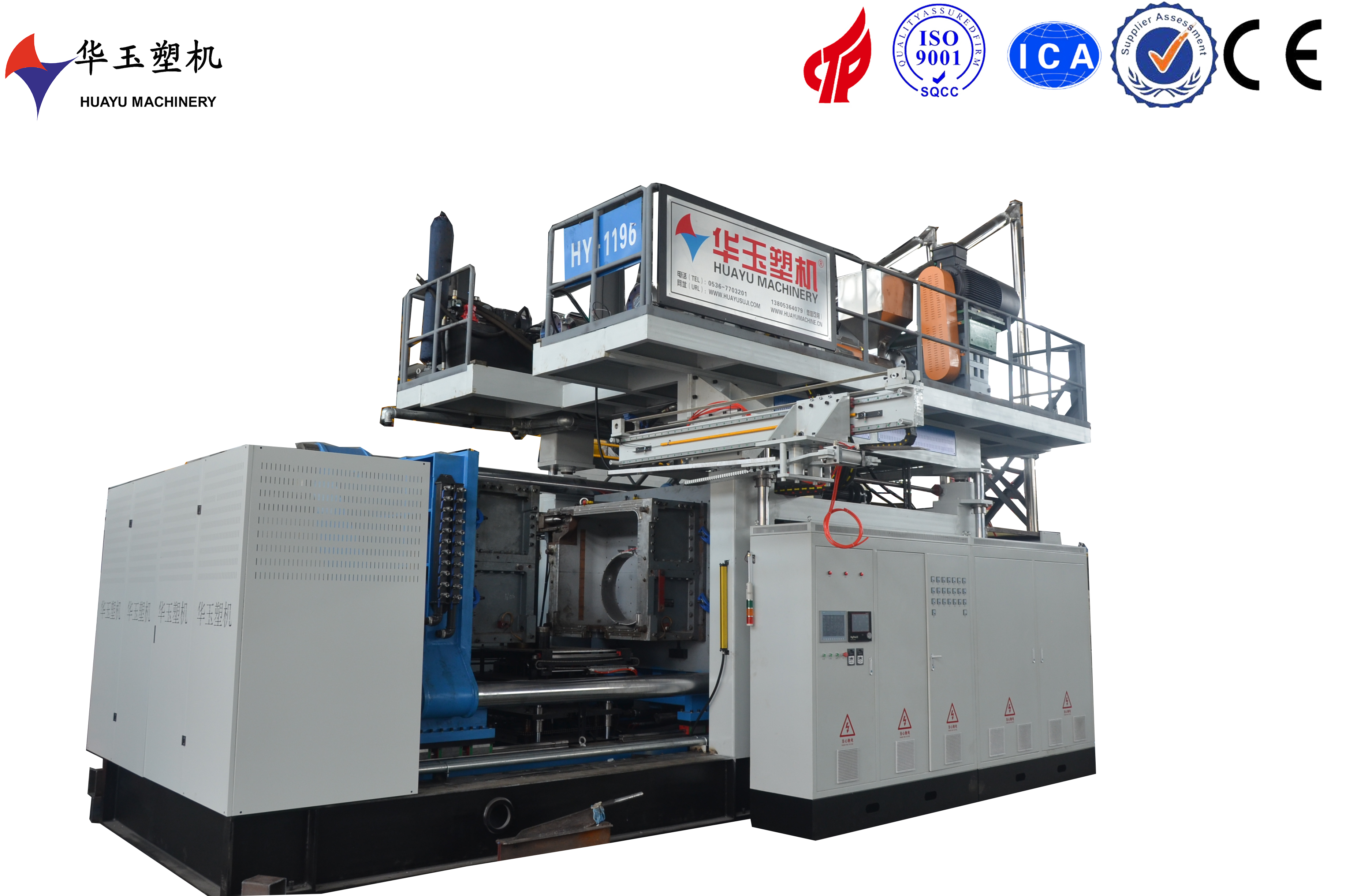

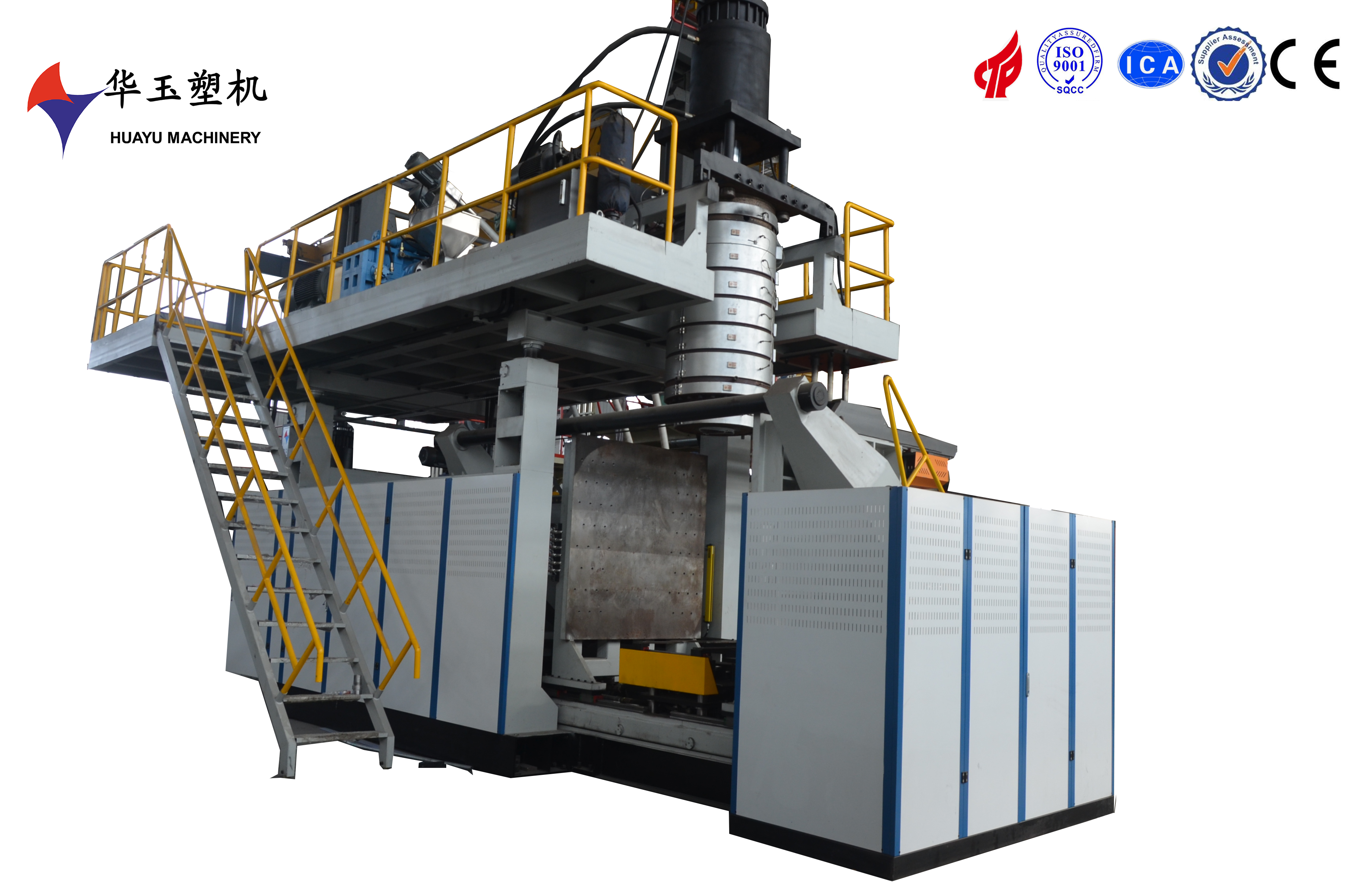

5000L 1-Layer Large Customized Water Tank Blow Molding Machine with Customized
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM5000-1 |
| Minimum Order Quantity | 1 SET |
| Price | 340000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Reducer | 250*2, 280*4 | Advantages | 20 Years Experiences |
|---|---|---|---|
| Average Power | 390kw | Cleaning Method | Easy Cleaning |
| Machine Dimension | 8*9*6.5 | Machine Size | 7.2x3.3x5.5M |
| Screw Material | 38CrMoAlA，Nitriding | Warranty | 1 Year |
| Gear Box | Guomao | Extrusion Motor Power | 7.5-15 KW |
| Accumulator Capacity | 60kg | Advantage | More Efficient And Stable |
| Average Consumption | 350KW | Maximum Air Pressure | 0.8Mpa |
| Feeding Motor | 2.2kw*8 | ||
| Highlight | 5000L water tank blow molding machine,customized blow molding machine for water tanks,large 1-layer water tank molding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This customized blow molding machine with a 5000L capacity and 1-layer co-extrusion is designed to meet specific production requirements. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's customizable design allows for various product shapes and sizes, making it suitable for multiple industries. Its advanced control system offers precise control over the molding process, ensuring consistent product quality. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Clamping System |
||
|
platen size |
2100*2200*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
160*2 320*1 |
|
|
clamping cylinder stroke |
2100mm |
|
|
clamping force |
2200KN |
|
|
distance between platens |
1100-3200mm |
|
|
max. mould size |
1800*2200mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
ater pressure |
0.3MPa |
|
|
ooling water consumption |
75m3/h |
|
