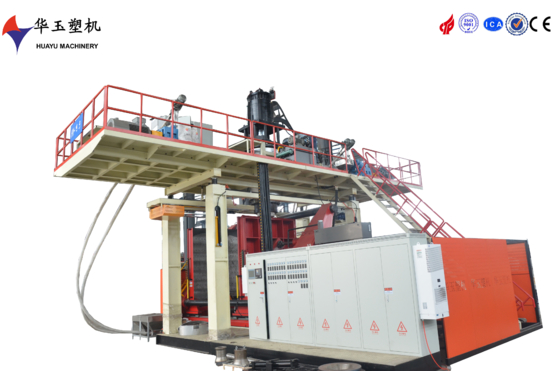

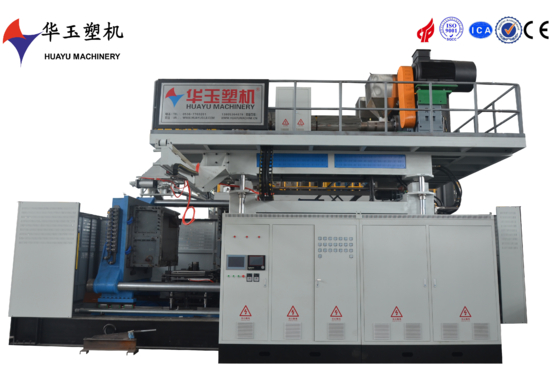

3000L 1-Layer Large Basic Water Tank Blow Molding Machine for Basic Production
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM3000-1 |
| Minimum Order Quantity | 1 SET |
| Price | 260000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screw Material | 38CrMoAlA，Nitriding | Automation Level | Fully Automatic |
|---|---|---|---|
| Plasticizing Capacity | 400kg/h | Bucket Thickness | Not Very Thick |
| Applicable Material | HDPE | Water Pressure | 0.3MPa |
| Air Supply | 0.8*6(Mpa*Cubic Meter Per Minute) | Production Speed | 100-200 Pcs/h |
| Clamping Cylinder | 320+160*2 | After Sales | OVERSEAS SERVICE |
| Machine Demesion | 8.5*6*7.2 | Product Range | Plastic Bottle Jerrycan |
| Hollow Part Volume | 500-2000L | Capacity | 1000-5000 Liters |
| Machine Size | 5.0x2.3x3.6M | ||
| Highlight | 3000L water tank blow molding machine,1-layer water tank production machine,large basic water tank molding equipment |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This basic blow molding machine with a 3000L capacity and 1-layer co-extrusion is designed for fundamental production needs. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's straightforward design and reliable performance make it suitable for small to medium-scale production environments. Its advanced control system offers precise control over the molding process, ensuring consistent product quality. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
|
Hydraulic system |
||
|
main oil tank capacity |
1500L |
Servo motor, less energy consumption, high efficiency, low noise |
|
main oil pump |
gear pump185CC |
|
|
main oil pump motor |
70kw |
|
|
Servo oil tank capacity |
200L |
|
|
Servo oil pump model |
Plunger pump22 |
|
|
Servo oil pump motor |
7.5kw |
|
