1000L 10-Layer Water Tank Blow Molding Machine with Recirculating Cooling System and Siemens Inverter
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM1000-10 |
| Minimum Order Quantity | 1 SET |
| Price | 280000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Productivity | 8-20pcs/h | Total Power | 386kw |
|---|---|---|---|
| Advantages | 20 Years Experiences | Maximum Air Pressure | 0.8Mpa |
| Frequency | 50Hz/60Hz | Hopper Material | Stainless Steel |
| Inverter | Siemens | Max. Product Diameter | 1000mm |
| Control System | PLC | Average Aonsumption | 280KW |
| Heating Power | 40kW | Automation | Automatic |
| Gear Box | Guomao | Mold Type | Single Station |
| Warranty | 1 Year | ||
| Highlight | Recirculating Cooling System Water Tank Blow Molding Machine,Stainless Steel Hopper Blow Molding Machine,Siemens Inverter Water Tank Molding Machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description

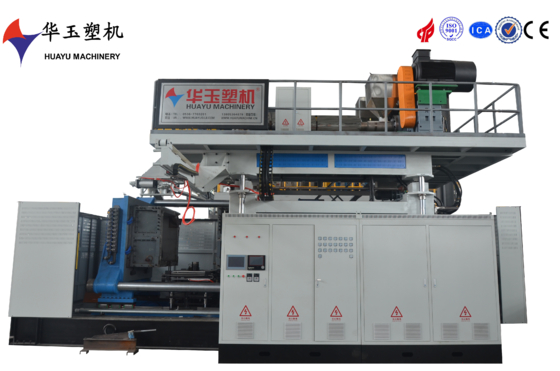

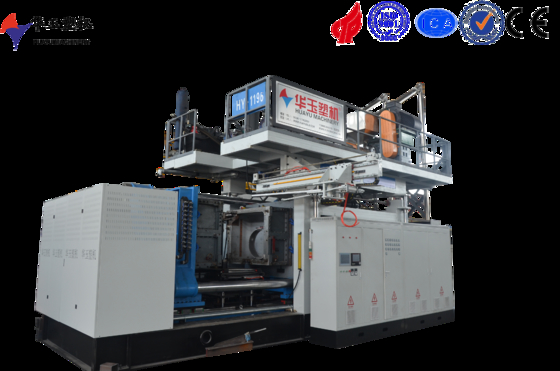

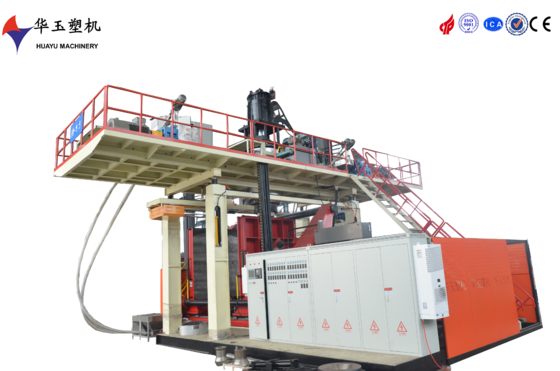

1000L 10-Layer Multi-Functional Water Tank Blow Molding Machine with Recirculating Cooling System
This high-capacity 1000L blow molding machine features 10-layer co-extrusion technology for versatile plastic product manufacturing. The integrated recirculating water tank system provides continuous, efficient cooling to minimize downtime and maximize production efficiency. Designed for flexibility, it accommodates various product shapes and sizes across multiple industries. The machine combines user-friendly automated controls with robust construction for reliable, long-term operation and easy maintenance.
Technical Specifications
| Specification | Details |
|---|---|
| Applicable Material | HDPE |
| Manufacturer | China HUAYU |
| Capacity Range | 200-1500L, 1 layer |
| Weight | 32T |
| Voltage | Pending |
| Total Power | 215kW |
| Average Power | 120kW |
| Machine Dimensions (L×W×H) | 8.5×5.6×6.5 meters |
| Productivity | 16-25 pieces/hour |
Feeder System Details
- Hopper Material: Stainless steel (stable performance, easy maintenance)
- Feeding Type: Spring-loaded mechanism
- Feeding Motor: 2.2kW power output
