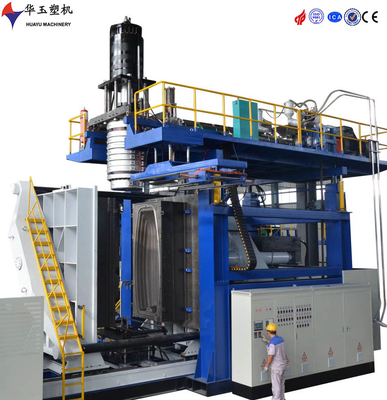

1000L 8-Layer Large High-Speed Water Tank Blow Molding Machine with Rapid Cooling System
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM1000-8 |
| Minimum Order Quantity | 1 SET |
| Price | 280000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Available Production | 750-3000L Plastic Product | Application | Water Tank Production |
|---|---|---|---|
| Machine Weight | XXXX | Total Power | 760 |
| Water Pressure | 0.3MPa | Cleaning Method | Easy Cleaning |
| Mould Cavity | Single/Multi | Air Switch | Schneider |
| System | Touch Screen | Screw Heating Power | 5.5kw*10 |
| Average Power Consumption | 300kw | Capacity Range | 500--1500L,3 Layers |
| Recyclability | Recyclable | Condition | New |
| Capacity Range | 500-2000L | ||
| Highlight | 1000L water tank blow molding machine,8-layer high-speed blow molding machine,large water tank molding machine with rapid cooling |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This high-speed blow molding machine with a 1000L capacity and 8-layer co-extrusion is designed for rapid production. The water tank system ensures quick and efficient cooling, allowing for faster cycle times and increased productivity. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its robust design and high-speed capabilities make it ideal for manufacturers looking to boost production efficiency. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Extrusion System |
||
|
w diameter |
120mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
28:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
90kw |
|
|
Reducer |
330 |
Best quality brand in china ,long life and low noise |
|
crew heating power |
5kw*5 |
|
|
Plasticizing capacity |
250kg/h |
|
|
die head |
||
|
Accumulator capacity |
45kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
40kw |
|
