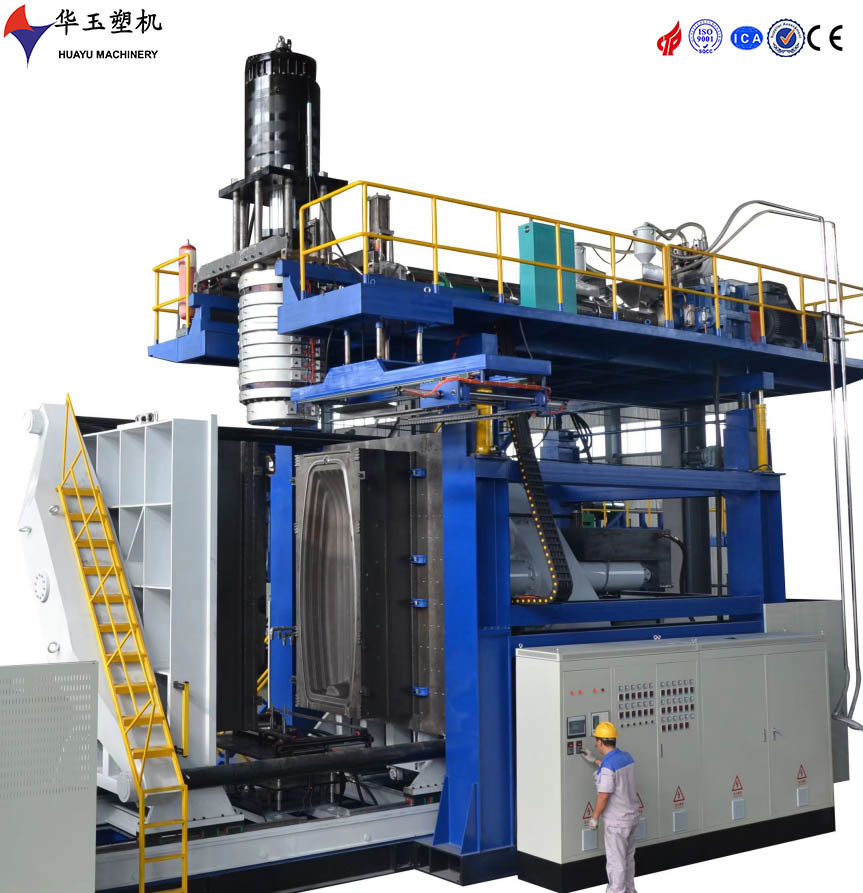

2000L 7-Layer Large Precision Water Tank Blow Molding Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM2000-7 |
| Minimum Order Quantity | 1 SET |
| Price | 320000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Range | Plastic Bottle, Jerrycan | Feeding Motor | 1.5/1.5kw |
|---|---|---|---|
| Air Switch | Schneider | Output | 700KG/H |
| Feeder Type | Vacuum Feeder | Screw Barrel Material | 38CrMoAlA，Nitriding |
| Product Type | Blow Moulding Machine | Machine Size | 8.7X3.6X6.5M |
| Mould Material | Aluminum | Recyclability | Recyclable |
| Feeding Type | Spring Loaded | Year | 2024 |
| Applicable Material | HDPE | Power Supply | 380V/3P/50Hz |
| Automation | Automatic | ||
| Highlight | 2000L water tank blow molding machine,7-layer precision blow molding machine,large water tank molding machine with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This precision blow molding machine with a 2000L capacity and 7-layer co-extrusion is designed for producing high-quality, multi-layered plastic products. The water tank system ensures accurate temperature control and consistent cooling, resulting in superior product quality. The machine's advanced control system offers precise control over the molding process, ensuring consistent product dimensions and quality. Its durable construction and reliable performance make it suitable for industries requiring high-precision plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
die head |
||
|
Accumulator capacity |
60kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
140kw |
|
|
Clamping System |
||
|
platen size |
1800*2200*70mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
300+140*2 |
|
|
clamping cylinder stroke |
2000mm |
|
|
clamping force |
1800KN |
|
|
distance between platens |
1000-3000mm |
|
|
max. mould size |
1600*2000mm(W*H) |
|
