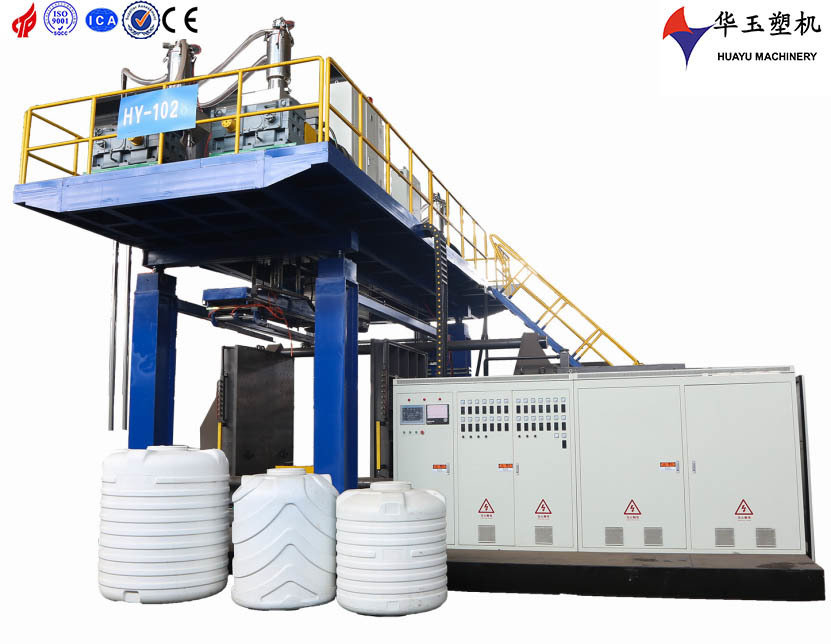

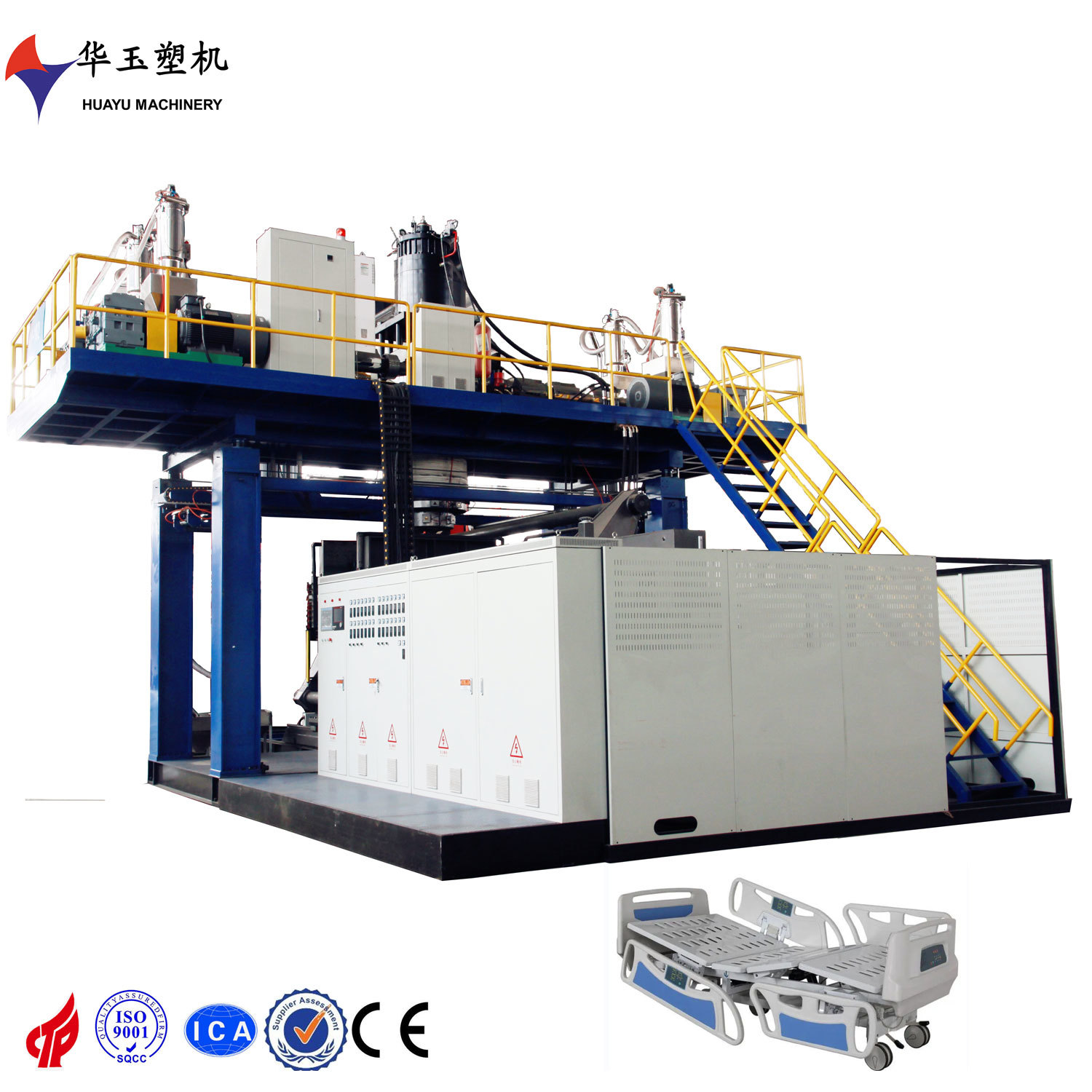

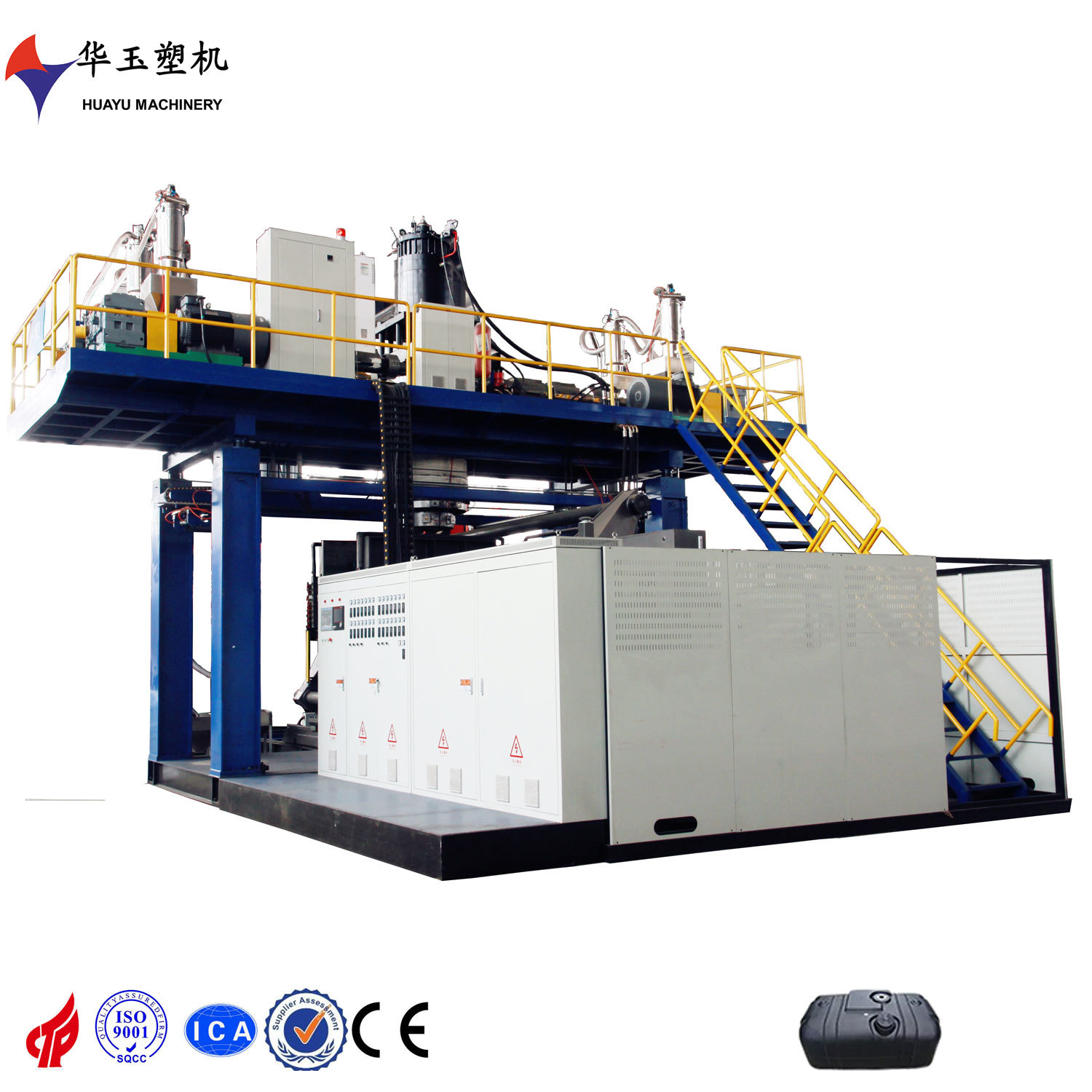

2000L 6-Layer Large Fully-Automatic Water Tank Blow Molding Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM2000-6 |
| Minimum Order Quantity | 1 SET |
| Price | 280000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage Range | 220V/380V/415V/440V | Extruder Motor | 55kw*8 |
|---|---|---|---|
| Average Consumption | 180kw | Gear Box | Guomao |
| Parison | MOOG 200point | Servo Motor | 48kw |
| Tataol Power | 290 | Machine Type | Hydraulic Driven |
| Recyclability | Recyclable | Weight | 5000 Kg |
| Screw Dia | 150mm | Distance Between Platens | 1400-3800mm |
| Mould Material | Aluminum | Max Volume | 5 Gallon |
| Air Pressure | 0.8MPa | ||
| Highlight | 2000L water tank blow molding machine,6-layer fully-automatic blow molding machine,large water tank molding machine with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This fully-automatic blow molding machine with a 2000L capacity and 6-layer co-extrusion is designed for large-scale production. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its fully-automatic operation minimizes labor requirements and maximizes production efficiency. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
Clamping System |
||
|
platen size |
1800*2200*70mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
300+140*2 |
|
|
clamping cylinder stroke |
2000mm |
|
|
clamping force |
1800KN |
|
|
distance between platens |
1000-3000mm |
|
|
max. mould size |
1600*2000mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
r consumption |
2.3m3/min |
|
|
ling method |
Circulating water |
|
|
er pressure |
0.3MPa |
|
|
Cooling water consumption |
60m3/h |
|
