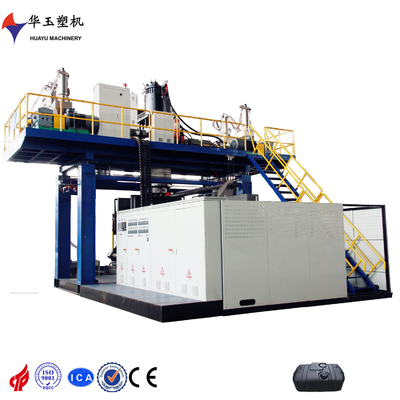

1000L 6-Layer Large Economical Water Tank Blow Molding Machine with Energy-Saving Design
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM1000-6 |
| Minimum Order Quantity | 1 SET |
| Price | 240000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | Customized | Automation Level | Fully Automatic |
|---|---|---|---|
| Product | Water Tank,other Plastic Product | Servo Valve | MOOG |
| Air Supply | 0.8*6(Mpa*Cubic Meter Per Minute) | Blowing Type | Extrusion Blow Moulding |
| Condition | NEW | Parison | MOOG 200point |
| Displacement Pickup | Jefran | Applicable Material | HDPE |
| Total Power | 560kw | Automatic | Yes |
| Applicable Industries | Other | Product Range | 1000L |
| Platicizing Capacity | 800kg/h | ||
| Highlight | 1000L water tank blow molding machine,6-layer large water tank machine,energy-saving blow molding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This economical blow molding machine with a 1000L capacity and 6-layer co-extrusion is designed for cost-effective production. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable construction and reliable performance make it suitable for small to medium-scale production environments. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
1.5m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
3m3/h |
|
