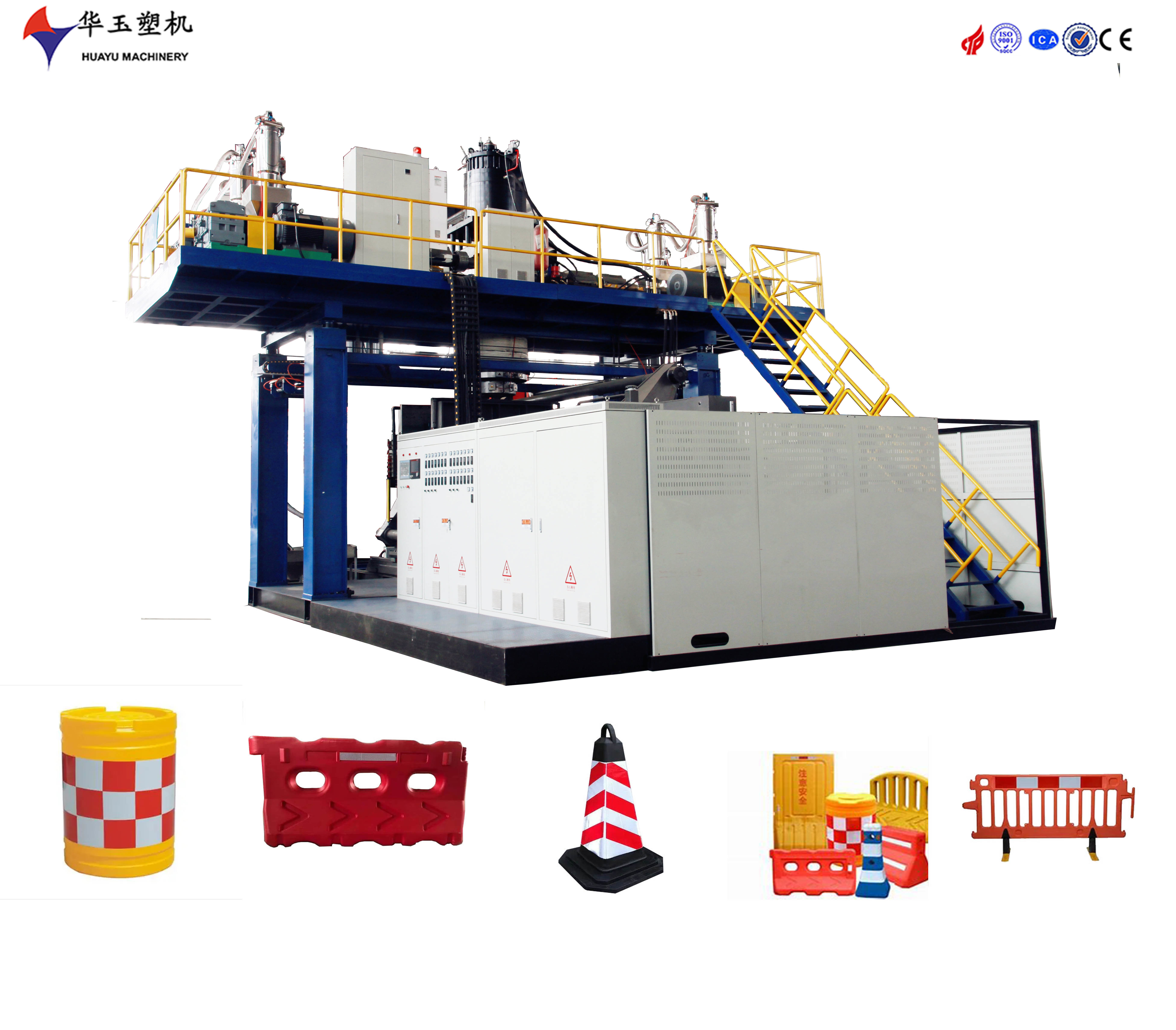

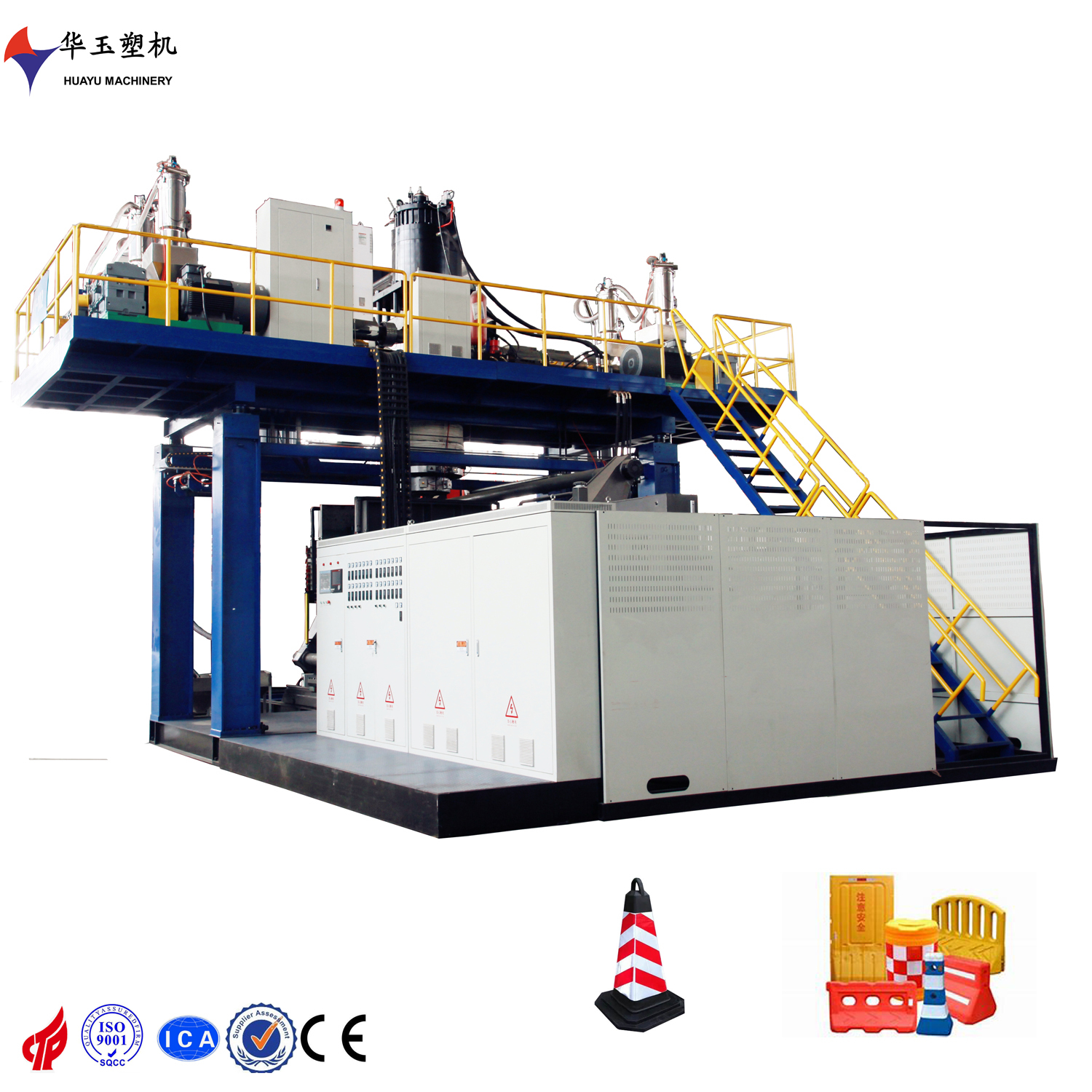

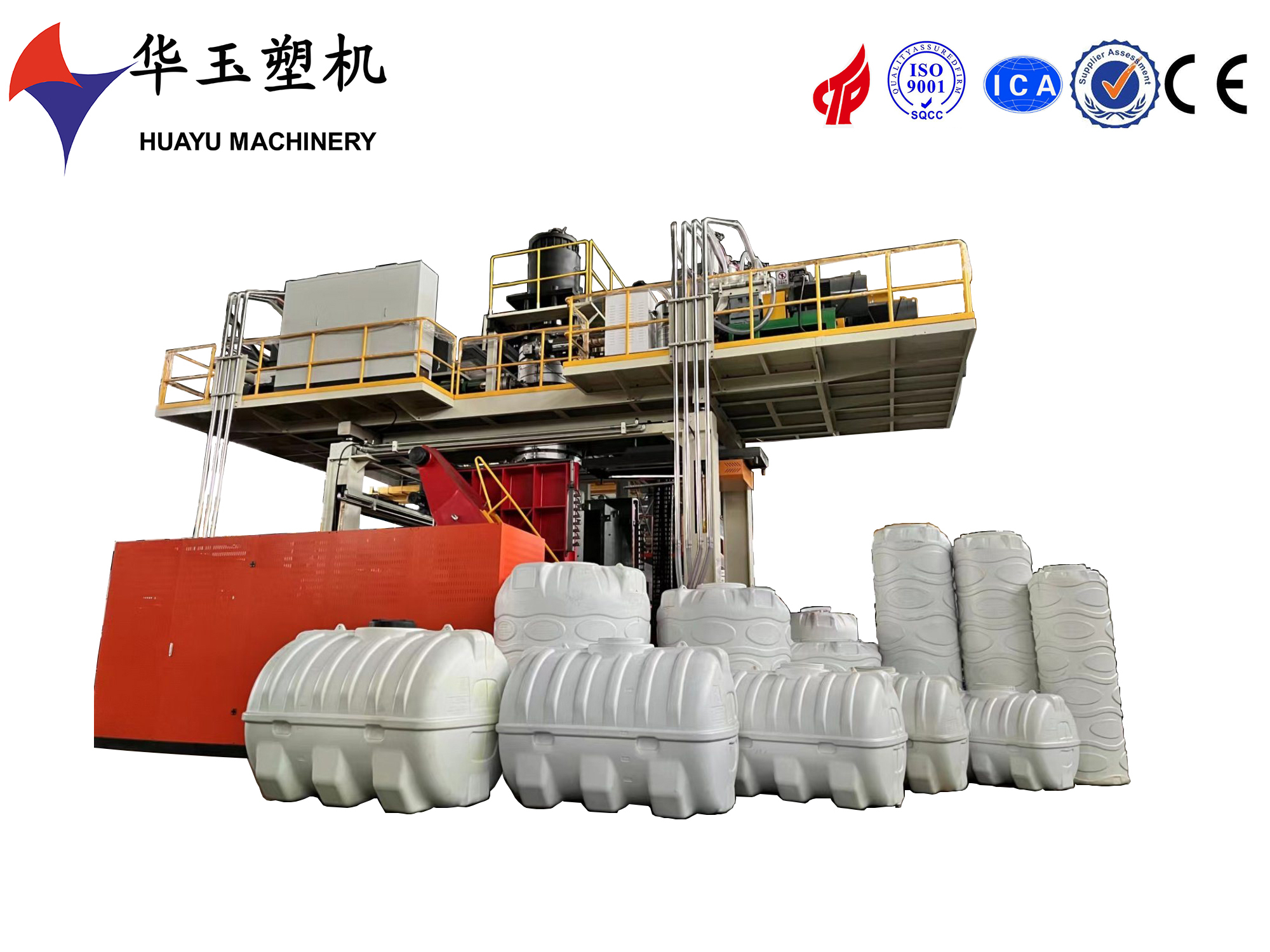

2000L 2-Layer Large Heavy-Duty Water Tank Blow Molding Machine

Place of Origin CHINA
Brand Name HUAYU
Certification ISO9001 CE
Model Number HYBM2000-2
Minimum Order Quantity 1 SET
Price 200000 USD
Packaging Details be disassembled into many parts for container transportation
Delivery Time 4 MONTHS
Payment Terms T/T,L/C
Supply Ability 1SET 120DAYS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Productivity 10-24pcs/h Air Switch Schneider
Keywords Extrusionb Blow Molding Machine Machine Demesion 8.5*6*7.2
Layers 7 Layers Year 2024
Applicable Material HDPE Automation Automation
Motor Siemens Clamping Cylinder Stroke 2000mm
Power Source Electric Extruder Motor Power 75kw
Maximum Air Pressure 0.8Mpa Average Power Consumption 300kw
Max Volume 5 Gallon
Highlight

2000L water tank blow molding machine

,

heavy-duty water tank machine

,

2-layer blow molding machine

You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description

This 2000L two-layer heavy-duty blow molding machine is designed for producing high-quality multi-layer plastic products. The dual-layer co-extrusion system allows for enhanced material flexibility and improved product performance. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

 Extrusion System

crew diameter

130mm

Nitrided 38CrMoAIA

Screw L/D ratio

28:1

special designed screw  can ensure the material plasticizing uniform and efficient

Extruder motor

110kw



Reducer

375

Best quality brand in china ,long life and low noise

Screw heating power

5.5kw*12



Plasticizing capacity

400kg/h



 die head

Accumulator capacity

60kg

designed  by ourselves and get the patent

Die diameter

According to products

Die head heating power

60kw
