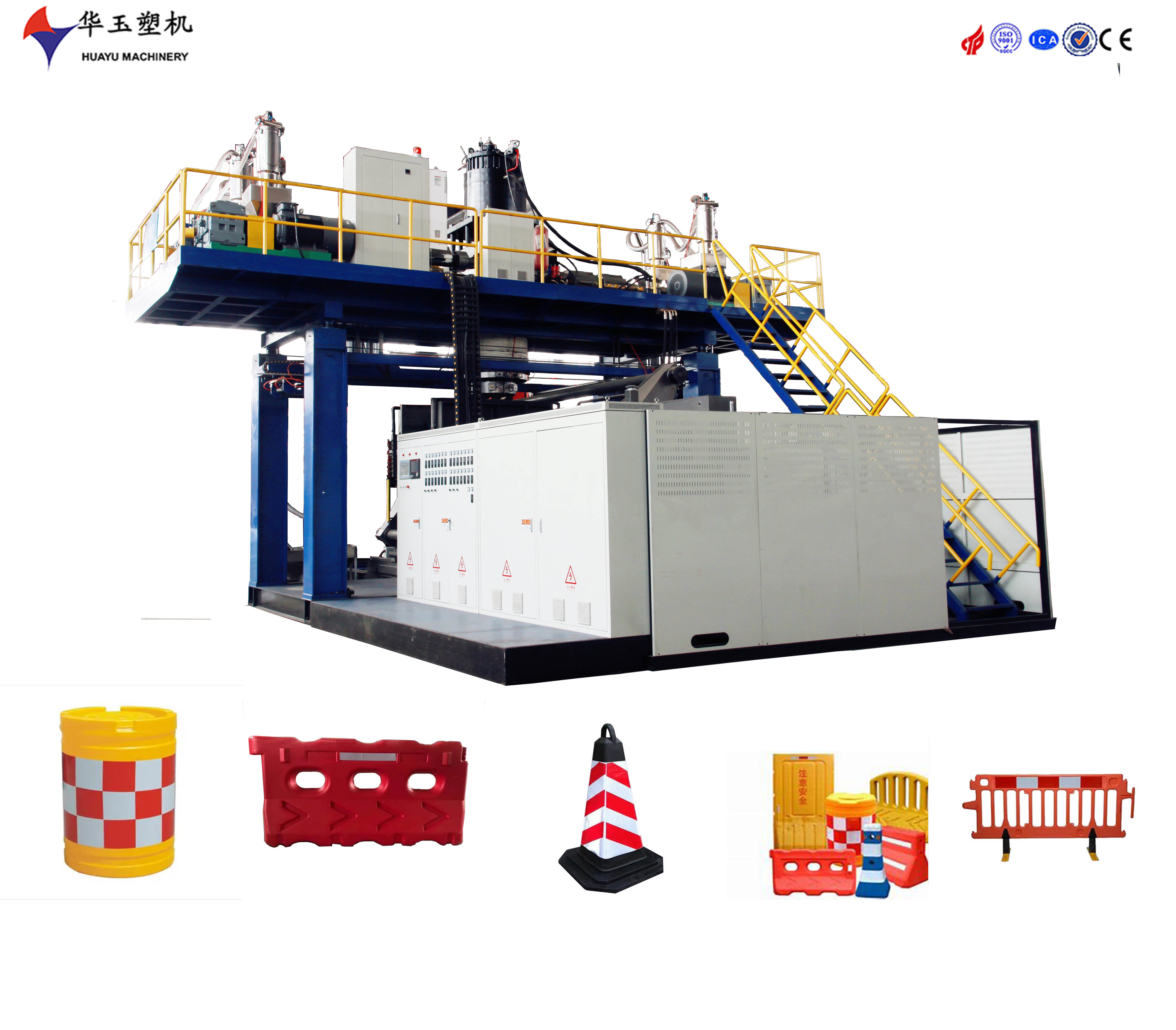

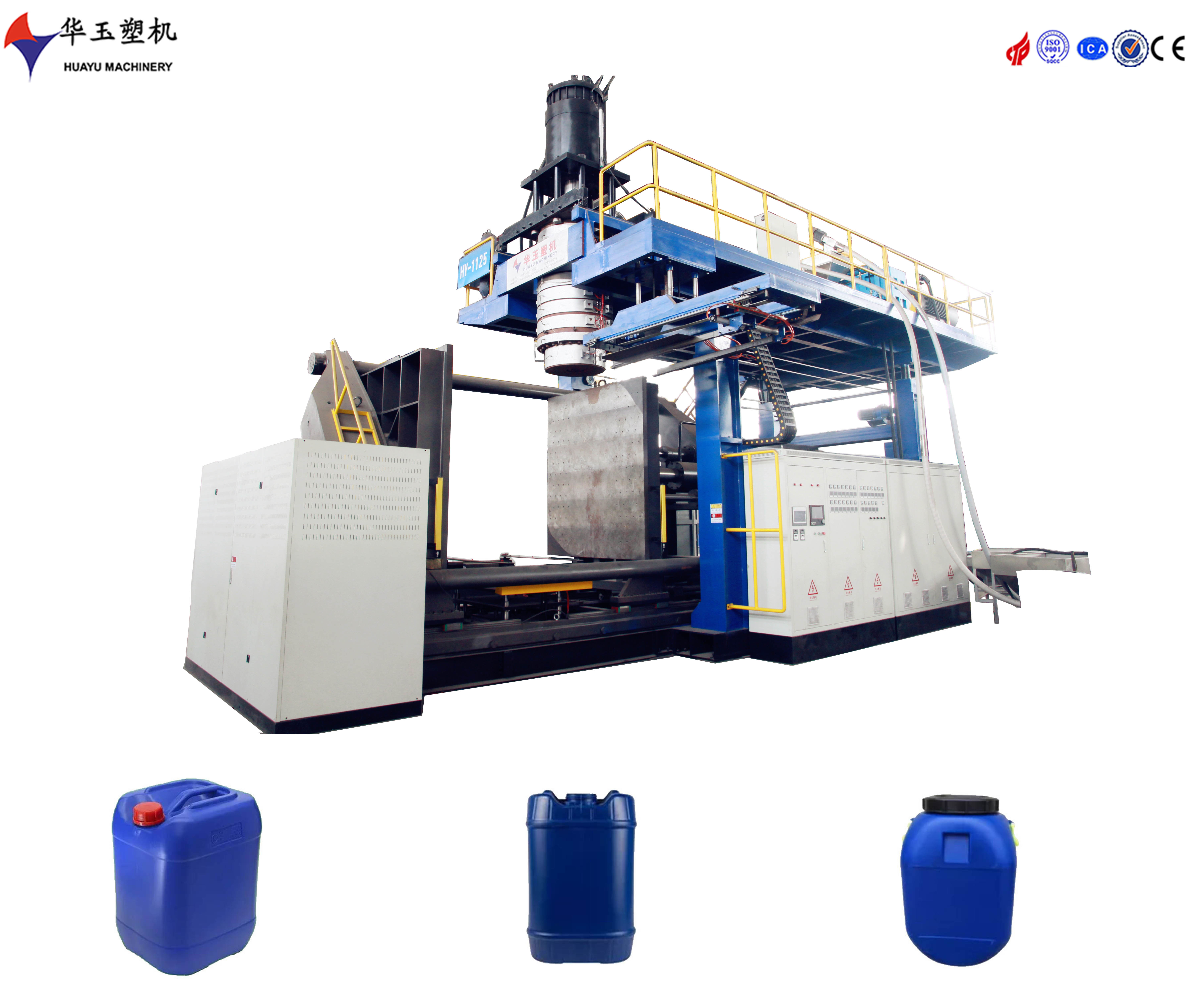

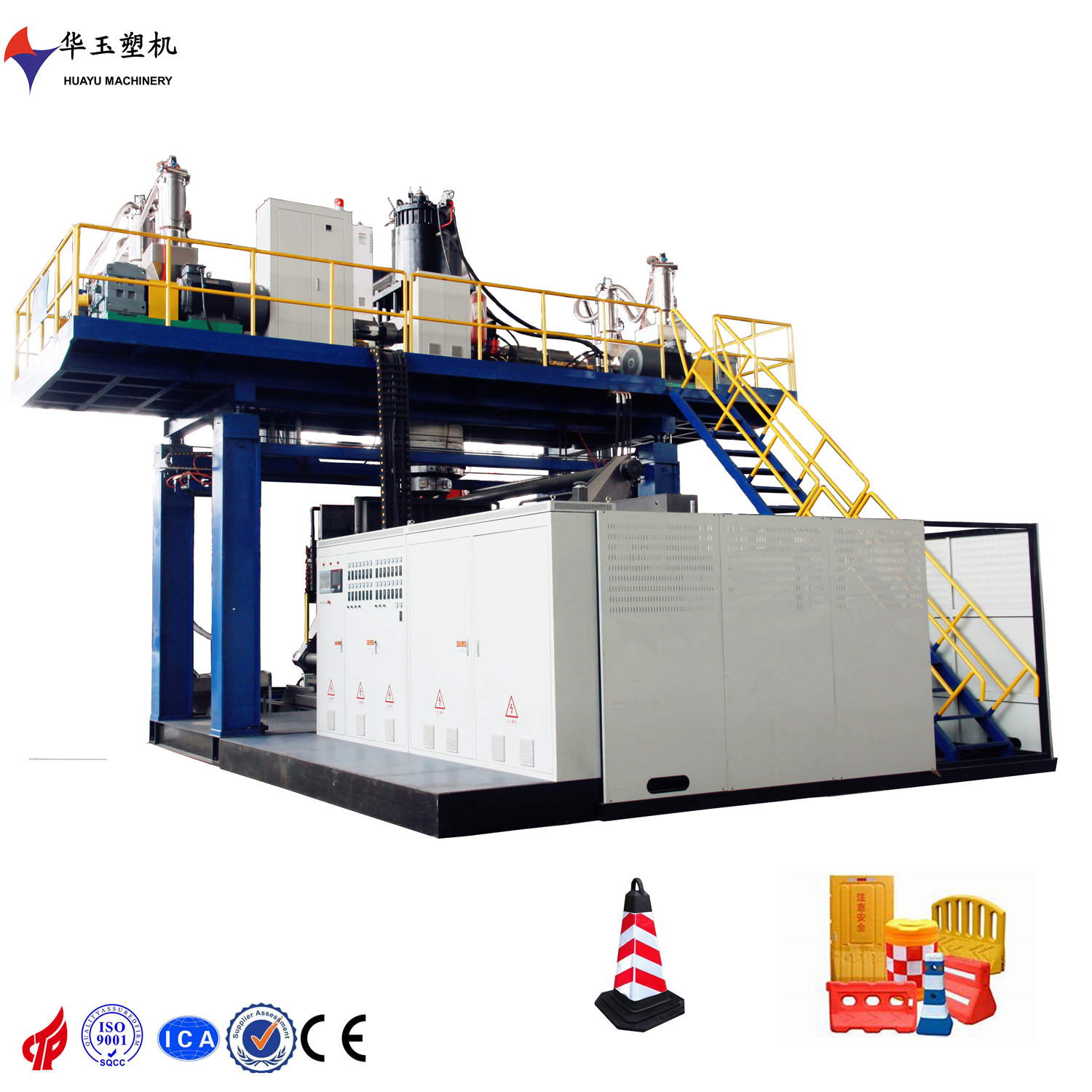

2000L 3-Layer Large Heavy-Duty Water Tank Blow Molding Machine

Place of Origin CHINA
Brand Name HUAYU
Certification ISO9001 CE
Model Number HYBM2000-3
Minimum Order Quantity 1 SET
Price 220000 USD
Packaging Details be disassembled into many parts for container transportation
Delivery Time 4 MONTHS
Payment Terms T/T,L/C
Supply Ability 1SET 120DAYS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Air Pressure 0.8MPa Output 450KG/H
Servo Motor 57kw Heating Power 60kW
Type Blow Moliding Machine Automation Level Fully Automatic
Cooling System Water Cooling Capacity 500-1000 Liters
Key Selling Points Long Service Life,Easy To Operate Automation Automatic
Product Range Plastic Bottle Jerrycan Year 2024
Layer 3 Layers Die Head Weight 26T
Plastic Processed PE,HDPE
Highlight

2000L water tank blow molding machine

,

heavy-duty water tank molding machine

,

3-layer water tank blow molder

You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description

This 2000L three-layer heavy-duty blow molding machine is designed for producing high-performance multi-layer plastic products. The triple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties and improved product durability. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

 die head

Accumulator capacity

60kg

designed  by ourselves and get the patent

Die diameter

According to products



Die head heating power

60kw



 Clamping  System

platen size

1900*2000*60mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

200+280*2



clamping cylinder stroke

2000mm



clamping force

1800KN



distance between platens

1000-3000mm



Max. mould size

1600*2000mm(W*H)


2000L 3-Layer Large Heavy-Duty Water Tank Blow Molding Machine 0
