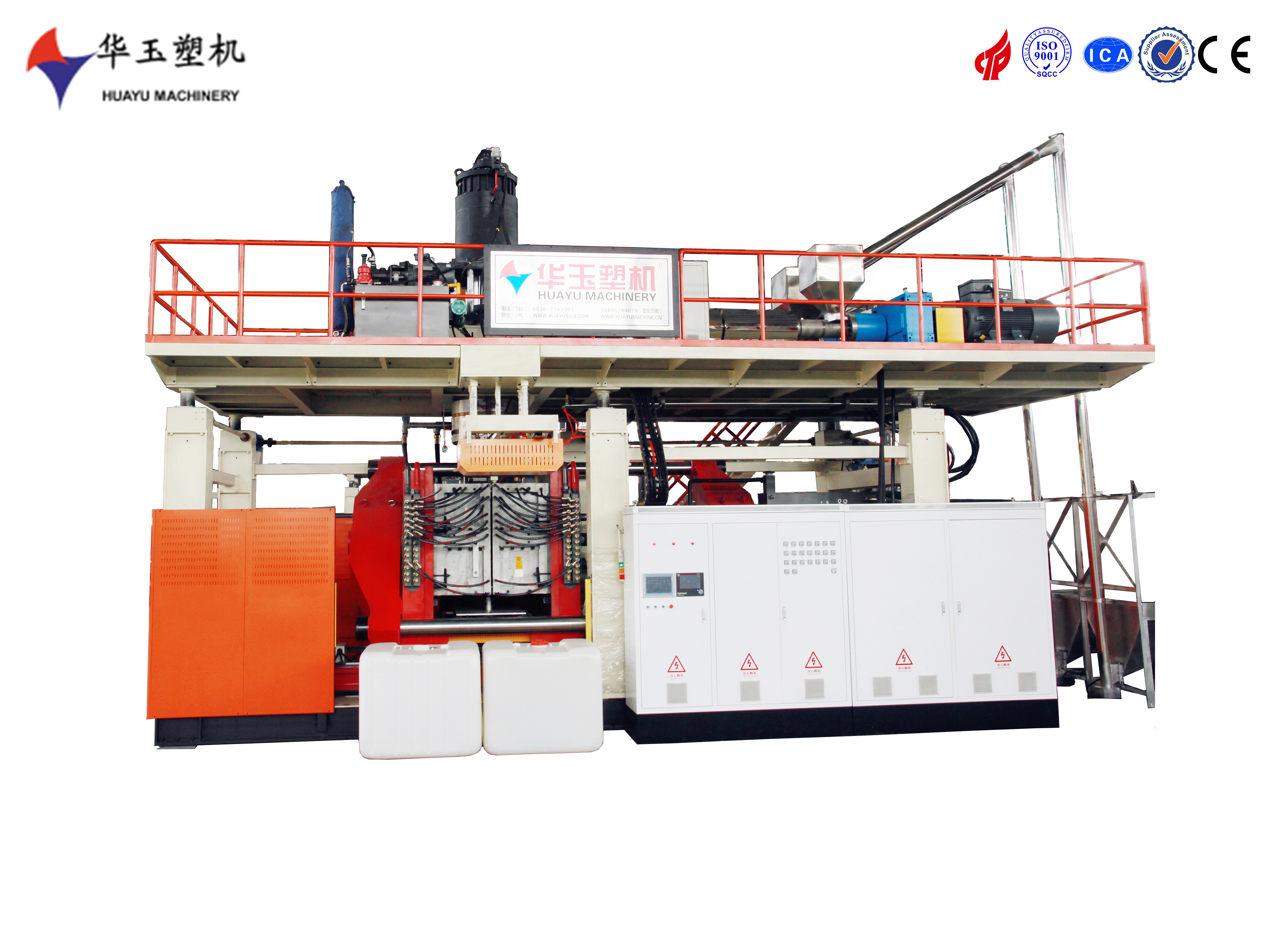

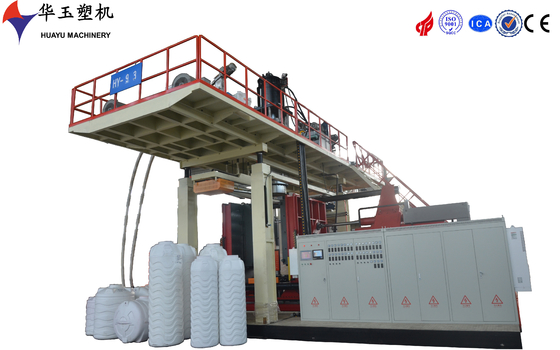

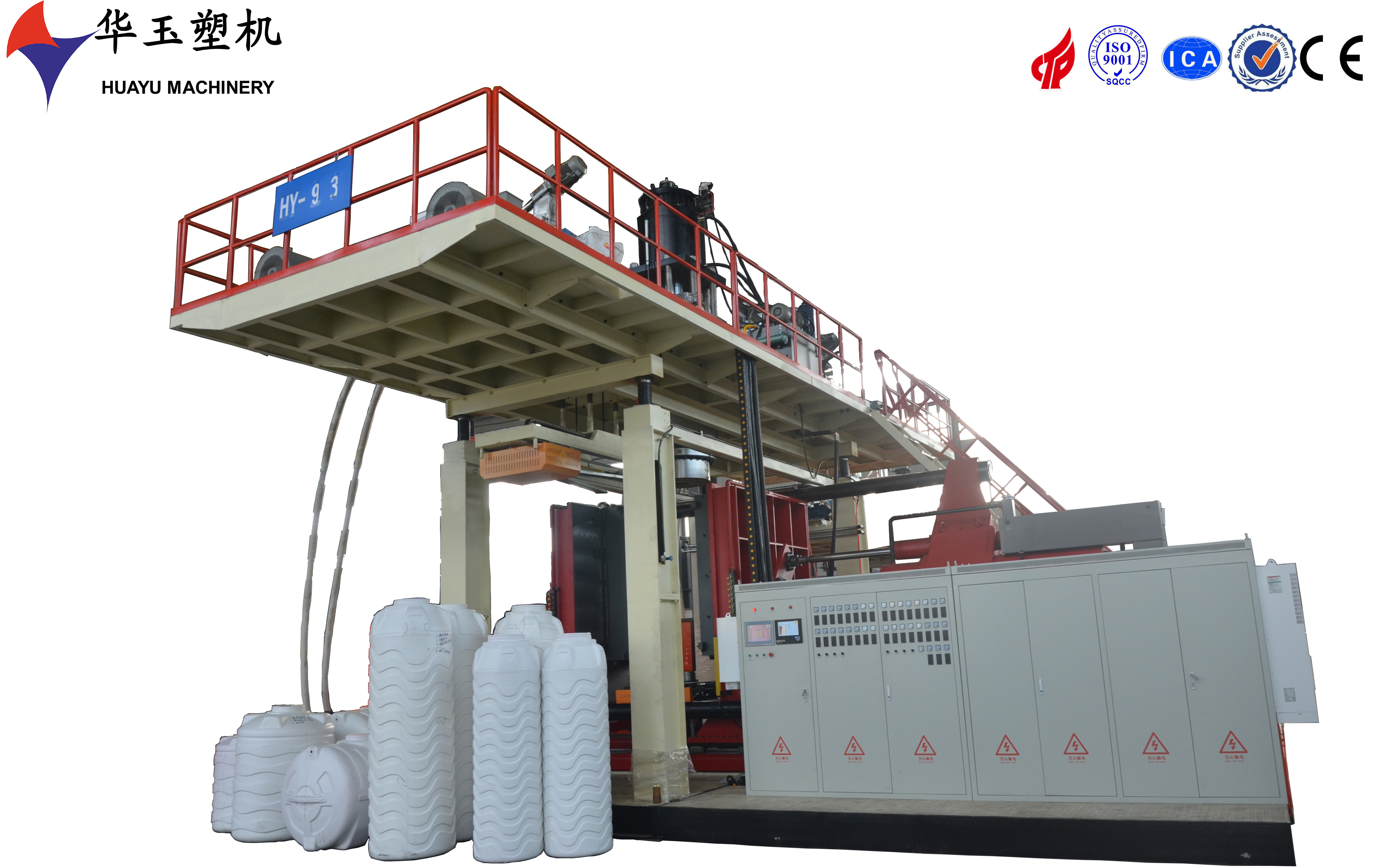

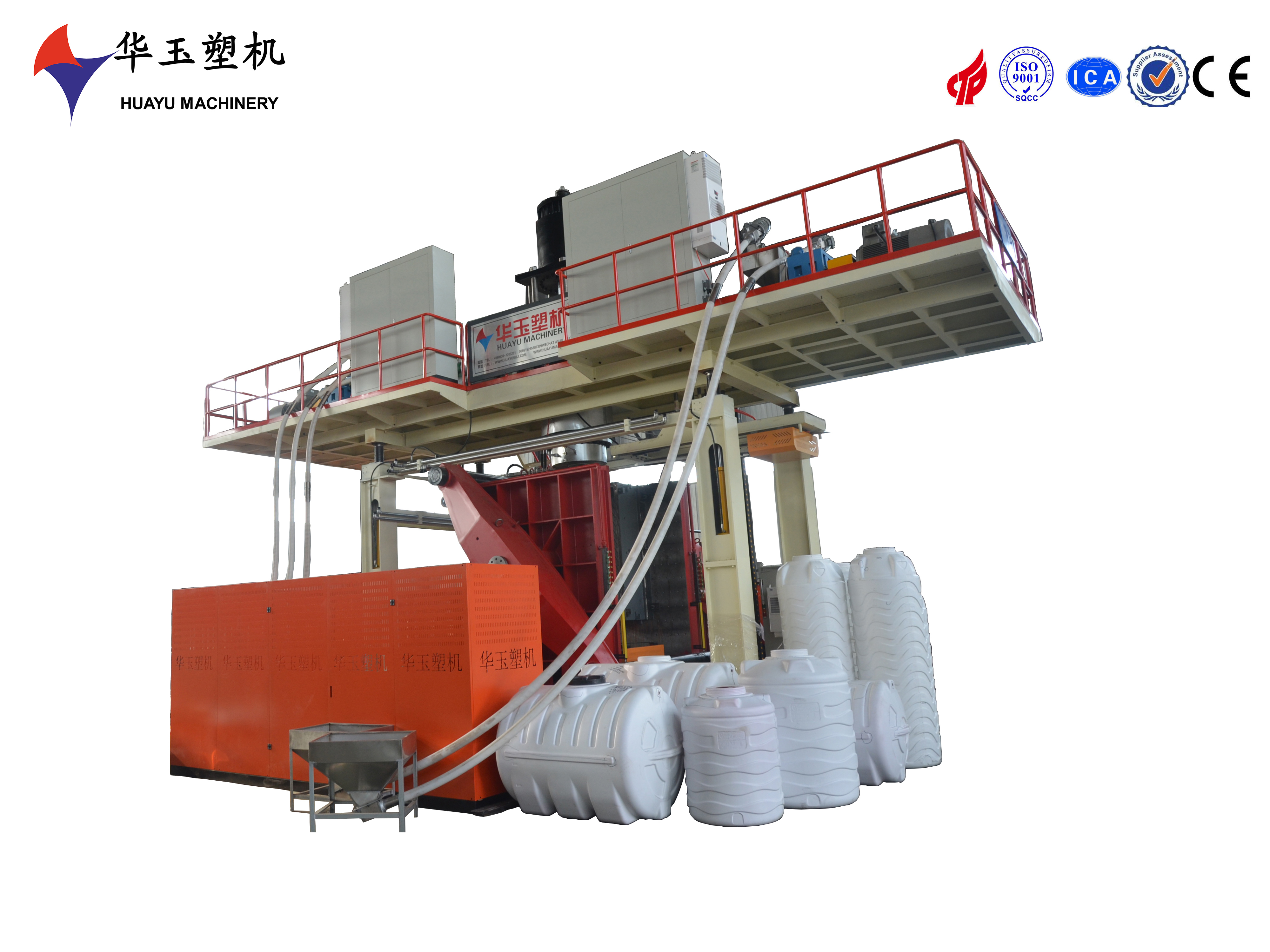

2000L 4-Layer Large Heavy-Duty Water Tank Blow Molding Machine

Place of Origin CHINA
Brand Name HUAYU
Certification ISO9001 CE
Model Number HYBM2000-4
Minimum Order Quantity 1 SET
Price 240000 USD
Packaging Details be disassembled into many parts for container transportation
Delivery Time 4 MONTHS
Payment Terms L/C,T/T
Supply Ability 1SET 120DAYS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 500-1000 Liters Applicable Industries Other
Blowing Type Extrusion Blow Moulding Operating System Semi-automatic
Parison Control MOOG 200point Max. Mould Size 1200 X 1000 Mm
Air Switch Schneider Total Power 560kw
Production Capacity 50-60 Pieces/hour Cleaning Method Easy Cleaning
Platen 1700*1800 Controller PLC+Touch Screen
Machine Dimension 15*9*12 Machine Type Extrusion Blow Molding
Warranty 1 Year
Highlight

2000L water tank blow molding machine

,

4-layer heavy-duty blow molding machine

,

large water tank molding machine with warranty

You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description

This 2000L four-layer heavy-duty blow molding machine is designed for producing ultra-high-performance multi-layer plastic products. The quad-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, and superior mechanical strength. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

 Clamping  System

platen size

1900*2000*60mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

200+280*2



clamping cylinder stroke

2000mm



clamping force

1800KN



stance between platens

1000-3000mm



max. mould size

1600*2000mm(W*H)



 blowing and cooling system

stretching stroke

according to products



blow pin up/down stroke

600mm



air seat stroke

400mm



maximum air pressure

0.8Mpa



onsumption

2.3m3/min



Cooling method

Circulating water



Water pressure

0.3MPa



Cooling water consumption

60m3/h
