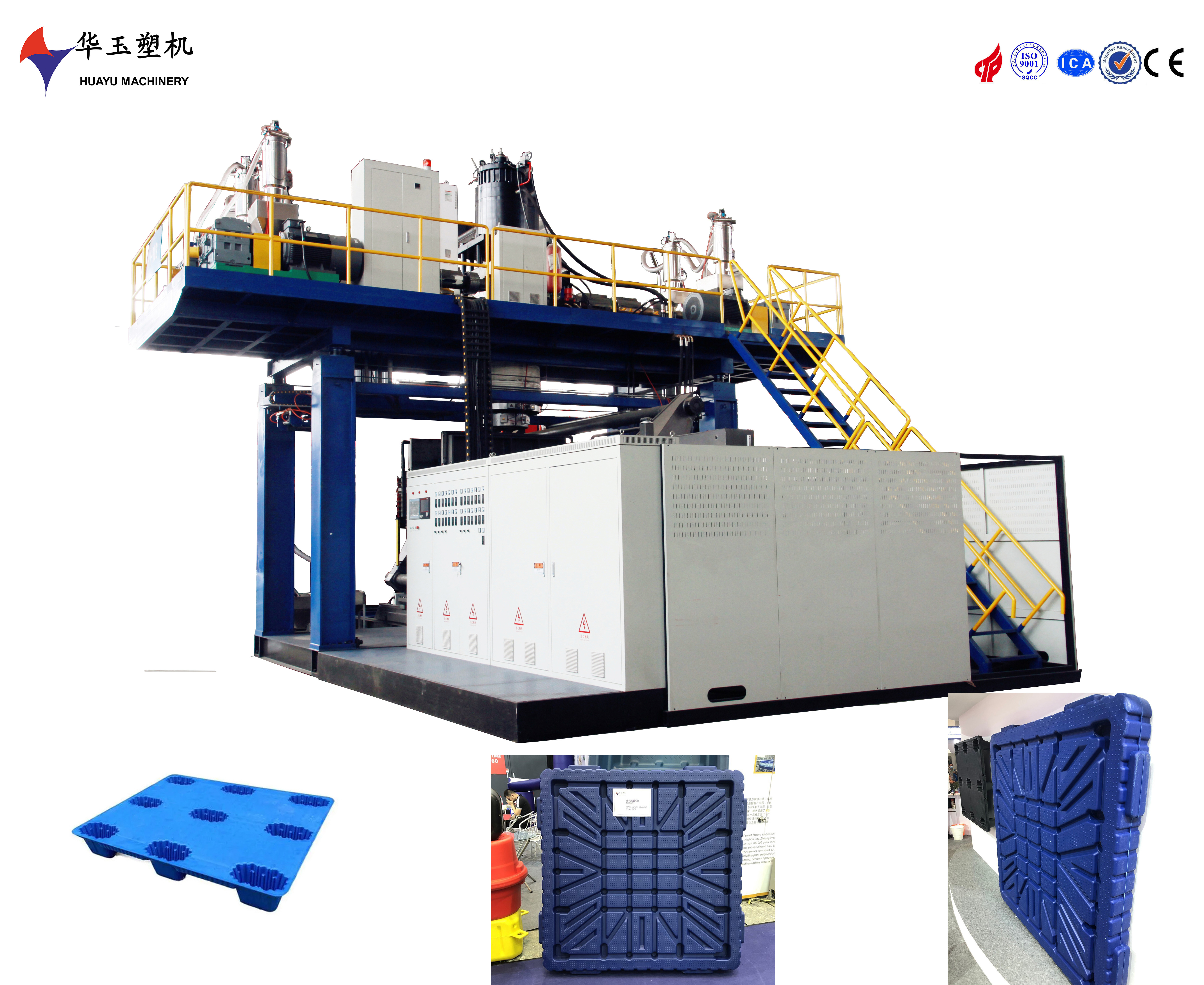

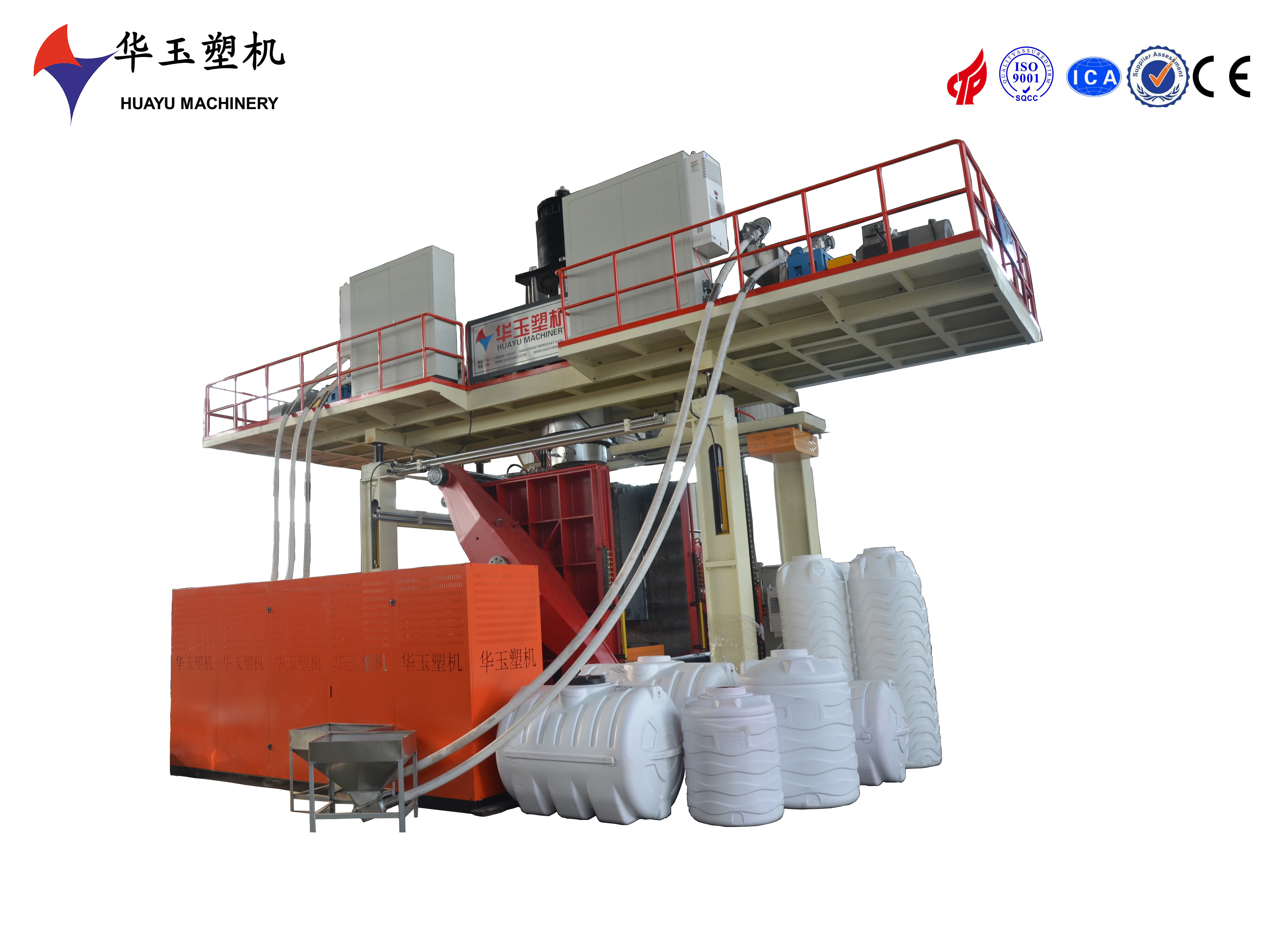

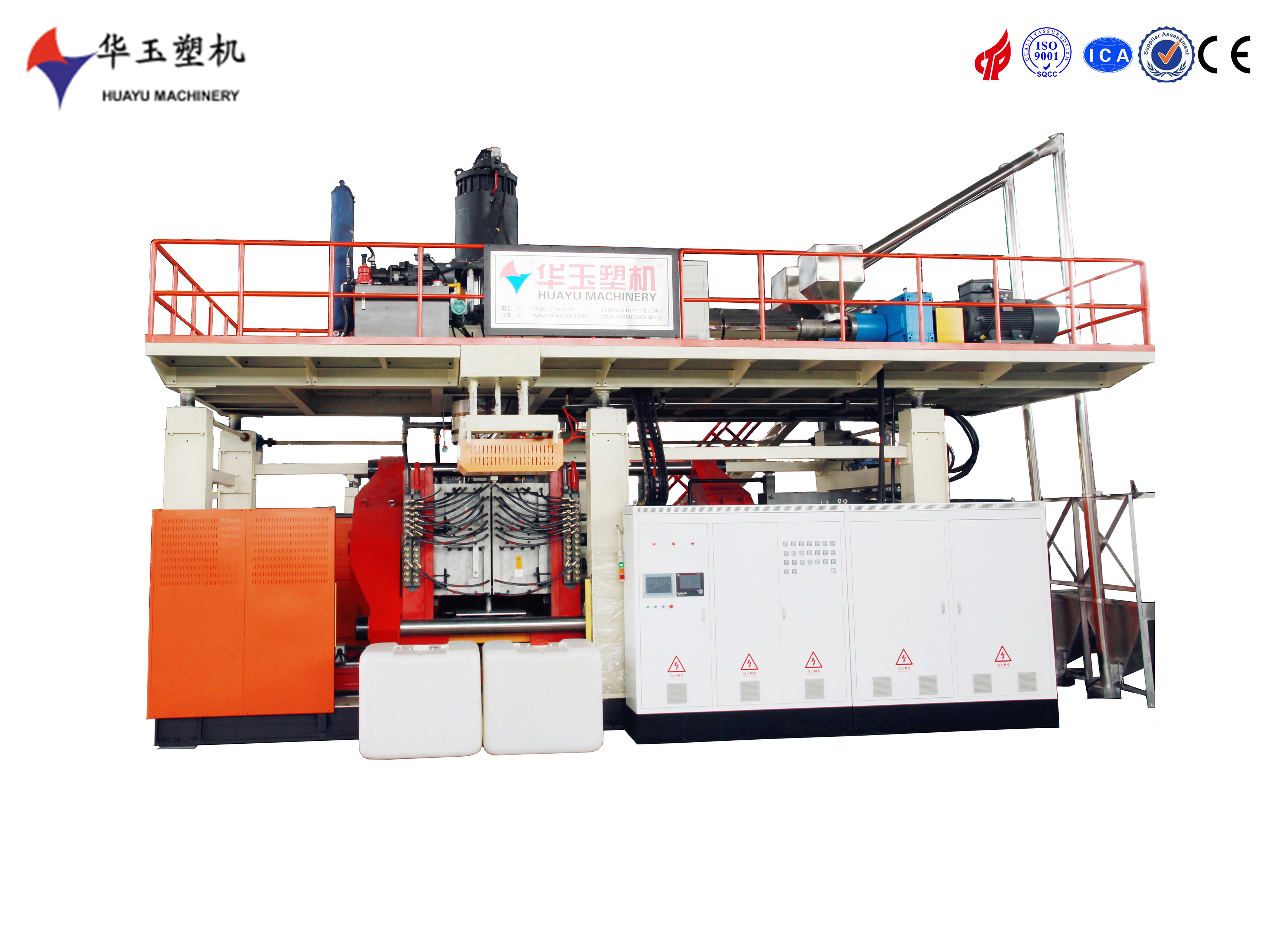

2000L 5-Layer Large Heavy-Duty Water Tank Blow Molding Machine

Place of Origin CHINA
Brand Name HUAYU
Certification ISO9001 ISO
Model Number HYBM2000-5
Minimum Order Quantity 1 SET
Price 260000 USD
Packaging Details be disassembled into many parts for container transportation
Delivery Time 4 MONTHS
Payment Terms T/T,L/C
Supply Ability 1SET 120DAYS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Water Tank,other Plastic Product Key Selling Points Hot Sellers
Voltage Range 220V/380V/415V/440V Application Field Liquid Packaging
Selling Point High Efficiency Servo Valve MOOG
Platen Size 1500*1600*60mm Plc SIMENS(Germany)
Moulding Method Extrusion Blow Moulding Gear Box Guomao
Key Words Servo Motor, Remote Control Power 62 KW
Motor 5.5 Extruder Type Single Screw
Productivity 16-25pcs/h
Highlight

2000L water tank blow molding machine

,

5-layer heavy-duty water tank machine

,

large water tank molding machine with warranty

You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description

This 2000L five-layer heavy-duty blow molding machine is designed for producing ultra-high-performance multi-layer plastic products. The quintuple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, and excellent thermal stability. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

 blowing and cooling system

stretching stroke

according to products



blow pin up/down stroke

600mm



air seat stroke

400mm



maximum air pressure

0.8Mpa



air consumption

2.3m3/min



Cooling method

Circulating water



Water pressure

0.3MPa



Cooling water consumption

60m3/h



 Hydraulic system

ain oil tank capacity

1200L

Servo motor, less energy consumption, high efficiency, low noise

n oil pump

gear pump160CC

main oil pump motor

45kw

 oil tank capacity

200L



 oil pump model

Plunger pump22



Servo oil pump motor

7.5kw
