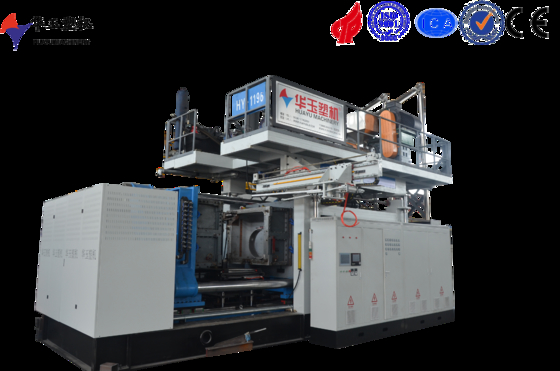

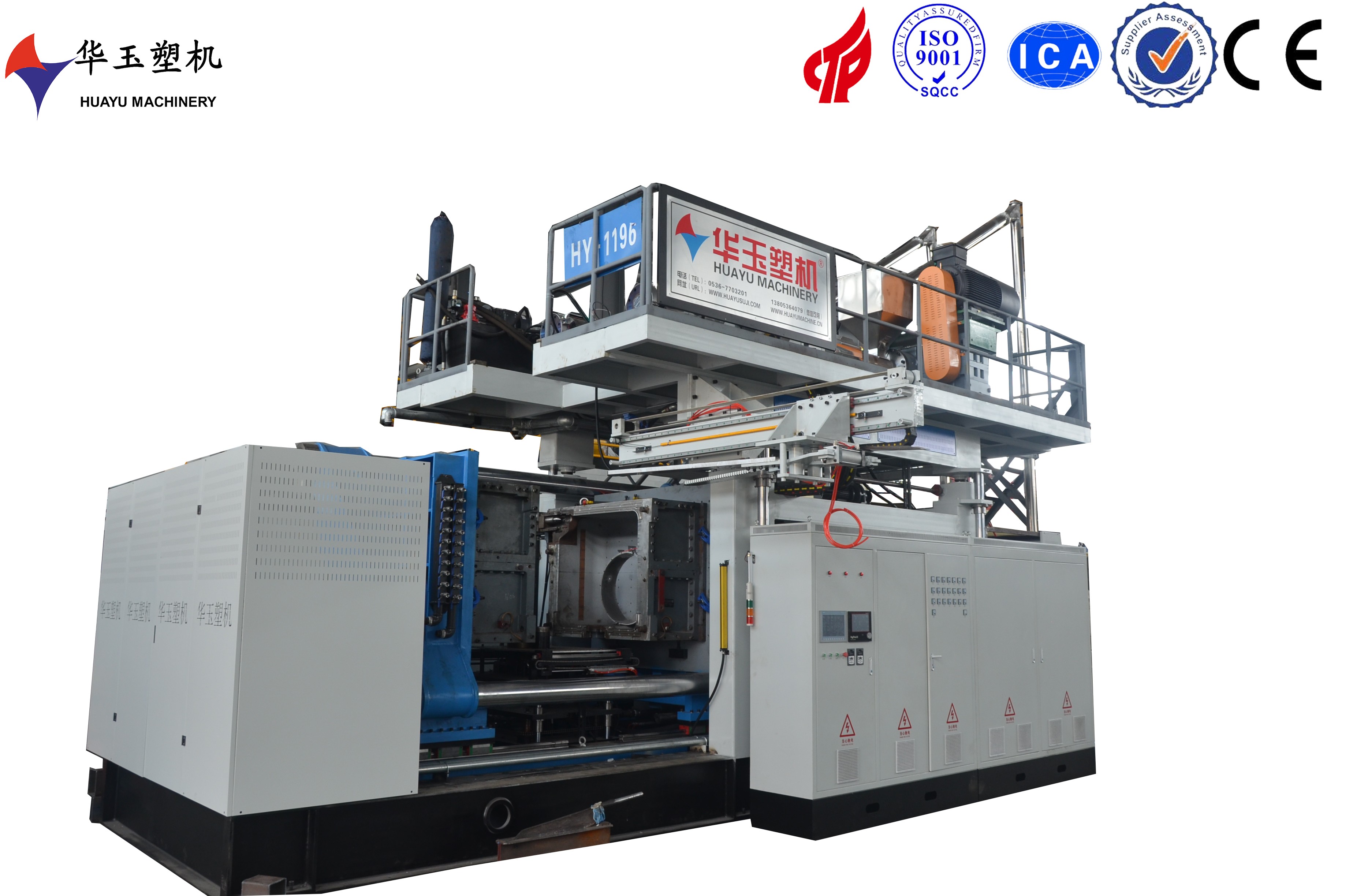

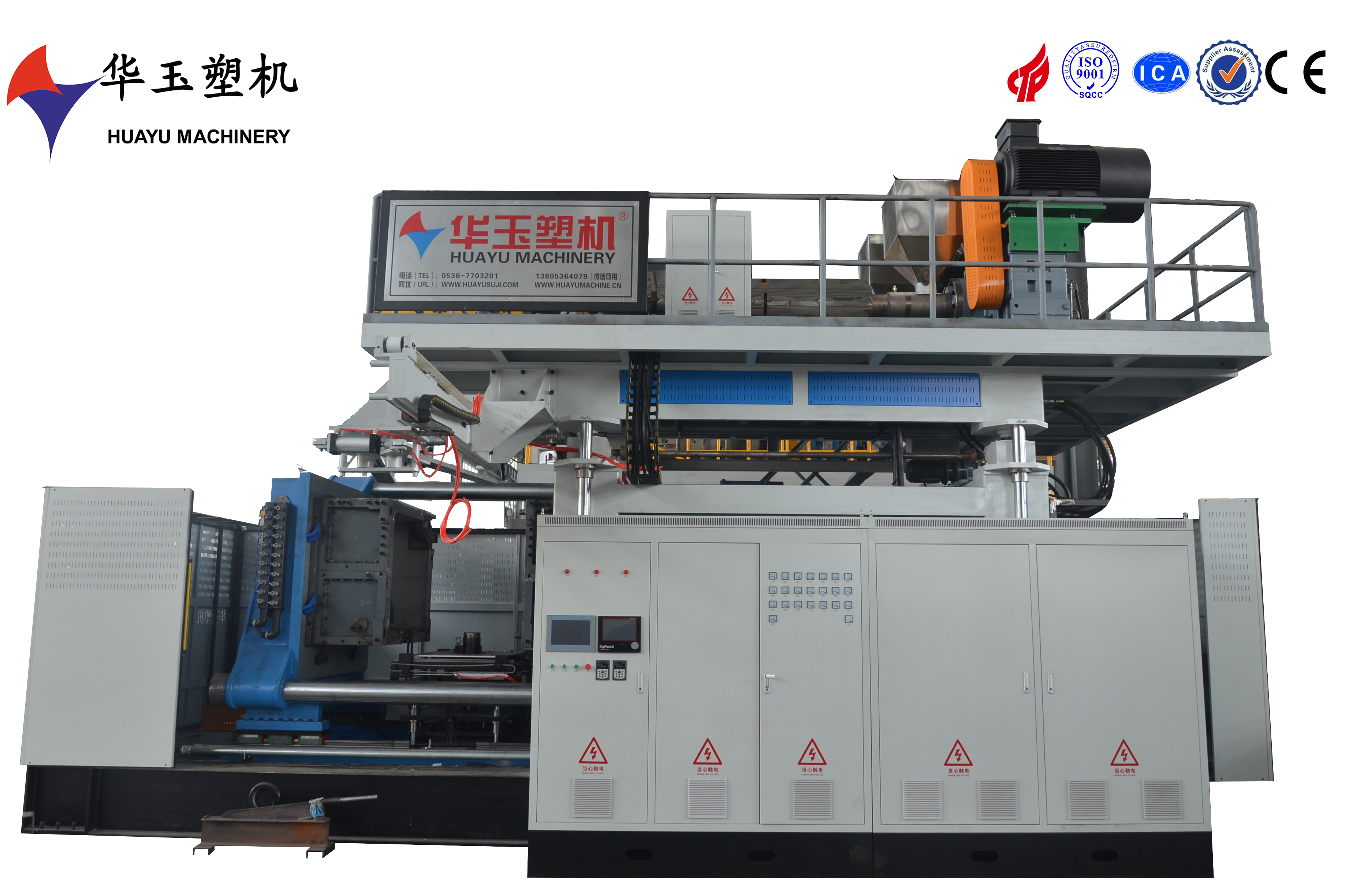

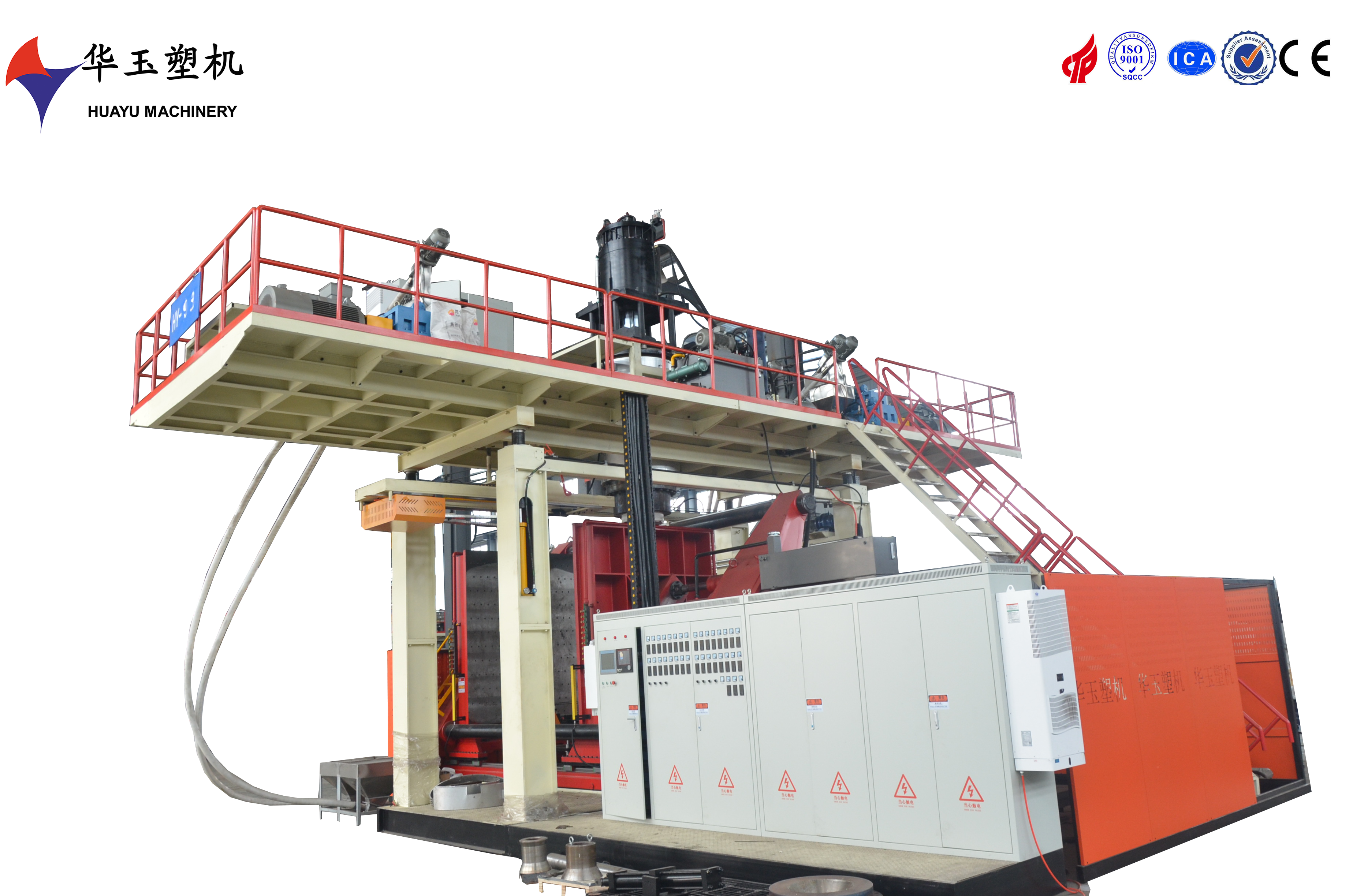

3000L 2-Layer Large Heavy-Duty Water Tank Blow Molding Machine

Place of Origin CHINA
Brand Name HUAYU
Certification ISO9001 CE
Model Number HYBM3002
Minimum Order Quantity 1 SET
Price 290000 USD
Packaging Details be disassembled into many parts for container transportation
Delivery Time 4 MONTHS
Payment Terms T/T,L/C
Supply Ability 1SET 120DAYS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Year 2024 Durability Excellent
Machine Size 5.0x2.4x3.8M Stretching Stroke According To Products
Material LDPE, HDPE, PP Recyclability Recyclable
Automation Fully Automatic Max Product Height 1500-2500 Mm
Voltage 380V/50HZ Platen Size 2200*2400*70mm
Machinery Test Report Provided Extruder Motor 37/37/37/37/37kw
Extrudor Motor 110/90*2/15*3 Extruder Motor Power 110kW
Cooling Water Pressure 0.3-0.6MPa
Highlight

3000L water tank blow molding machine

,

heavy-duty water tank molding equipment

,

2-layer large water tank machine

You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description

This 3000L two-layer heavy-duty blow molding machine is designed for producing multi-layer plastic products with enhanced durability and performance. The dual-layer co-extrusion system allows for advanced material combinations, providing better barrier properties and improved product strength. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

Auto Feeder

hopper material

不锈钢stainless steel

Stable performance, easy maintenance

feeding type

弹簧上料spring loaded



feeding motor

2.2/2.2/2.2/2.2kw



 Extrusion System

Screw diameter

110/110/110/110mm

Nitrided 38CrMoAIA

Screw L/D ratio

28:1

special designed screw  can ensure the material plasticizing uniform and efficient

Extruder motor

75/75/75/75kw



Reducer

315/315/315/315

Best quality brand in china ,long life and low noise

Screw heating power

4.4kw*16



Plasticizing capacity

800kg/h
