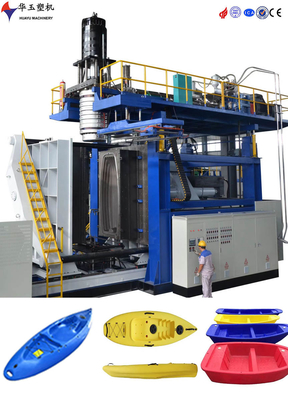

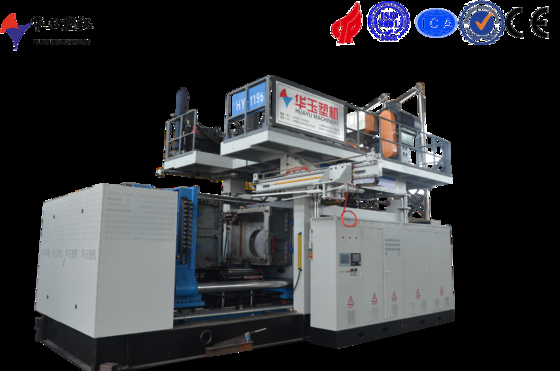

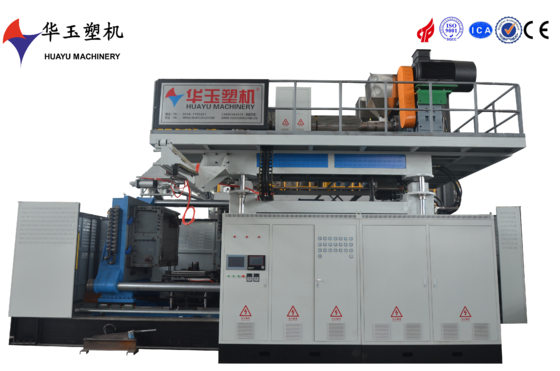

3000L Triple-Layer Large Capacity Water Tank Blow Molding Machine with Superior Corrosion Resistance
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM3003 |
| Minimum Order Quantity | 1 SET |
| Price | 320 000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Screw Diameter | 90mm | Automationlevel | Semi-automatic / Fully Automatic |
|---|---|---|---|
| Heating Power | 60kW | Power Source | Electric |
| Moulding Method | Blow Moulding | Controlsystem | PLC Control With Touch Screen |
| Weight | 40Ton | Product | Water Tank,other Plastic Product |
| Air Switch | Schneider | Cooling Method | Circulating Water |
| Frequency | 50Hz/60Hz | Year | 2024 |
| Average Power Consumption | 300kw | Blow Molding Type | Extrusion Blow Molding |
| Heating Zones | 6 | ||
| Highlight | 3000L water tank blow molding machine,triple-layer water tank machine,large capacity corrosion-resistant blow molder |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This 3000L triple-layer blow molding machine is designed for producing high-performance multi-layer water tanks. The triple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties and improved product durability. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
Extrusion System |
||
|
Screw diameter |
110/110/110/110mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
28:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
75/75/75/75kw |
|
|
Reducer |
315/315/315/315 |
Best quality brand in china ,long life and low noise |
|
Screw heating power |
4.4kw*16 |
|
|
Plasticizing capacity |
800kg/h |
|
|
die head |
||
|
Accumulator capacity |
90kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
110kw |
|
