3000L Quintuple-Layer Large Capacity Water Tank Blow Molding Machine with Enhanced
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM3005 |
| Minimum Order Quantity | 1 SET |
| Price | 380 000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mould Cavity | Single | Plasticizing Capacity | 1200kg/h |
|---|---|---|---|
| Attribute | Stable Performance | Touch Screen | Siemens |
| Screw Heating Power | 4.4kw*10 | Parison | MOOG 200point |
| Power Avg | 26.5 KW | Port | SHANGHAI |
| Thickness Control Points | 200 Points | Power Supply | 380V/3P/50Hz |
| Powersupply | 380V/50Hz, 3 Phase | Blow Moulding Type | Extrusion Blow Moulding |
| Applicable Material | HDPE | Control System | PLC Control |
| Hopper Material | Stainless Steel | ||
| Highlight | 3000L water tank blow molding machine,large capacity blow molding machine,quintuple-layer water tank machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description

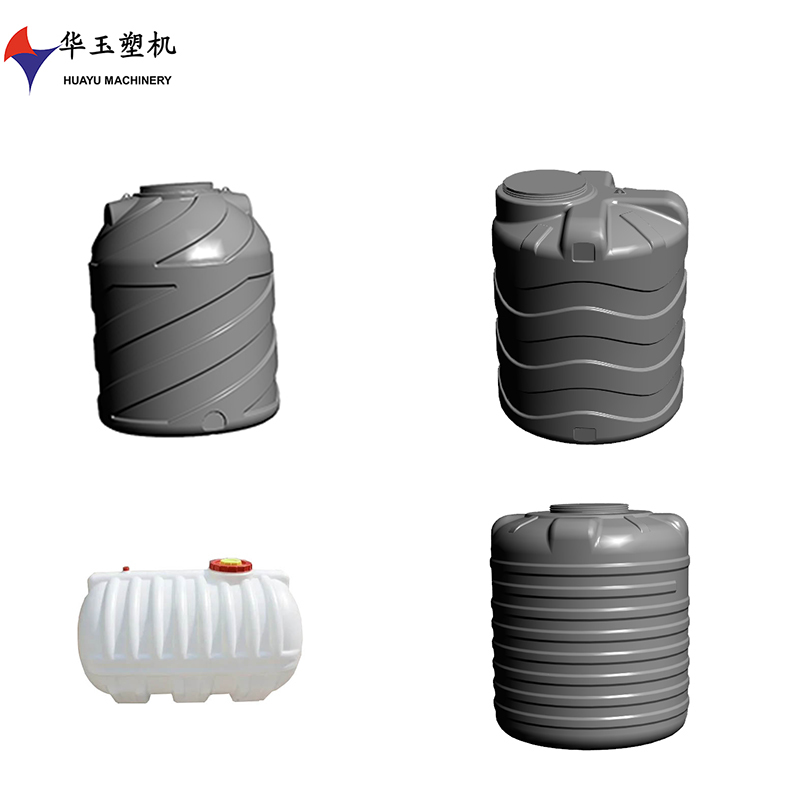

This 3000L quintuple-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The quintuple-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, and excellent thermal stability. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
Clamping System |
||
|
platen size |
2100*2200*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
160*2 320*1 |
|
|
clamping cylinder stroke |
2100mm |
|
|
clamping force |
2200KN |
|
|
distance between platens |
1100-3200mm |
|
|
max. mould size |
1800*2200mm(W*H) |
|
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
