HUAYU 3000L Seven-Layer Large Capacity Water Tank Blow Molding Machine with Superior Thermal
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM3007 |
| Minimum Order Quantity | 1 SET |
| Price | 440 000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAY |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Advantages | 20 Years Experiences | Layers | 2 Layers |
|---|---|---|---|
| Extruder Motor | 45kw | Cycletime | 30-90 Seconds |
| Available Production | 750-3000L Plastic Product | Productname | Water Tank Blow Moulding Machine |
| Frequency | 50Hz | Screw Material | 38CrMoAlA，Nitriding |
| Accumulator Capacity | 90kg | Accumulator | 180kg |
| Air Consumption | 1.2 M3/min | Weight | 5000-8000kg |
| Platen Size | 1800*2000*70mm(W*H*T) | Machinetype | Blow Moulding Machine |
| Condition | New | ||
| Highlight | HUAYU 3000L water tank blow molding machine,seven-layer large capacity water tank machine,thermal efficient water tank blow molder |
||
You can tick the products you need and communicate with us in the message board.
Product Description

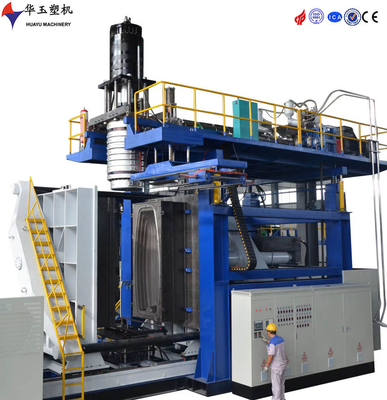

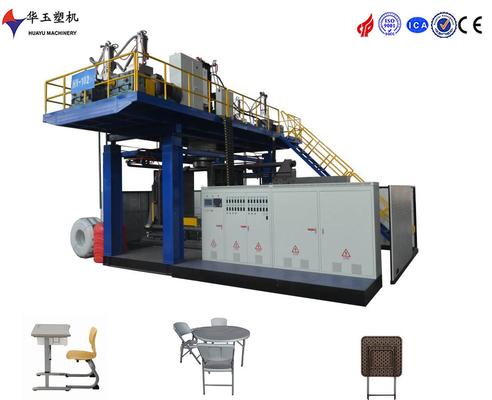

This 3000L seven-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The seven-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, excellent thermal stability, superior chemical resistance, and advanced UV protection. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
blowing and cooling system |
||
|
stretching stroke |
according to products |
|
|
blow pin up/down stroke |
600mm |
|
|
air seat stroke |
400mm |
|
|
maximum air pressure |
0.8Mpa |
|
|
air consumption |
3m3/min |
|
|
Cooling method |
Circulating water |
|
|
Water pressure |
0.3MPa |
|
|
Cooling water consumption |
75m3/h |
|
|
Hydraulic system |
||
|
量main oil tank capacity |
1500L |
Servo motor, less energy consumption, high efficiency, low noise |
|
ain oil pump |
gear pump185CC |
|
|
main oil pump motor |
70kw |
|
|
Servo oil tank capacity |
200L |
|
|
oil pump model |
Plunger pump22 |
|
|
oil pump motor |
7.5kw |
|
