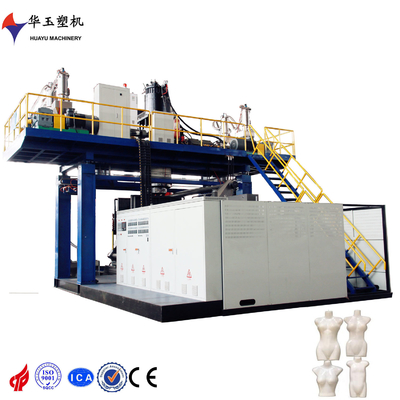

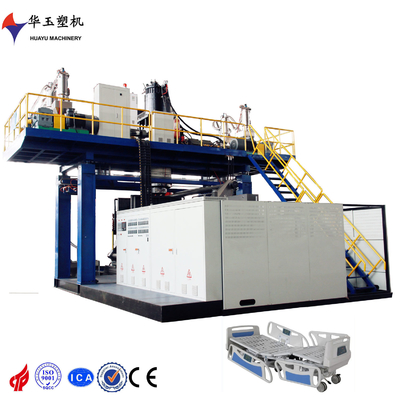

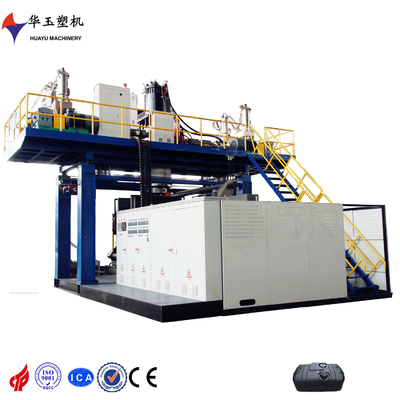

HUAYU 3000L Ten-Layer Large Capacity Water Tank Blow Molding Machine with Superior Impact Resistance
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM30010 |
| Minimum Order Quantity | 1 SET |
| Price | 440 000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bucket Thickness | Not Very Thick | Showroom Location | None |
|---|---|---|---|
| Air Consumption | 1.0m3/min | Average | 40kw |
| Stretching Stroke | According To Products | Extruder Motor | 90kw |
| Plc | SIMENS(Germany) | Recyclability | Recyclable |
| Average Aonsumption | 280KW | Selling Point | High Efficiency |
| Blow Moulding Type | Injection Blow Moulding | Material | HDPE |
| Machine Demesion | 8.5*6*7.2 | Average Consumption | 180kw |
| Control System | PLC Control | ||
| Highlight | HUAYU 3000L water tank blow molding machine,large capacity blow molding machine with impact resistance,ten-layer water tank blow moulding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This 3000L ten-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The ten-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, excellent thermal stability, superior chemical resistance, advanced UV protection, superior oxygen barrier, advanced moisture barrier, and superior impact resistance. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding
|
die head |
||
|
Accumulator capacity |
90kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
110kw |
|
|
Clamping System |
||
|
platen size |
2100*2200*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
160*2 320*1 |
|
|
clamping cylinder stroke |
2100mm |
|
|
clamping force |
2200KN |
|
|
istance between platens |
1100-3200mm |
|
|
max. mould size |
1800*2200mm(W*H) |
|
