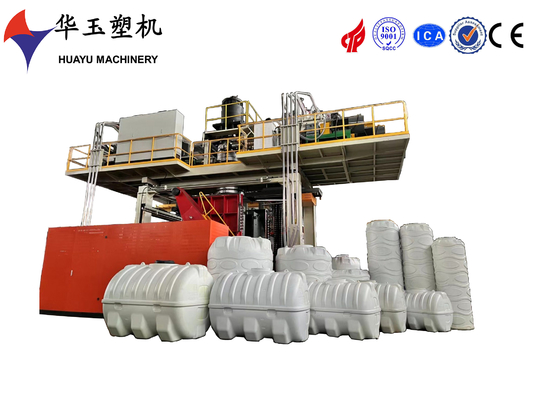

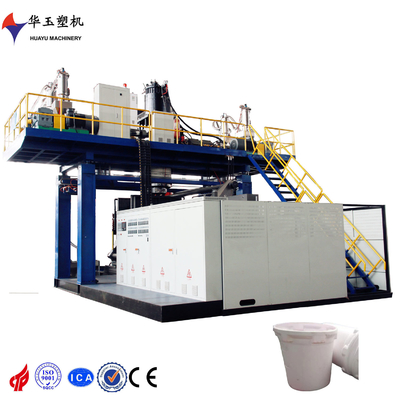

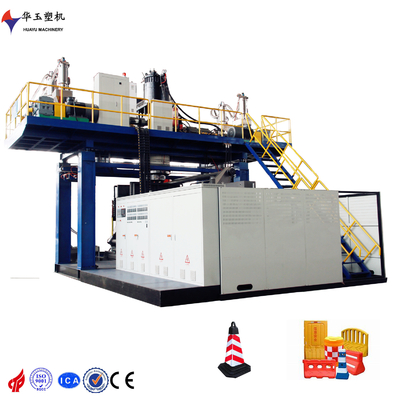

5000L Dual-Layer Large Capacity Water Tank Blow Molding Machine with High-Performance Co-Extrusion
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM5002 |
| Minimum Order Quantity | 1 SET |
| Price | 380,000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | T/T,L/C |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Source | Electric | Air Switch | Schneider |
|---|---|---|---|
| Extruder Motor | 110kw | Machine Dimension | 12*11*8.5 |
| Machine Weight | 11.8T | Gear Box | Guomao |
| Guarantee | 1 Year | Layers | 2 LAYERS |
| Motor | Siemens | Bucket Thickness | Not Very Thick |
| Product | Water Tank,other Plastic Product | Total Weight | 100T |
| Feeding Motor | 11kw*2 | Screw Diameter | 90/90/90/90mm |
| Material | Plastic (typically HDPE Or PP) | ||
| Highlight | 5000L water tank blow molding machine,dual-layer water tank molding machine,high-performance co-extrusion blow molder |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This 5000L dual-layer blow molding machine is designed for producing high-quality multi-layer water tanks. The dual-layer co-extrusion system allows for enhanced material flexibility and improved product performance. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
Auto Feeder |
||
|
hopper material |
不锈钢stainless steel |
Stable performance, easy maintenance |
|
feeding type |
弹簧上料spring loaded |
|
|
feeding motor |
2.2/2.2kw |
|
|
Extrusion System |
||
|
Screw diameter |
150/150mm |
Nitrided 38CrMoAIA |
|
Screw L/D ratio |
30:1 |
special designed screw can ensure the material plasticizing uniform and efficient |
|
Extruder motor |
160/160kw |
|
|
ucer |
420/420 |
Best quality brand in china ,long life and low noise |
|
heating power |
6kw*14 |
|
|
Plasticizing capacity |
1000kg/h |
|
