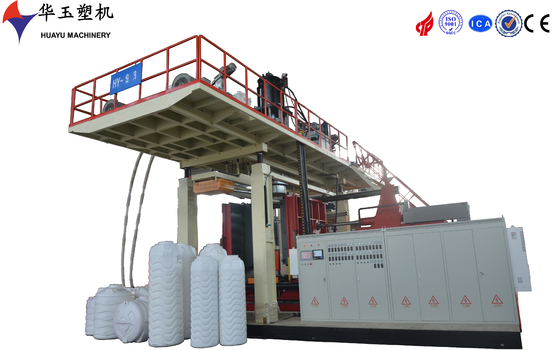

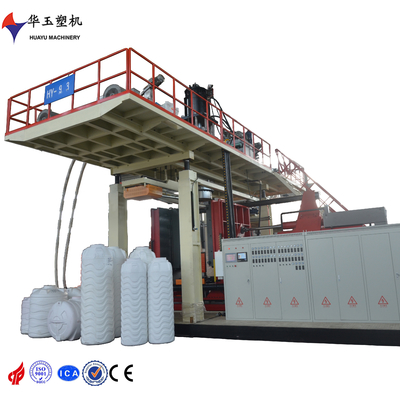

5000L Quad-Layer Large Capacity Water Tank Blow Molding Machine with Precision Temperature Control
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 |
| Model Number | HYBM5004 |
| Minimum Order Quantity | 1 SET |
| Price | 460,000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Displacement Pickup | Jefran | Size | Customized |
|---|---|---|---|
| Product Material | HDPE | Distance Between Platens | 1400-3800mm |
| Range | WATER Tank | Recyclability | Recyclable |
| Clamping Cylinder Stroke | 2000mm | Plc Brand | Siemens |
| Machine Weight | 5000 Kg To 15000 Kg | Mian Oil Pump | Gear Pump160cc |
| Clamping Force | 1000 KN To 5000 KN | Screw Dia | 150mmx1 |
| Displacement Pickup | Jefran | Product | Water Tank,other Plastic Product |
| Total Power | 455kw | ||
| Highlight | 5000L water tank blow molding machine,quad-layer large capacity blow molding machine,precision temperature control blow molding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This 5000L quad-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The quad-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, and superior mechanical strength. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
die head |
||
|
Accumulator capacity |
150kg |
designed by ourselves and get the patent |
|
Die diameter |
According to products |
|
|
Die head heating power |
100kw |
|
|
Clamping System |
||
|
platen size |
2400*2500*60mm(W*H*T) |
smooth running, no noise; the clamping force is big |
|
clamping cylinder |
350+200*2 |
|
|
clamping cylinder stroke |
2500mm |
|
|
clamping force |
3000KN |
|
|
distance between platens |
1500-4000mm |
|
|
max. mould size |
2200*2500mm(W*H) |
|
