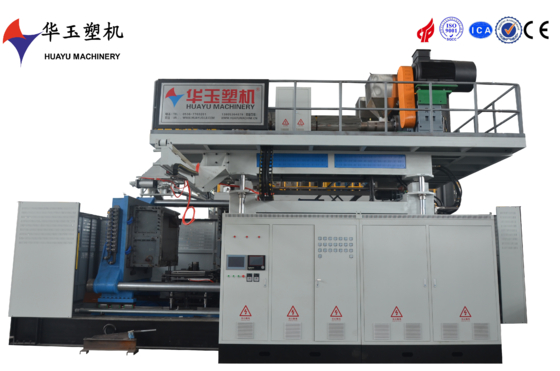

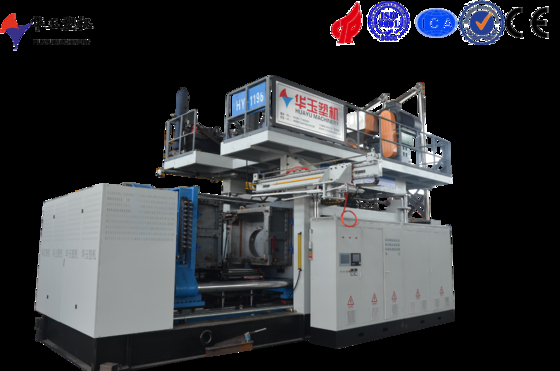

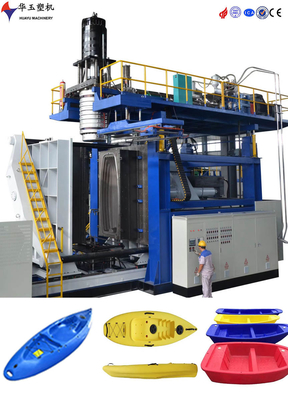

HUAYU 5000L Eight-Layer Large Capacity Water Tank Blow Molding Machine with Advanced UV Protection
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUAYU |
| Certification | ISO9001 CE |
| Model Number | HYBM5008 |
| Minimum Order Quantity | 1 SET |
| Price | 560,000 USD |
| Packaging Details | be disassembled into many parts for container transportation |
| Delivery Time | 4 MONTHS |
| Payment Terms | L/C,T/T |
| Supply Ability | 1SET 120DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Platen Distance | 1100-2500MM | Attribute | Drawings Customize |
|---|---|---|---|
| Automation Grade | Automatic | Key Words | Servo Motor, Remote Control |
| Average Power Consumption | 247kw | Water Pressure | 0.3MPa |
| Screw Heating Power | 4.4kw*24 | Displacement Pickup | Jefran |
| Hydraulic Oil Seal | DZ | Moulding Method | Blow Moulding |
| Clamping Cylinder | 350+200*2 | Automation Level | Fully Automatic |
| Machine Demesion | 8.5*6*7.2 | Motor | Siemens |
| Gear Box | Guomao | ||
| Highlight | 5000L water tank blow molding machine,eight-layer water tank molding machine,UV protection blow molding machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
This 5000L eight-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The eight-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, excellent thermal stability, superior chemical resistance, advanced UV protection, and superior oxygen barrier. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Suitable for industries requiring durable and reliable multi-layer water tanks, this machine offers easy maintenance and long-term reliability.
|
Electronic system |
||
|
Main operation panel |
Touch screen 9" |
|
|
Control system |
PLC |
|
|
Thickness control points |
200 points |
|
|
Temperature control |
PLC module |
|
|
main frame |
||
|
Up/down stroke |
500mm |
|
|
Up/down motor |
4kw |
|
